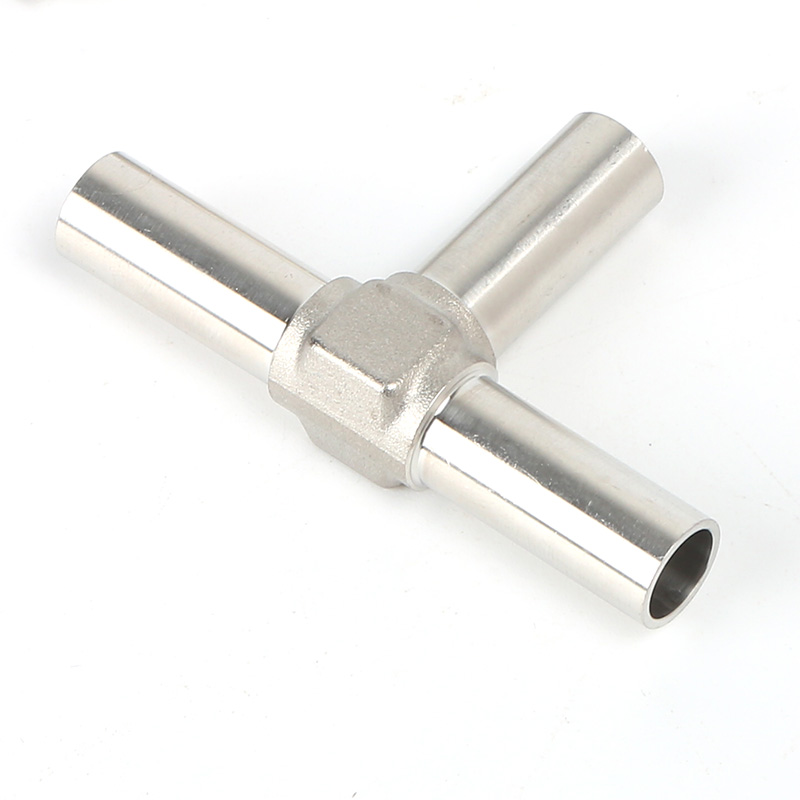

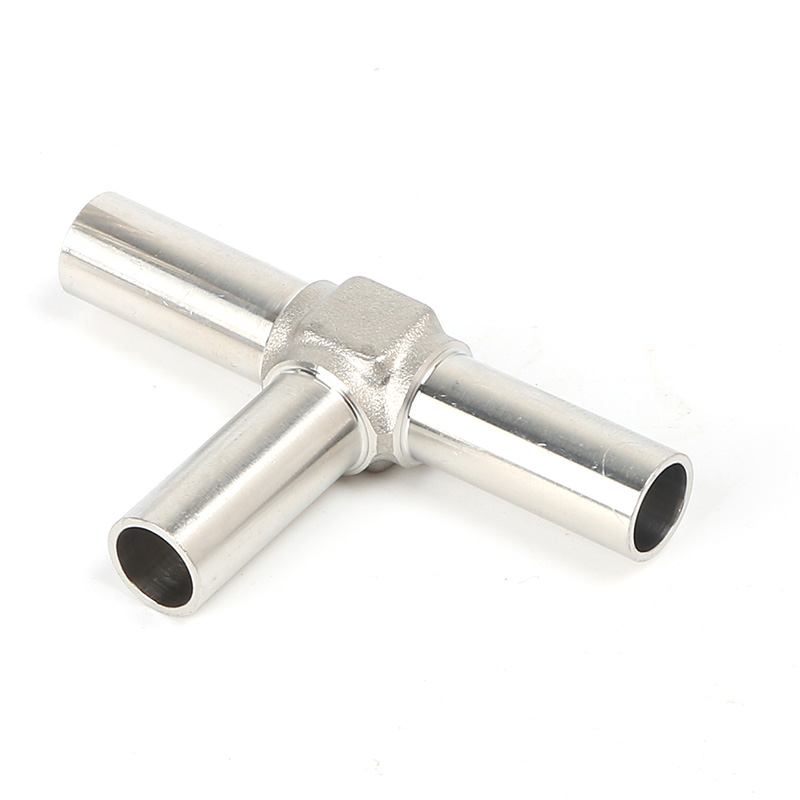

SS316L Ultra High Purity Tube Long Tee Weld Fittings UHP Automatic Orbital Tee Stainless Steel Tee Weld Fittings for Ultra-High Purity

B Series – Tube Butt Weld Fittings

Features

* Extended tube design

* Sizes range from 1/8″ to 1/2″, and 6 mm to 12 mm

* Machined from forging blanks except for straight configurations

* Elbows with radius junction to provide smooth flow path

* Precision machined to match tube diameter

* Burr-free tube ends to enhance alignment

* 100% visual inspection on key parts under magnifier and good light conditions

* Standard surface roughness finished to an average of Ra 10 μin. (0.25 μm) or electropolished to Ra 5 μin. (0.13 μm)

* Permanent traceable identification marked on each fitting

Weld fittings are available in butt weld, socket weld, automatic tube weld and as metal gasket face seal fittings.

Weld fittings for Ultra-high purity applications

For ultra-high purity applications, Weld fittings are electro-polished and packed in triple vinyl bags in a Class 10 environment. Weld Fitting features include:

• Tapered socket weld ports to speed layout for proper tube fit and tube alignment.
• Automatic tube weld and butt weld design
• Size range from 1/8″ thru 1″ O.D. tubing
• Mini and long tube end design

Benefits

Weld fittings are high quality, so they will perform well under a multitude of conditions, minimizing contamination or unwarranted failure. Using a proven manufacturing approach,Consistently exceeds the required performance requirements and offers exceptional results for all industries requiring weld fittings to get their jobs done.

One of our representatives will gladly assist you with your production selection or answer any questions you may have regarding our fittings.

Instrument Weld Fittings

These various fittings have been strategically engineered and designed so they can serve a wide range of applications safely and accurately. These are designed to be used in chemical, pulp and paper, dairy, pharmaceutical, power generation, food, marine construction or ship building, beverage and all other kinds of industries requiring high-purity fittings. Whether your application requires 316 stainless, metric, imperial or special fitting needs,USA has what you need. Our fittings include the union, union elbow, union tee, male connector, female connector, male elbow, female elbow, pipe weld to tube socket weld, tube weld to tube socket weld and more.
