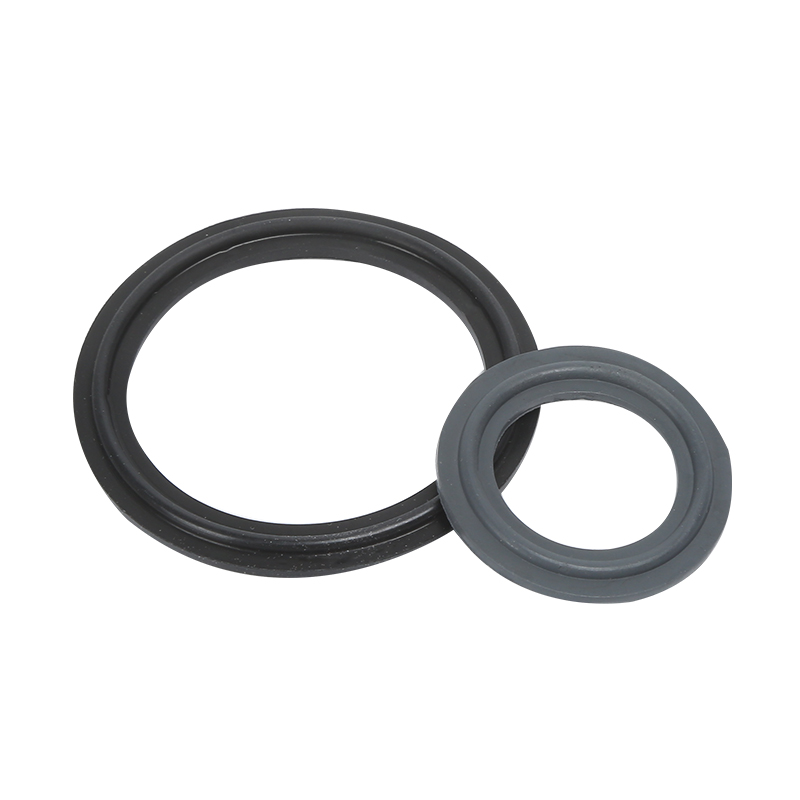

SFC01 3A/DIN Sanitary Tri Clamp Gasket Silicon/EPDM/FKM/PTFE

Application

Sanitary Clamp Type Gaskets are one of the most common used gaskets today. The gasket of choice throughout the sanitary process industries. These are offered in a wide range of materials. This connection is made up of stainless steel ferrules with the gasket pressed in between. The clamp goes over the sides of the ferrules and compresses the two together. This is a fast, easy, come- together connection that is sanitary.

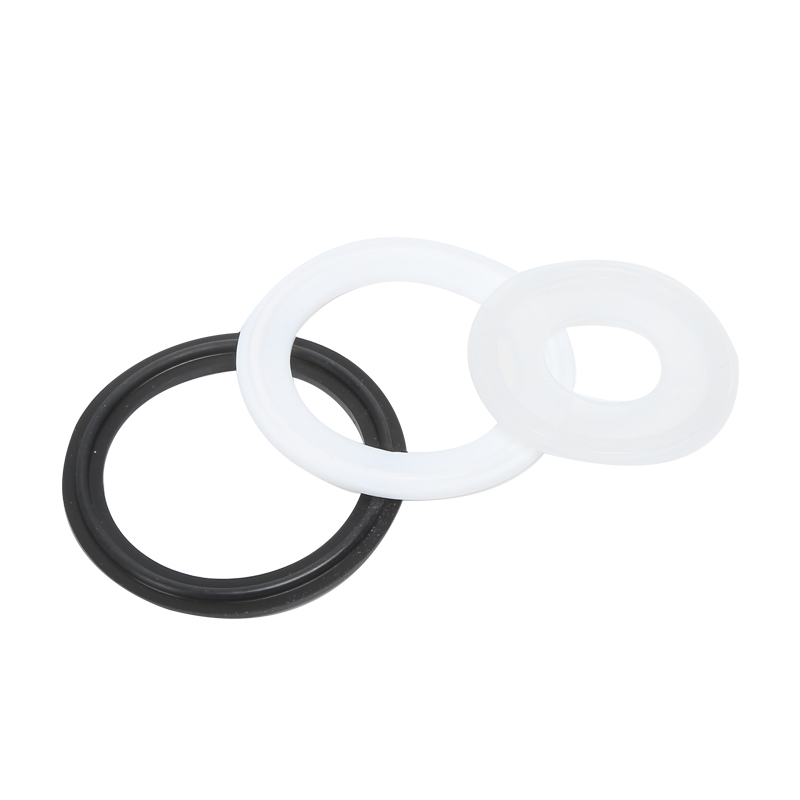

Materials

•  FKM per FDA 177.2600

• EPDM per FDA 177.2600

• Silicon per FDA 177.2600

• NBR per FDA 177.2600

• PTFE per FDA 177.2600

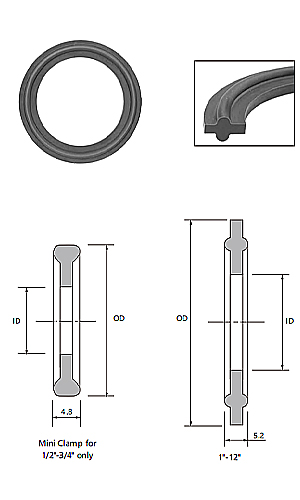

Avaiable Sizies

• Mini Clamp1/2"-3/4"

• 1"-12"

Gasket Fea

3A Clamp Gasket

	Model				Size	OD/mm	ID/mm
	White/Blue/Red	Black	Grey/Green	White
	Silicon	EPDM	FKM	PTFE
	SFC0111050	SFC0121050	SFC0131050	SFC0151050	1/2"	22	9.5
	SFC0111075	SFC0121075	SFC0131075	SFC0151075	3/4"	22	15.9
	SFC0111100	SFC0121100	SFC0131100	SFC0151100	1"	50.5	22.9
	SFC0111150	SFC0121150	SFC0131150	SFC0151150	11/2"	50.5	35.6
	SFC0111200	SFC0121200	SFC0131200	SFC0151200	2"	64	48
	SFC0111250	SFC0121250	SFC0131250	SFC0151250	21/2"	77.5	60.2
	SFC0111300	SFC0121300	SFC0131300	SFC0151300	3"	91	73.3
	SFC0111400	SFC0121400	SFC0131400	SFC0151400	4"	119	97.8
	SFC0111450	SFC0121450	SFC0131450	SFC0151450	4.5"	130	110.5
	SFC0111500	SFC0121500	SFC0131500	SFC0151500	5"	145	121.8
	SFC0111600	SFC0121600	SFC0131600	SFC0151600	6"	167	147.2
	SFC0111800	SFC0121800	SFC0131800	SFC0151800	8"	217.4	198
	SFC01111000	SFC01211000	SFC01311000	SFC01511000	10"	268	246.5
	SFC01111200	SFC01211200	SFC01311200	SFC01511200	12"	319	298

DIN Clamp Gasket

	Model				Size	OD/mm	ID/mm
	White/Blue/Red	Black	Grey/Green	White
	Silicon	EPDM	FKM	PTFE
	SFC0112010	SFC0122010	SFC0132010	SFC0152010	DN10	34	10
	SFC0112015	SFC0122015	SFC0132015	SFC0152015	DN15	34	16
	SFC0112020	SFC0122020	SFC0132020	SFC0152020	DN20	34	20
	SFC0112025	SFC0122025	SFC0132025	SFC0152025	DN25	50.5	26
	SFC0112032	SFC0122032	SFC0132032	SFC0152032	DN32	50.5	32
	SFC0112040	SFC0122040	SFC0132040	SFC0152040	DN40	50.5	38
	SFC0112050	SFC0122050	SFC0132050	SFC0152050	DN50	64	50
	SFC0112065	SFC0122065	SFC0132065	SFC0152065	DN65	91	66
	SFC0112080	SFC0122080	SFC0132080	SFC0152080	DN80	106	81
	SFC0112100	SFC0122100	SFC0132100	SFC0152100	DN100	119	100
	SFC0112125	SFC0122125	SFC0132125	SFC0152125	DN125	145	125
	SFC0112150	SFC0122150	SFC0132150	SFC0152150	DN150	167	150
	SFC0112200	SFC0122200	SFC0132200	SFC0152200	DN200	217.4	200
	SFC0112125S2	SFC012125S2	SFC0132125S2	SFC0152125S2	DN125*	155	125
	SFC0112150S2	SFC0122150S2	SFC0132150S2	SFC0152150S2	DN150*	183	150
	SFC0112200S2	SFC0122200S2	SFC0132200S2	SFC0152200S2	DN200*	233.5	200
	SFC0112250	SFC0122250	SFC0132250	SFC0152250	DN250	268	250
	SFC0112300	SFC0122200	SFC0132300	SFC0152300	DN300	319	300
