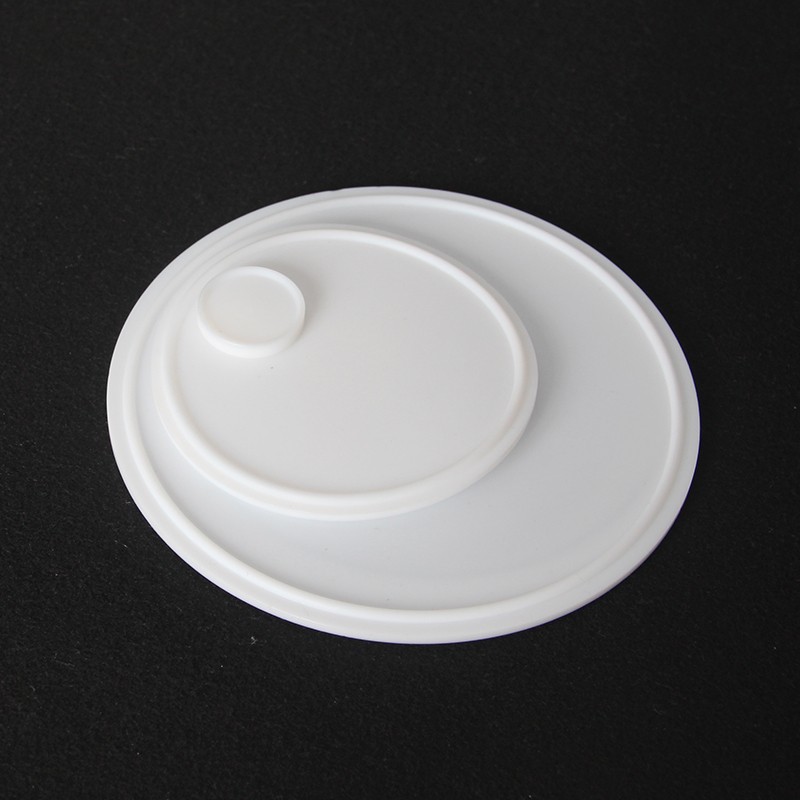

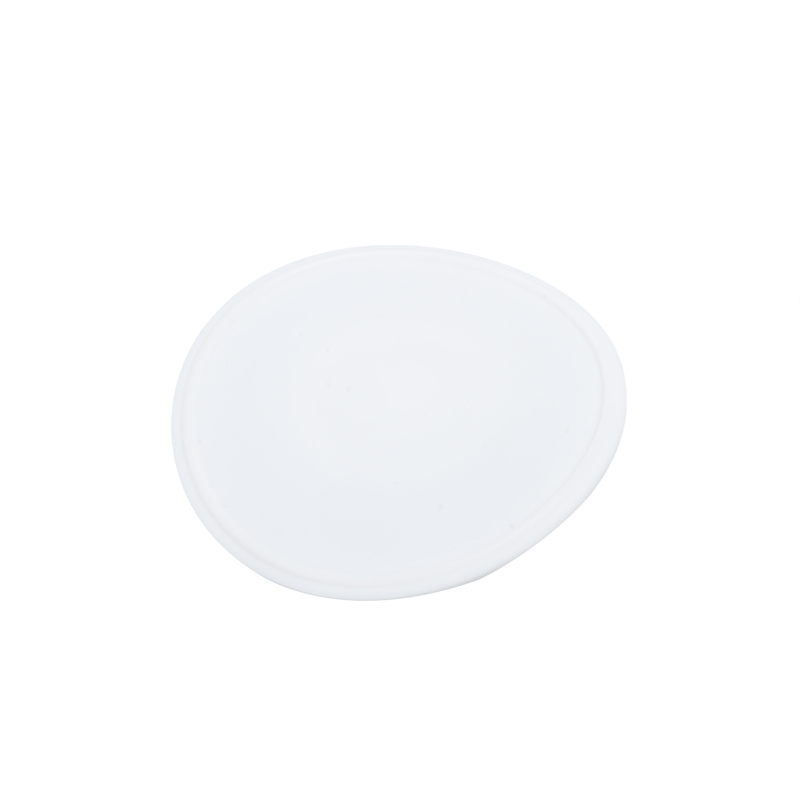

SFC04 3A Blank Clamp Gasket Sanitary Silicon/EPDM/FKM/PTFE

Application

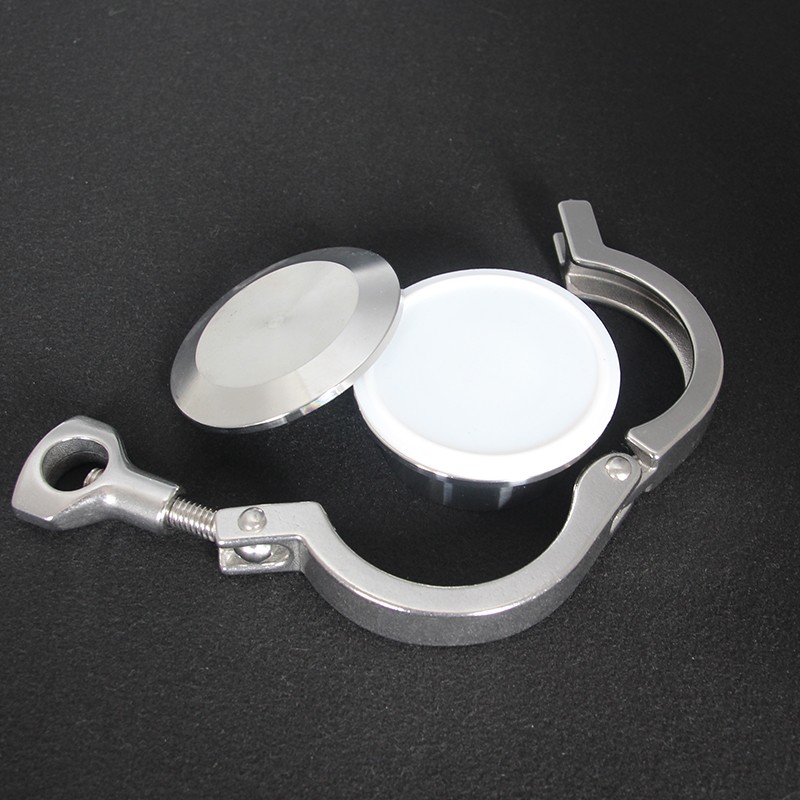

Sanitary Clamp Type Gaskets are one of the most common used gaskets today. The gasket of choice throughout the sanitary process industries. These are offered in a wide range of materials. This connection is made up of stainless steel ferrules with the gasket pressed in between. The clamp goes over the sides of the ferrules and compresses the two together. This is a fast, easy, come- together connection that is sanitary.

Materials

•  FKM per FDA 177.2600

• EPDM per FDA 177.2600

• Silicon per FDA 177.2600

• NBR per FDA 177.2600

• PTFE per FDA 177.2600

Avaiable Sizies

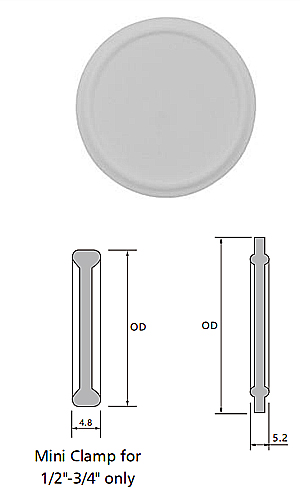

• Mini Clamp1/2"-3/4"

• 1"-12"

Gasket Fea

3A Clamp Gasket

	Model				Size	OD/mm
	White/Blue/Red	Black	Grey/Green	White
	Silicon	EPDM	FKM	PTFE
	SFC0411050	SFC0421050	SFC0431050	SFC0451050	1/2"	22
	SFC0411075	SFC0421075	SFC0431075	SFC0451075	3/4"	22
	SFC0411100	SFC0421100	SFC0431100	SFC0451100	1"	50.5
	SFC0411150	SFC0421150	SFC0431150	SFC0451150	11/2"	50.5
	SFC0411200	SFC0421200	SFC0431200	SFC0451200	2"	64
	SFC0411250	SFC0421250	SFC0431250	SFC0451250	21/2"	77.5
	SFC0411300	SFC0421300	SFC0431300	SFC0451300	3"	91
	SFC0411400	SFC0421400	SFC0431400	SFC0451400	4"	119
	SFC0411450	SFC0421450	SFC0431450	SFC0451450	4.5"	130
	SFC0411500	SFC0421500	SFC0431500	SFC0451500	5"	145
	SFC0411600	SFC0421600	SFC0431600	SFC0451600	6"	167
	SFC0411800	SFC0421800	SFC0431800	SFC0451800	8"	217.4
