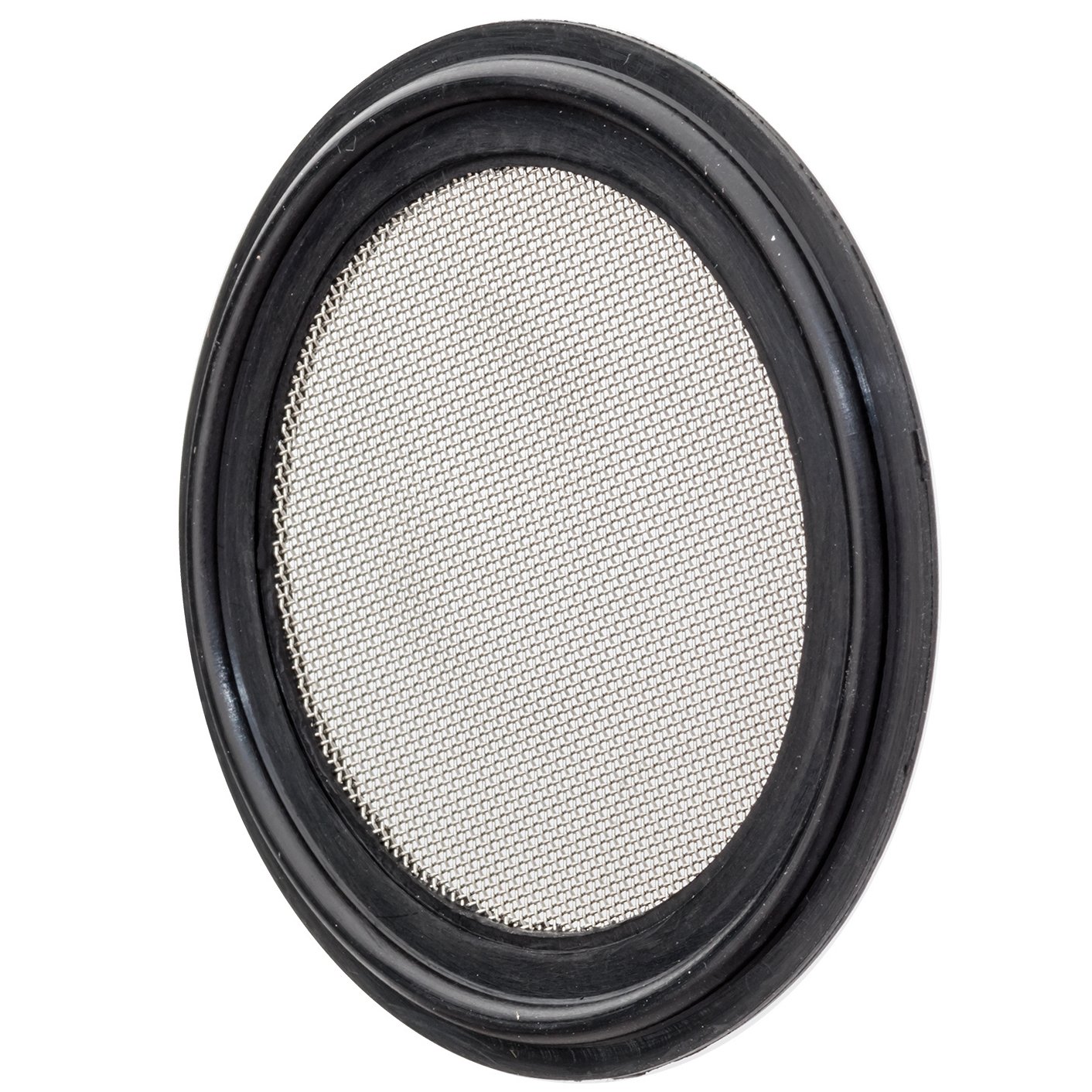

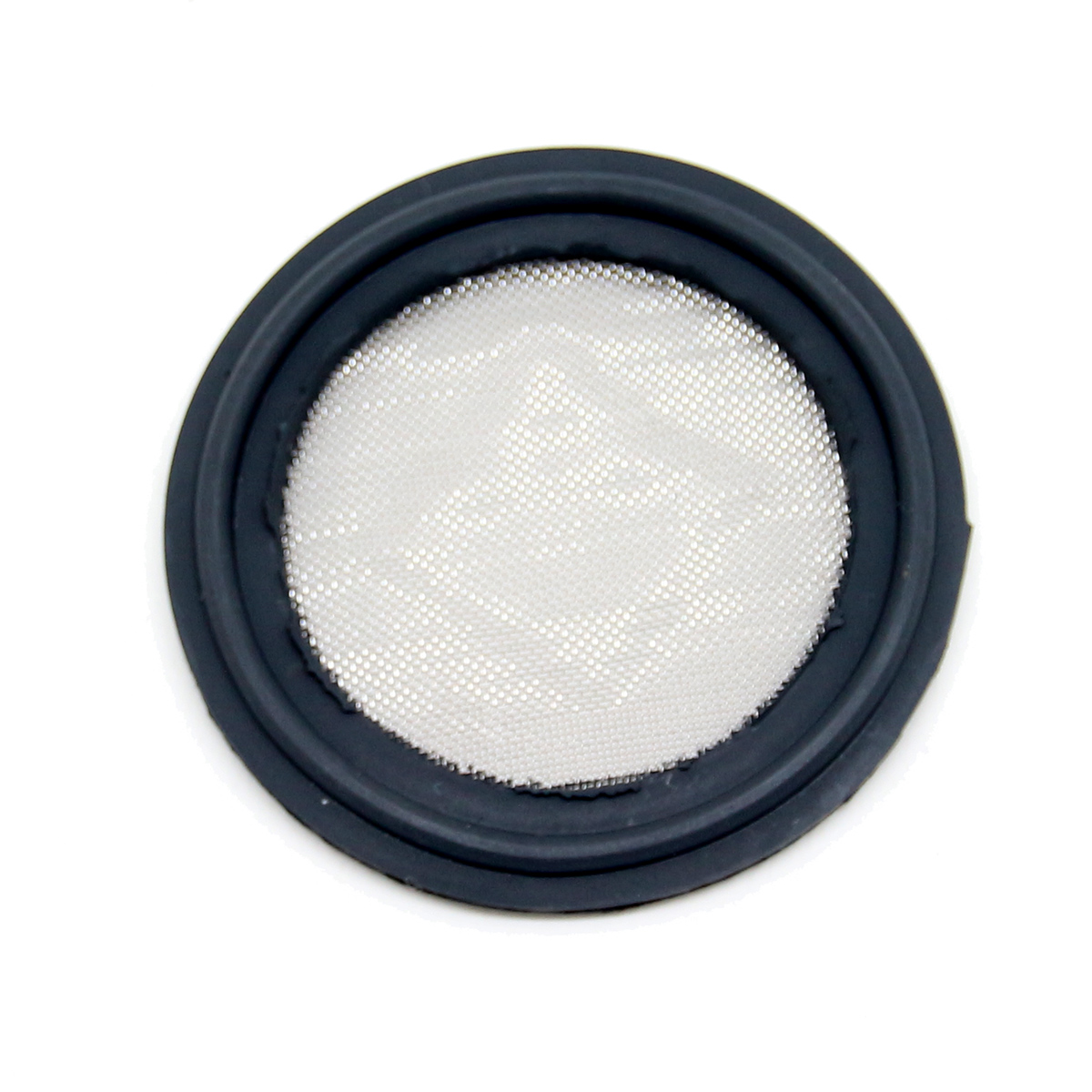

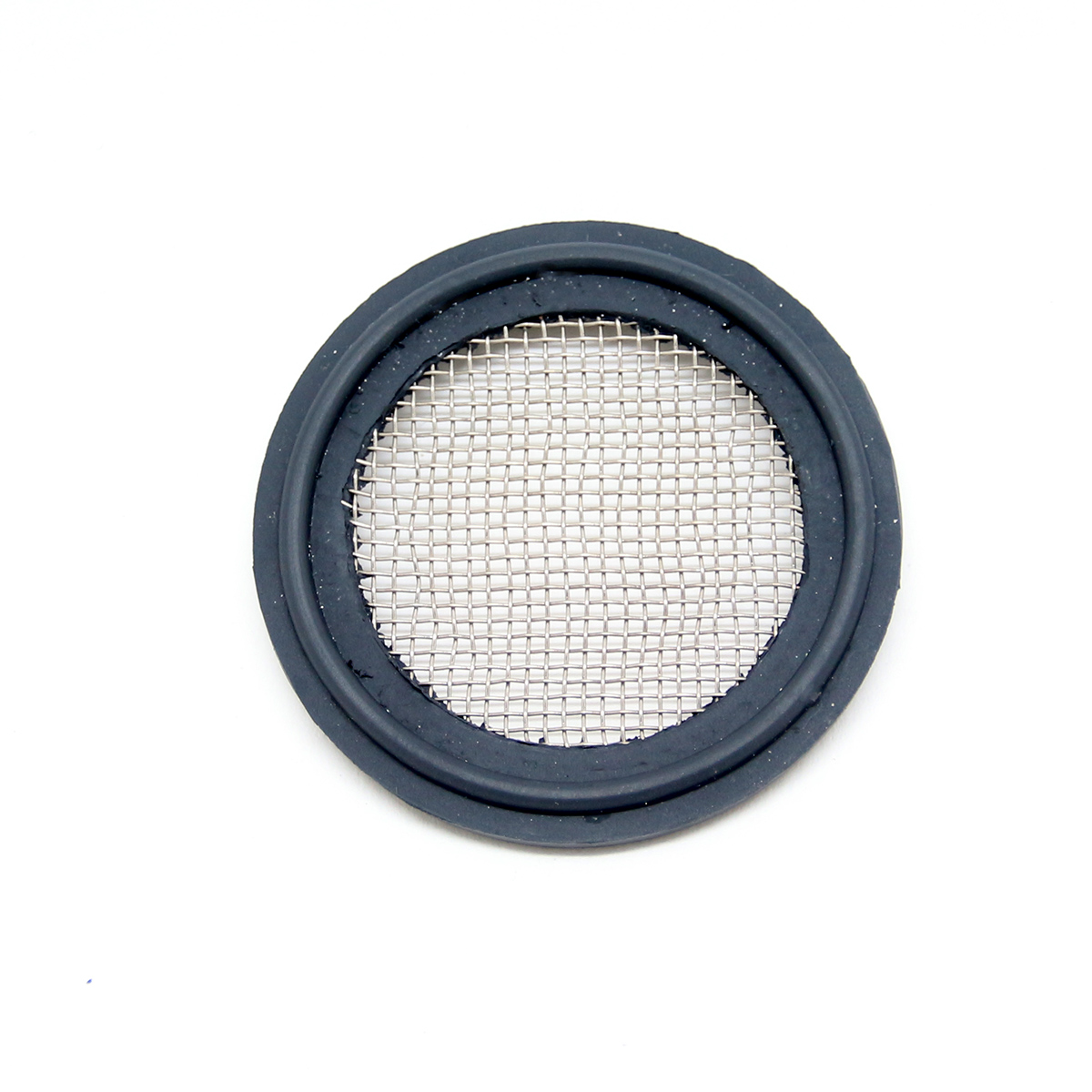

SFC03 3A/DIN Sanitary Screen Tri Clamp Gasket Silicon/EPDM/FKM/PTFE 10.20.40.60.100.150Mesh

Application

Tri-clamp screen gaskets are designed to be interchangeable with standard sanitary clamp gaskets to protect pump, values and other components in fluid line.It has the widest ranges of mesh sizes for excellent and efficient particulates collection and filtration in water,acetones and ketones transmission. EPDM, PTFE, viton, Buna and silicon gasket material options supply perfect performance in corrosive and chemical fluid transmission.

Materials

•  FKM per FDA 177.2600

• EPDM per FDA 177.2600

• Silicon per FDA 177.2600

• NBR per FDA 177.2600

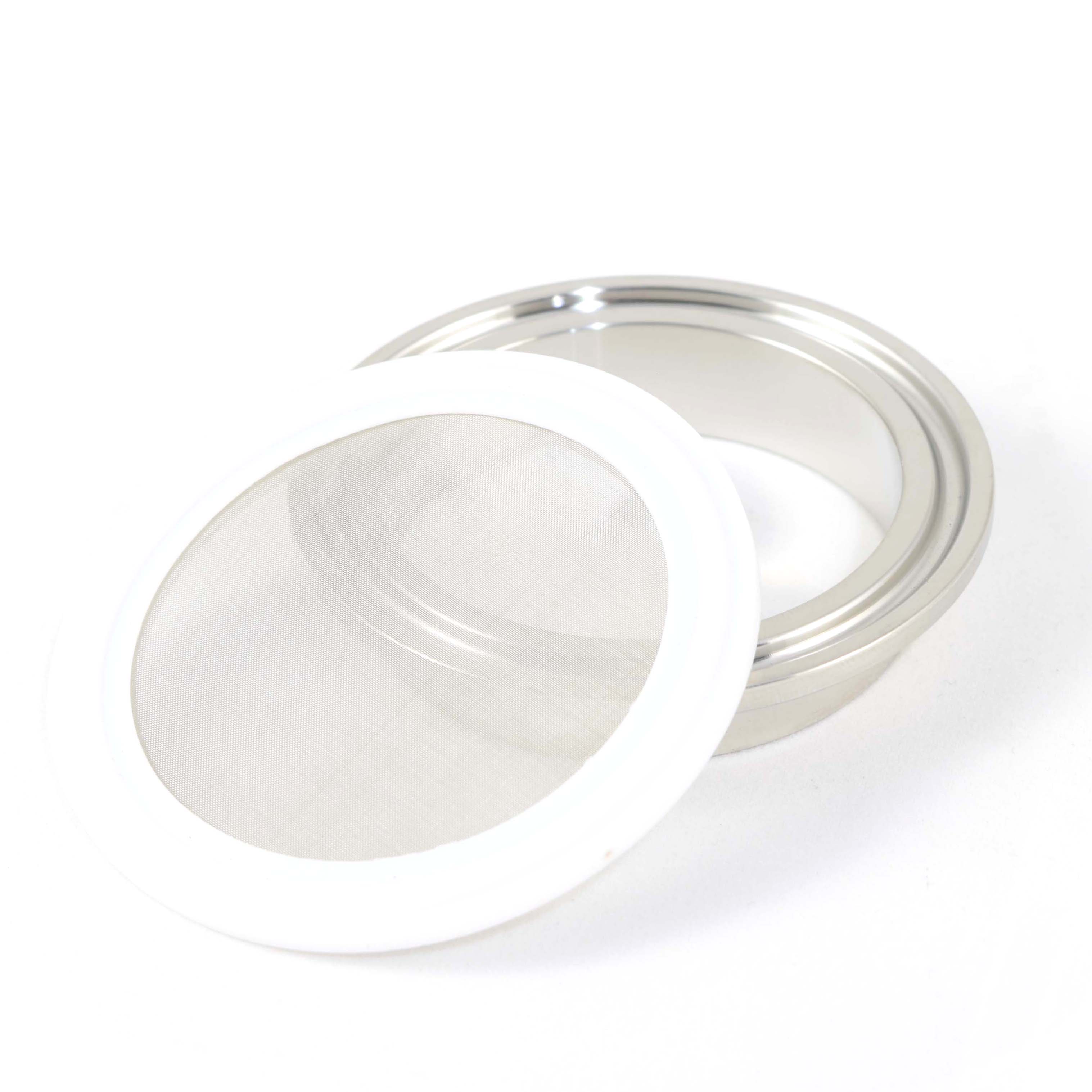

• PTFE per FDA 177.2600

Avaiable Sizies

• Mini Clamp1/2"-3/4"

• 1"-12"

Screnn Materials

*SS304 Wires

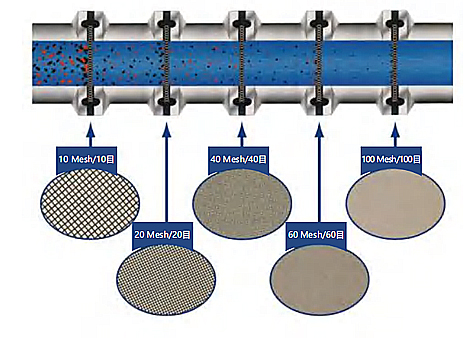

Screen Mesh Size

• Standard: 10, 20, 40, 60, 100 and 150 mesh

• Optional: 5, 30, 80, 200 and 325 mesh

Gasket Fea

	Mash	Micron                 retention	Wire	Aperture	Open Area
	Opening/in2		mm	mm	%
	10	1905	0.56	2	60
	20	864	0.32	0.9	57
	30	516	0.25	0.5	51
	40	381	0.22	0.4	41
	60	233	0.16	0.24	38
	80	180	0.125	0.14	38
	100	140	0.1	0.14	38
	150	103	0.063	0.1	38
	200	74	0.05	0.08	38

3A Screen Clamp Gasket

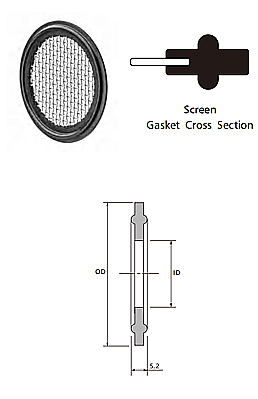

	Model				Size	OD/mm	ID/mm
	White/Blue/Red	Black	Grey/Green	White
	Silicon	EPDM	FKM	PTFE
	SFC0311100	SFC0321100	SFC0331100	SFC0351100	1"	50.5	22.9
	SFC0311150	SFC0321150	SFC0331150	SFC0351150	11/2"	50.5	35.6
	SFC0311200	SFC0321200	SFC0331200	SFC0351200	2"	64	48
	SFC0311250	SFC0321250	SFC0331250	SFC0351250	21/2"	77.5	60.2
	SFC0311300	SFC0321300	SFC0331300	SFC0351300	3"	91	73.3
	SFC0311400	SFC0321400	SFC0331400	SFC0351400	4"	119	97.8
	SFC0311450	SFC0321450	SFC0331450	SFC0351450	4.5"	130	110.5
	SFC0311500	SFC0321500	SFC0331500	SFC0351500	5"	145	121.8
	SFC0311600	SFC0321600	SFC0331600	SFC0351600	6"	167	147.2
	SFC0311800	SFC0321800	SFC0331800	SFC0351800	8"	217.4	198

DIN Screen Clamp Gasket

	Model				Size	OD/mm	ID/mm
	White/Blue/Red	Black	Grey/Green	White
	Silicon	EPDM	FKM	PTFE
	SFC0312010	SFC0322010	SFC0332010	SFC0352010	DN10	34	10
	SFC0312015	SFC0322015	SFC0332015	SFC0352015	DN15	34	16
	SFC0312020	SFC0322020	SFC0332020	SFC0352020	DN20	34	20
	SFC0312025	SFC0322025	SFC0332025	SFC0352025	DN25	50.5	26
	SFC0312032	SFC0322032	SFC0332032	SFC0352032	DN32	50.5	32
	SFC0312040	SFC0322040	SFC0332040	SFC0352040	DN40	50.5	38
	SFC0312050	SFC0322050	SFC0332050	SFC0352050	DN50	64	50
	SFC0312065	SFC0322065	SFC0332065	SFC0352065	DN65	91	66
	SFC0312080	SFC0322080	SFC0332080	SFC0352080	DN80	106	81
	SFC0312100	SFC0322100	SFC0332100	SFC0352100	DN100	119	100
	SFC0312125	SFC0322125	SFC0332125	SFC0352125	DN125	145	125
	SFC0312150	SFC0322150	SFC0332150	SFC0352150	DN150	167	150
	SFC0312200	SFC0322200	SFC0332200	SFC0352200	DN200	217.4	200
	SFC0312125S2	SFC032125S2	SFC0332125S2	SFC0352125S2	DN125*	155	125
	SFC0312150S2	SFC0322150S2	SFC0332150S2	SFC0352150S2	DN150*	183	150
	SFC0312200S2	SFC0322200S2	SFC0332200S2	SFC0352200S2	DN200*	233.5	200
