CF Flange Plastic Cap White PE

CF FLANGE SERIES

CF flanges are available with tapped or untapped holes. Tapped flanges are available in UNC/UNF or metric threads. Tapped flanges have through holes, so bolts may protrude slightly from the back of the flange when fastened to an untapped flange. Untapped CF flanges can be fastened to each other with stainless steel bolts and hex nuts or plate nuts. Plate nuts center themselves over two adjacent holes and can be held in place with one finger while the bolts are tightened. They are available for most flange sizes from 1 1/3 to 10 inch (33.96-254mm) ODs. As an alternative to hex head bolts, 12-point bolts are available for CF flanges from 2 3/4 to 10 inch (33.96 to 354mm) ODs. Silver plated bolts eliminate the need for anti-seize compound in clean room environments.

Assembly Instructions for CF Flanges

1. Apply a small amount of high temperature anti-seize compound to the bolt threads.
2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.
3. Using clean, lint free gloves, unpack gasket.
4. Place gasket in the knife edge counterbore of nonrotatable flange.
5. Align the mating hole pattern and leak test grooves.
6. Install the proper bolts and tighten hand tight. Check to see that the flange faces are parallel.
7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.
8. Torque the fasteners to the listed value using the same pattern.

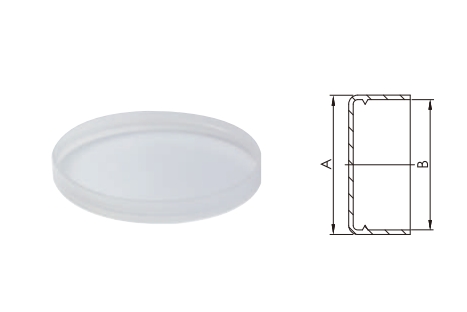

CF Flange Plastic Cap

*Material: White PE

	Model for White PE	Size	A/mm	B/mm
	CPV011F16W1	CF16	36.2	34.2
	CPV011F25W1	CF25	56.4	54
	CPV011F35W1	CF35	72.1	70.1
	CPV011F50W1	CF50	88.5	85.9
	CPV011F63W1	CF63	118.3	113.5
	CPV011F80W1	CF80	120.5	117.6
	CPV011F100W1	CF100	156.4	151.6
	CPV011F130W1	CF130	173.8	171.6
	CPV011F160W1	CF160	206	202
	CPV011F200W1	CF200	258	254
	CPV011F250W1	CF250	309	304.6
	CPV011F270W1	CF270	341.1	336.7
	CPV011F300W1	CF300	360.1	355.7
