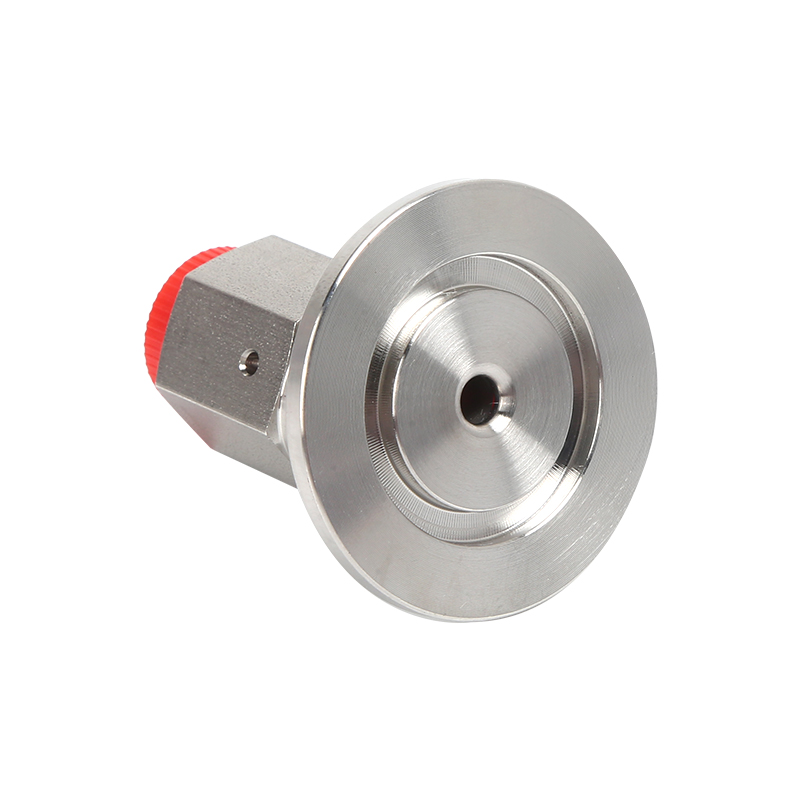

VCR Female Adaptor

Applications

ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

VCR Female Adaptor/内丝VCR接头

* Material: SS304   , *材质：SS304

	PT Thread	PT Thread	Size	A/mm	B/mm	C/mm
	FDF811K160254	FDF812K160254	KF16	37	17	1/4″
	FDF811K160504	FDF812K160505	KF16	41	17	1/2″
	FDF811K250254	FDF812K250255	KF25	37	26	1/4″
	FDF811K250504	FDF812K250505	KF25	41	26	1/2″
	FDF811K400254	FDF812K400255	KF40	37	41	1/4″
	FDF811K400504	FDF812K400505	KF40	41	41	1/2″
	FDF811K500254	FDF812K500255	KF50	37	52	1/4″
	FDF811K500504	FDF812K500505	KF50	41	52	1/2″
