Sanitary Rotor Lobe Pump

Application

QLP Series sanitary lobe pump are used in a variety of industries including food, beverage, pharmaceutical, chemical and biotechnology. They offer superb sanitary qualities, high efficiency, reliability, corrosion resistance, and good clean-in-place and sterilize-in-place (CIP/SIP) characteristics.

Materials

• Body Materials: AISI-304 / AISI-316L

• O ring Material: FPM/Silicon/Tetrafluorine/EPDM/PTFE

• Mechanical seal material: AISI-304 / AISI-316L

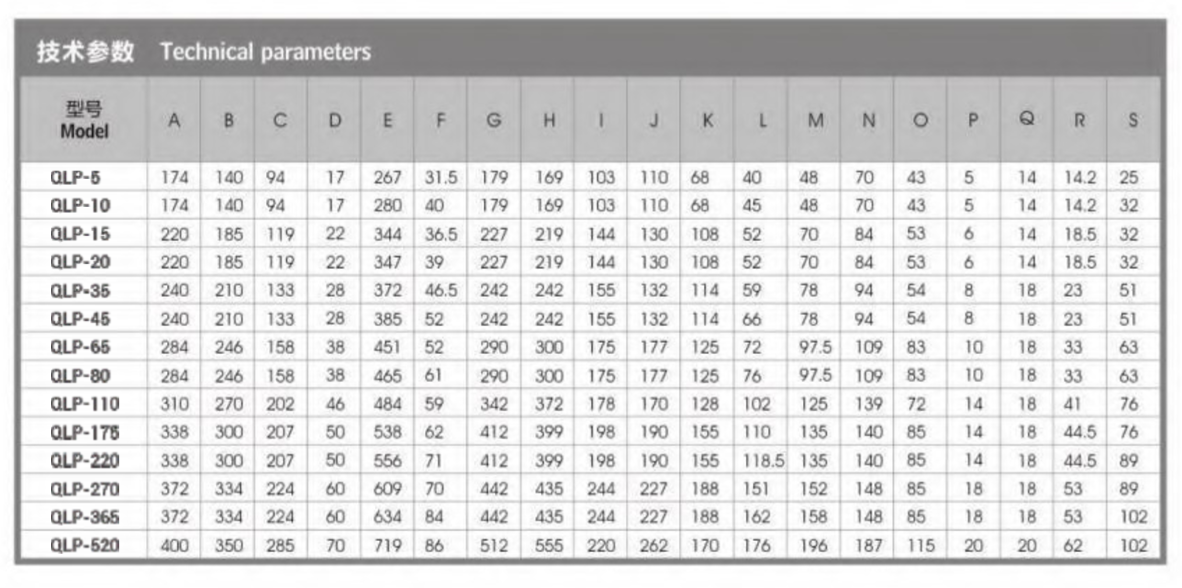

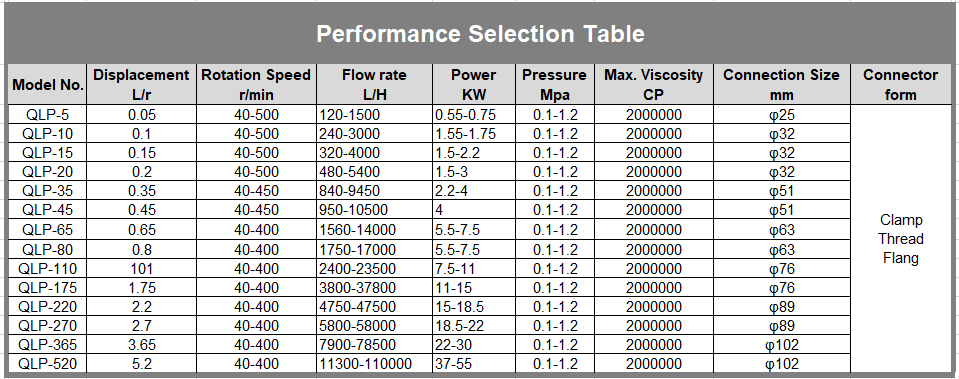

Technical Specification

• Temperature Range:-20~+120℃(EPDM)

• Voltage:AC 220V, 380V, 460V, 690V, 50HZ, 60HZ

•

•

How the lobe pump working?

The Rotor Van Selection

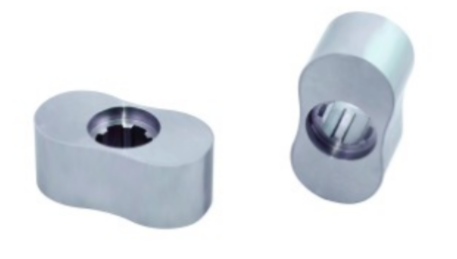

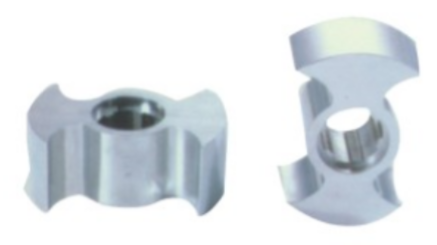

              Single impeller                                  Paddle wheel rotor                               Butterfly rotor                                           Tri-Clamp                                          Multi-impeller
