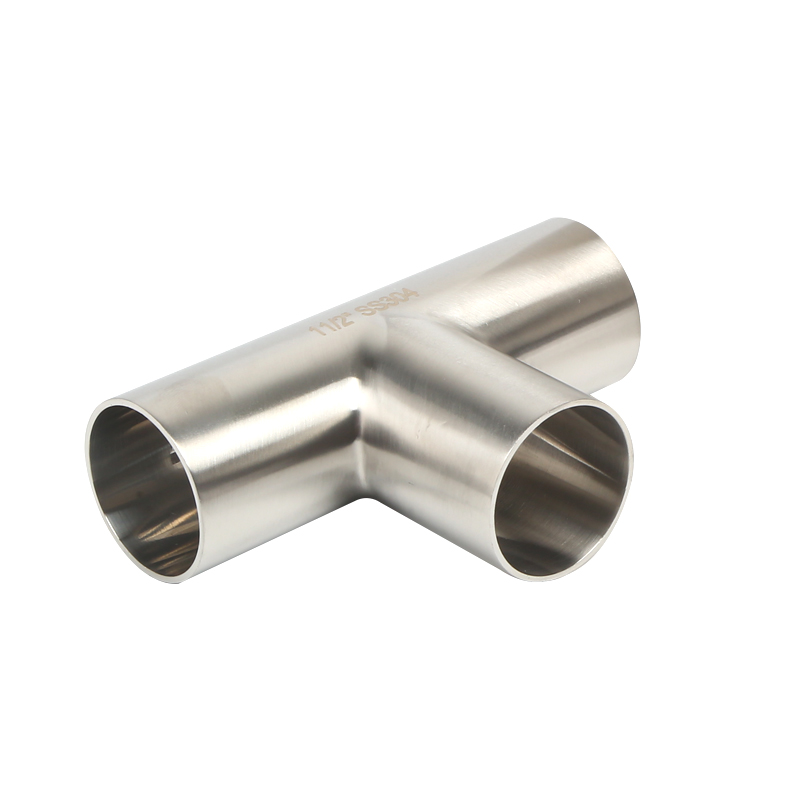

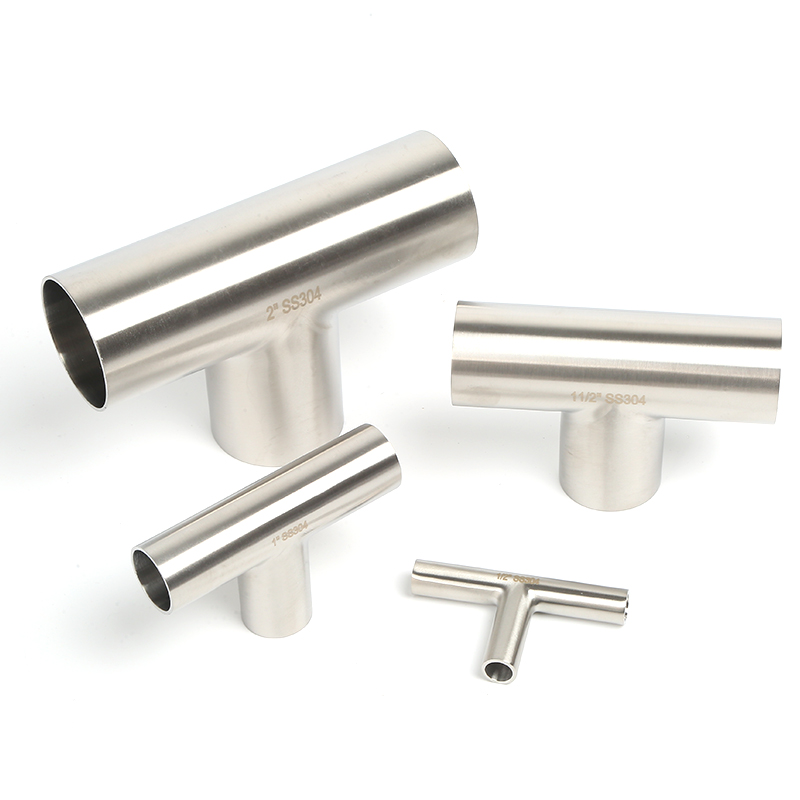

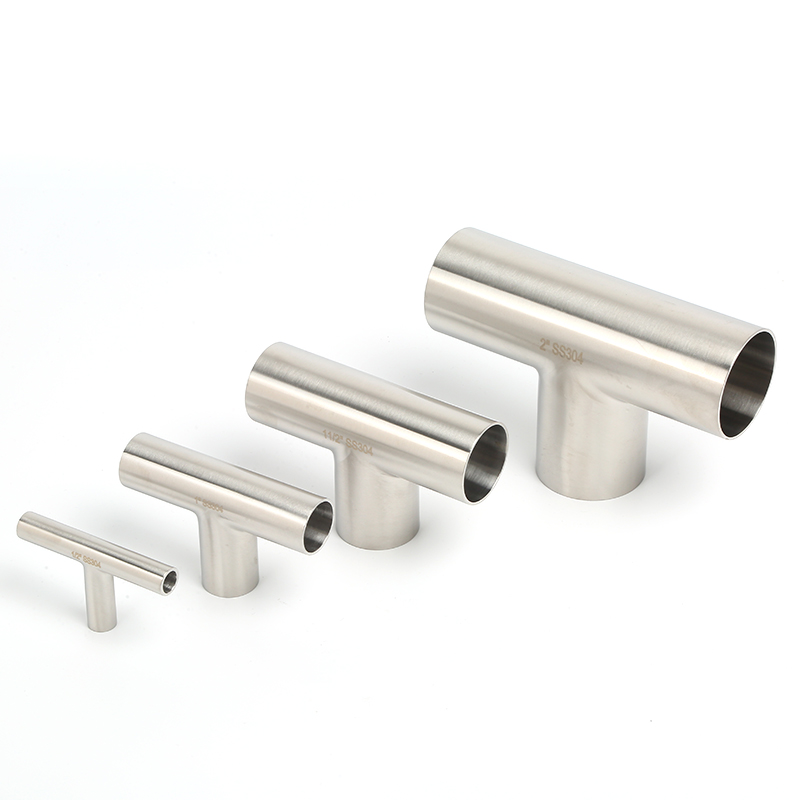

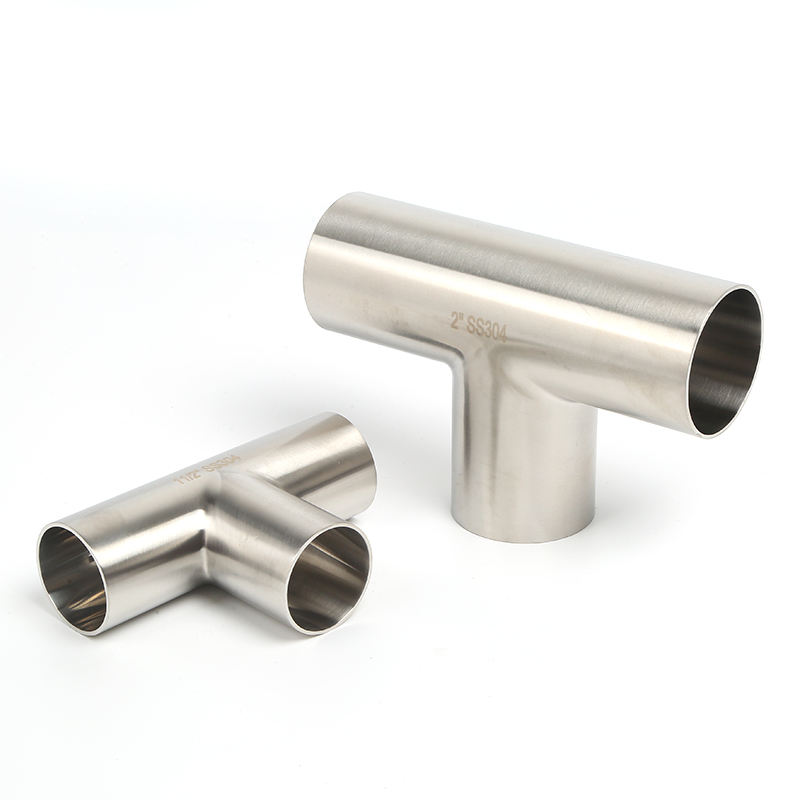

SS304 SS316L Weld Tee Sanitary DIN Equal Tee Stainless Steel Weld Fitting for Food Grade DIN Pipe Fitting

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

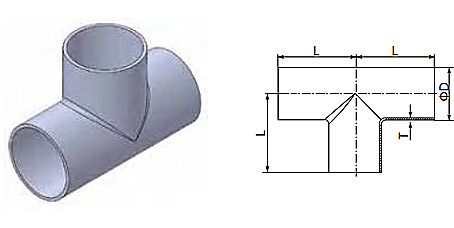

DIN Equal Tee

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FTW022010412S1	DN10	12	26	1.5
	FTW022010412S2	DN10	13	26	1.5
	FTW022015412S1	DN15	18	35	1.5
	FTW022015412S2	DN15	19	35	1.5
	FTW022020412S1	DN20	22	40	1.5
	FTW022020412S2	DN20	23	40	1.5
	FTW022025412S1	DN25	28	50	1.5
	FTW022025412S2	DN25	29	50	1.5
	FTW022032412S1	DN32	34	55	1.5
	FTW022032412S2	DN32	35	55	1.5
	FTW022040412S1	DN40	40	60	1.5
	FTW022040412S2	DN40	41	60	1.5
	FTW022020412S1	DN50	52	70	1.5
	FTW022050412S2	DN50	53	70	1.5
	FTW022065412S1	DN65	70	80	2
	FTW022080412S1	DN80	85	90	2
	FTW022100412S1	DN100	104	100	2
	FTW022125412S1	DN125	129	187	2
	FTW022150412S1	DN150	154	225	2
	FTW022200412S1	DN200	204	300	2
	FTW022250412S1	DN250	254	300	2
	FTW022300412S1	DN300	306	300	3

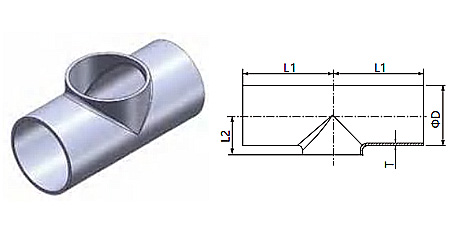

DIN Tee Short Outlet

	Model No	Size	D/mm	L1/mm	L2/mm	T/mm	N.W/g.
	FTW042010412S1	DN10	12	26	7.5	1.5
	FTW042010412S2	DN10	13	26	7.5	1.5
	FTW042015412S1	DN15	18	35	10.5	1.5
	FTW042015412S2	DN15	19	35	10.5	1.5
	FTW042020412S1	DN20	22	40	12.5	1.5
	FTW042020412S2	DN20	23	40	12.5	1.5
	FTW042025412S1	DN25	28	50	16	1.5
	FTW042025412S2	DN25	29	50	16	1.5	110
	FTW042032412S1	DN32	34	55	19.5	1.5	140
	FTW042032412S2	DN32	35	55	19.5	1.5	140
	FTW042040412S1	DN40	40	60	23	1.5	150
	FTW042040412S2	DN40	41	60	23	1.5	150
	FTW042020412S1	DN50	52	70	30	1.5	240
	FTW042050412S2	DN50	53	70	30	1.5	240
	FTW042065412S1	DN65	70	80	40	2	480
	FTW042080412S1	DN80	85	90	47.5	2	680
	FTW042100412S1	DN100	104	100	58	2	1000
	FTW042125412S1	DN125	129	187	74	2	2300
	FTW042150412S1	DN150	154	225	90	2	3300
	FTW042200412S1	DN200	204	300	115	2	5460
	FTW042250412S1	DN250	254	300	140	2
	FTW042300412S1	DN300	306	300	166	3

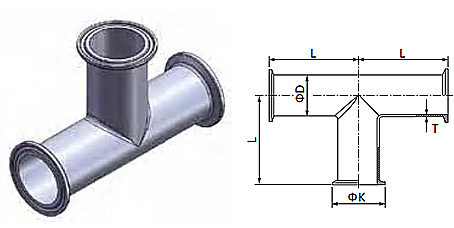

DIN Clamp Tee

	Model No	Size	D/mm	K/mm	L/mm	T/mm	N.W/g.
	FTC022010412S1	DN10	12	34	44	1.5
	FTC022015412S1	DN15	18	34	53	1.5
	FTC022020412S1	DN20	22	34	58	1.5
	FTC022025412S1	DN25	28	50.5	71	1.5
	FTC022032412S1	DN32	34	50.5	76	1.5
	FTC022040412S1	DN40	40	50.5	81	1.5
	FTC022020412S1	DN50	52	64	91	1.5
	FTC022065412S1	DN65	70	91	108	2
	FTC022080412S1	DN80	85	106	118	2
	FTC022100412S1	DN100	104	119	128	2
	FTC022125412S1	DN125	129	144.5	215	2
	FTC022150412S1	DN150	154	167	253	2
