ISO KF O-Ring Vacuum Sealing Ring Pipe Fitting High Tolerance NW O-Ring Elastomers

ISO Flange Assembly Instructions

Optional fastener flanges are joined around the periphery with clamps.
Double claw clamps are used when a pair of OF flanges are joined (See diagram A.),
or single claw clamps are used to join an OF flange to a tapped nonrotatable on a pump or gate valve. (See diagram B.)
This fastening method allows the OF flange to be rotateforease of component alignment. Additionally, a rotatable bolt ring can be used to fasten an OF flange to a nonrotatable flange using bolts. (See diagram C.)
A retainer ring prevents the OF flange from slipping through the bolt ring. Nonrotatable ISO flanges are assembled with bolts.
(See diagram D.) They do not allow rotation of bolt holes on mating flanges to align components.

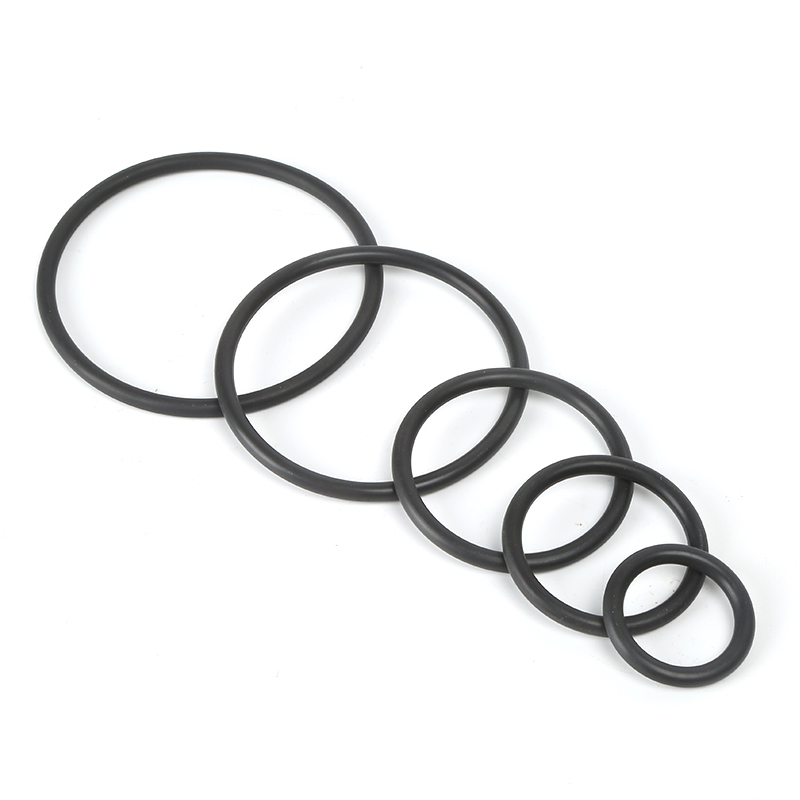

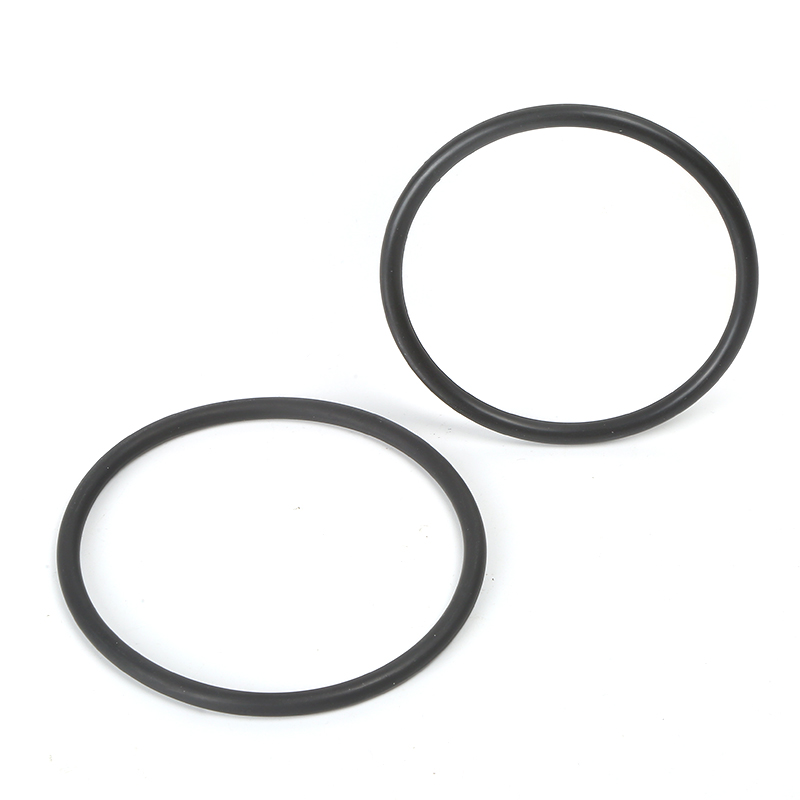

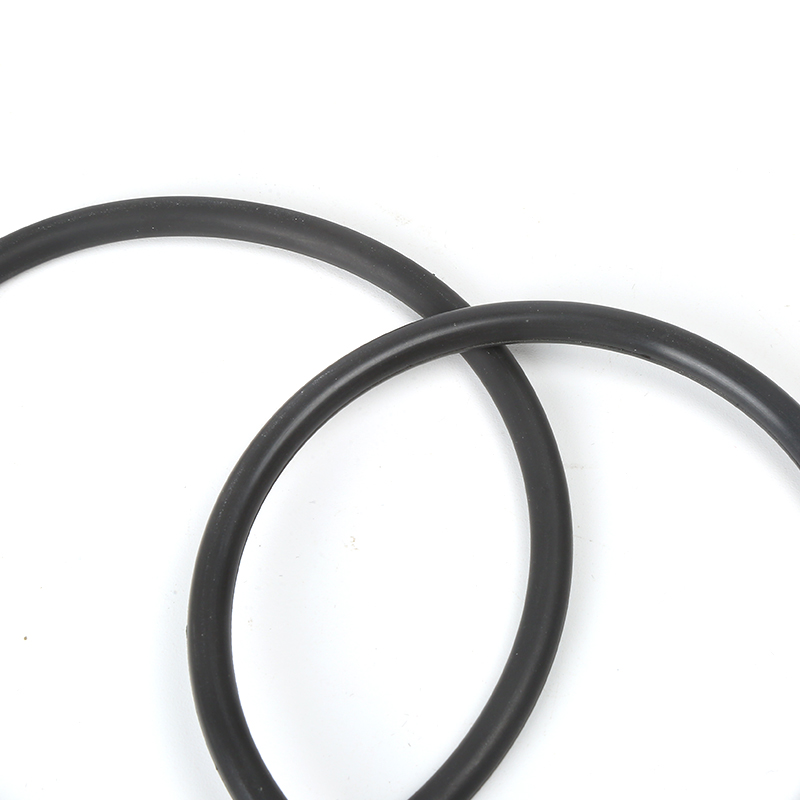

O-Ring

*Material: Viton or NBR

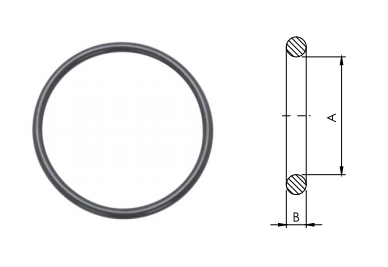

	Model No		Size	A/mm	B/mm	N.W./g
	Black Viton	Black NBR
	SFR013B1S63	SFR014B1S63	ISO63	75	5.33	11.2
	SFR013B1S80	SFR014B1S80	ISO80	87.5	5.33	12.1
	SFR013B1S100	SFR014B1S100	ISO100	106	5.33	14.7
	SFR013B1S125	SFR014B1S125	ISO125	132	5.33	19.6
	SFR013B1S160	SFR014B1S160	ISO160	155	5.33	22.6
	SFR013B1S200	SFR014B1S200	ISO200	212	5.33	30
	SFR013B1S250	SFR014B1S250	ISO250	265	5.33
	SFR013B1S320	SFR014B1S320	ISO320	316.87	6.99
	SFR013B1S400	SFR014B1S400	ISO400	393.07	6.99
	SFR013B1S500	SFR014B1S500	ISO500	506.86	6.99
