Sanitary 13MHHM Single Pin Clamp
Sanitary 13MHHM Single Pin Clamp
Sanitary 13MHHM Single Pin Clamp
Sanitary 13MHHM Single Pin Clamp

Sanitary 13MHHM Single Pin Clamp

Inquire Now PDF Datasheet

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

  • Body: AISI-304, 316L

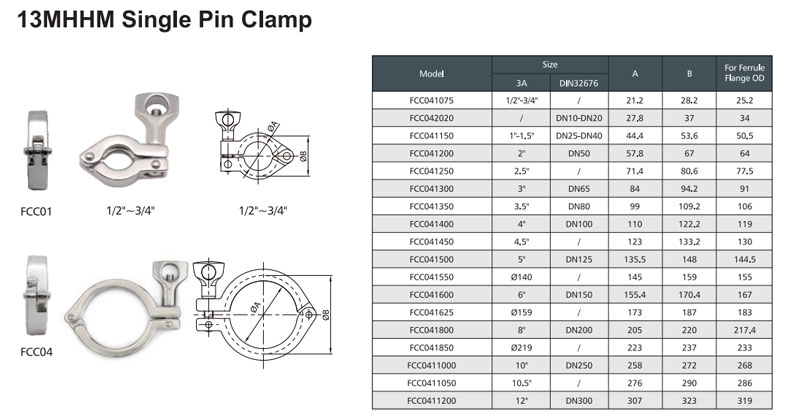

Detailed specifications on the drawing label
