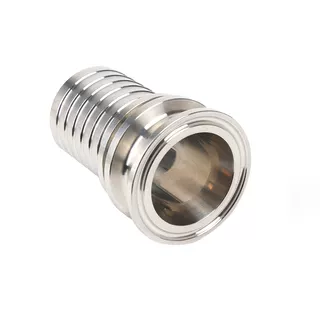

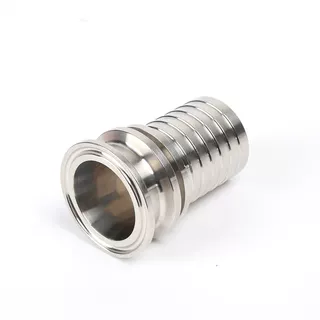

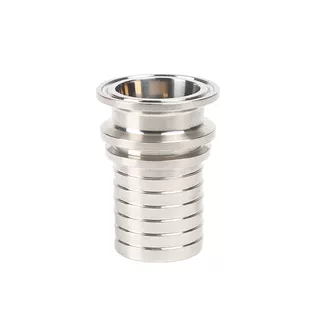

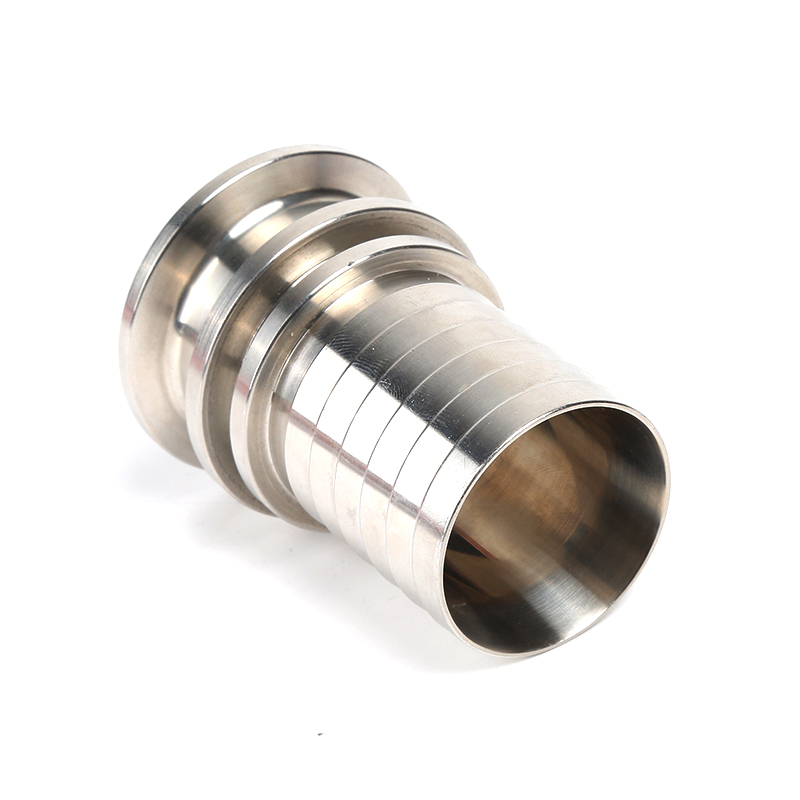

SS304 SS316L Stainless Steel Sanitary Clamp End High Quality Clamp Hose Shank Crimp Stems Barb Pipe

Application

1/4" Sanitary Hose Barbed Adapter Stainless Steel SS304 Hose Coupling 1 Pack UPC: 708210452403

3/8" Sanitary Hose Barbed Adapter Stainless Steel SS304 Hose Coupling 1 Pack UPC: 708210452410

1/2" Sanitary Hose Barbed Adapter Stainless Steel SS304 Hose Coupling 1 Pack UPC: 708210452465

1" Sanitary Hose Barbed Adapter Stainless Steel SS304 Hose Coupling 1 Pack UPC: 708210460569

11/2" Sanitary Hose Barbed Adapter Stainless Steel SS304 Hose Coupling 1 Pack UPC: 708210460576

Materials

Materials: SS304 or SS316L

Size: 1/2''- 4'' or DN15-DN100

Technical Specification

•Standard: DIN,SMS

•Connection: Clamp, Weld, Thread, Union type

Clamp Hose Shank Crimp Stems

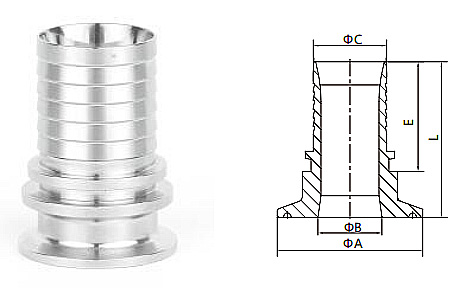

	Model	Size	A/mm	B/mm	C/mm	L/mm	E/mm	N.W./g
	FLH22C10254S1	1/4"	25.2	3	6.35	35	24
	FLH22C10254S2	1/4"	34	3	6.35	35	24
	FLH22C10254S3	1/4"	50.5	3	6.35	35	24
	FLH22C10384S1	3/8"	25.2	6	9.53	40	29
	FLH22C10384S2	3/8"	34	6	9.53	40	29
	FLH22C10384S3	3/8"	50.5	6	9.53	40	29
	FLH22C10504S1	1/2"	25.2	9.4	12.7	45	29
	FLH22C10504S2	1/2"	34	9.4	12.7	45	29
	FLH22C10504S3	1/2"	50.5	9.4	12.7	45	29
	FLH22C10584S1	5/8"	25.2	12.6	15	45	29
	FLH22C10584S2	5/8"	34	12.6	15	45	29
	FLH22C10584S3	5/8"	50.5	12.6	15	45	29
	FLH22C10754S1	3/4"	25.2	15.6	19	45	29
	FLH22C10754S2	3/4"	34	15.6	19	45	29
	FLH22C10754S3	3/4"	50.5	15.6	19	45	29
	FLH22C11004S1	1"	50.5	22.1	25.4	55	39
	FLH22C11254S1	11/4"	50.5	28.45	31.75	55	39
	FLH22C11504S1	11/2"	50.5	34.8	38.1	55	39
	FLH22C11754S1	13/4"	64	41.15	44.5	55	39
	FLH22C12004S1	2"	64	47.5	50.8	68	50
	FLH22C12504S1	21/2"	77.5	60.2	63.5	78	60
	FLH22C13004S1	3"	91	72.9	76.2	78	60
	FLH22C13504S1	31/2"	106	85.6	88.9	78	60
	FLH22C14004S1	4"	119	97.4	101.2	78	60
	FLH22C16004S1	6"	167	148.2	152.4	88	70
	FLH22C18004S1	8"	217	199	203.2	88	70
