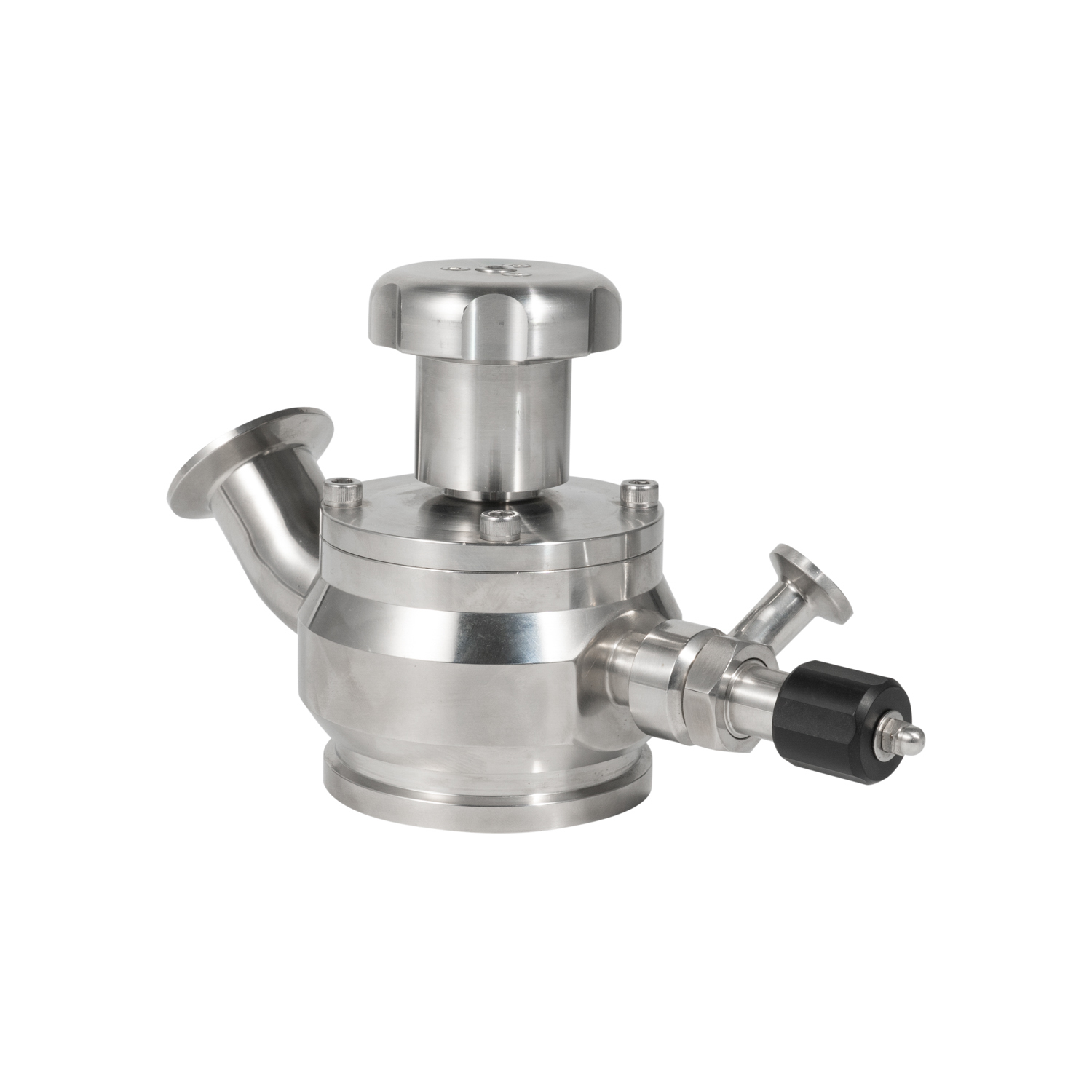

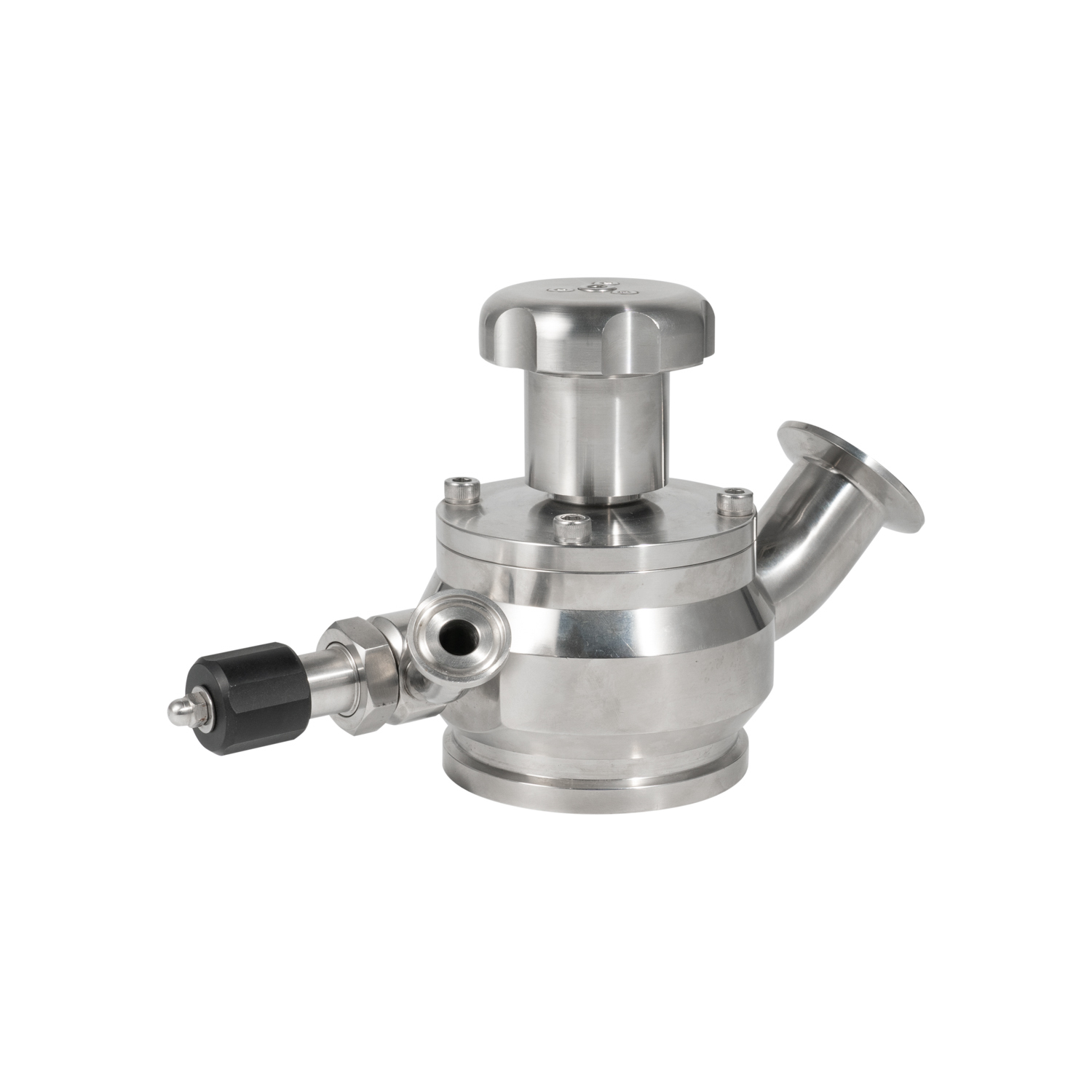

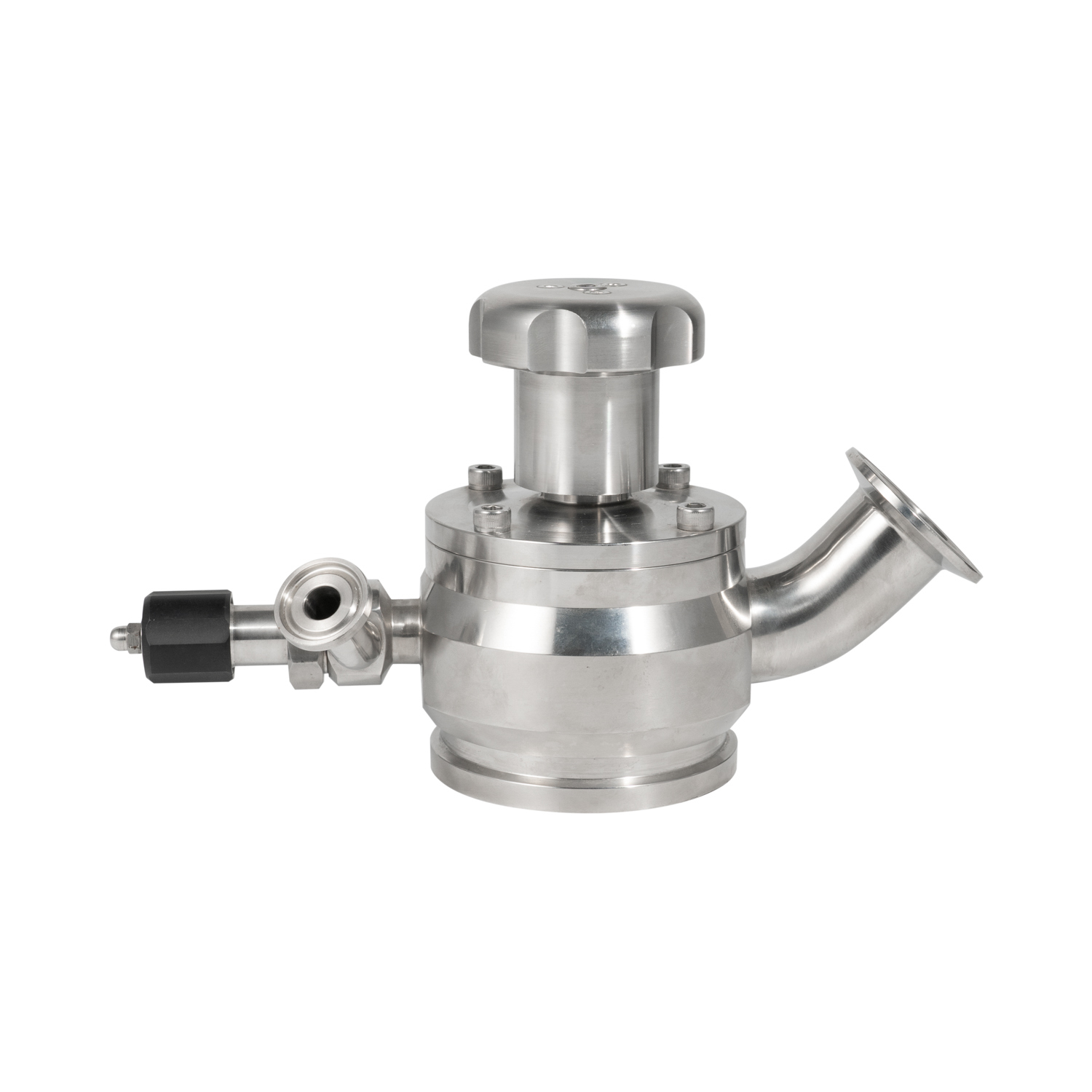

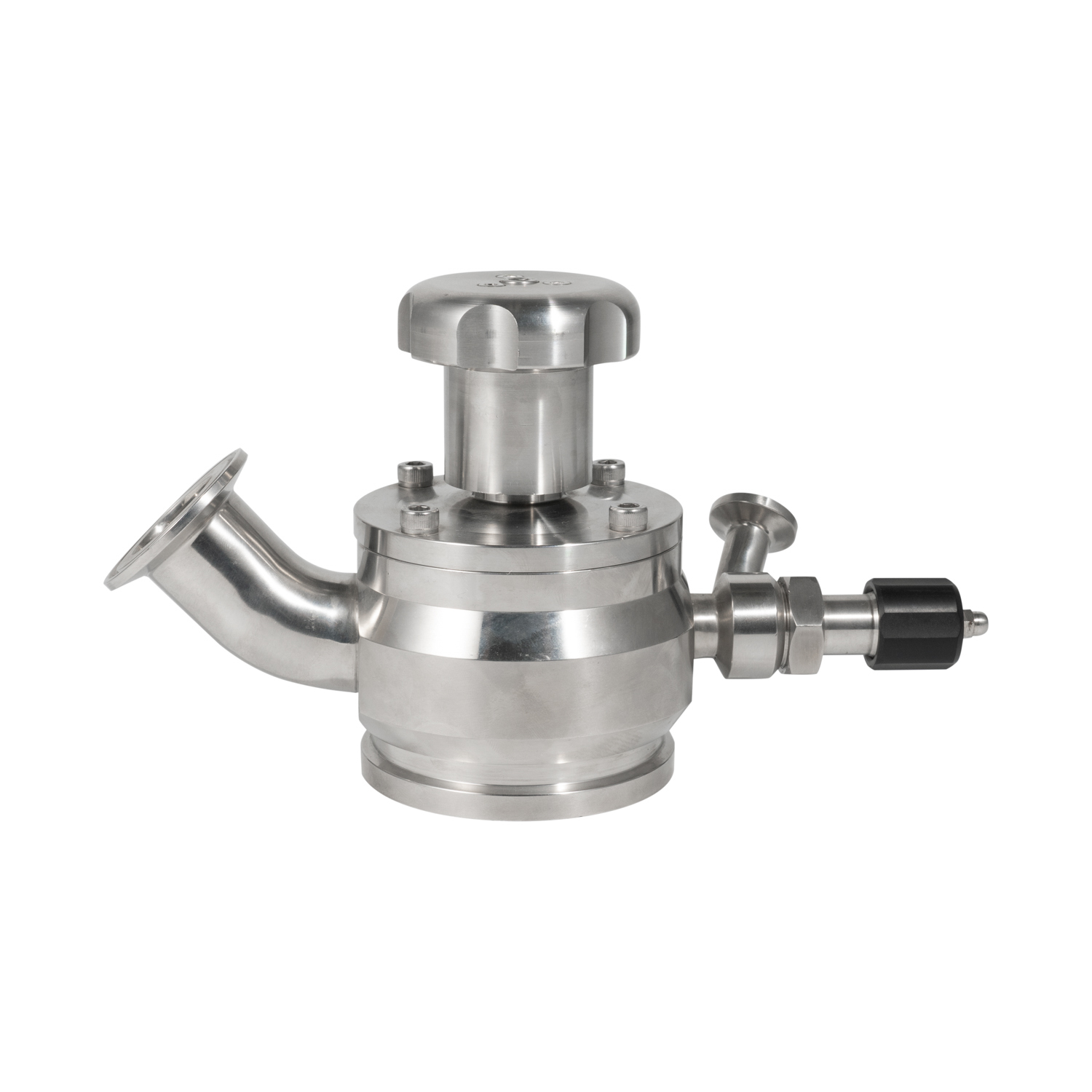

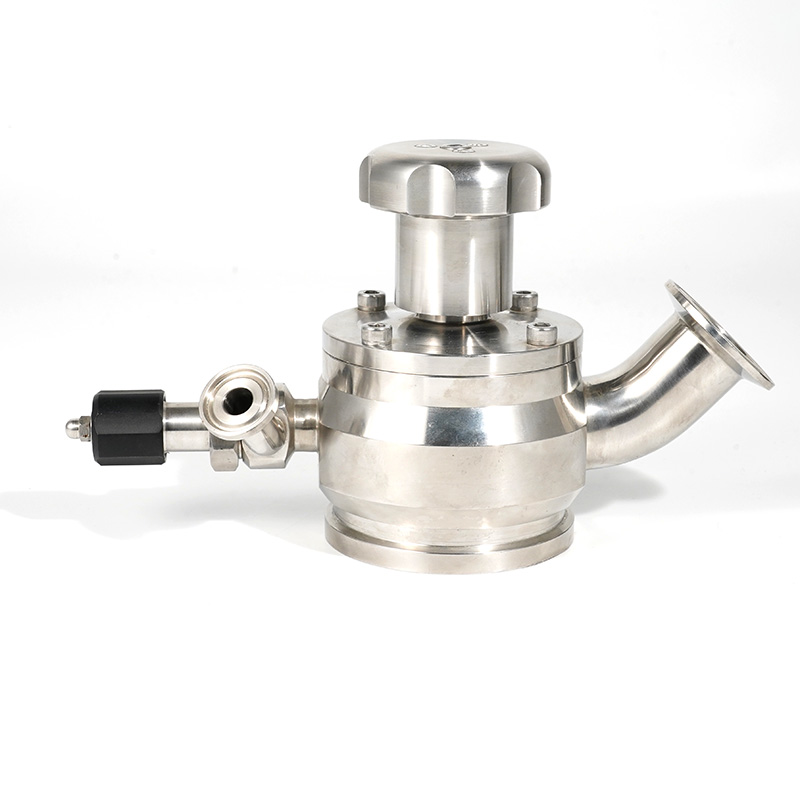

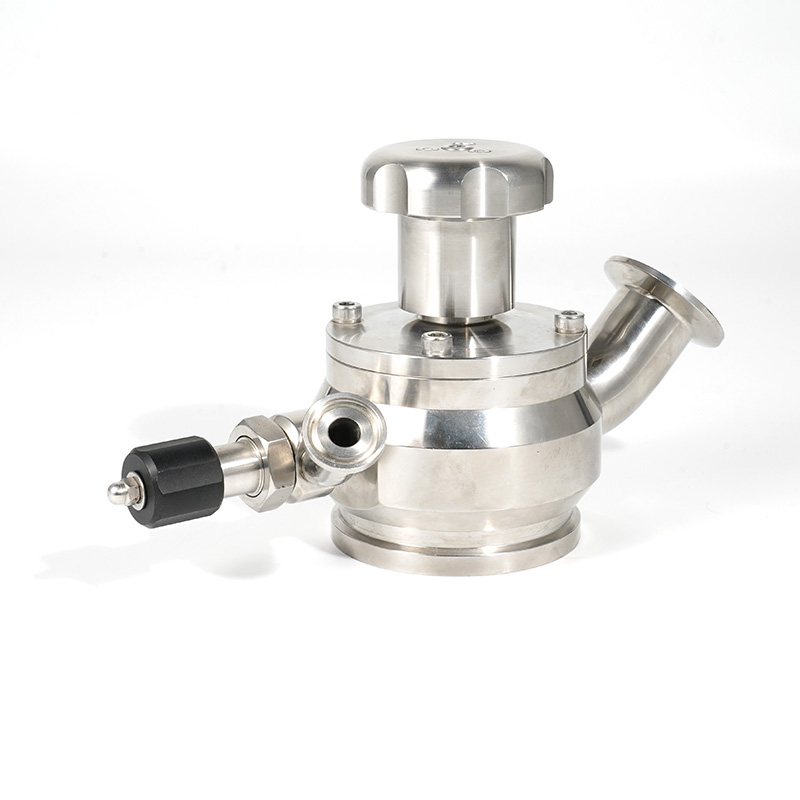

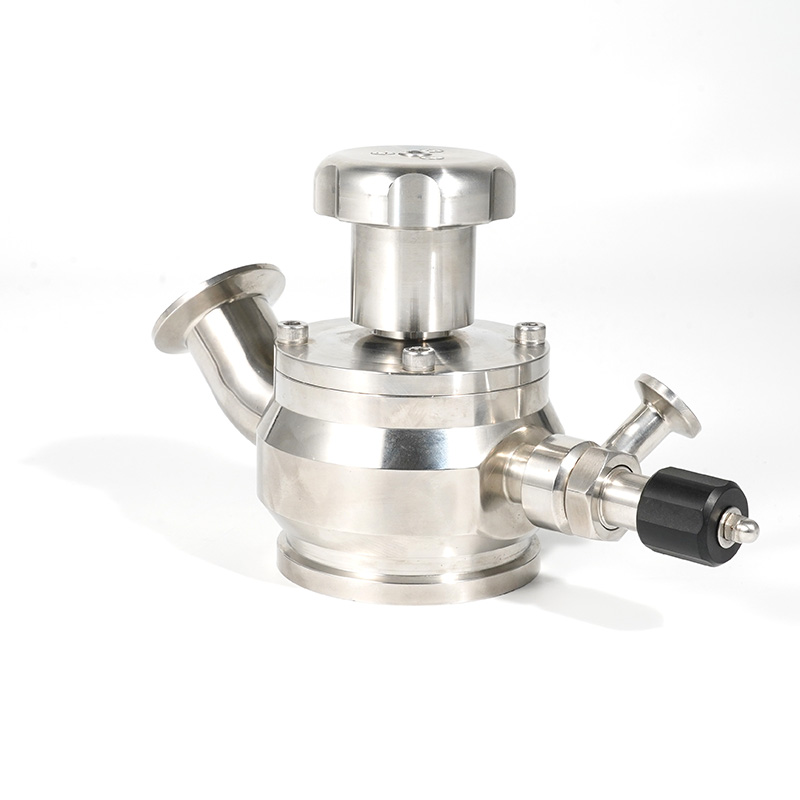

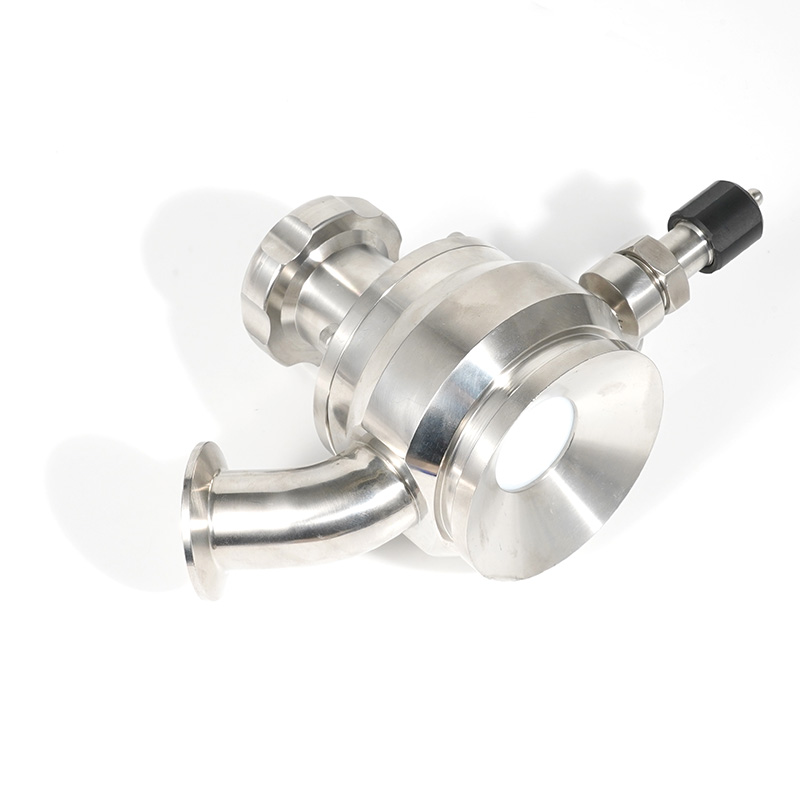

VDD Clamp Radial Diaphragm Valve AISI316L Sanitary Stainless Steel 7Bar Pharmaceuticalsv PTFE

Application

VDD series radial diaphragm valve, manually or  pneumatically operated, specially designed for critical  processes where any contamination, dead leg zones or leakage are to be avoided. Thus, the valve is suitable for  hygienic and aseptic processes in the pharmaceutical and bio-pharmaceutical industries as well as in clean rooms.

Materials

• Wetting parts: : AISI-316L

• Diaphragm: PTFE

Features

·Completely Drainable

· Zero dead leg design

·Easy cleaning

·Satellite valve provides steam inlet

·Suitable for CIP/SIP processes

·Size available from 3/4" to 2"

·Steam valve inlet connection: 1/2"

·Connection available: Weld, Tri clamp or others upon request

Techncial Specifications

Max. pressure: 7Bar

Working temperature: -20℃ to + 135℃ (PTFE)

Option

Automatic operation : pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator

NC operated: normally closed (fail closed)---air to open, spring to close

NO operated: normally open (fail open)---air to close, spring to open

AA operated: double acting---air to open, air to close

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

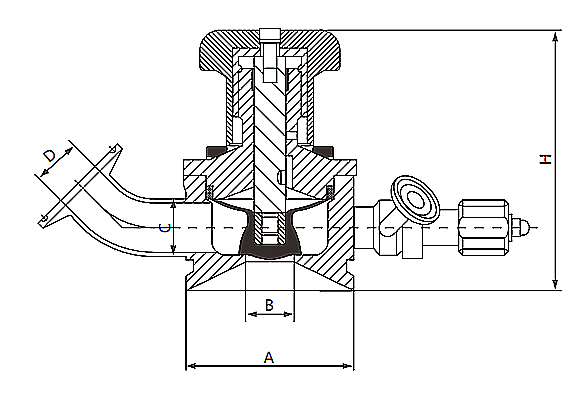

Clamp Radial Diaphragm Valve

	Model No	Size	A	B	C	D	H
	VDD22W1651075NN	1/4''	75	22	19.05	15.8	120
	VDD22W1651100NN	1'	75	22	25.4	22.1	120
	VDD22W1651125NN	11/4''	85	35	31.8	28.5	135
	VDD22W1651150NN	11/2"	85	35	38.1	34.8	135
	VDD22W1651200NN	2"	110	49	50.8	47.5	135
