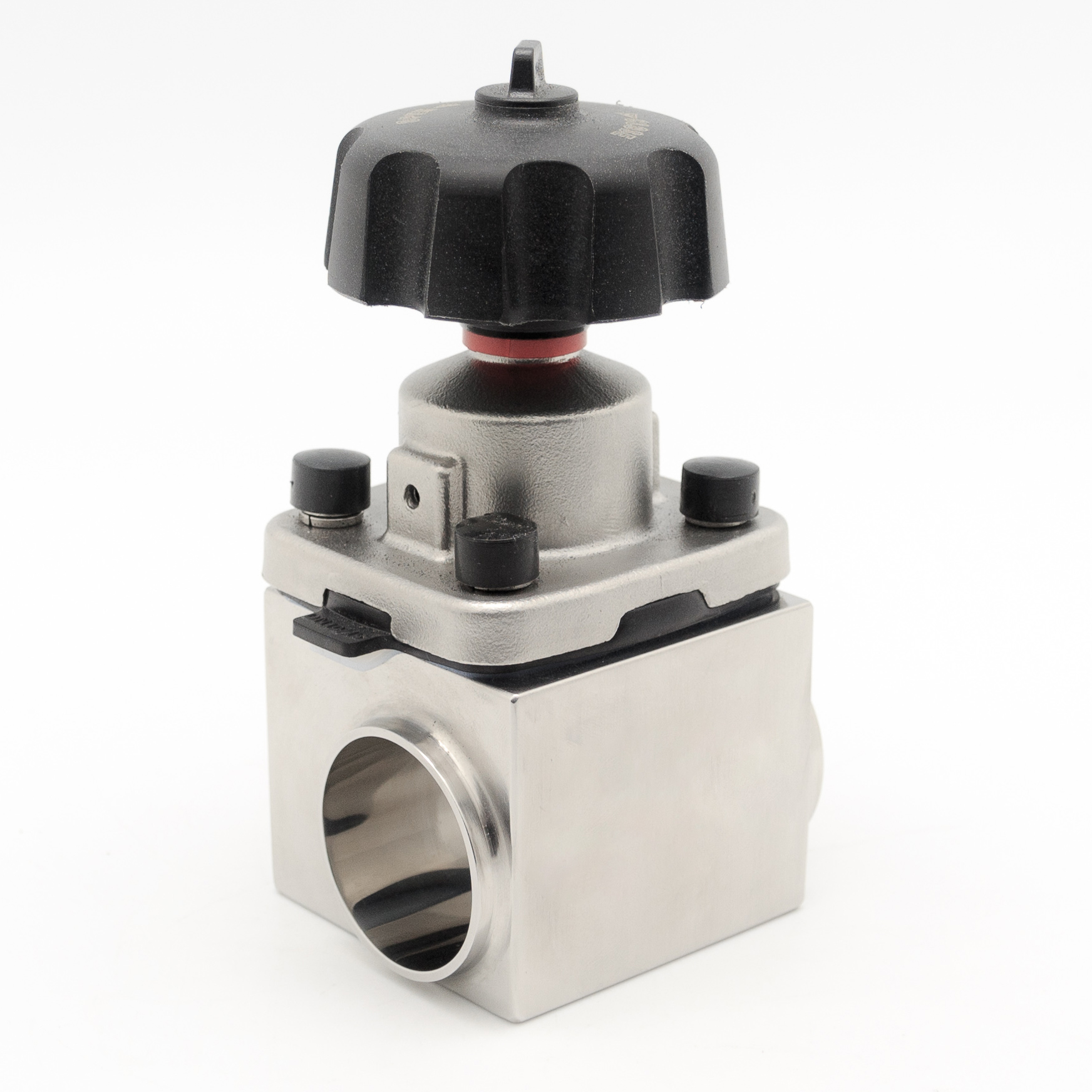

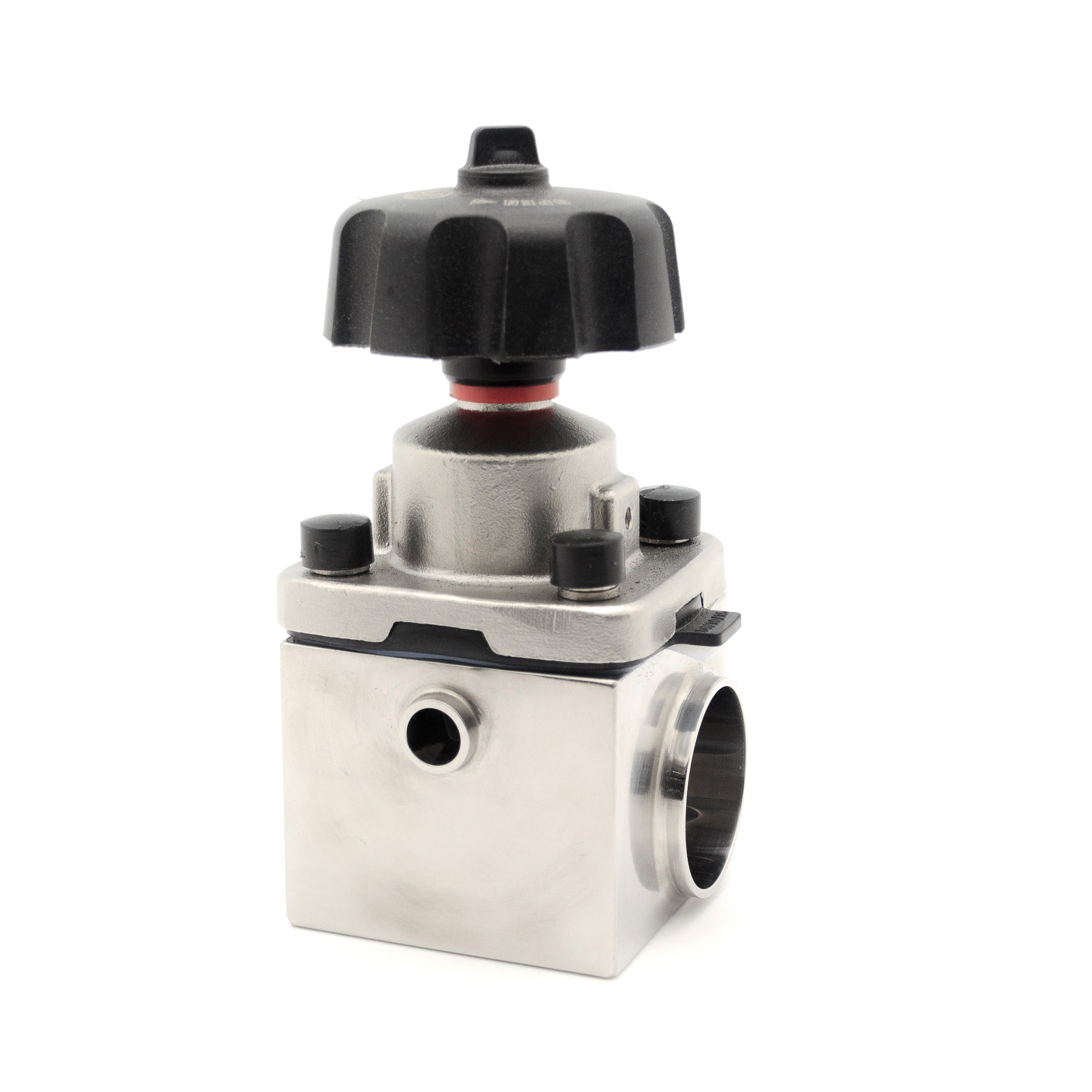

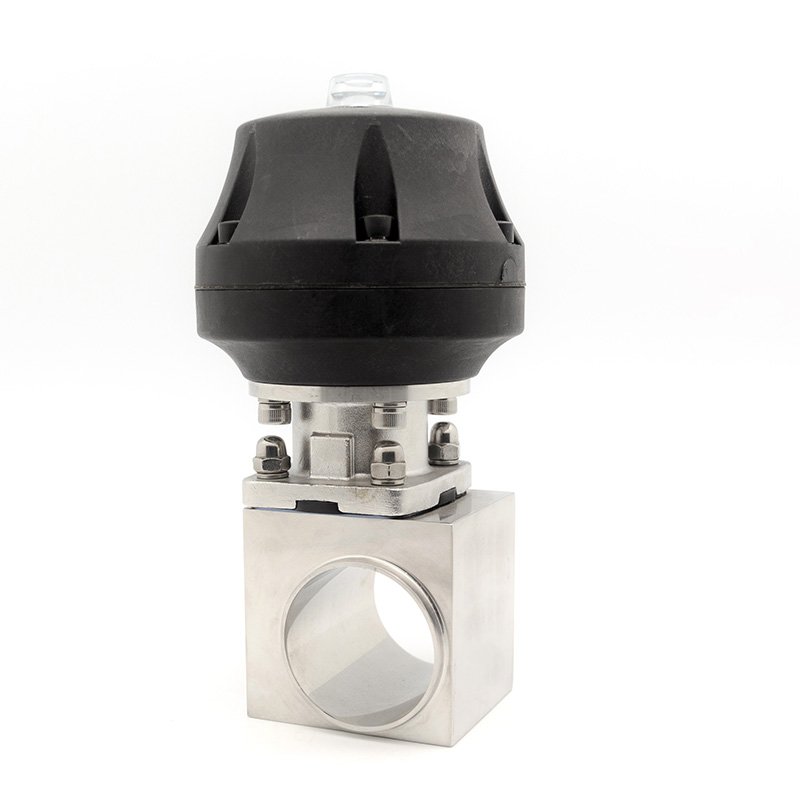

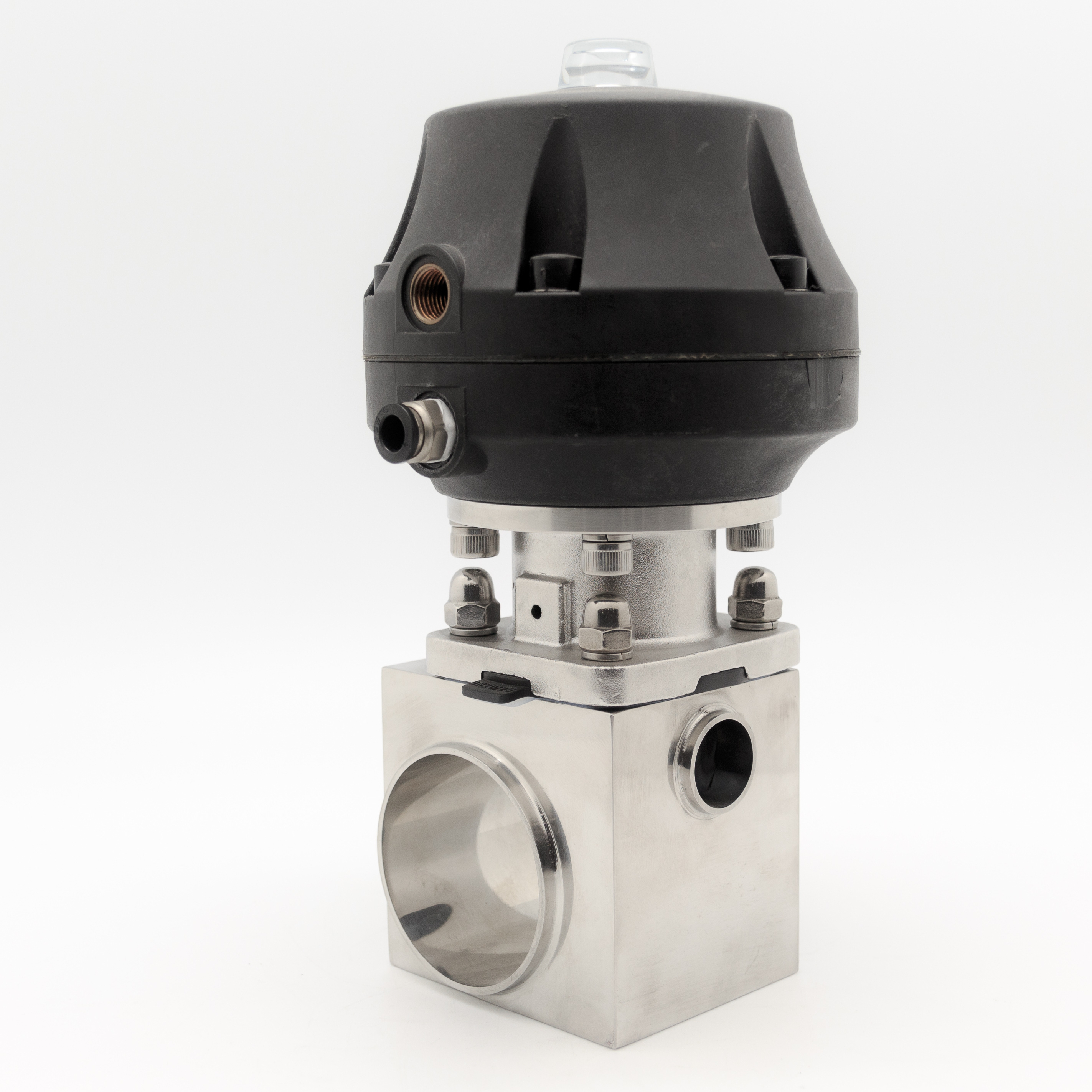

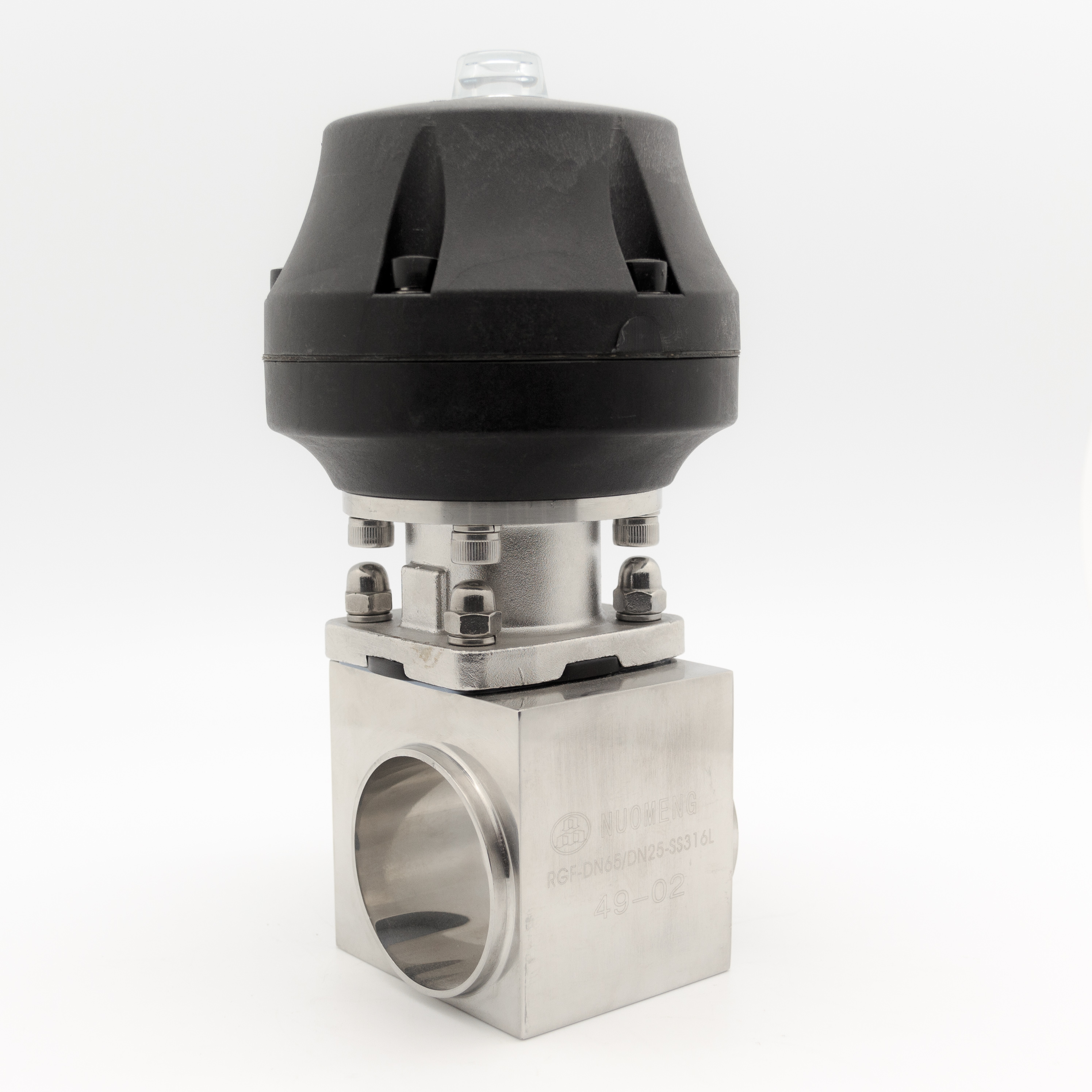

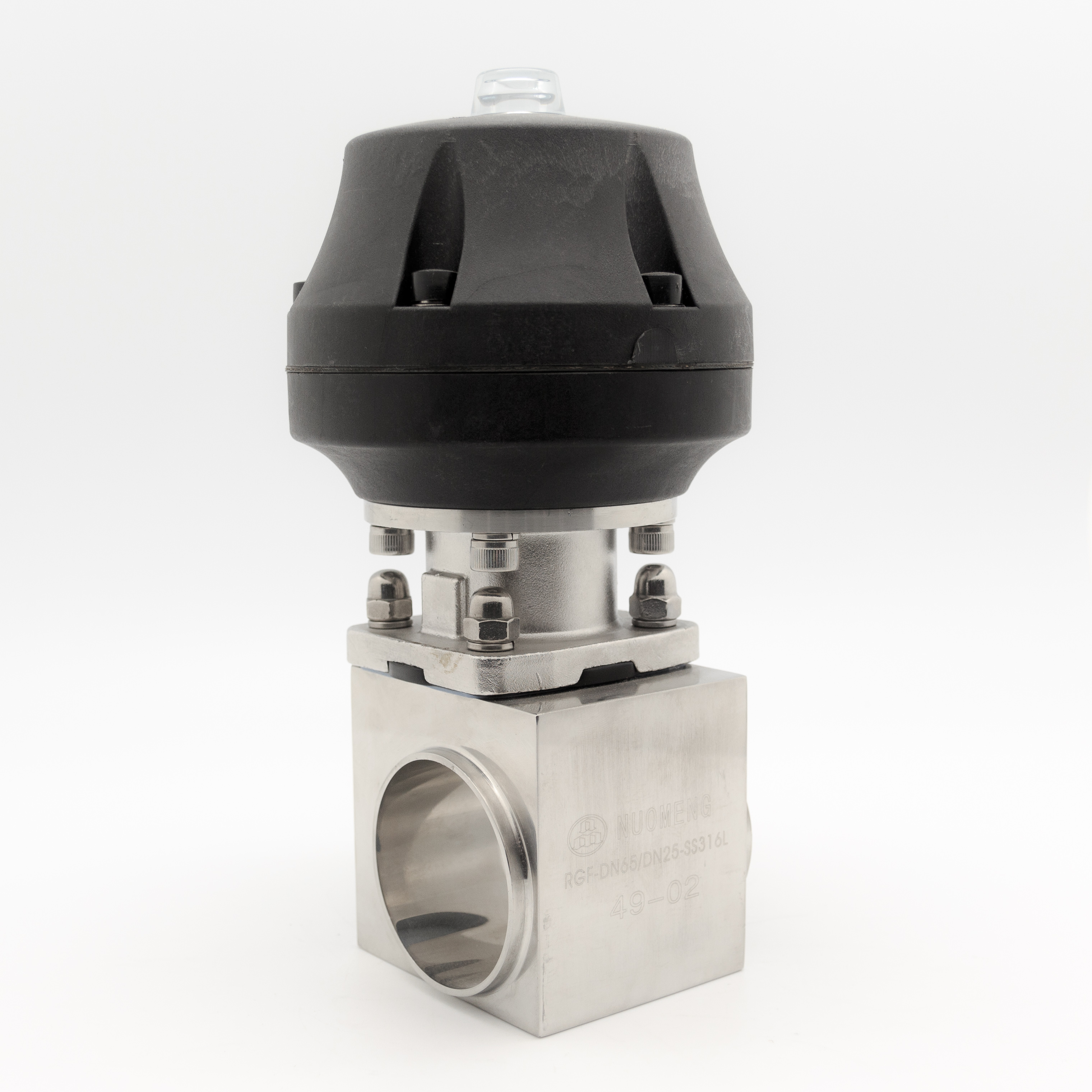

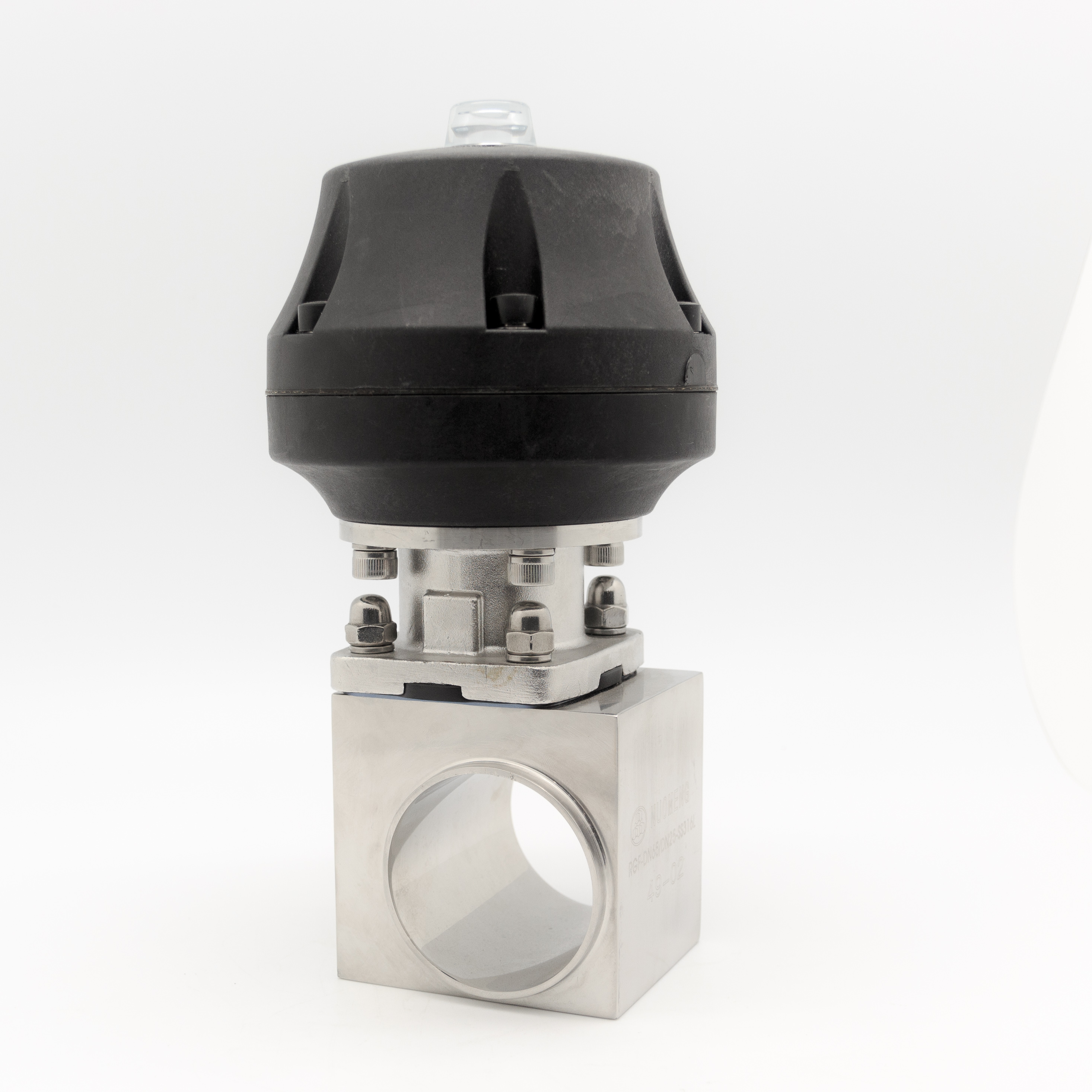

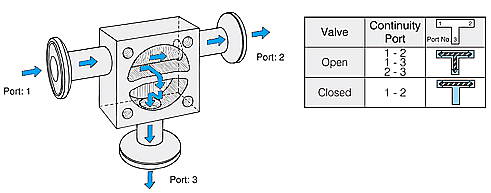

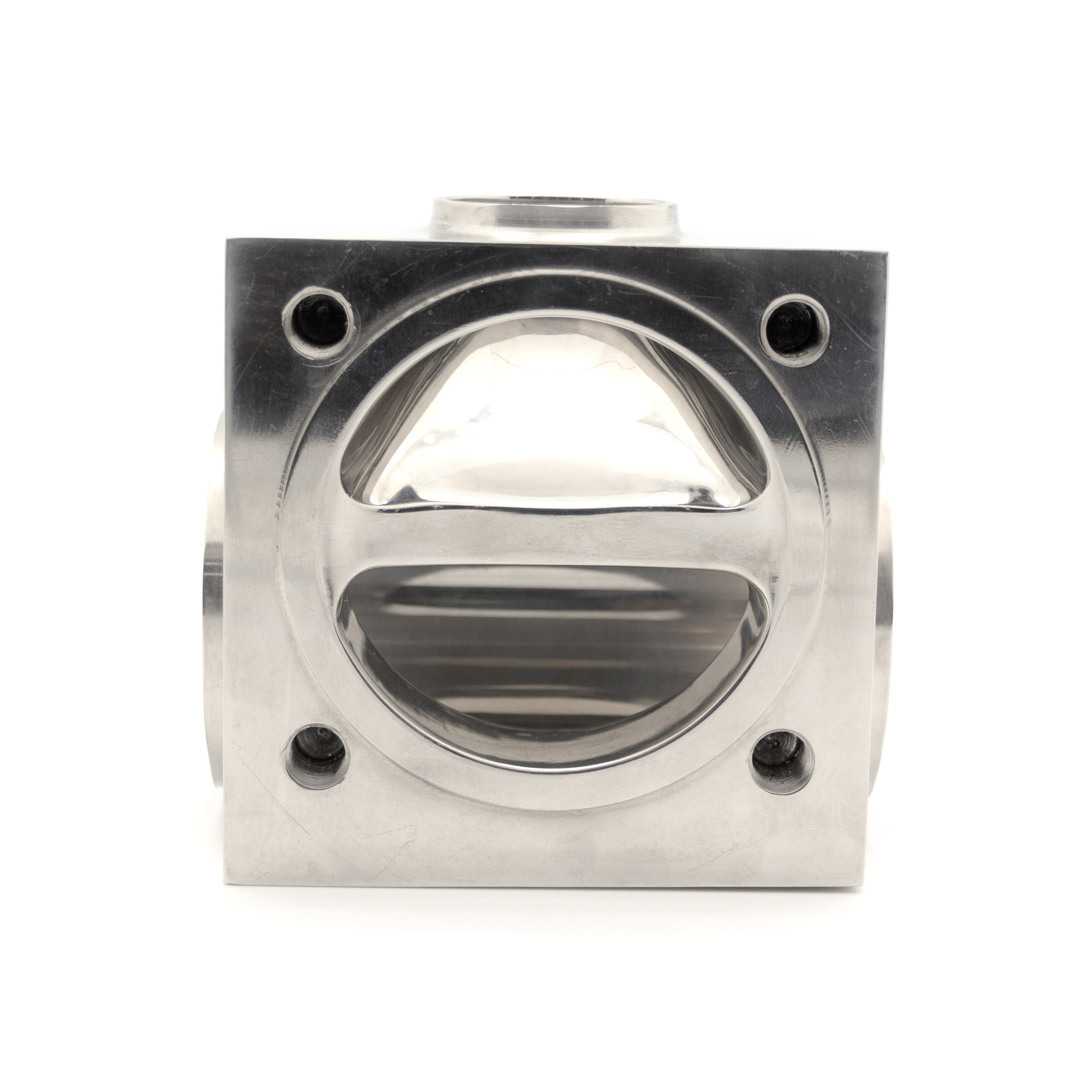

VDF series diaphragm valve with forged body, specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.
·Very useful at sampling / injection points on high purity systems
·Cavity free and self-draining
·Fully Autoclavable
·Hermetical separation of fluids from the operating mechanism by diaphragm
·Full traceability as per EN10204 3.1
·Various internal surface finish available each less than 0.40 Ra
·Reducing port is available
| Membr+ane | Technical Data | ||
| Material | PTFE+EPDM | Connection Size | 3/4"-"or DN15-DN50 |
| Deaign | Two-Piece Molded Open | MOC-Wetted(Contact) | Stainless Steel 316L |
| Media Temperature (EPDM) | -10℃ to +80℃ | MOC-Wetted(Non-contact) | Polyamide or CF8（SS304） |
| Media Temperature (EPDM/PTFE) | -10℃ to +100℃ | Surface Finish | Mechnical or Electro Polish |
| Sterilisation Temperature (EPDM) | Brieflt up to +120℃ | End Connections | Tri Clamp |
| Sterilisation Temperature (EPDM/PTFE) | Brieflt up to +150℃ | Butt-Weld | |
 |
Female Thread | ||
| Operation | SS Handwheel | ||
| Plastic Handwheel | |||
| Plastic Pneumatic Actuator | |||
| SS Pneumatic Actuator | |||
| Installation | As required, preferably with handle in upright position | ||
 |
Model No | Size | A | B | C | D | E | L | H | I |
| VDF11W1661075NN | 3/4'' | 108 | 66 | 15.75 | 19.05 | 65 | 85.5 | 25 | 10 | |
| VDF11W1661100NN | 1'' | 127 | 82 | 22.1 | 25.4 | 89 | 103.5 | 28 | 10 | |
| VDF11W1661125NN | 1 1/4'' | 146 | 98.5 | 28.5 | 31.8 | 109 | 124.5 | 36 | 11 | |
| VDF11W1661150NN | 1 1/2'' | 160 | 105.5 | 34.8 | 38.1 | 109 | 124.5 | 39 | 14 | |
| VDF11W1661200NN | 2'' | 190 | 123 | 47.5 | 50.8 | 139 | 151.5 | 46.5 | 12 | |
| VDF11W1661250NN | 2 1/2'' | 216 | 129.5 | 60.2 | 63.5 | 200 | 168 | 55 | 10 | |
| VDF11W1662015NN | DN15 | 108 | 66 | 18 | 15 | 65 | 76.5 | 25 | 10 | |
| VDF11W1662020NN | DN20 | 118 | 75 | 19 | 22 | 65 | 76.5 | 25 | 10 | |
| VDF11W1662025NN | DN25 | 127 | 82 | 25 | 28 | 89 | 93 | 28 | 10 | |
| VDF11W1662032NN | DN32 | 146 | 98.5 | 31 | 34 | 109 | 107 | 36 | 11 | |
| VDF11W1662040NN | DN40 | 160 | 105.5 | 37 | 40 | 109 | 107 | 39 | 14 | |
| VDF11W1662050NN | DN50 | 190 | 123 | 49 | 52 | 139 | 129 | 46.5 | 12 | |
| VDF11W1662065NN | DN65 | 216 | 129.5 | 67 | 70 | 200 | 140 | 55 | 10 |
