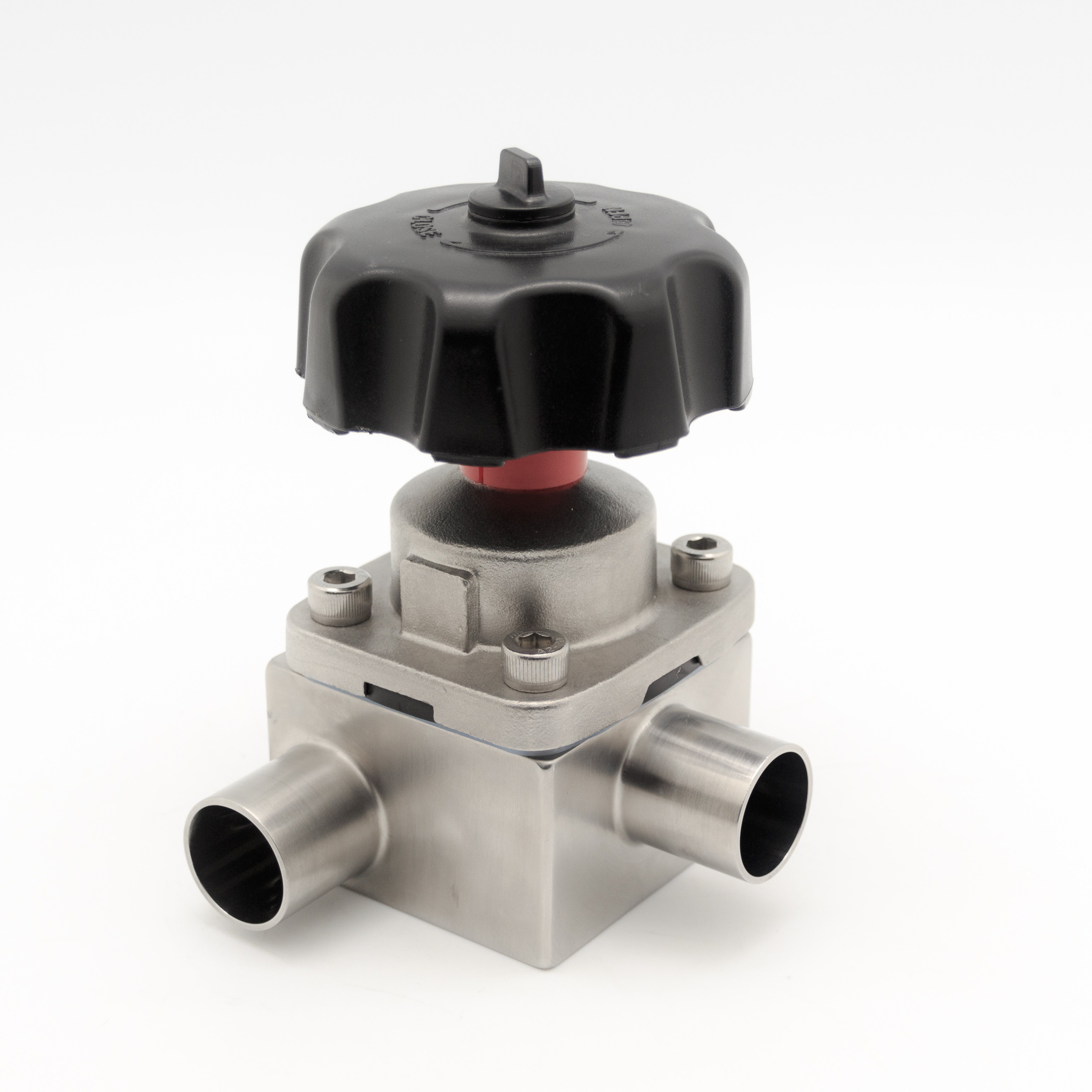

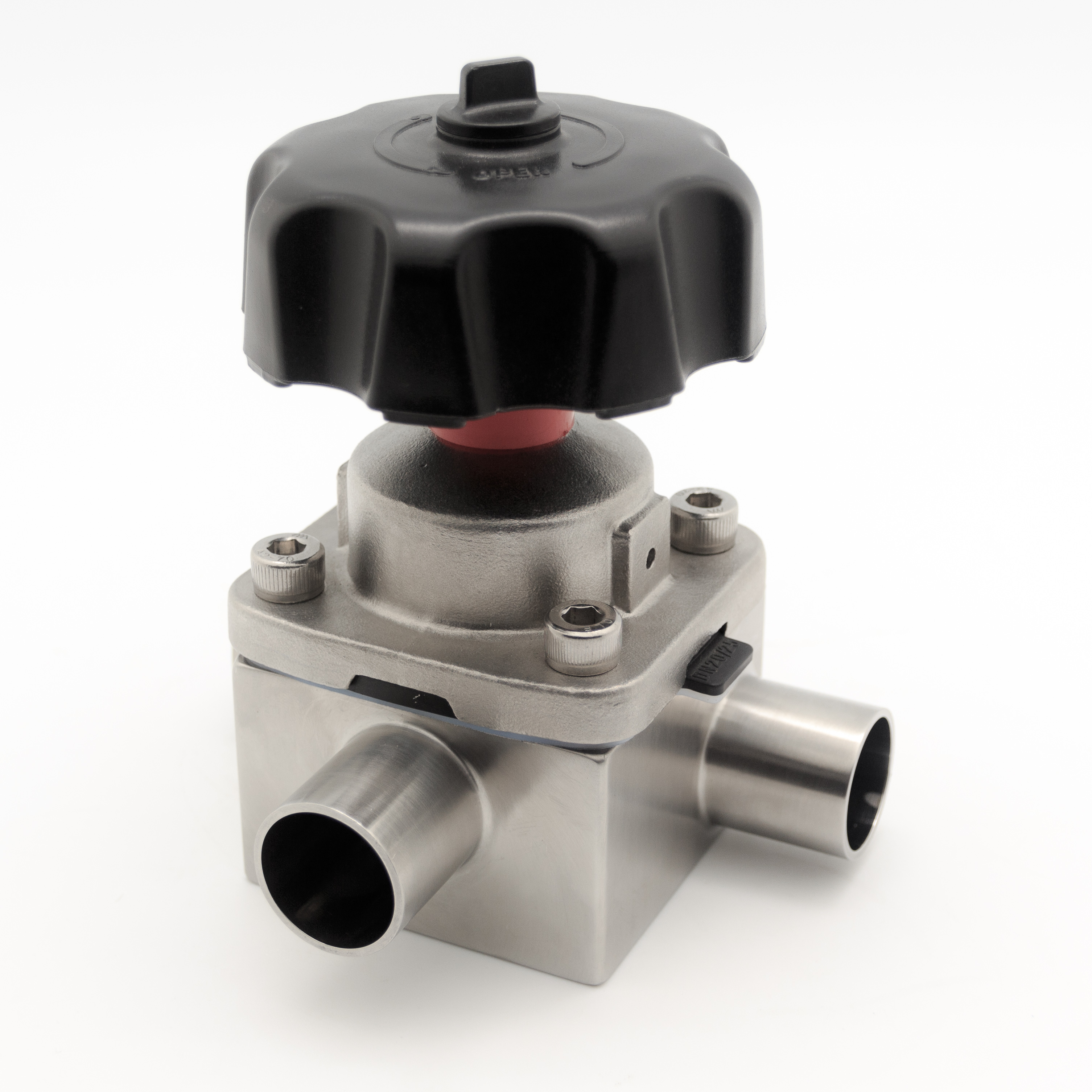

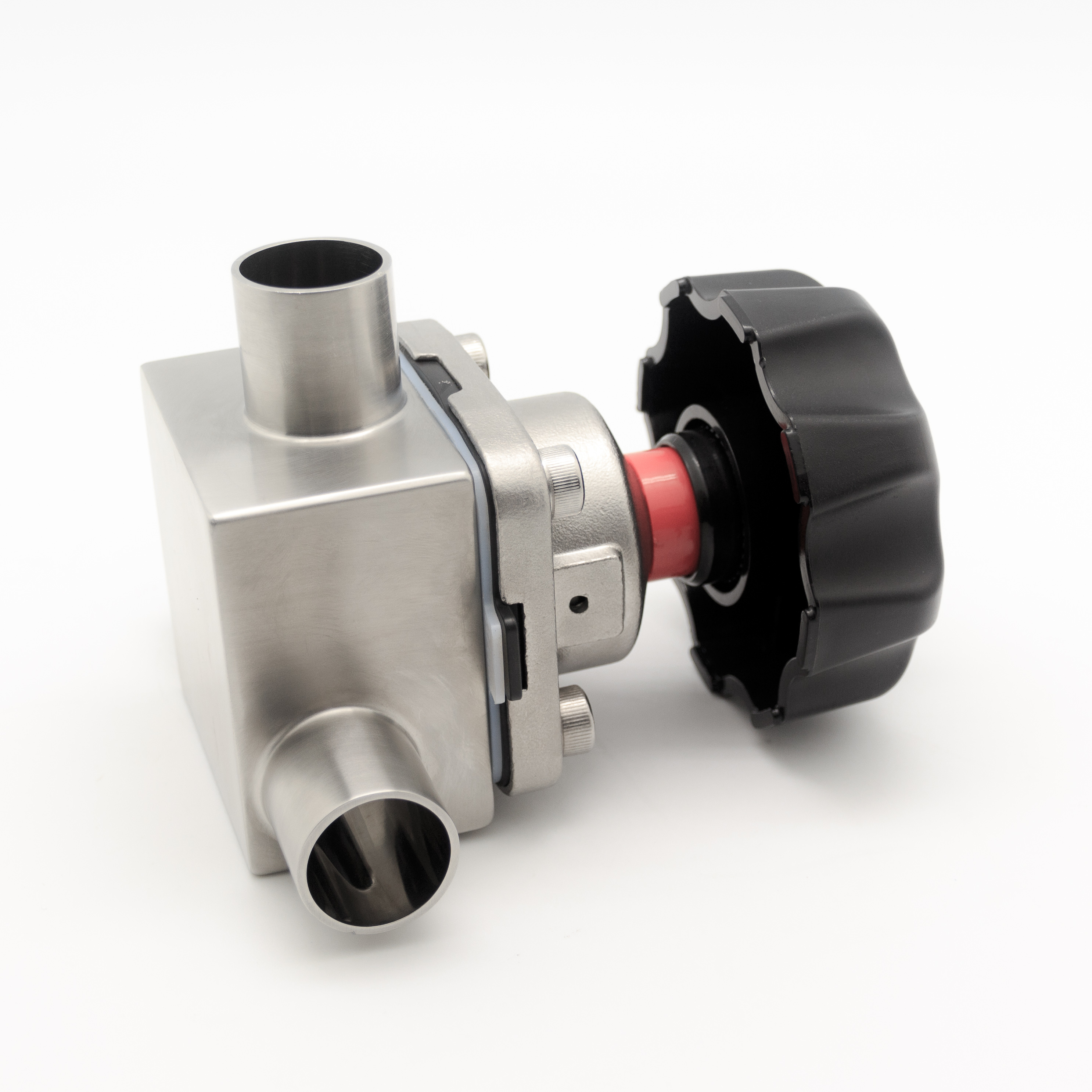

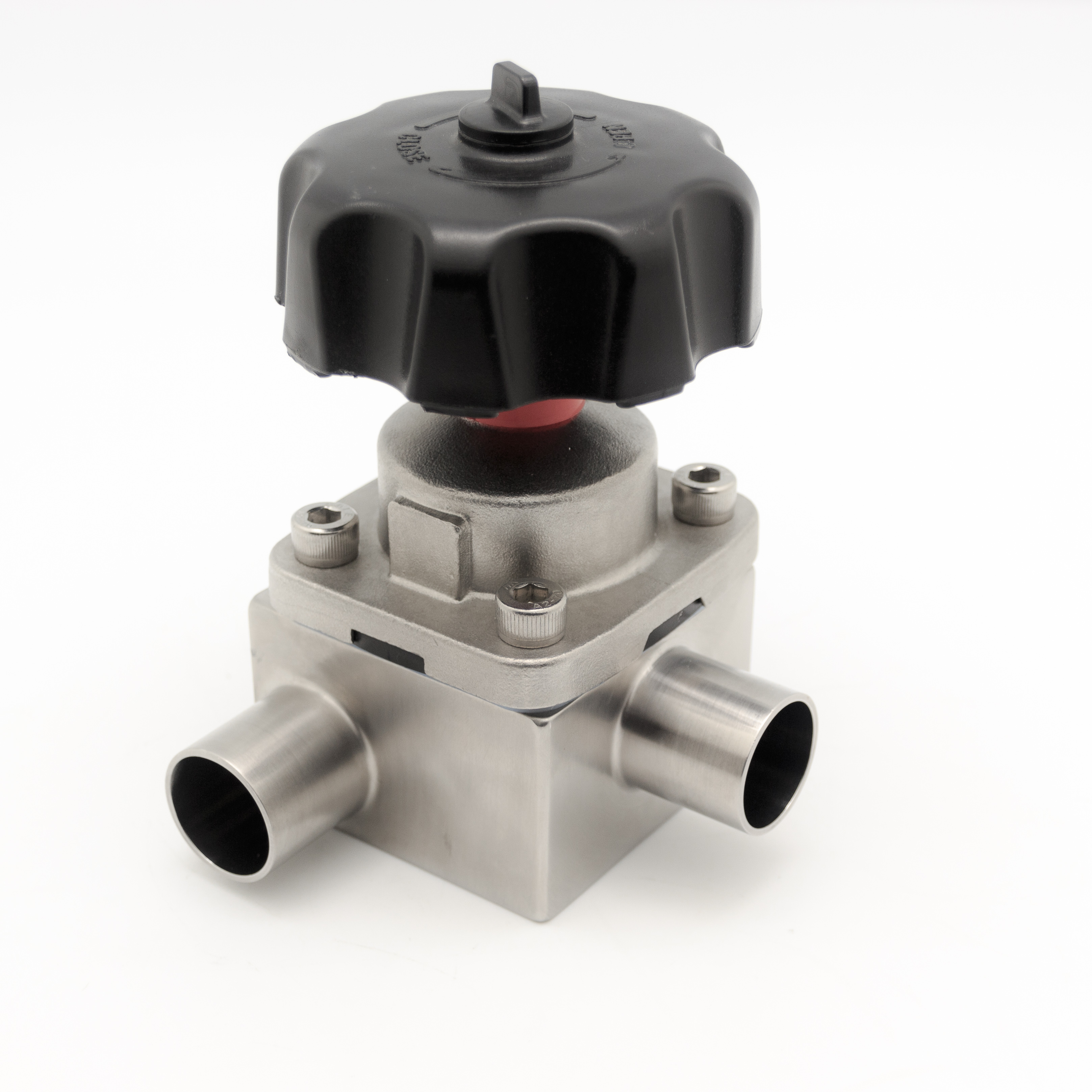

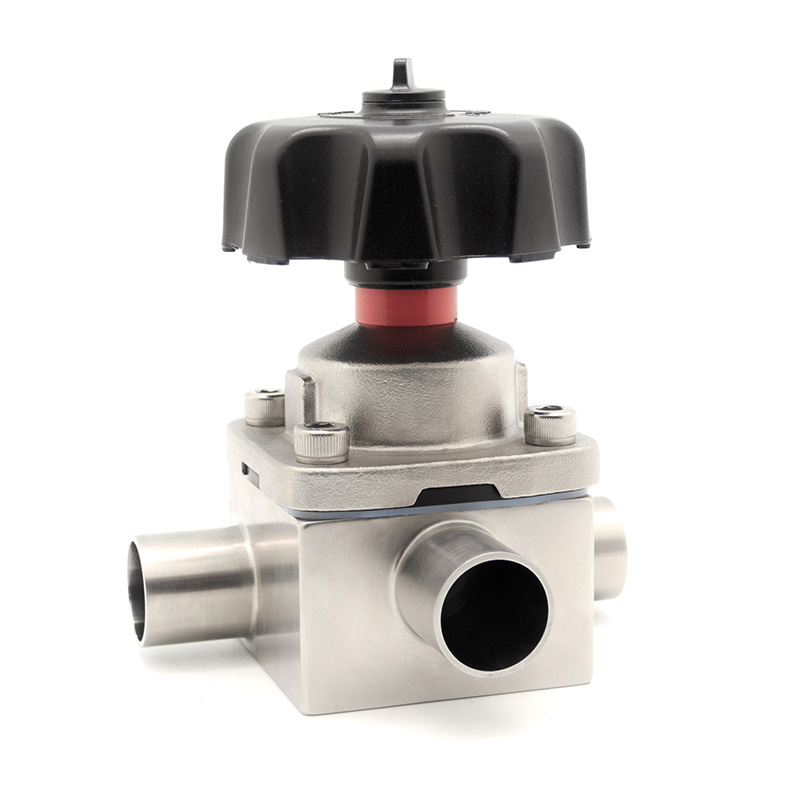

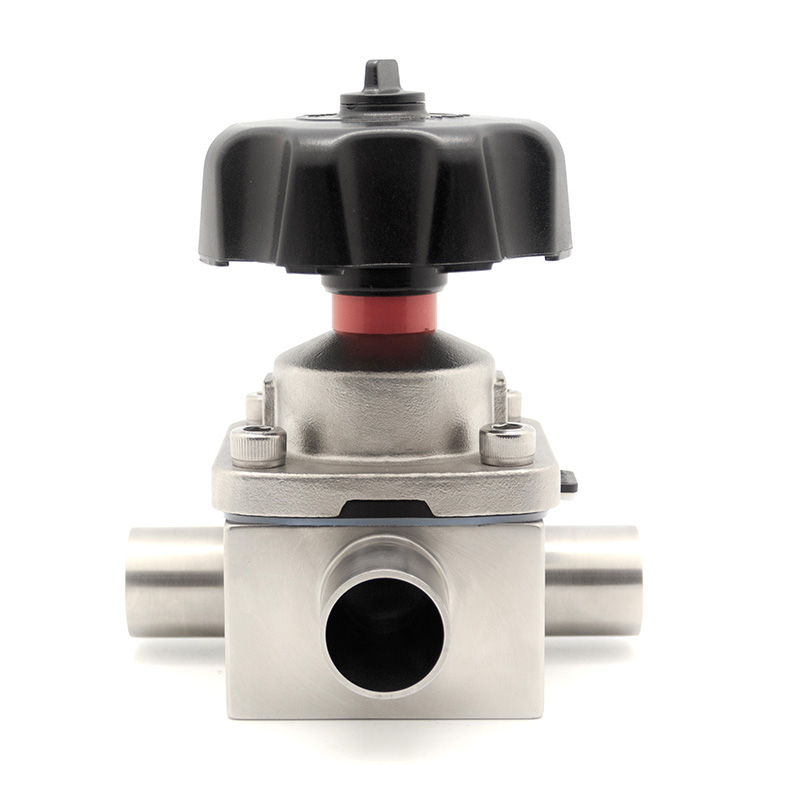

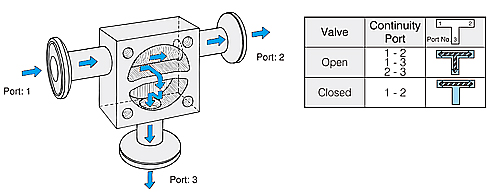

VDF Pharmaceutical Industries SS316L Forged Stainless Steel Body 3/4"-2/12" or DN15-DN65 Tee Sanitary 3-Way Diaphragm Valve EPDM/PTFE

Application

VDF series diaphragm valve with forged body, specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Materials

• Body: AISI-316L

• Membrane: EPDM+PTFE or EPDM

The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13℉ (-25℃), excellent heat-resistance 482℉ (+250℃), tolerance to most chemicals, and excellent abrasion resistance to medium flow.

Standard Design

• Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

• End connections: butt-welded, sanitary clamp, or others upon request

• Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.

• Operation: manual or pneumatic

• Manual options: plastic or stainless steel handwheel

Technical Specification

• Max. working pressure: 147psi (10bar)

• Temperature range: 14 ~ 248℉ (-10 ~ 120℃), EPDM

• Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)

• Available for CIP/SIP.

Membrane		Technical Data
Material	PTFE+EPDM	Connection Size	3/4"-"or DN15-DN50
Deaign	Two-Piece Molded Open	MOC-Wetted(Contact)	Stainless Steel 316L
Media Temperature (EPDM)	-10℃ to +80℃	MOC-Wetted(Non-contact)	Polyamide or CF8（SS304）
Media Temperature (EPDM/PTFE)	-10℃ to +100℃	Surface Finish	Mechnical or Electro Polish
Sterilisation Temperature (EPDM)	Brieflt up to +120℃	End Connections	Tri Clamp
Sterilisation Temperature (EPDM/PTFE)	Brieflt up to +150℃		Butt-Weld
			Female Thread
		Operation	SS Handwheel
			Plastic Handwheel
			Plastic Pneumatic Actuator
			SS Pneumatic Actuator
		Installation	As required, preferably with handle in upright position

Weld Manual Diaphram Valve VDF

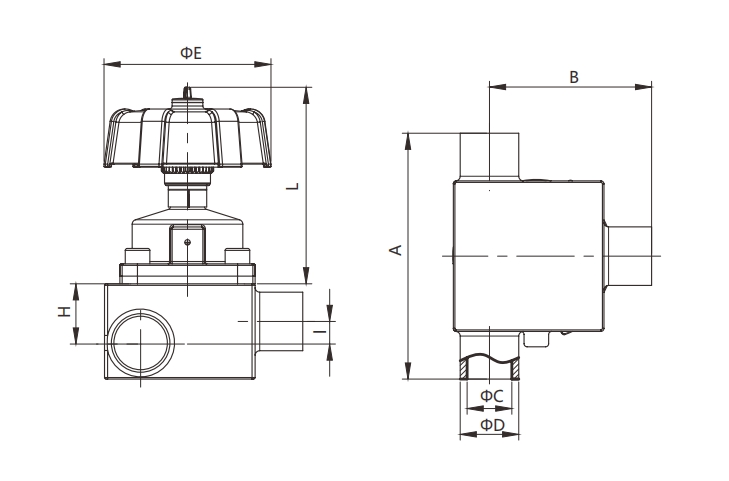

	Model No	Size	A	B	C	D	E	L	H	I
	VDF11W1661075NN	3/4''	108	66	15.75	19.05	65	85.5	25	10
	VDF11W1661100NN	1''	127	82	22.1	25.4	89	103.5	28	10
	VDF11W1661125NN	1 1/4''	146	98.5	28.5	31.8	109	124.5	36	11
	VDF11W1661150NN	1 1/2''	160	105.5	34.8	38.1	109	124.5	39	14
	VDF11W1661200NN	2''	190	123	47.5	50.8	139	151.5	46.5	12
	VDF11W1661250NN	2 1/2''	216	129.5	60.2	63.5	200	168	55	10
	VDF11W1662015NN	DN15	108	66	18	15	65	76.5	25	10
	VDF11W1662020NN	DN20	118	75	19	22	65	76.5	25	10
	VDF11W1662025NN	DN25	127	82	25	28	89	93	28	10
	VDF11W1662032NN	DN32	146	98.5	31	34	109	107	36	11
	VDF11W1662040NN	DN40	160	105.5	37	40	109	107	39	14
	VDF11W1662050NN	DN50	190	123	49	52	139	129	46.5	12
	VDF11W1662065NN	DN65	216	129.5	67	70	200	140	55	10
