Forged Manual Diaphragm Valve
Forged Manual Diaphragm Valve

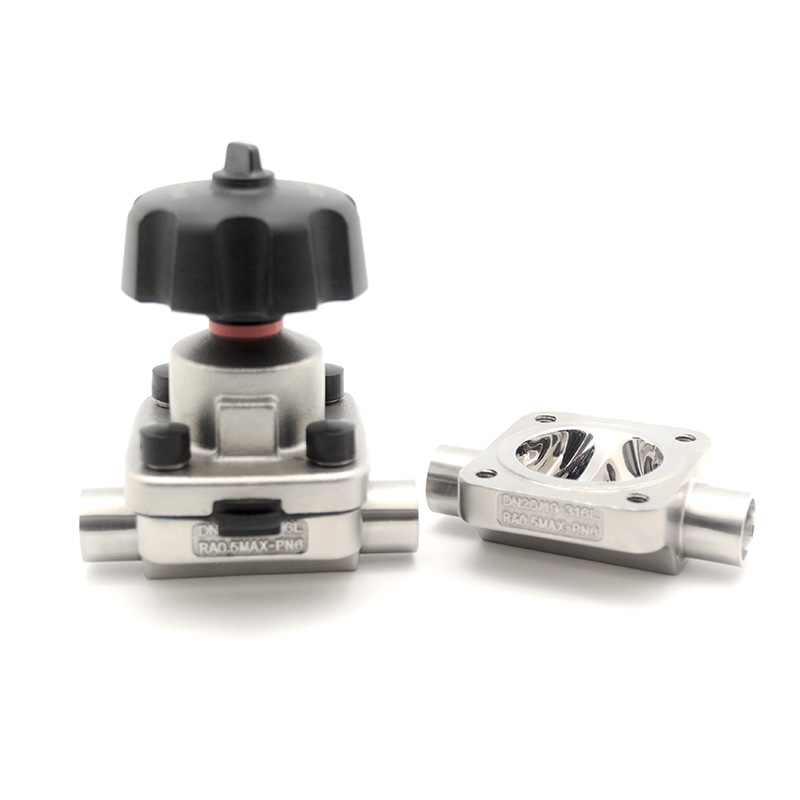

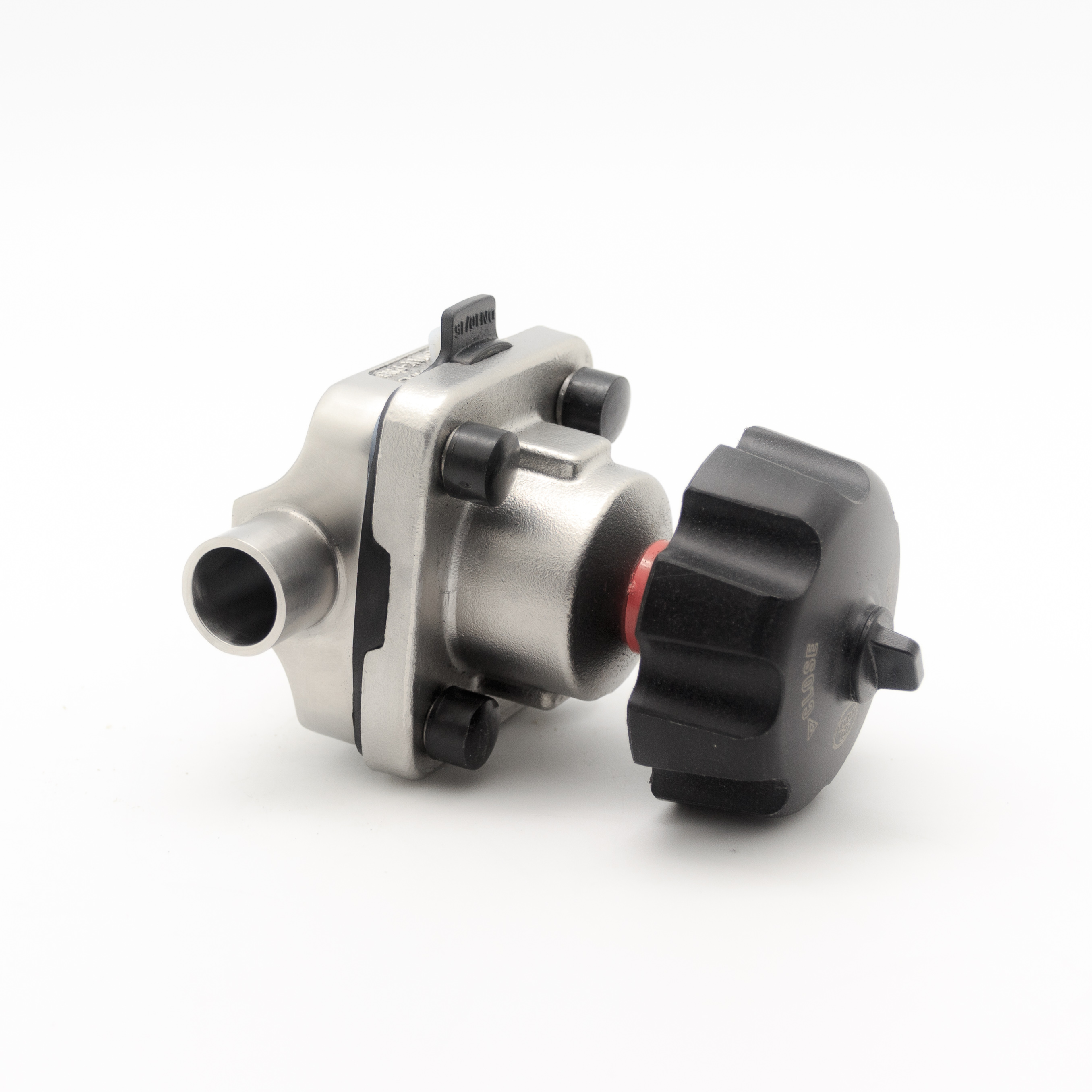

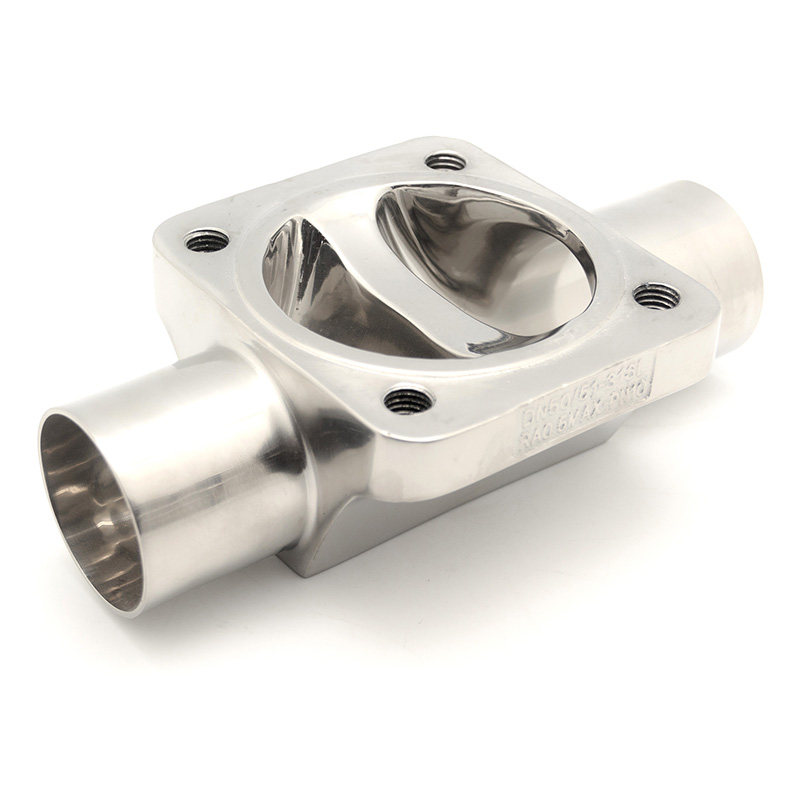

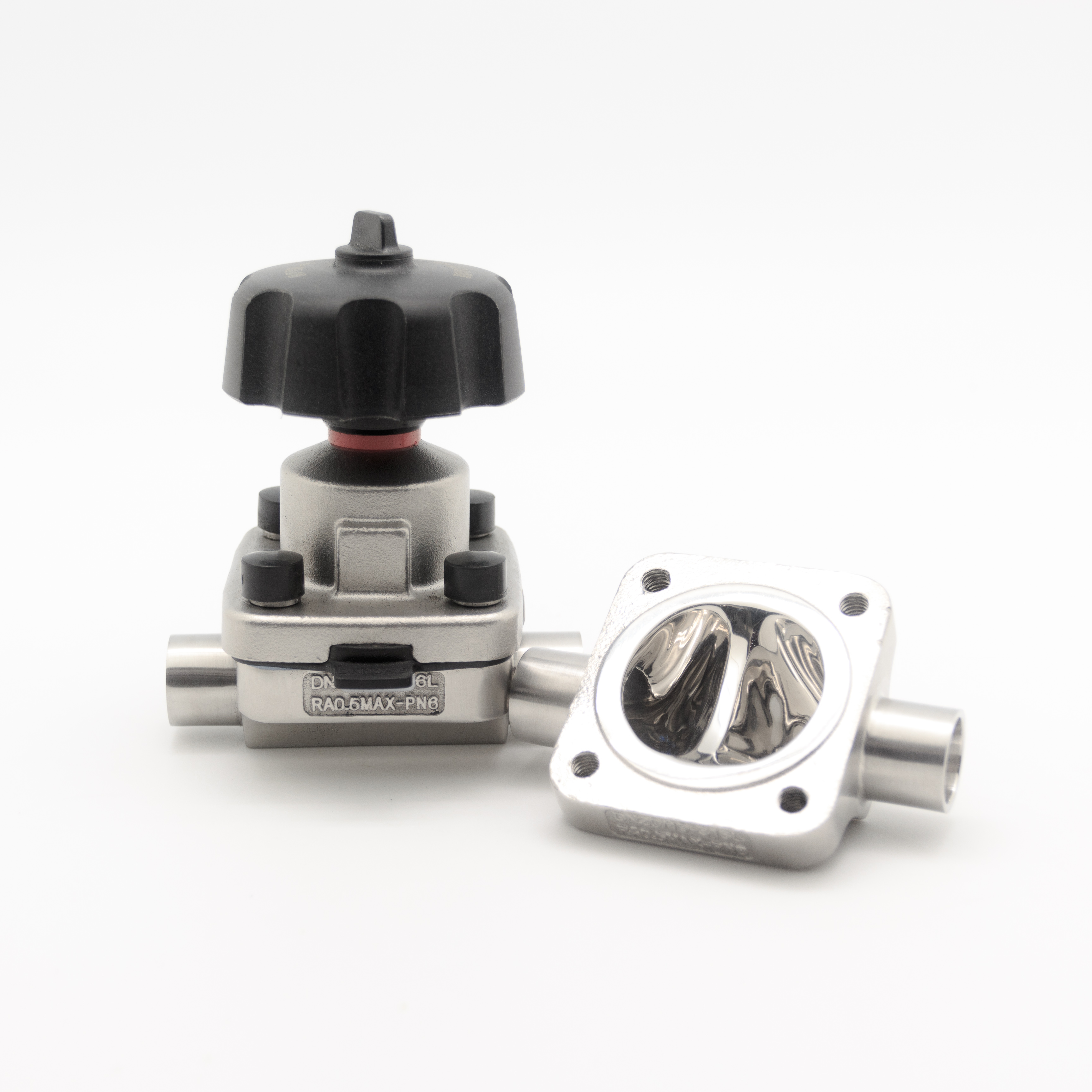

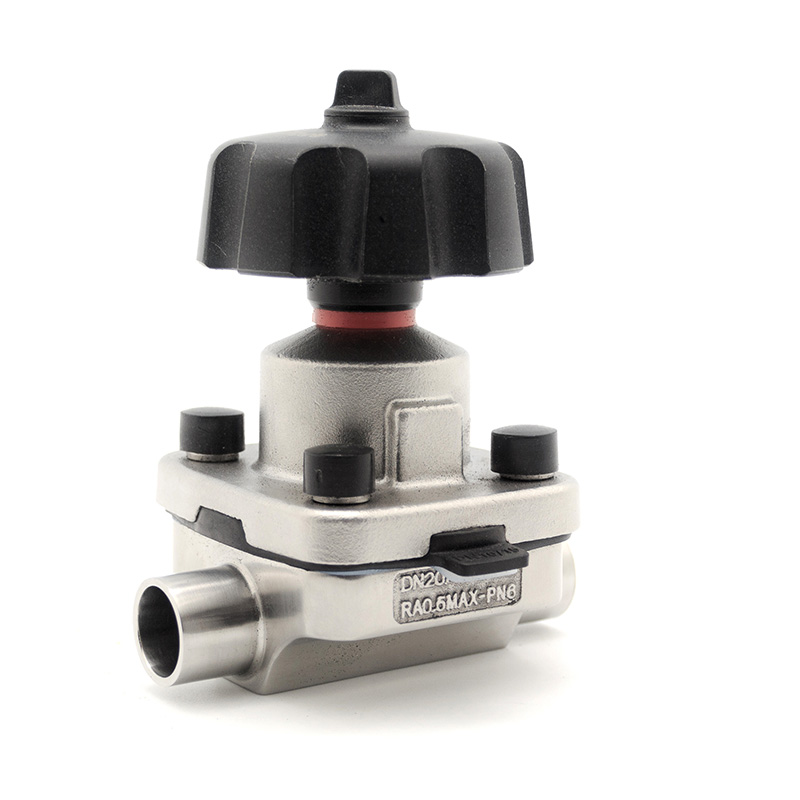

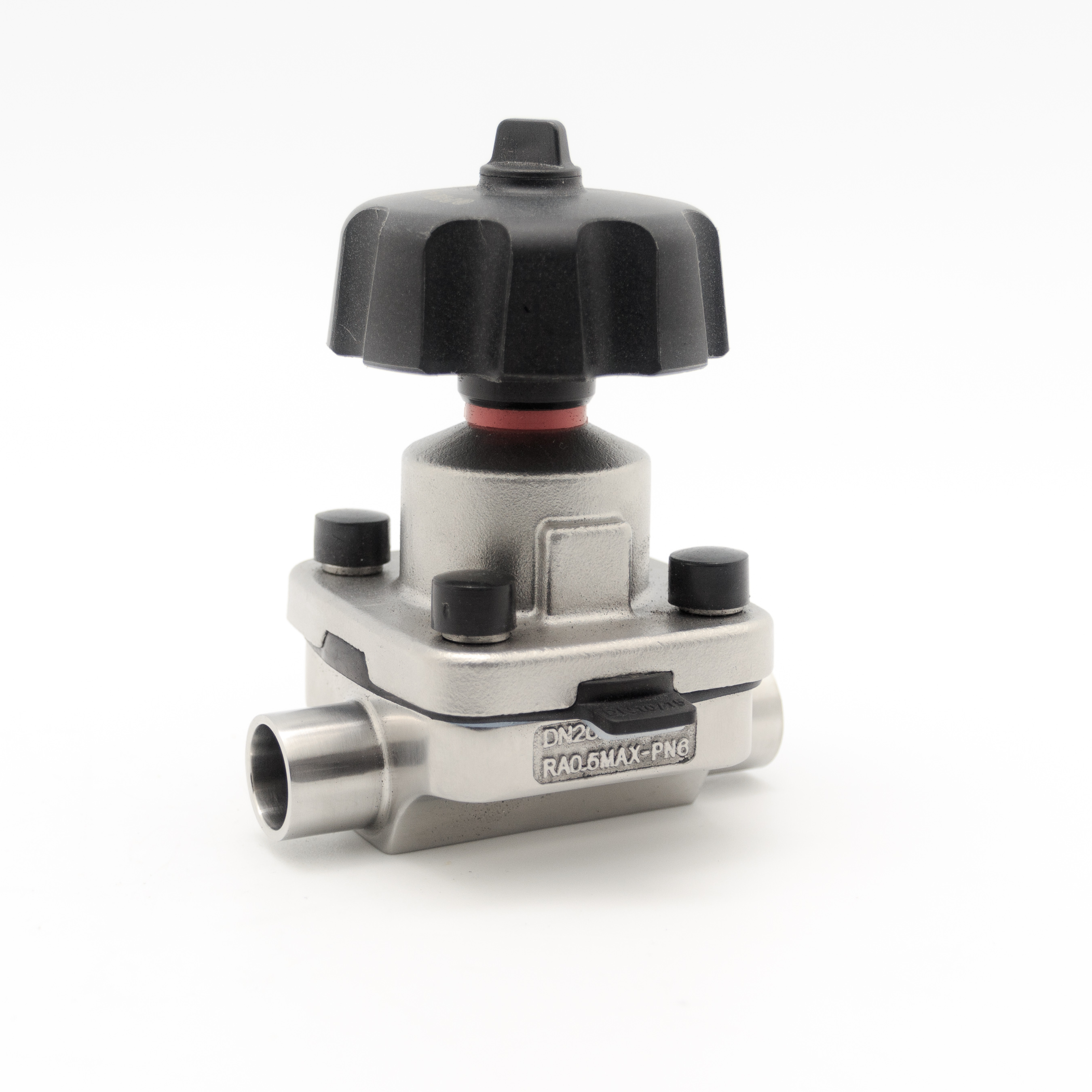

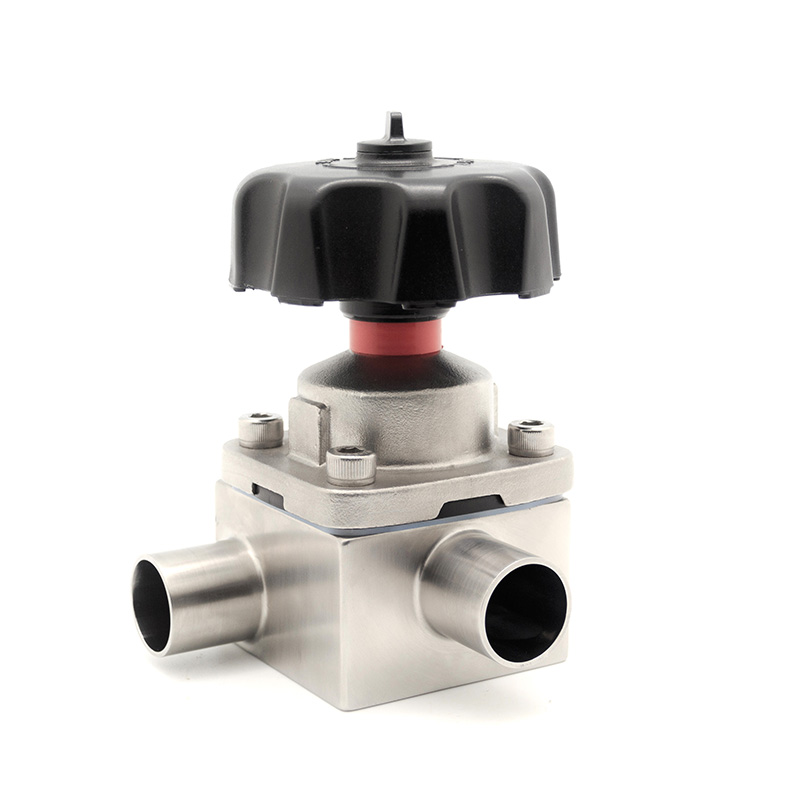

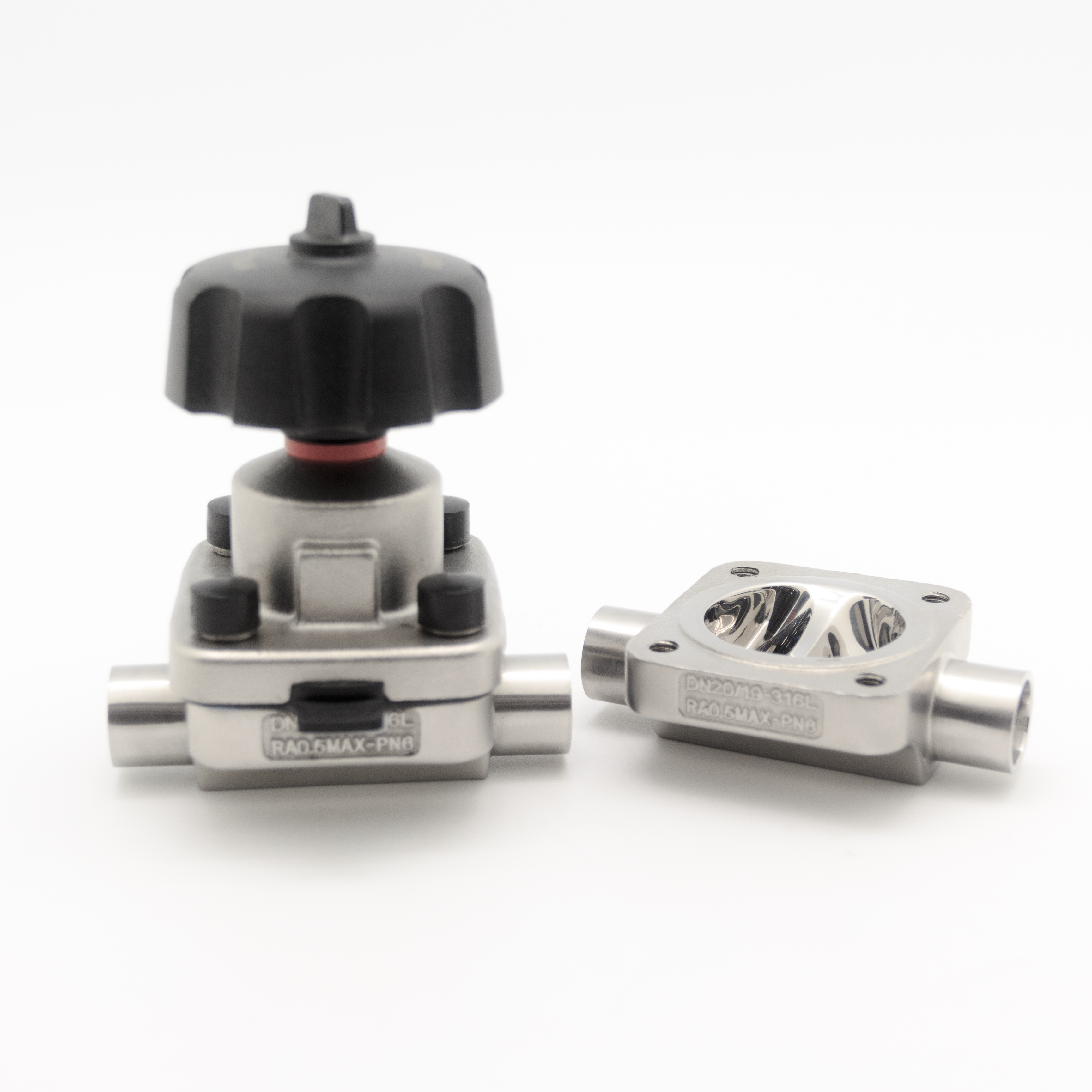

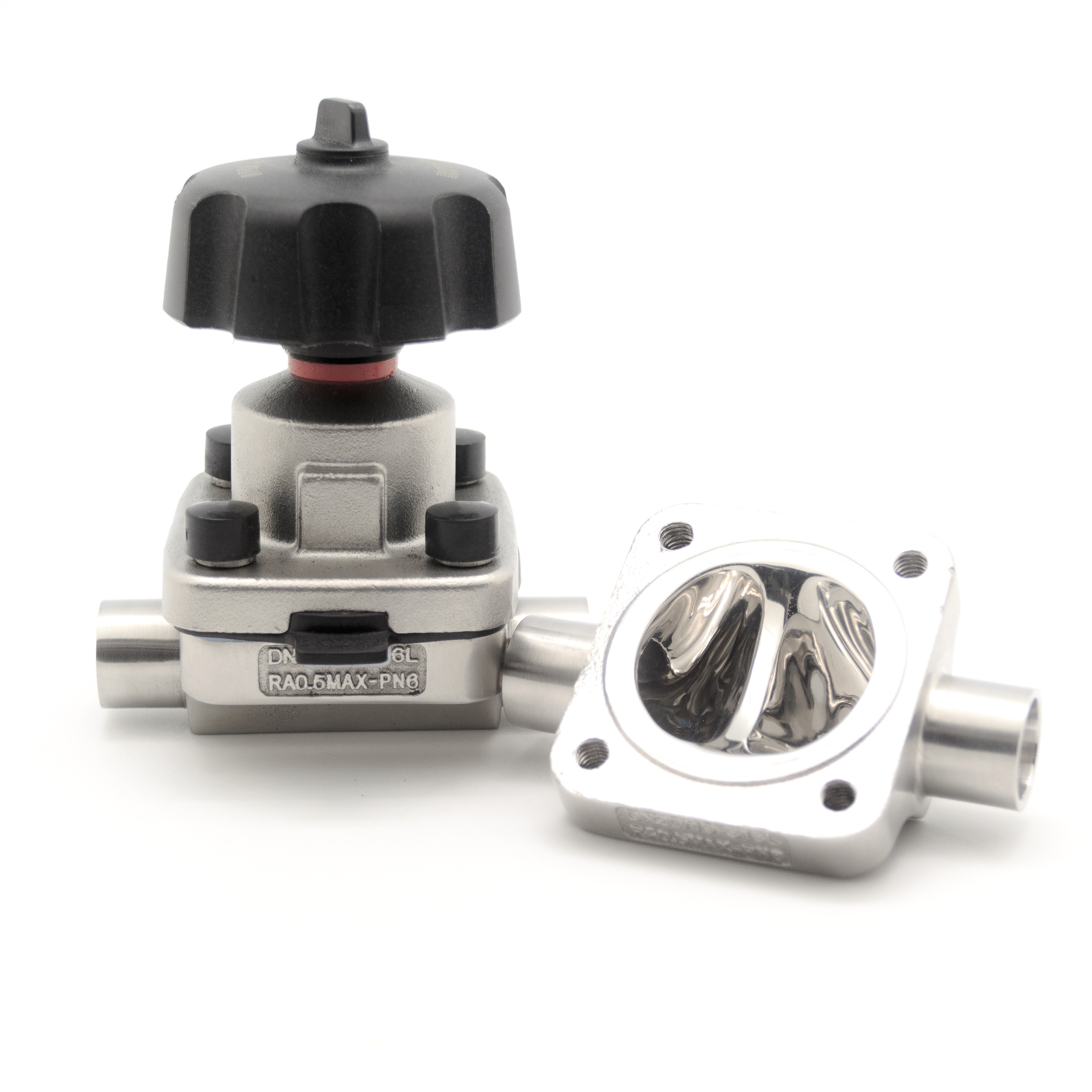

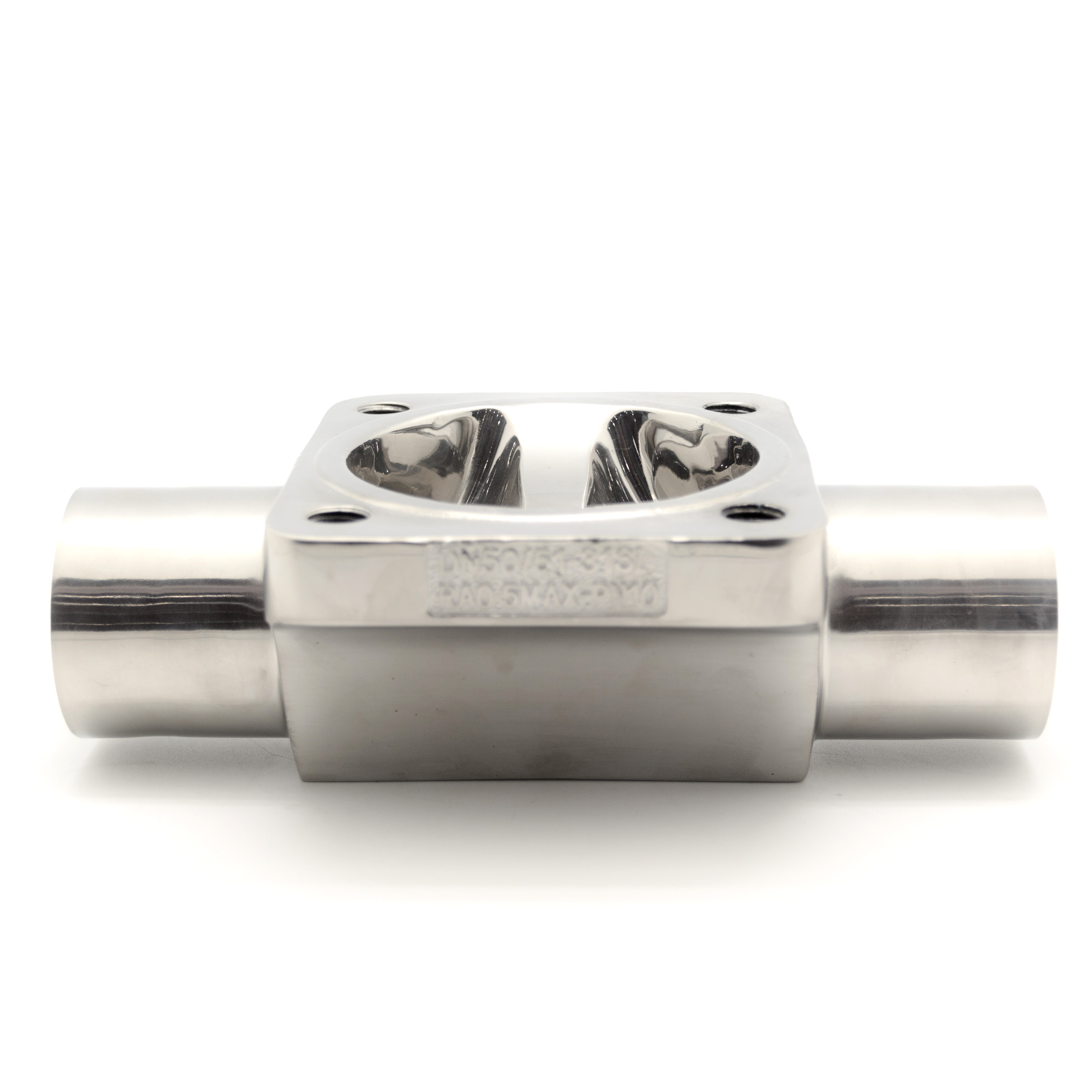

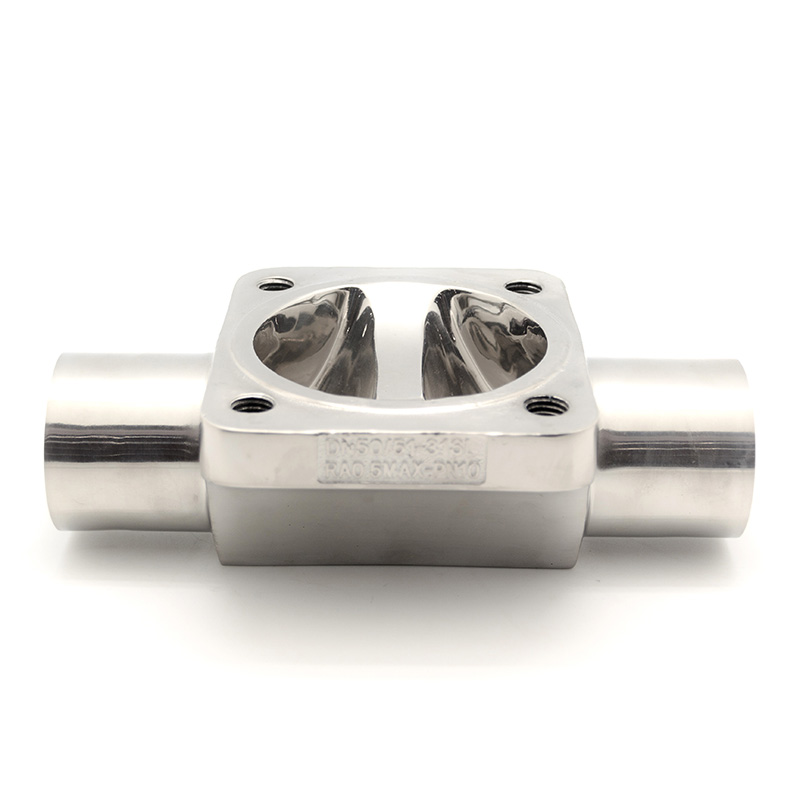

VDE Forged Manual Diaphragm Valve

Model:VDE11W

Inquire Now PDF Datasheet

Application

VDE series diaphragm valve with forged body, specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Materials

  • Body: AISI-316L

  • Membrane: EPDM+PTFE or EPDM

The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13℉(-25℃), excellent heat-resistance 482℉(+250℃), tolerance to most chemicals, and excellent abrasion resistance to medium flow.

Standard Design

  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

  • End connections: butt-welded, sanitary clamp, or others upon request

  • Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.

  • Operation: manual or pneumatic

  • Manual options: plastic or stainless steel handwheel

Technical Specification

  • Max. working pressure: 147psi (10bar)

  • Temperature range: 14 ~ 248℉ (-10 ~ 120℃), EPDM

  • Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)

  • Available for CIP/SIP.



Weld Manual Diaphragm Valve VDE

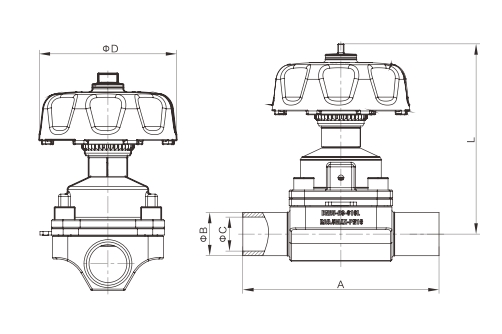

Model No Size A B C D L
VDE11W1661075NN 3/4'' 108 19.05 15.75 65 99.5
VDE11W1661100NN 1'' 127 25.4 22.1 89 122
VDE11W1661125NN 1 1/4'' 146 31.8 28.5 109 148.5
VDE11W1661150NN 1 1/2'' 160 38.1 34.8 109 148.5
VDE11W1661200NN 2'' 190 50.8 47.5 139 184.5
VDE11W1661250NN 2 1/2'' 216 63.5 60.2 200 228
VDE11W1662015NN DN15 108 18 15 65 90.5
VDE11W1662020NN DN20 118 22 19 89 111.5
VDE11W1662025NN DN25 127 28 25 89 111.5
VDE11W1662032NN DN32 146 34 31 109 131
VDE11W1662040NN DN40 160 40 37 109 131
VDE11W1662050NN DN50 190 52 49 139 162
VDE11W1662065NN DN65 216 70 67 200 199
