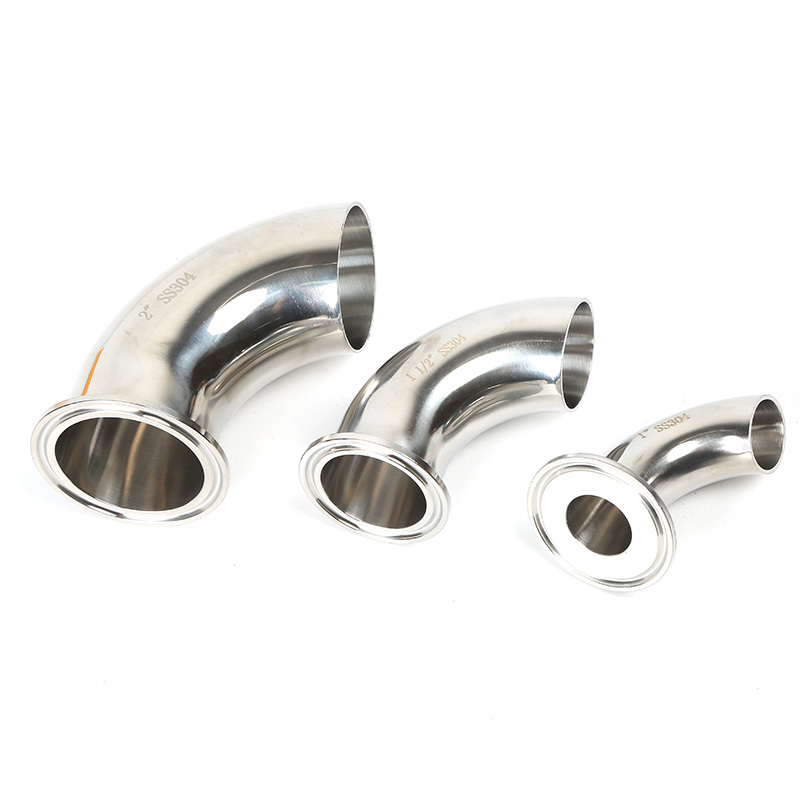

L2CM/L2KM Sanitary 3A Weld/Clamp 90°/45° Elbow SS304 SS316L 90 Degree Elbow 3A Fitting Stainless Steel 45 Degree Elbows

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

L2CM Weld/Clamp 90° Elbow

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FEA021100	1"	25.4	65.1	52.4	1.65	155
	FEA021150	11/2"	38.1	87.3	74.6	1.65	235
	FEA021200	2"	50.8	115.9	103.2	1.65	420
	FEA021250	21/2"	63.5	144.5	131.8	1.65	680
	FEA021300	3"	76.2	173.0	160.3	1.65	930
	FEA021400	4"	101.6	227.0	227.0	2.11	2085

L2KM Weld/Clamp 90° Elbow

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FEA041100	1"	25.4	42.9	30.2	1.65	104
	FEA041150	11/2"	38.1	54.1	41.4	1.65	160
	FEA041200	2"	50.8	71.4	58.7	1.65	295
	FEA041250	21/2"	63.5	88.9	76.2	1.65	470
	FEA041300	3"	76.2	106.4	93.7	1.65	665
	FEA041400	4"	101.6	138.2	122.2	2.11	1315
