Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.
Body: AISI-304 and AISI-316L
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Size available: 1/2"-8" or DN10-DN200
Detailed specifications on the drawing label

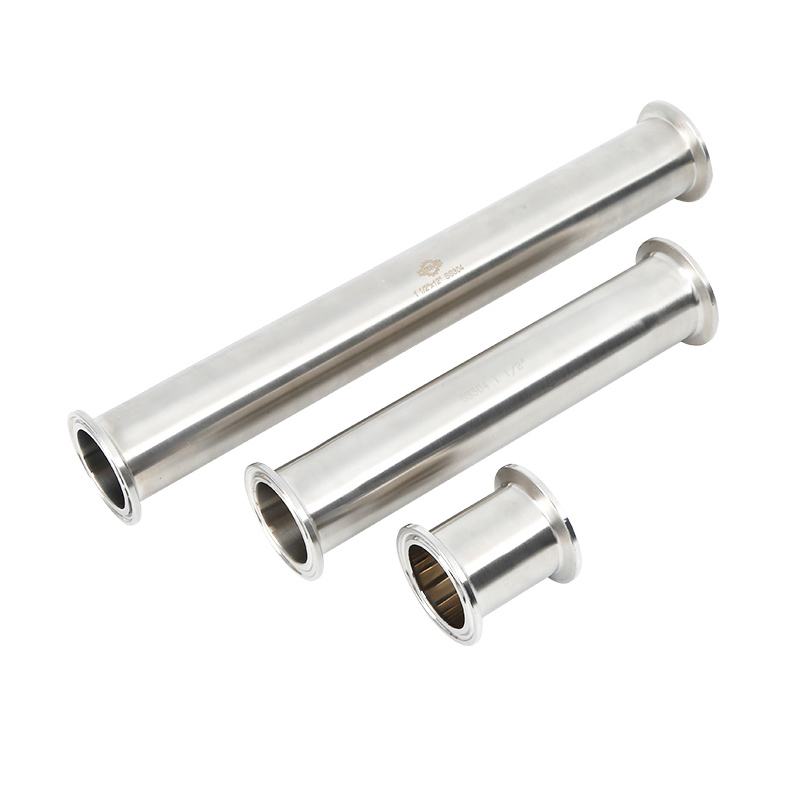

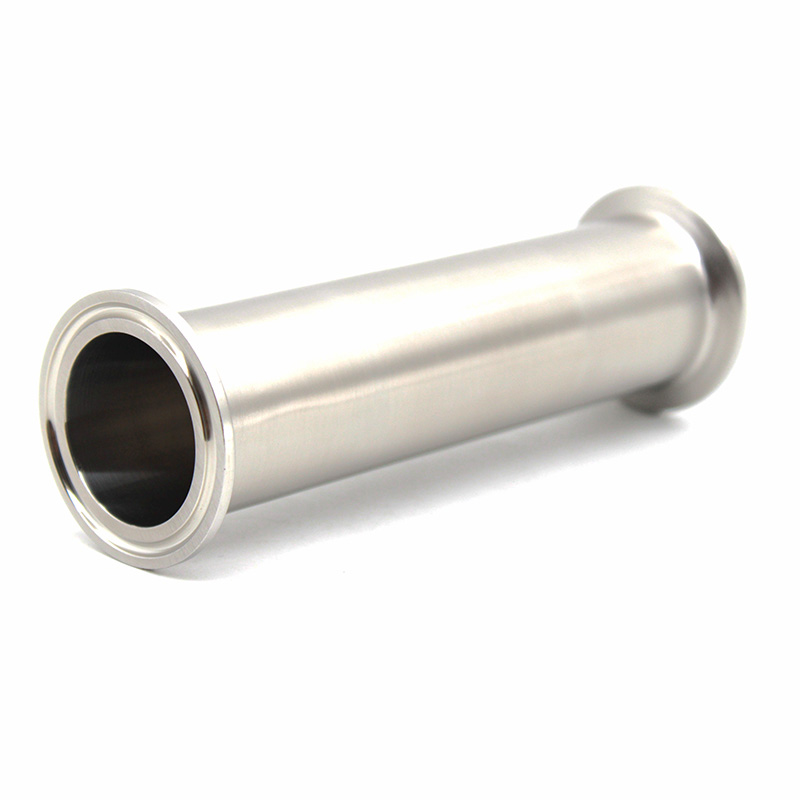

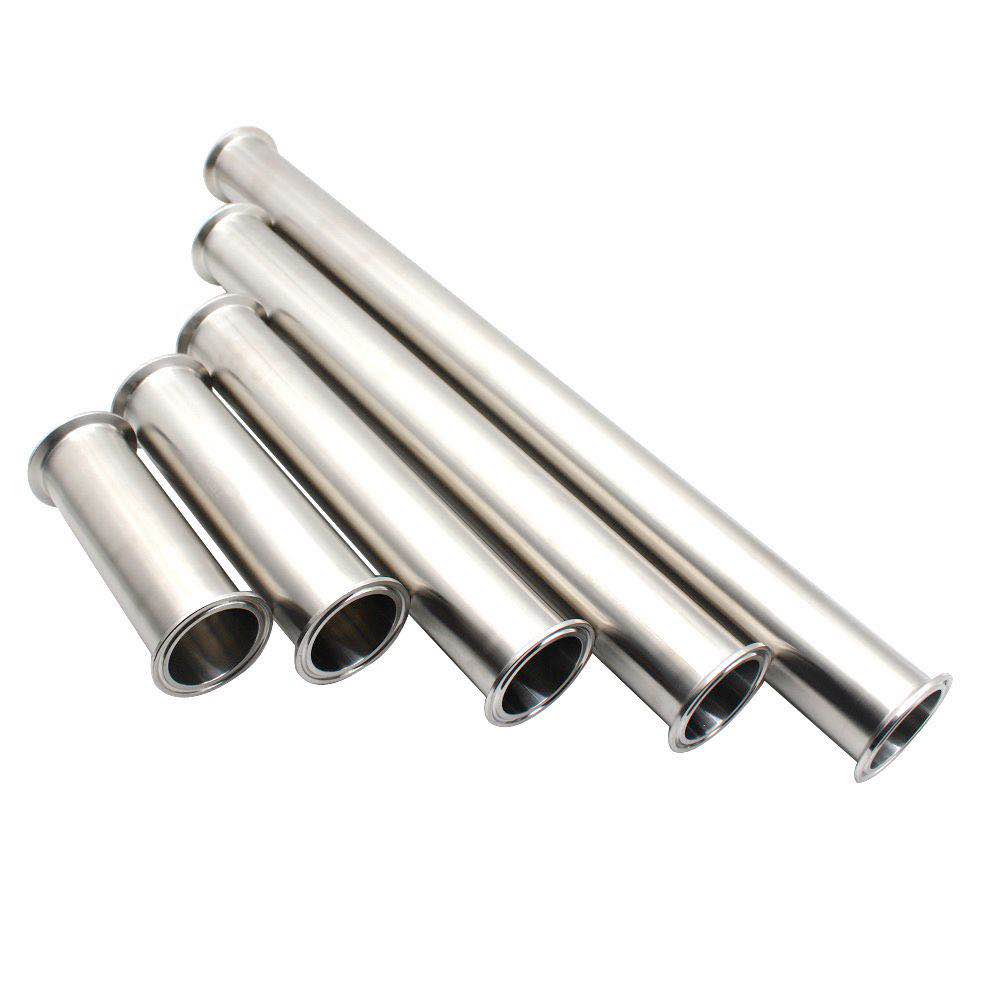

Tri Clamp Spool
 |
||||||
| Model | Size | A/mm | C/mm | L/mm | T/mm | N.W./g |
| URW11C1100L43 | 1"x1.7" | 50.5 | 25.4 | 43 | 1.65 | |
| URW11C1100L51 | 1"x2" | 50.5 | 25.4 | 50.8 | 1.65 | |
| URW11C1100L102 | 1"x4" | 50.5 | 25.4 | 101.6 | 1.65 | 200 |
| URW11C1100L152 | 1"x6" | 50.5 | 25.4 | 152.4 | 1.65 | 240 |
| URW11C1100L204 | 1"x8" | 50.5 | 25.4 | 203.8 | 1.65 | 285 |
| URW11C1100L254 | 1"x10" | 50.5 | 25.4 | 254 | 1.65 | 321 |
| URW11C1100L305 | 1"x12" | 50.5 | 25.4 | 304.8 | 1.65 | 397 |
| URW11C1100L457 | 1"x18" | 50.5 | 25.4 | 457.2 | 1.65 | 557 |
| URW11C1100L610 | 1"x24" | 50.5 | 25.4 | 609.6 | 1.65 | 618 |
| URW11C1150L43 | 1.5"x1.7" | 50.5 | 38.1 | 43 | 1.65 | |
| URW11C1150L51 | 1.5"x2" | 50.5 | 38.1 | 50.8 | 1.65 | 180 |
| URW11C1150L102 | 1.5"x4" | 50.5 | 38.1 | 101.6 | 1.65 | 247 |
| URW11C1150L152 | 1.5"x6" | 50.5 | 38.1 | 152.4 | 1.65 | 313 |
| URW11C1150L204 | 1.5"x8" | 50.5 | 38.1 | 203.8 | 1.65 | 371 |
| URW11C1150L254 | 1.5"x10" | 50.5 | 38.1 | 254 | 1.65 | 478 |
| URW11C1150L305 | 1.5"x12" | 50.5 | 38.1 | 304.8 | 1.65 | 628 |
| URW11C1150L457 | 1.5"x18" | 50.5 | 38.1 | 457.2 | 1.65 | 830 |
| URW11C1150L610 | 1.5"x24" | 50.5 | 38.1 | 609.6 | 1.65 | |
| URW11C1175L43 | 1.75"x1.7" | 64 | 48 | 43 | 1.5 | |
| URW11C1175L51 | 1.75"x2" | 64 | 48 | 50.8 | 1.5 | 280 |
| URW11C1175L102 | 1.75"x4" | 64 | 48 | 101.6 | 1.5 | |
| URW11C1175L152 | 1.75"x6" | 64 | 48 | 152.4 | 1.5 | 419 |
| URW11C1175L204 | 1.75"x8" | 64 | 48 | 203.8 | 1.5 | |
| URW11C1175L254 | 1.75"x10" | 64 | 48 | 254 | 1.5 | |
| URW11C1175L305 | 1.75"x12" | 64 | 48 | 304.8 | 1.5 | |
| URW11C1175L457 | 1.75"x18" | 64 | 48 | 457.2 | 1.5 | |
| URW11C1175L610 | 1.75"x24" | 64 | 48 | 609.6 | 1.5 | |
| URW11C1200L43 | 2"x1.7" | 64 | 50.8 | 43 | 1.65 | |
| URW11C1200L51 | 2"x2" | 64 | 50.8 | 50.8 | 1.65 | |
| URW11C1200L102 | 2"x4" | 64 | 50.8 | 101.6 | 1.65 | 252 |
| URW11C1200L152 | 2"x6" | 64 | 50.8 | 152.4 | 1.65 | 340 |
| URW11C1200L204 | 2"x8" | 64 | 50.8 | 203.8 | 1.65 | 419 |
| URW11C1200L254 | 2"x10" | 64 | 50.8 | 254 | 1.65 | 570 |
| URW11C1200L305 | 2"x12" | 64 | 50.8 | 304.8 | 1.65 | 610 |
| URW11C1200L457 | 2"x18" | 64 | 50.8 | 457.2 | 1.65 | 882 |
| URW11C1200L610 | 2"x24" | 64 | 50.8 | 609.6 | 1.65 | 1662 |
| URW11C1225L43 | 2.25"x1.7" | 77.5 | 57 | 43 | 2 | |
| URW11C1225L51 | 2.25"x2" | 77.5 | 57 | 50.8 | 2 | |
| URW11C1225L102 | 2.25"x4" | 77.5 | 57 | 101.6 | 2 | 416 |
| URW11C1225L152 | 2.25"x6" | 77.5 | 57 | 152.4 | 2 | |
| URW11C1225L204 | 2.25"x8" | 77.5 | 57 | 203.8 | 2 | 542 |
| URW11C1225L254 | 2.25"x10" | 77.5 | 57 | 254 | 2 | |
| URW11C1225L305 | 2.25"x12" | 77.5 | 57 | 304.8 | 2 | |
| URW11C1225L457 | 2.25"x18" | 77.5 | 57 | 457.2 | 2 | |
| URW11C1225L610 | 2.25"x24" | 77.5 | 57 | 609.6 | 2 | |
| URW11C1250L43 | 2.5"x1.7" | 77.5 | 63.5 | 43 | 1.65 | |
| URW11C1250L51 | 2.5"x2" | 77.5 | 63.5 | 50.8 | 1.65 | |
| URW11C1250L102 | 2.5"x4" | 77.5 | 63.5 | 101.6 | 1.65 | 402 |
| URW11C1250L152 | 2.5"x6" | 77.5 | 63.5 | 152.4 | 1.65 | |
| URW11C1250L204 | 2.5"x8" | 77.5 | 63.5 | 203.8 | 1.65 | 682 |
| URW11C1250L254 | 2.5"x10" | 77.5 | 63.5 | 254 | 1.65 | |
| URW11C1250L305 | 2.5"x12" | 77.5 | 63.5 | 304.8 | 1.65 | |
| URW11C1250L457 | 2.5"x18" | 77.5 | 63.5 | 457.2 | 1.65 | |
| URW11C1250L610 | 2.5"x24" | 77.5 | 63.5 | 609.6 | 1.65 | |
| URW11C1300L43 | 3"x1.7" | 91 | 76.2 | 43 | ||
| URW11C1300L51 | 3"x2" | 91 | 76.2 | 50.8 | ||
| URW11C1300L102 | 3"x4" | 91 | 76.2 | 101.6 | 1.65 | 484 |
| URW11C1300L152 | 3"x6" | 91 | 76.2 | 152.4 | 1.65 | |
| URW11C1300L204 | 3"x8" | 91 | 76.2 | 203.8 | 1.65 | 848 |
| URW11C1300L254 | 3"x10" | 91 | 76.2 | 254 | 1.65 | |
| URW11C1300L305 | 3"x12" | 91 | 76.2 | 304.8 | 1.65 | |
| URW11C1300L457 | 3"x18" | 91 | 76.2 | 457.2 | 1.65 | |
| URW11C1300L610 | 3"x24" | 91 | 76.2 | 609.6 | 1.65 | |
| URW11C1350L43 | 3.5"x1.7" | 106 | 89 | 43 | 1.65 | |
| URW11C1350L52 | 3.5"x2" | 106 | 89 | 50.8 | 1.65 | |
| URW11C1350L102 | 3.5"x4" | 106 | 89 | 101.6 | 1.65 | 637 |
| URW11C1350L152 | 3.5"x6" | 106 | 89 | 152.4 | 1.65 | |
| URW11C1350L204 | 3.5"x8" | 106 | 89 | 203.8 | 1.65 | 1030 |
| URW11C1350L254 | 3.5"x10" | 106 | 89 | 254 | 1.65 | |
| URW11C1350L305 | 3.5"x12" | 106 | 89 | 304.8 | 1.65 | |
| URW11C1350L457 | 3.5"x18" | 106 | 89 | 457.2 | 1.65 | |
| URW11C1350L610 | 3.5"x24" | 106 | 89 | 609.6 | 1.65 | |
| URW11C1400L43 | 4"x1.7" | 119 | 101.6 | 43 | 2.1 | |
| URW11C1400L51 | 4"x2" | 119 | 101.6 | 50.8 | 2.1 | |
| URW11C1400L102 | 4"x4" | 119 | 101.6 | 101.6 | 2.1 | 705 |
| URW11C1400L152 | 4"x6" | 119 | 101.6 | 152.4 | 2.1 | |
| URW11C1400L204 | 4"x8" | 119 | 101.6 | 203.8 | 2.1 | 1137 |
| URW11C1400L254 | 4"x10" | 119 | 101.6 | 254 | 2.1 | |
| URW11C1400L305 | 4"x12" | 119 | 101.6 | 304.8 | 2.1 | |
| URW11C1400L457 | 4"x18" | 119 | 101.6 | 457.2 | 2.1 | |
| URW11C1400L610 | 4"x24" | 119 | 101.6 | 609.6 | 2.1 | |

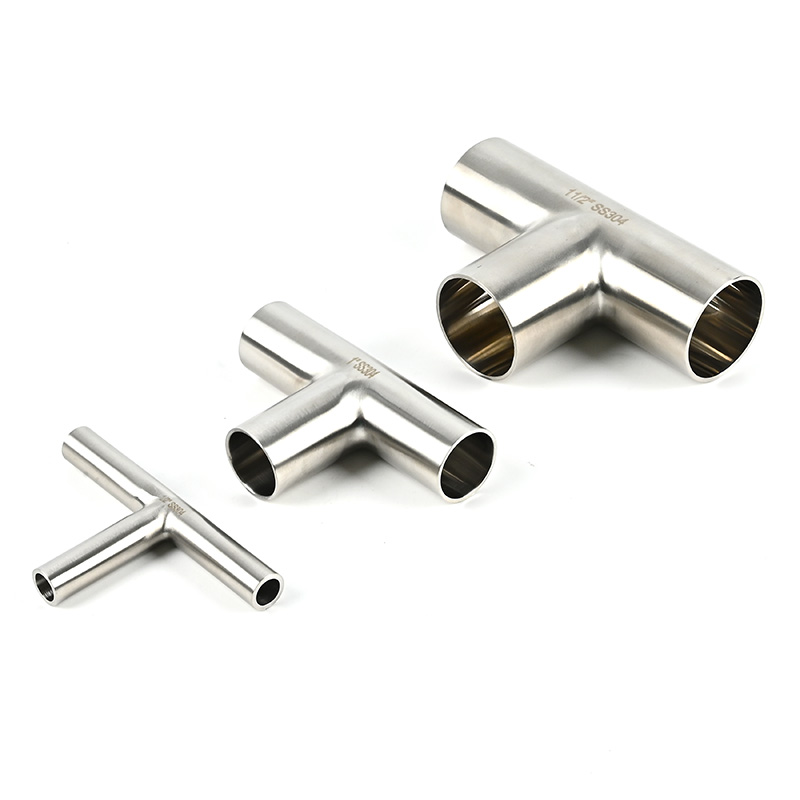

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in pl...
