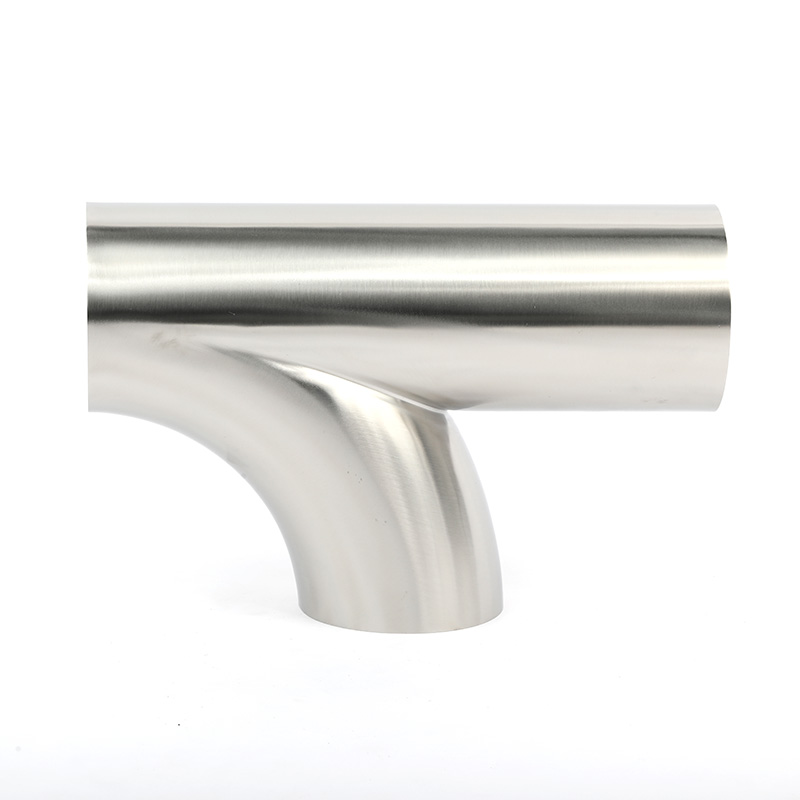

Sanitary Y-Type Tee Stainless Steel DIN Double Elbows Tee SS304 SS316L Welding Fitting Elbow Tees

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

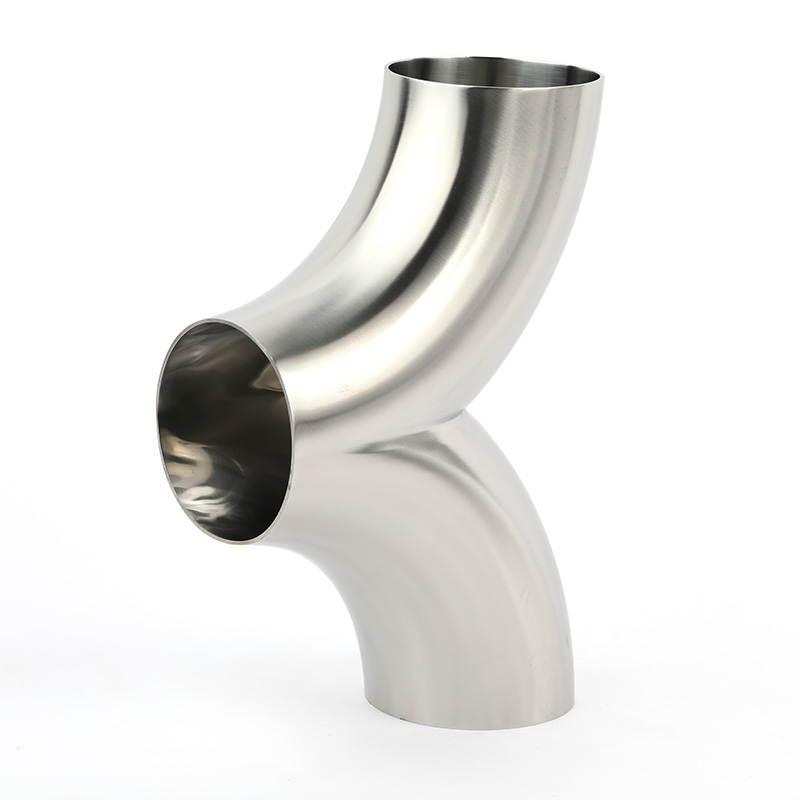

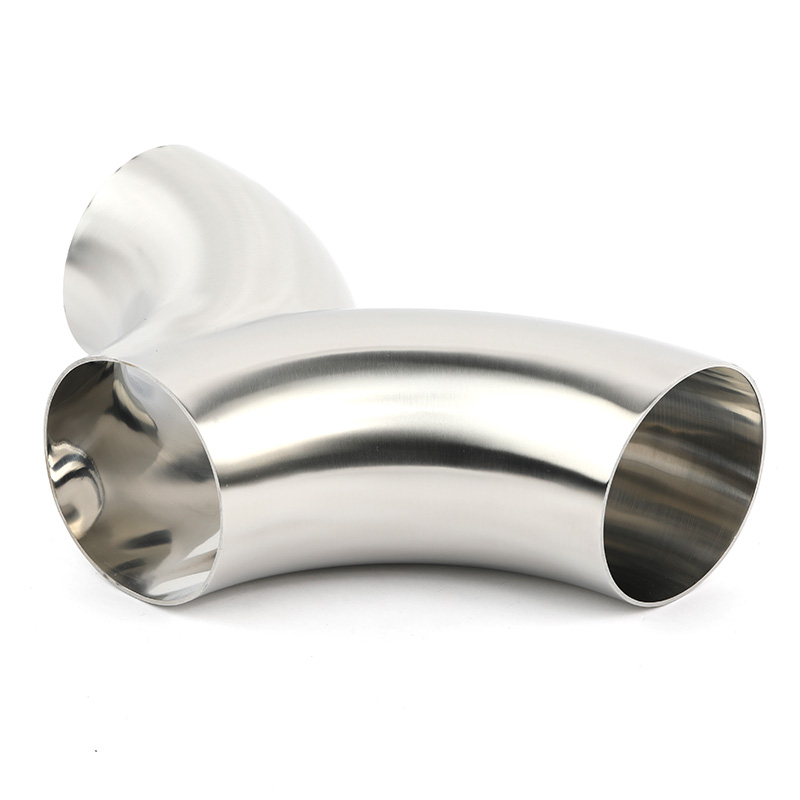

DIN Double Elbow Tee

	Model No	Size	D1/mm	D2/mm	L/mm	L1/mm	T/mm	N.W/g.
	FYW032025412S1	DN25	25	28	100	50	1.5	100
	FYW032025412S2	DN25	26	29	100	50	1.5	100
	FYW032032412S1	DN32	31	34	110	55	1.5	130
	FYW032032412S2	DN32	32	35	110	55	1.5	130
	FYW032040412S1	DN40	37	40	120	60	1.5	210
	FYW032040412S2	DN40	38	41	120	60	1.5	210
	FYW032050412S1	DN50	49	52	140	70	1.5	290
	FYW032050412S2	DN50	50	53	140	70	1.5	290
	FYW032065412S1	DN65	66	70	160	80	2	620
	FYW032080412S1	DN80	81	85	180	90	2	850
	FYW032100412S1	DN100	100	104	200	100	2	1620
