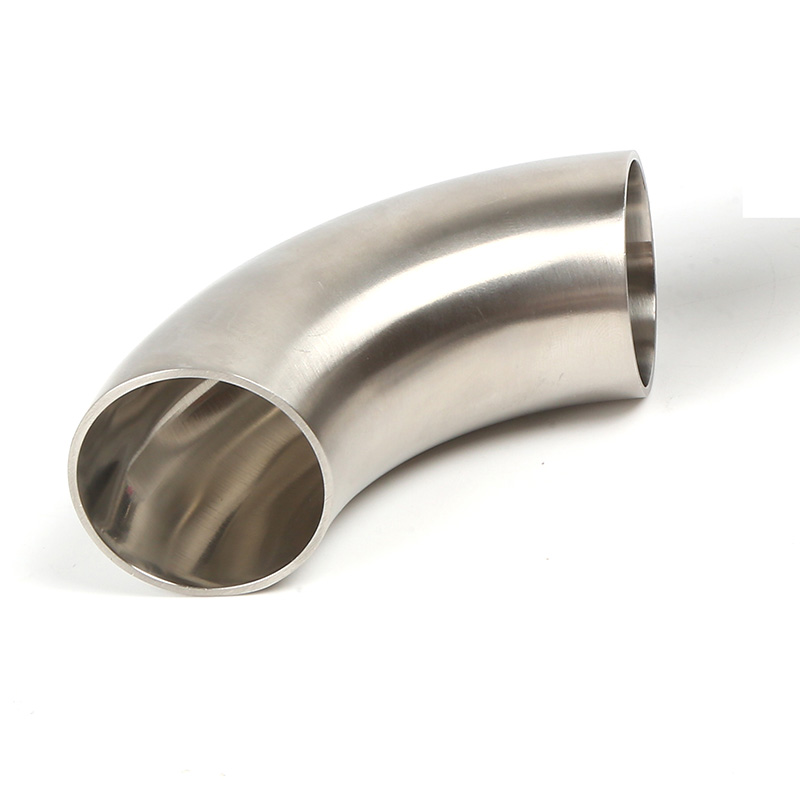

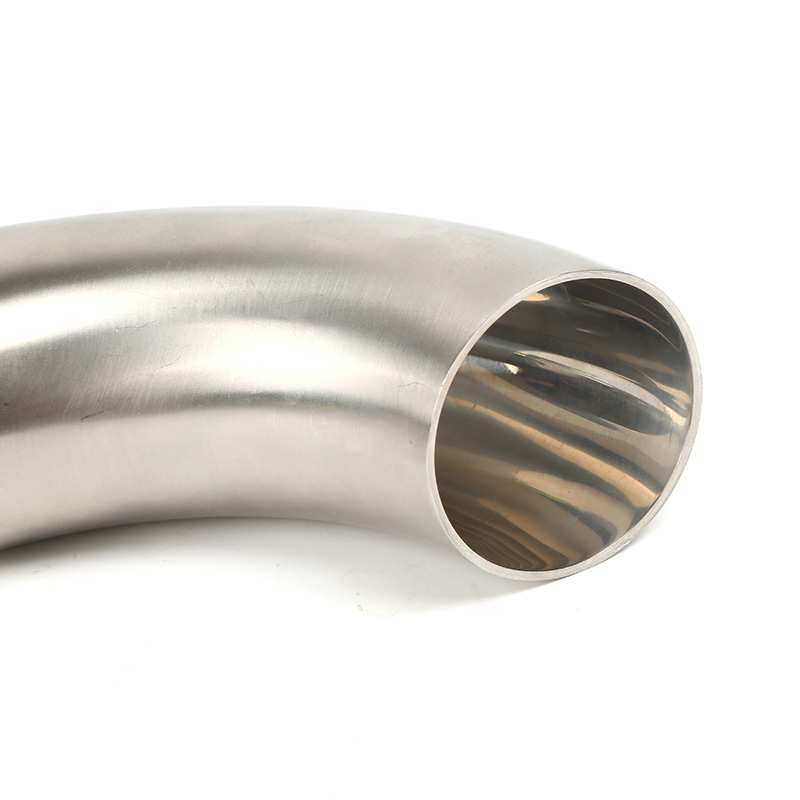

Stainless Steel SMS 90° Elbows Short/Long Sanitary Weld 45°Elbow SS304 SS316L 90/45 Degree Welding Elbows Fitting

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

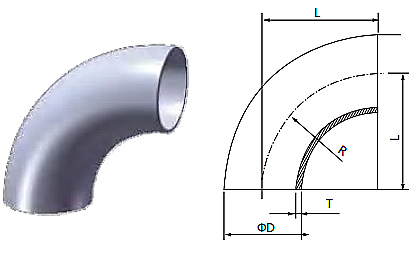

SMS 90° Elbows Short

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW013100	25	25.4	38.1	38.1	1.5
	FEW013125	32	31.8	47.7	47.7	1.5
	FEW01350	38	38.1	57.2	57.2	1.5
	FEW013200	51	50.8	76.2	76.2	1.5
	FEW013250	63	63.5	95.3	95.3	2
	FEW013300	76	76.2	114.3	114.3	2
	FEW013400	101.6	101.6	152.4	152.4	2

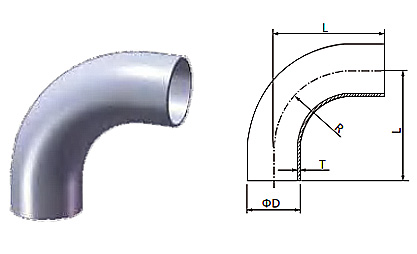

SMS 90° Elbows Long

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW023100	25	25.4	55	38.1	1.5
	FEW02350	38	38.1	70	57.2	1.5
	FEW023200	51	50.8	82	76.2	1.5
	FEW023250	63	63.5	105	95.3	2
	FEW023300	76	76.2	110	114.3	2
	FEW023400	101.6	101.6	150	152.4	2

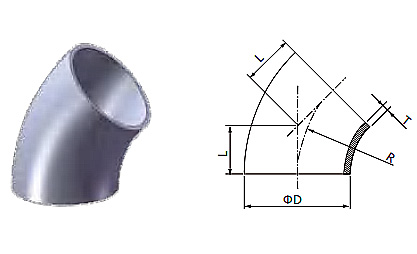

SMS 45° Elbows Short

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW033100	25	25.4	15.5	38.1	1.5
	FEW03350	38	38.1	23.6	57.2	1.5
	FEW033200	51	50.8	31.6	76.2	1.5
	FEW033250	63	63.5	39.5	95.3	2
	FEW033300	76	76.2	47.2	114.3	2
	FEW033400	101.6	101.6	63	152.4	2

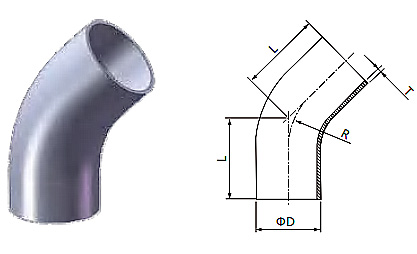

SMS 45° Elbows Long

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW043100	25	25.4	42.5	38.1	1.5
	FEW04350	38	38.1	56.8	57.2	1.5
	FEW043200	51	50.8	68.6	76.2	1.5
	FEW043250	63	63.5	78.4	95.3	2
	FEW043300	76	76.2	85.2	114.3	2
	FEW043400	101.6	101.6	103	152.4	2
