ISO Cross SS304 SS316L Weld Cross Sanitary Welding Cross Stainless Steel ISO Weld Fitting

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

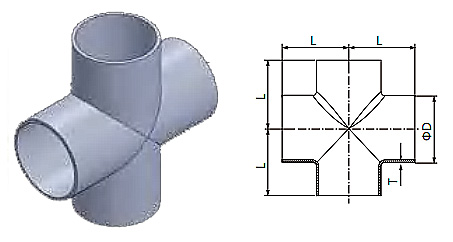

ISO Cross

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FXW014050	φ12.7	12.7	19.1	1.5
	FXW014075	φ19	19.1	28.5	1.5	49
	FXW014100	φ25	25.4	33.5	1.5	81
	FXW014125	φ32	31.8	38	1.5	116
	FXW014150	φ38	38.1	48.5	1.5	180
	FXW014175	φ45	45	57.5	1.5	256
	FXW014200	φ51	50.8	60.5	1.5	292
	FXW014225	φ57	57	68	2	468
	FXW014250	φ63	63.5	83.5	2	490
	FXW014300	φ76	76.2	88.5	2	686
	FXW014350	φ89	88.9	103.5	2	914
	FXW014400	φ102	101.6	127	2	1121

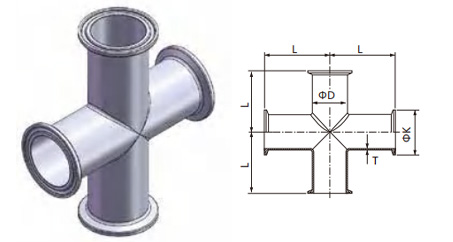

ISO Clamp Cross

	Model No	Size	D/mm	K/mm	L/mm	T/mm	N.W/g.
	FXC014050	φ12.7	12.7	2.52/34/50.5	40.6	1.5
	FXC014075	φ19	19.1	2.52/34/50.5	50	1.5
	FXC014100	φ25	25.4	50.5	55	1.5
	FXC014125	φ32	31.8	50.5	59.5	1.5
	FXC014150	φ38	38.1	50.5	70	1.5
	FXC014175	φ45	45	64	79	1.5
	FXC014200	φ51	50.8	64	82	1.5
	FXC014225	φ57	57	77.5	89.5	2
	FXC014250	φ63	63.5	77.5	91.5	2
	FXC014300	φ76	76.2	91	97.5	2
	FXC014350	φ89	88.9	106	107.5	2
	FXC014400	φ102	101.6	119	116.5	2
