JIS 90/45 Degree Welding Elbows Stainless Steel Weld Short/Long Fitting Sanitary Weld 45°Elbow SS304 SS316L JIS Pipe Fitting

Model No.:FE

SKU:FE

End Connections:

Elbow Type:

Size.:

Materials:

Finishing:

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld
Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

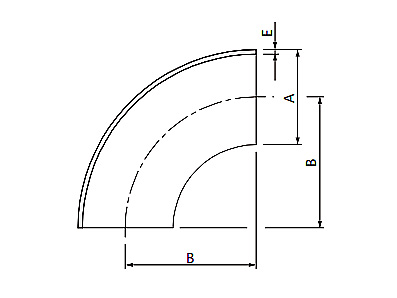

JIS 90° Elbow

Model No	Size	D/mm	B/mm	T/mm	N.W/g.
FEW015050	1/2S	12.7	25	1.5
FEW015075	3/4S	19.1	28.5	1.5
FEW015100	1S	25.4	35	1.5	35
FEW015150	1.5S	38.1	50	1.5	86
FEW015200	2S	50.8	60	1.5	160
FEW015250	2.5S	63.5	79	1.5	270
FEW015300	3S	76.2	82	2	390
FEW015400	4S	101.6	133	2	925

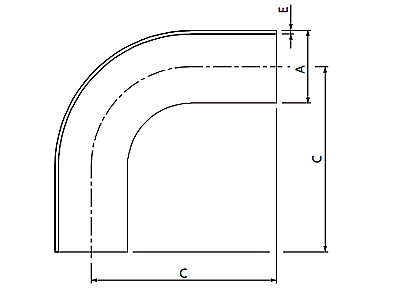

JIS Long 90° Elbow

Model No	Size	D/mm	C/mm	T/mm	N.W/g.
FEW025050	1/2S	12.7	60	1.5
FEW025075	3/4S	19.1	60	1.5
FEW025100	1S	25.4	70	1.5
FEW025150	1.5S	38.1	85	1.5
FEW025200	2S	50.8	100	1.5
FEW025250	2.5S	63.5	119	1.5
FEW025300	3S	76.2	127	2
FEW025400	4S	101.6	175	2

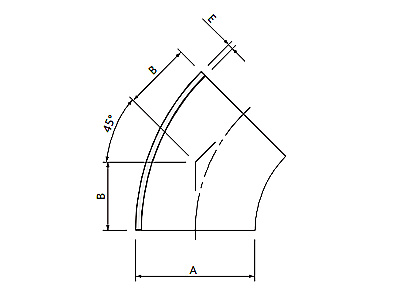

JIS Long 90° Elbow

Model No	Size	D/mm	C/mm	T/mm	N.W/g.
FEW035100	1S	25.4	14.6	1.5	18
FEW035150	1.5S	38.1	20.7	1.5	43
FEW035200	2S	50.8	24.9	1.5	80
FEW035250	2.5S	63.5	32.7	1.5	135
FEW035300	3S	76.2	34	2	195
FEW035400	4S	101.6	55.7	2	475

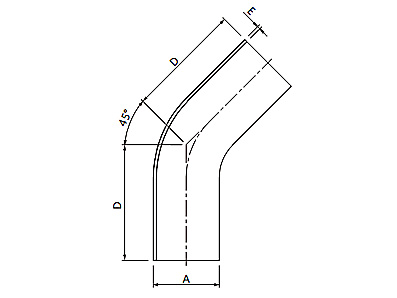

JIS Long 45° Elbow

Model No	Size	D/mm	D/mm	E/mm	N.W/g.
FEW045050	1/2S	12.7	40	1.25
FEW045075	3/4S	19.1	49	1.65
FEW045100	1S	25.4	49.5	1.25
FEW045150	1.5S	38.1	55.7	1.25
FEW045200	2S	50.8	64.9	1.5
FEW045250	2.5S	63.5	72.7	1.5
FEW045300	3S	76.2	79	2
FEW045400	4S	101.6	98.8	2

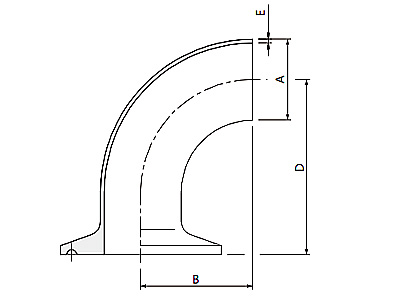

JIS Weld/Clamp 90° Elbow

Model No	Size	D/mm	B/mm	D/mm	T/mm	N.W/g.
FEA015050	1/2S	12.7	25	38.5	1.25
FEA015075	3/4S	19.1	28.5	43.5	1.65
FEA015100	1S	25.4	35	55	1.25
FEA015150	1.5S	38.1	50	70	1.25
FEA015200	2S	50.8	60	82	1.5
FEA015250	2.5S	63.5	79	105	1.5
FEA015300	3S	76.2	82	110	2
FEA015400	4S	101.6	133	162.5	2

JIS Weld/Clamp 90° Elbow Long

Model No	Size	D/mm	C/mm	D/mm	T/mm	N.W/g.
FEA025050	1/2S	12.7	60	38.5	1.25
FEA025075	3/4S	19.1	60	43.5	1.65
FEA025100	1S	25.4	70	55	1.25
FEA025150	1.5S	38.1	85	70	1.25
FEA025200	2S	50.8	100	82	1.5
FEA025250	2.5S	63.5	119	105	1.5
FEA025300	3S	76.2	127	110	2
FEA025400	4S	101.6	175	162.5	2

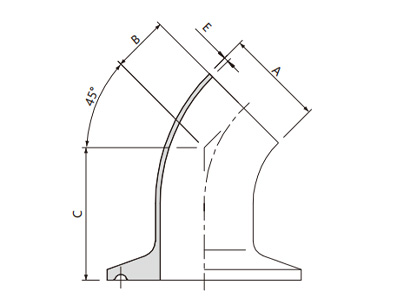

JIS Weld/Clamp 45° Elbow

Model No	Size	D/mm	B/mm	C/mm	T/mm	N.W/g.
FEA035100	1S	25.4	35	34.6	1.25
FEA035150	1.5S	38.1	50	40.7	1.25
FEA035200	2S	50.8	60	46.9	1.5
FEA035250	2.5S	63.5	79	58.7	1.5
FEA035300	3S	76.2	82	62	2
FEA035400	4S	101.6	134.5	83.7	2

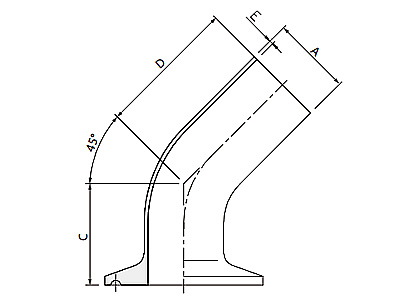

JIS Weld/Clamp 45° Elbow Long

Model No	Size	D/mm	C/mm	D/mm	T/mm	N.W/g.
FEA045050	1/2S	12.7	24	40	1.25
FEA045075	3/4S	19.1	30	49	1.65
FEA045100	1S	25.4	34.6	49.5	1.25
FEA045150	1.5S	38.1	40.7	55.7	1.25
FEA045200	2S	50.8	46.9	64.9	1.5
FEA045250	2.5S	63.5	58.7	72.7	1.5
FEA045300	3S	76.2	62	79	2
FEA045400	4S	101.6	83.7	98.8	2

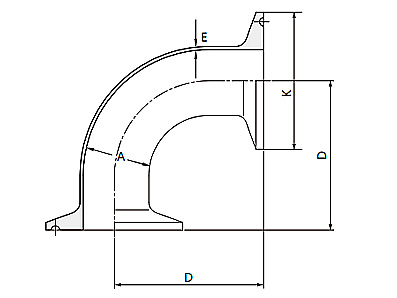

JIS Clamp 90° Elbow

Model No	Size	D/mm	D/mm	K/mm	T/mm	N.W/g.
FEC015050	1/2S	12.7	49	25.2	1.25
FEC015075	3/4S	19.1	54	25.2	1.65
FEC015100	1S	25.4	55	50.5	1.25
FEC015150	1.5S	38.1	70	50.5	1.25
FEC015200	2S	50.8	82	64	1.5
FEC015250	2.5S	63.5	105	77.5	1.5
FEC015300	3S	76.2	110	91	2
FEC015400	4S	101.6	162.5	119	2

JIS Clamp 45° Elbow

Model No	Size	A/mm	C/mm	K/mm	T/mm	N.W/g.
FEC035050	1/2S	12.7	24	25.2	1.25
FEC035075	3/4S	19.1	30	25.2	1.65
FEC035100	1S	25.4	34.5	50.5	1.25	150
FEC035150	1.5S	38.1	40.7	50.5	1.25	130
FEC035200	2S	50.8	46.9	64	1.5	240
FEC035250	2.5S	63.5	58.7	77.5	1.5	360
FEC035300	3S	76.2	62	91	2	540
FEC035400	4S	101.6	83.7	119	2	1050
