VHH Shut-off & Divert Valve

CONCEPT

VHH series shut-off and divert seat valve provides solutions for the most stringent hygienic and aseptic processes requirements in the beverage, food, dairy and pharmaceutical industries.

TECHNICAL DATA

Working Temperature Range:  -10°C to +120°C (EPDM per FDA)

Max. Working Pressure:  1000 kPa (10 bar)

Min. Working Pressure:   Full vacuum

Air Pressure for Actuator:  500 to 700 kPa (5 to 7 bar)

Air Connections Compressed air:  Female R 1/8" (BSP)

MATERIAL

Wetting Steel Parts:  SS304/SS316L

Other Steel Parts: SS304

Seat Seal:  EPDM per FDA 177.2600

Connection:  Clamp End/Weld End/Male End

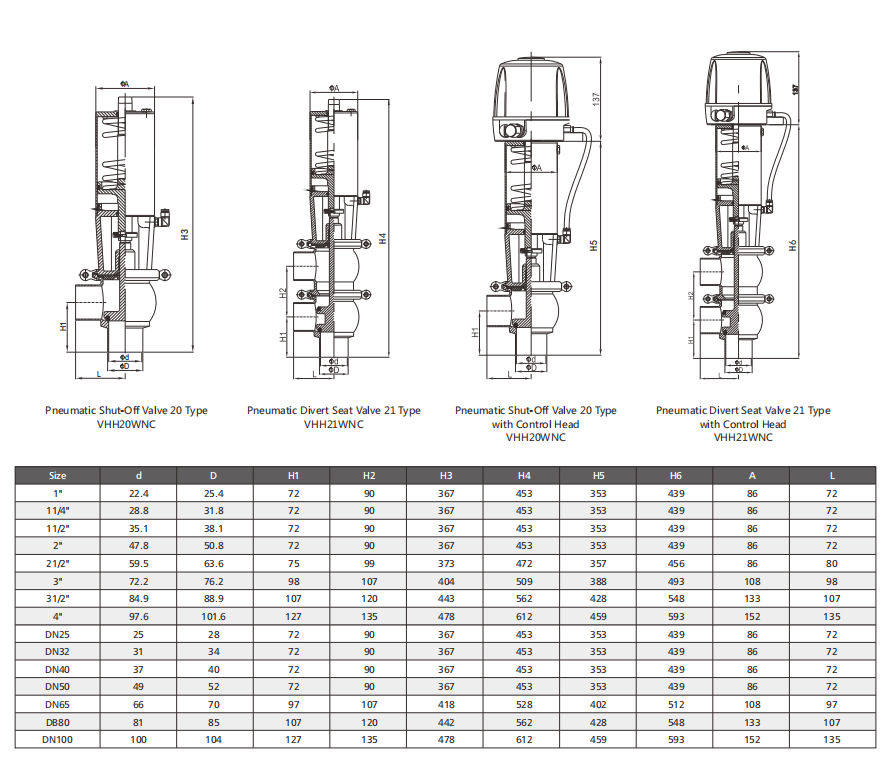

Body type: 20, 21, 30, 31, 22, 32

DESIGN AND FEATURES

FDA Gasket

Clamped housing connection: Seat ring clamped by clamping connection

Ordering Information :
