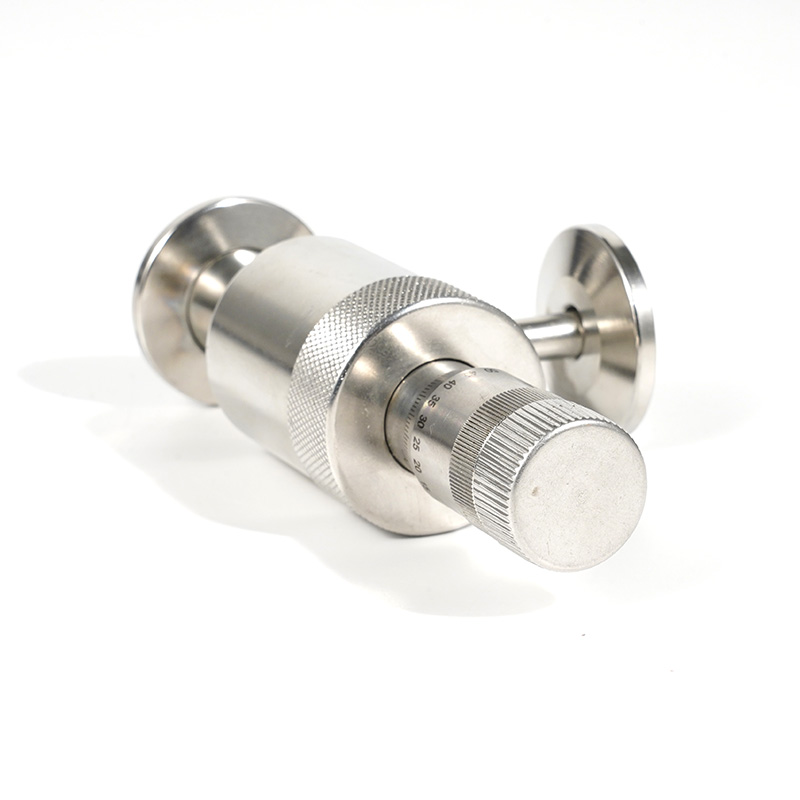

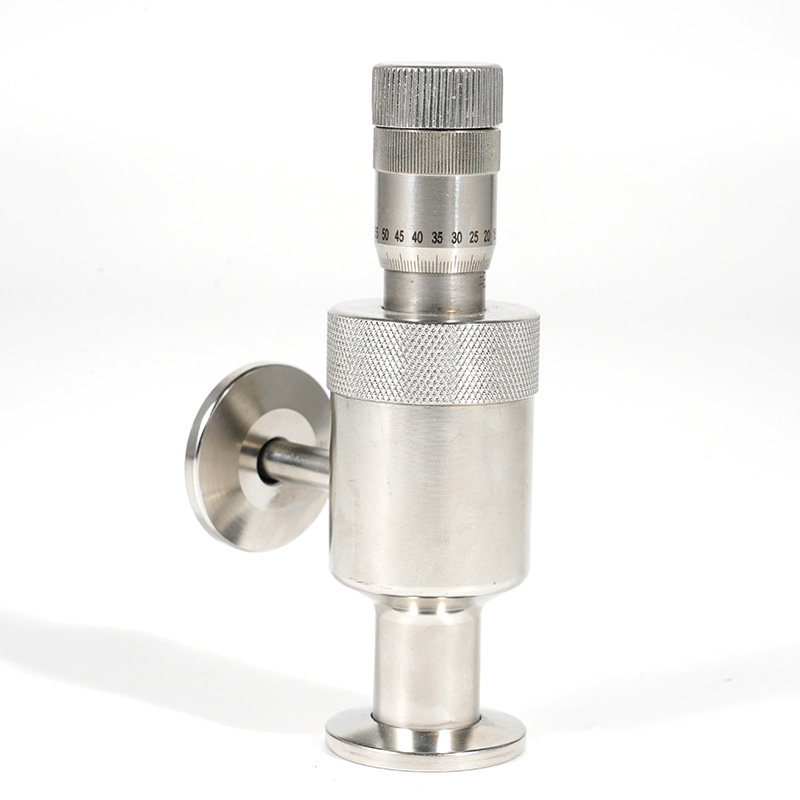

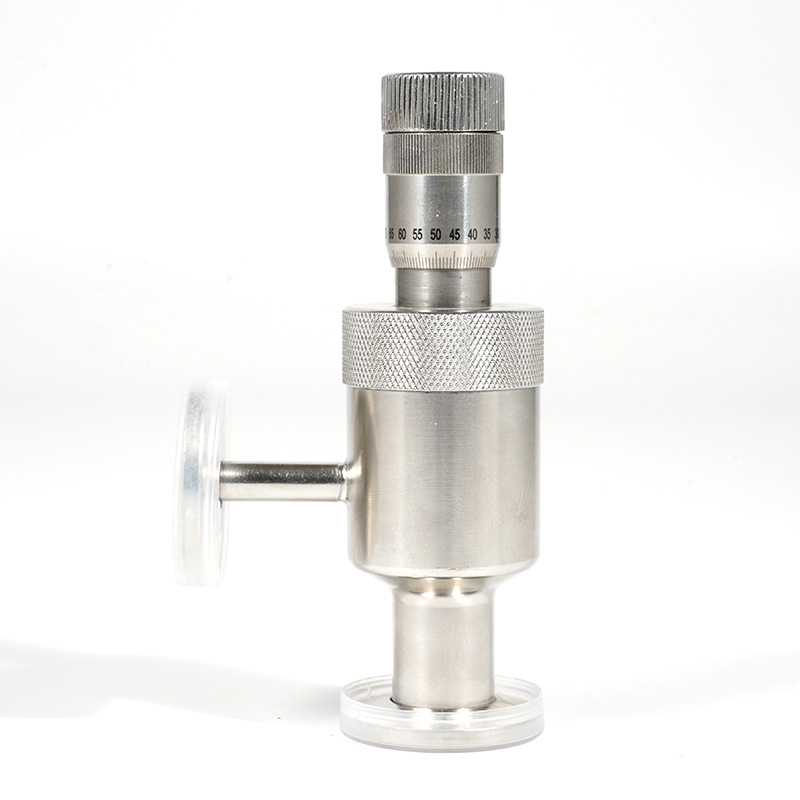

SS304 High Vacuum Trimming Valve KF16 Stainless Steel Fluorine Rubber NW16 Shaft Seals Butterfly Structure Vacuum Trimming Valve

Model No.:VAK01

SKU:VAK01

This series of valves are manually driven precision control valves. They are reasonable in structure design, beautiful in
appearance, high precision, small size, practical and reliable, and have good sealing performance. They are used to regulate vacuum and gas flow in vacuum system. The work of the valve is driven by hand turning the adjusting knob, and the needle valve is driven up and down by threaded transmission. The working medium of the valve is air or a few corrosive gases.

Features
Fine thread structure is adopted with high adjustment precision. Shaft seals are sealed with fluorine rubber, and hair bars are welded with stainless steel, with low leakage rate.
The needle and stem are designed separately and the ball seat is Installed at the connecting part, which prolongs the service life of needle valve and valve seat and facilitates maintenance.
Technical Parameters
Pressure range：1x10^(-5)Pa~1.2x10^(5)Pa Service life until first maintenance：3000 times Minimum adjustable flow：4.7x10^(-3)Pa.L/S Valve body baking temperature：≤150℃ Pressure difference on opening：≤1.2x10^(5)Pa Any Installation orientation：Any Body and seat leak rate：1.3x10^(-7)Pa.L/S Valve position indication：With dial indication
