SS304 SS316L Vacuum Pnecumatic Mini UHV Gate Valves Double Actuing CF Flange Stainless Steel Vacuum KF25 to KF50 and CF25 to CF50

Model No.:VXM03

SKU:VXM03

Operation:

Body Materials:

Seat Seal Material:

Bellow:

Size.:

Solenoid Voltage:

Position Indicator:

VXM Series mini UHV gate valves can be divided into manual, pneumatic and electric drive modes, with Connection KF flange and CF flange from size KF25 to KF50 and CF25 to CF50.

Featured with smooth operation, small size, reliable application, good sealing performance and long service life. VXM mini series UHV gate valves are used when a very high conductance value or an optically free passage is required. The medium of the valve is air and non-corrosive gas.

Technical Parameters

Valve Body Material		SS304
Seat Seal Material		FKM, NBR in option
Application Scope		3X10⁻⁷ to 1.2x10⁵ Pa
Leak Rate		1.3x10⁻⁷ Pa L/s
Cycles Until Service		100,000 Times
Bake-out Temerature		Open:150°C, Close: 120°C
Installation Position		Any Direction
Different Pressure on the Gate		3000Pa
Compressed Air		0.4-0.8Mpa
Opening/Close Speed		≤3S
Temperature Range	FKM Seat Seal	-30°C to 150°C (About)
	NBR Seat Seal	-25°C to 80°C (About)
Solenoid Voltage		AC220V,50Hz,6W or on request
Avaible with Position Indicator		Optional signal feedback

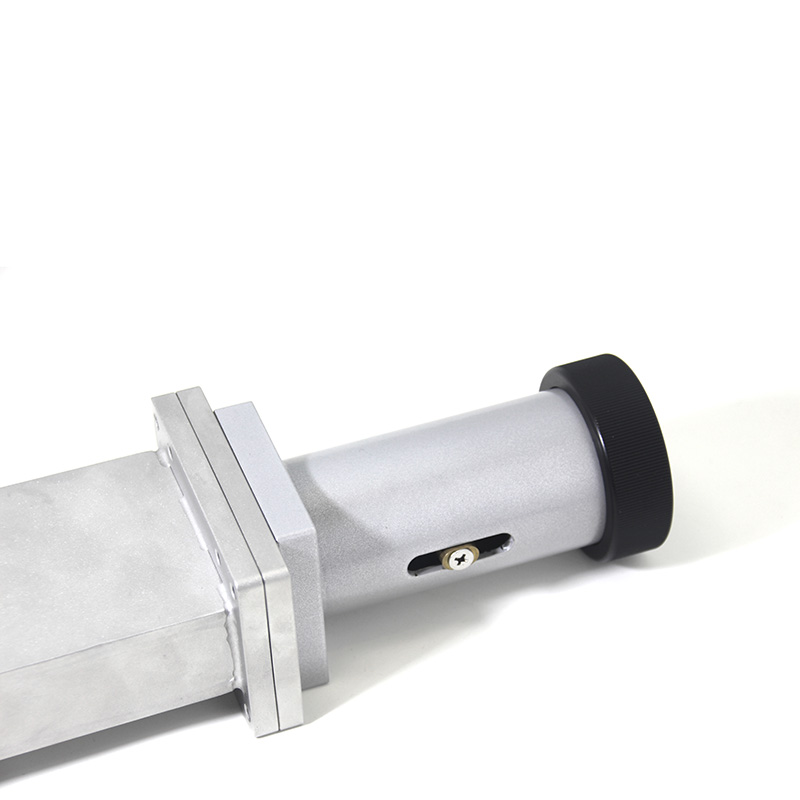

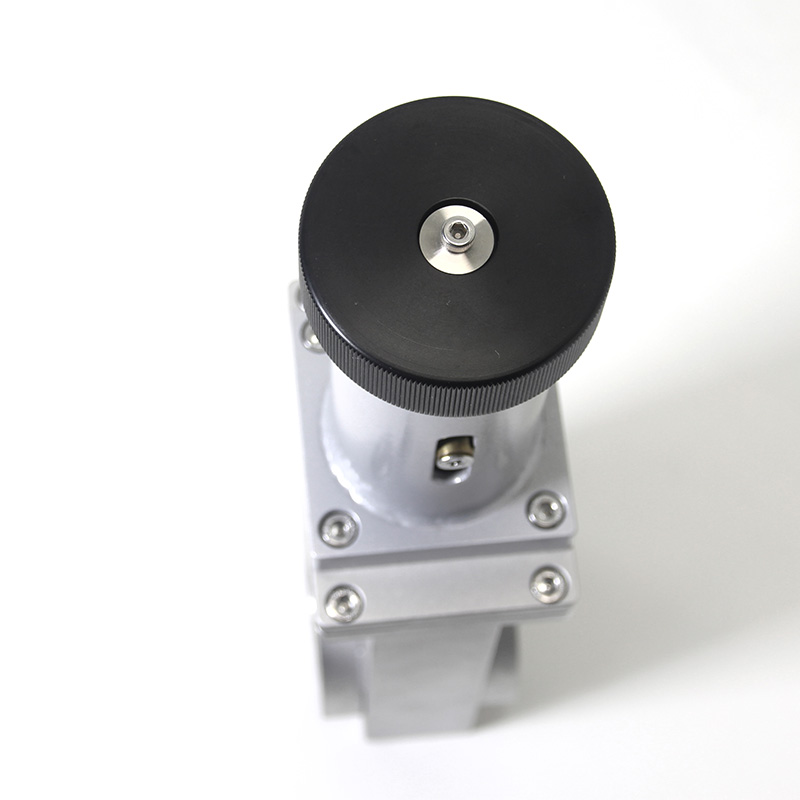

Manual Mini UHV Gate Valves

KF Flange

Model for 304	DN	A/mm	B/mm	C/mm	D/mm	E/mm	H/mm	A1/mm	B1/mm	C1/mm	D1/mm	E1/mm
VXM01W14321K25NN	KF25	62	78	33	120	278	125	66	40	26.2	25	28
VXM01W14321K40NN	KF40	70	85	35	152.5	312.5	125	70	55	41.2	40	45
VXM01W14321K50NN	KF50	88	98	41	152	226.5	133.5	70	75	52.2	50	56

CF Flange

Model for 304	DN	A/mm	B/mm	C/mm	D/mm	E/mm	H/mm	A2/mm	B2/mm	C2/mm	D2/mm	E2/mm	F2/mm	G2/mm	H2/mm	H2/mm
VXM03W14321F25NN	CF25	62	78	33	120	278	125	34	54	43	25	6	M6	29.5	35	10.5
VXM03W14321F35NN	CF35	70	85	35	152.5	312.5	125	60	70	58.7	35	6	M6	42	48.3	10
VXM03W14321F50NN	CF50	88	98	41	152	226.5	133.5	66	86	72.4	50	8	M8	55.6	61.6	12

Pneumatic Mini UHV Gate Valves, Double Actuing
