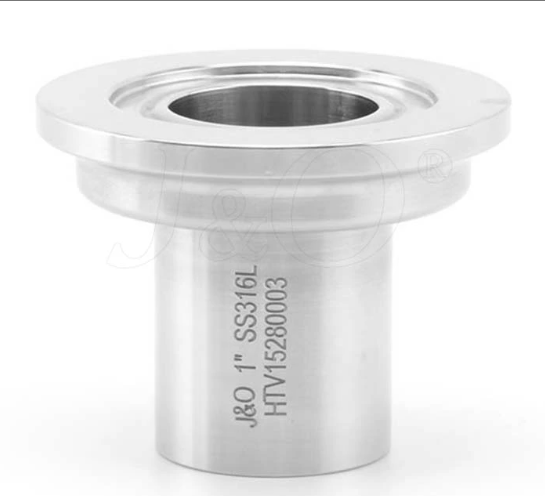

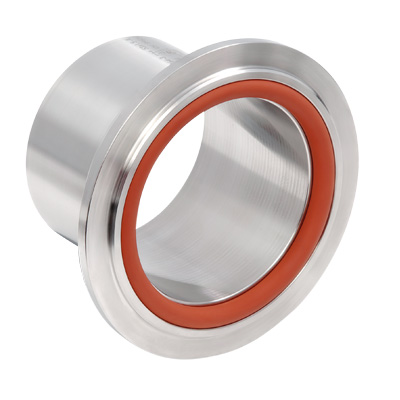

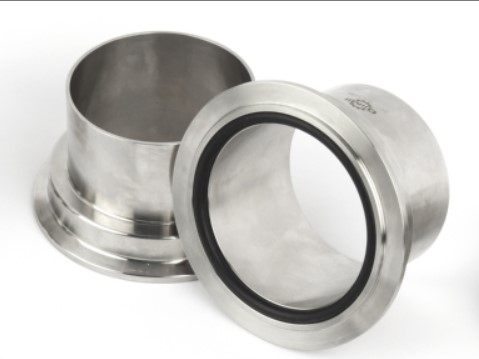

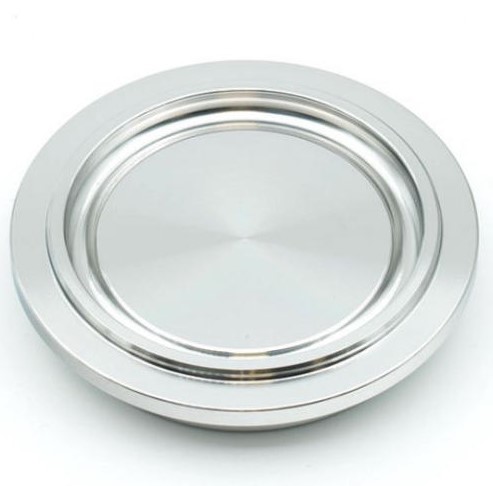

DIN 11864-3 Aseptic Clamp Unions
DIN 11864-3 Aseptic Clamp Unions

DIN 11864-3 Aseptic Clamp Unions

Model:FLA34

Inquire Now PDF Datasheet

Application

This range of aseptic fittings has been developed by the German hygienic industry to meet the exacting needs of the food, chemical and pharmaceutical industries.

Three designs of pipe fittings have been tailored to accept 2 different styles of aseptic seals that effect a smooth interface within the pipe work whilst simultaneously achieving a metal to metal seat behind the joint.

The seal sections used are referenced as “Form A” and “Form B” and both have distinctive profiles that are easily recognised. Form A is an O Ring Joint whilst Form B is a 2-part Square seal with a secondary internal diamond section.

SPECIFICATION

Size Range: DN10 - DN100
Material: SS316L

Standard Design
Standards: DIN 11866 / 11850, ISO1127

Size available: DN10-DN100

Related Standards:

DIN 11864-1 Form A - Aseptic Screwed Union

DIN 11864-2 Form A -  Aseptic Flange Union

DIN 11864-3 Form A -  Aseptic Tri-Clamp Union

Clamp

Model Size A/mm B/mm C/mm L/mm N.W./g
FLA3420106S2 DN10 10 13 34 38 40
FLA3420156S2 DN15 16 19 34 38 40
FLA3420206S2 DN20 20 23 50.5 38 80
FLA3420256S2 DN25 26 29 50.5 38.5 70
FLA3420326S2 DN32 32 35 50.5 44 60
FLA3420406S2 DN40 38 41 64 44 100
FLA3420506S2 DN50 50 53 77.5 44.5 140
FLA3420656S1 DN65 66 70 91 56.5 210
FLA3420806S1 DN80 81 85 106 58.5 250
FLA3421006S1 DN100 100 104 130 60 350

Clamp Liner DIN 11864-3 Form A (3A)

Model Size A/mm B/mm C/mm L/mm N.W./g
FLA3410506 1/2" 9.4 12.7 34 38 40
FLA3410756 3/4" 15.75 19.05 34 38 40
FLA3411006 1" 22.1 25.4 50.5 38.5 80
FLA3411506 11/2" 34.8 38.1 64 44 120
FLA3412006 2" 47.5 50.8 77.5 44.5 170
FLA3412506 21/2" 60.2 63.5 91 57.5 240
FLA3413006 3" 72.9 76.2 106 58.5 300
FLA3414006 4" 97.38 101.6 130 59.5 440

Clamp Liner DIN 11864-3 Form A (ISO 1127)



Model Size A/mm B/mm C/mm L/mm N.W./g
FLA3470256 1/4" 10.3 13.5 34 38 40
FLA3470386 3/8" 14 17.2 34 38 40
FLA3470506 1/2" 18.1 21.3 34 38 40
FLA3470756 3/4" 23.7 26.9 50.5 38 80
FLA3471006 1" 29.7 33.7 50.5 38.5 80
FLA3471256 11/4" 38.4 42.4 64 44 120
FLA3471506 11/2" 44.3 48.3 64 44 110
FLA3472006 2" 56.3 60.3 91 445 220
FLA3472506 21/2" 72.1 76.1 106 56.5 320
FLA3473006 3" 84.3 88.9 119 58.5 360
