SS304 SS316L Vacuum Butterfly Valve With Manually Operated Handwheel KF25/KF40/KF50 NW25-50 Stainless Steel Butterfly Valves for Semiconductor

Used as ventilation, shut-off or high-vacuum valves, butterfly valves have a  simple structure, and can be installed in the vacuum exhaust line of a semiconductor tools. Butterfly Valves are characterised by their compact design, and high conductance. Made of stainless steel 304 or 316L, these valves are also available manually operated or electro pneumatically.

Design and Feature

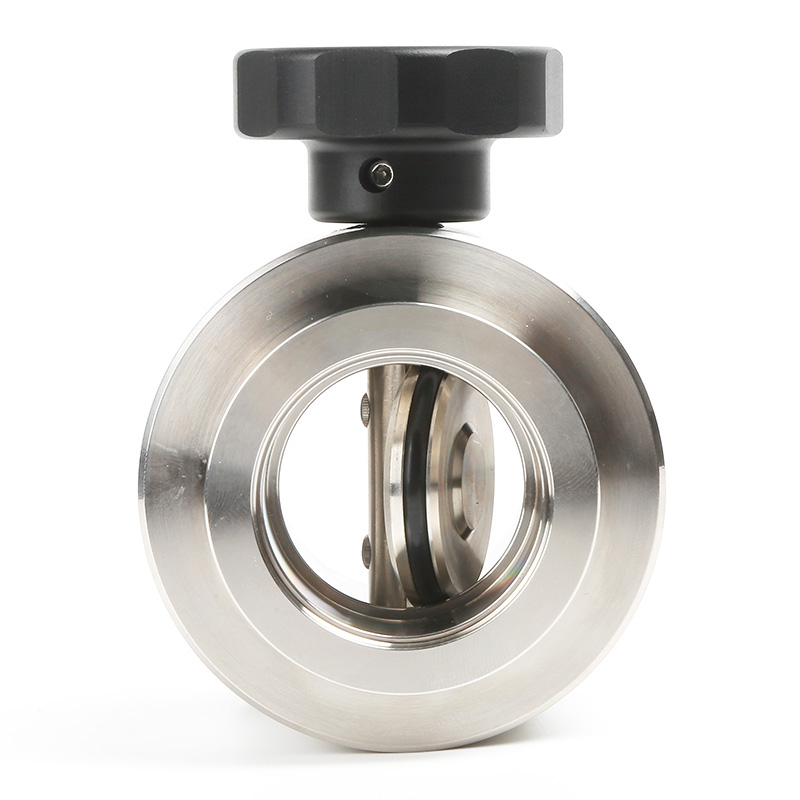

• Swivel valve plate with FKM seal

• Compact size and light weight,easy installing

• Minimal face-to-face dimension,Minimal installing space

• Flow by adjusting the degree of opening and can be set to an arbitrary degree of opening.

Technical Parameters

Manual KF Flange Butterfly Valve

Model for 304	Size	D/mm	D1/mm	A/mm	B/mm	H/mm	L1/mm	L2/mm
VBK01H2431K25NN	KF25	40	26.2	28	53	60	50	62
VBK01H2431K40NN	KF40	55	41.2	35	70	78	65	85
VBK01H2431K50NN	KF50	75	52.2	45	98	105	85	110

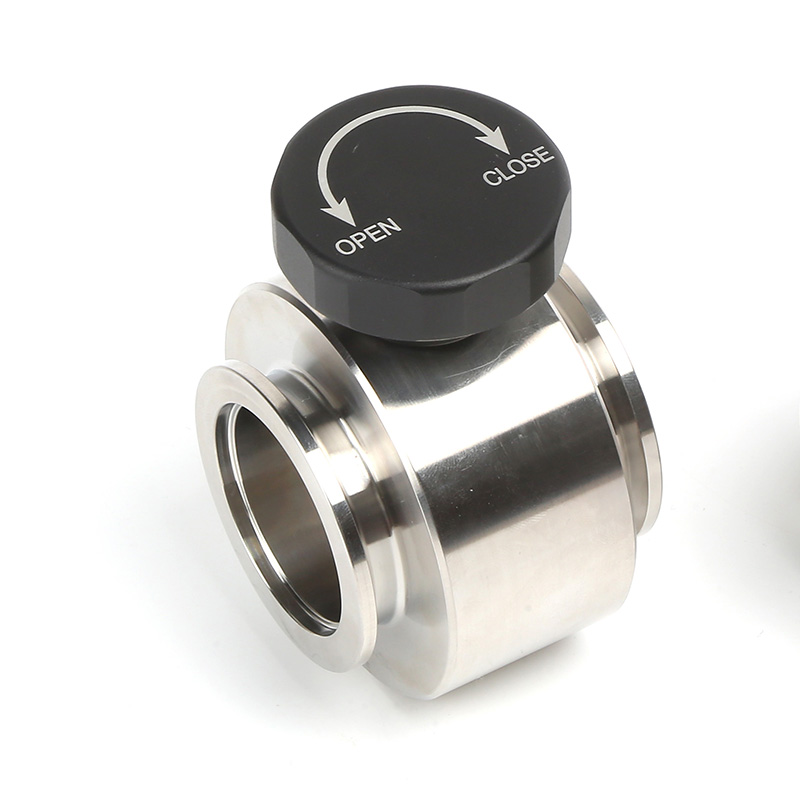

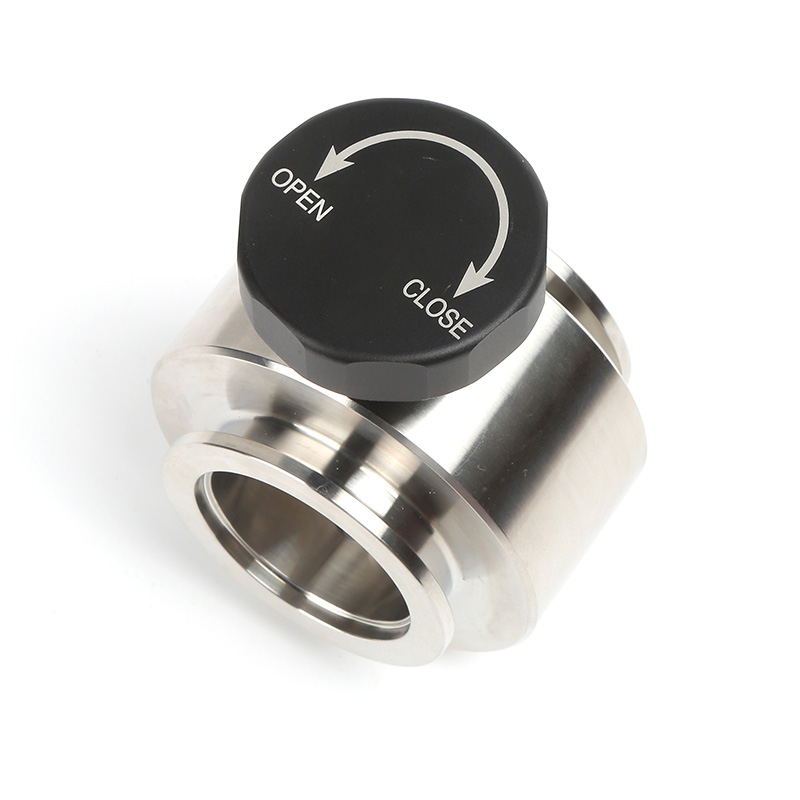

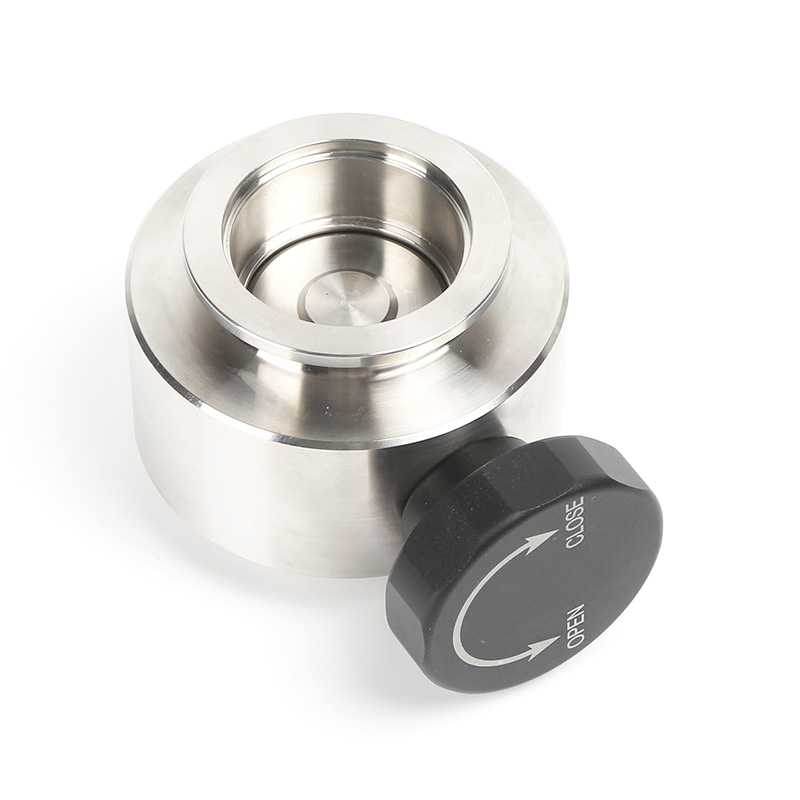

KF Butterfly Valve with Handwheel

Model for 304	Size	D/mm	D1/mm	A/mm	B/mm	C/mm	H/mm	L1/mm
VBK01W1431K25NN	KF25	40	26.2	28	53	48	60	50
VBK01W1431K40NN	KF40	55	41.2	35	70	48	79	58
VBK01W1431K50NN	KF50	75	52.2	45	98	62.5	89	75

Pneumatic KF Flange Butterfly Valve with Solenoid, Double Actuing

Model for 304	Size	A/mm	B/mm	L1/mm	L2/mm	L/mm	H/mm
VBK01AC431K251N	KF25	28	53	50	90	152	160
VBK01AC431K401N	KF40	35	70	65	90	152	170
VBK01AC431K501N	KF50	45	98	85	90	152	185

Electric Actuator KF Flange Butterfly Valve

Model for 304	Size	A/mm	B/mm	L1/mm	L2/mm	L/mm	H/mm
VBK01E1431K25NN	KF25	28	53	50	140	165	195
VBK01E1431K40NN	KF40	35	70	65	140	165	200
VBK01E1431K50NN	KF50	45	98	85	140	165	215
