Stainless Steel Vacuum ISO63-ISO500 Flanges ISO-F Fixed Bolted Blank Flange SS304 SS316L Vacuum Blank Flange

ISO Flange Assembly Instructions

ISO flanges are larger than KF flanges, similar to the KF flanges, they use a centering ring for sealing ISO flanges are widely used in systems that need frequent cleaning or disassembly.

There are two different methods to join the flanges together:1. Bolts (ISO-F, see diagram C) or 2. Claw clamps (ISO-K, see diagram A). These two flanges look very different, yet they can be joined together by using a single claw clamp(see diagram B).

A. ISO-K Flange with Double Claw Clamp
B. ISO-K Flange With Single Claw Clamp
C. ISO-F Flange
D. ISO-K Flange and Nonrotatable with Rotatable Bolt Ring

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including

• ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Material and Size

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
•  O-Ring:FKM/NBR/EPDM
•  Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

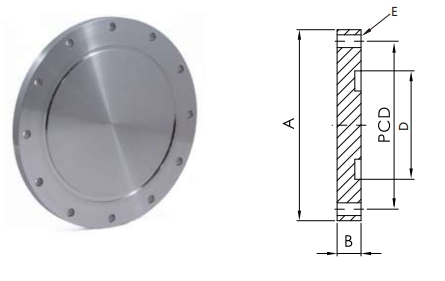

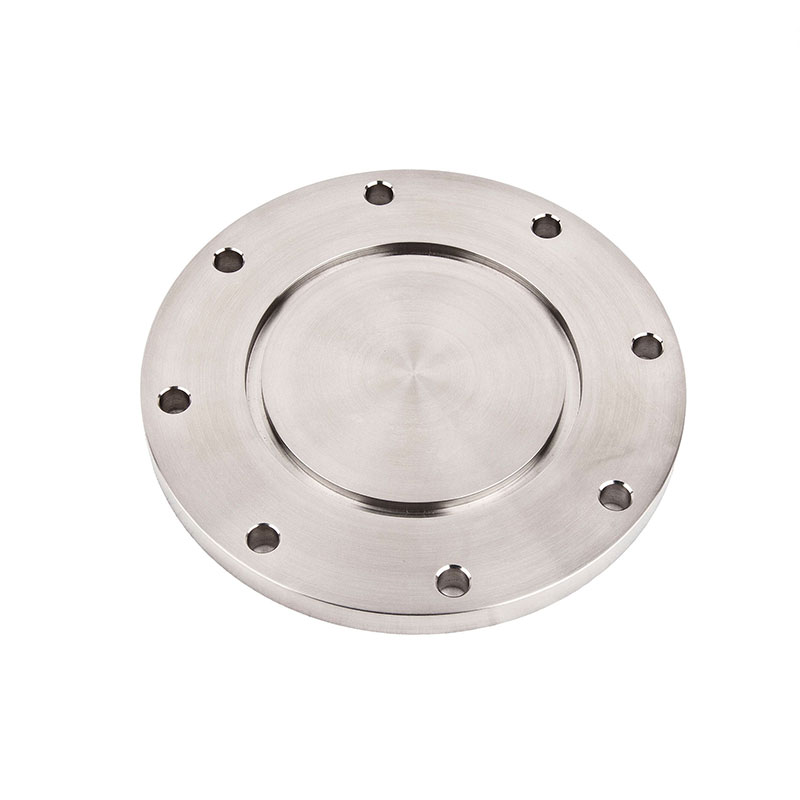

ISO-F Fixed Bolted Blank Flange

*Material: SS304/SS316L

	Model for 304	Size(ISO/NW)	A/mm	B/mm	D/mm	E(*No)	PCD
	FBB83H1S634	63	130	12	70	9*4	110
	FBB83H1S804	80	145	12	83	9*8	125
	FBB83H1S1004	100	165	12	102	9*8	145
	FBB83H1S1604	160	225	16	153	11*8	200
	FBB83H1S2004	200	285	16	213	11*12	260
	FBB83H1S2504	250	335	16	261	11*12	310
	FBB83H1S3204	320	425	20	318	14*12	395
	FBB83H1S4004	400	510	20	400	14*16	480
	FBB83H1S5004	500	610	20	501	14*16	580
	FBB83H1S6304	630	750	24	651	14*20	720
