ISO-K Stainless Steel Full Nipple Vacuum ISO63-ISO200 Tuber Fittings SS304 SS316L ISO-K Full Nipple for Semiconductor

ISO Flange Assembly Instructions

ISO flanges are larger than KF flanges, similar to the KF flanges, they use a centering ring for sealing ISO flanges are widely used in systems that need frequent cleaning or disassembly.

There are two different methods to join the flanges together:1. Bolts (ISO-F, see diagram C) or 2. Claw clamps (ISO-K, see diagram A). These two flanges look very different, yet they can be joined together by using a single claw clamp(see diagram B).

A. ISO-K Flange with Double Claw Clamp
B. ISO-K Flange With Single Claw Clamp
C. ISO-F Flange
D. ISO-K Flange and Nonrotatable with Rotatable Bolt Ring

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including

• ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Material and Size

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
•  O-Ring:FKM/NBR/EPDM
•  Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

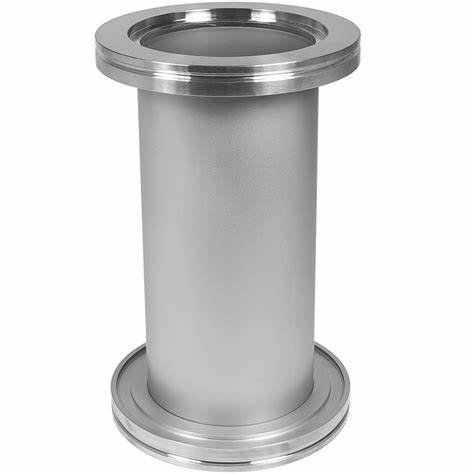

ISO-K Full Nipple

*Material: SS304/SS316L

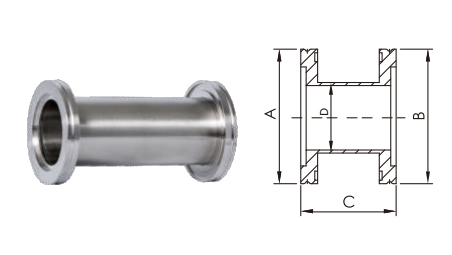

	Model No	Size	A/mm	B/mm	C/mm	D/mm
	URW771S63250L1004	ISO63	95	95	100	63.5
	URW771S63300L1004	ISO63	95	95	100	76.2
	URW771S80300L1004	ISO80	110	110	100	76.2
	URW771S80350L1004	ISO80	110	110	100	88.9
	URW771S100400L1004	ISO100	130	130	100	101.6
	URW771S100425L1004	ISO100	130	130	100	108
	URW771S160600L1004	ISO160	180	180	100	152.4
	URW771S160650L1004	ISO160	180	180	100	159
	URW771S200800L1004	ISO200	240	240	100	203.2
