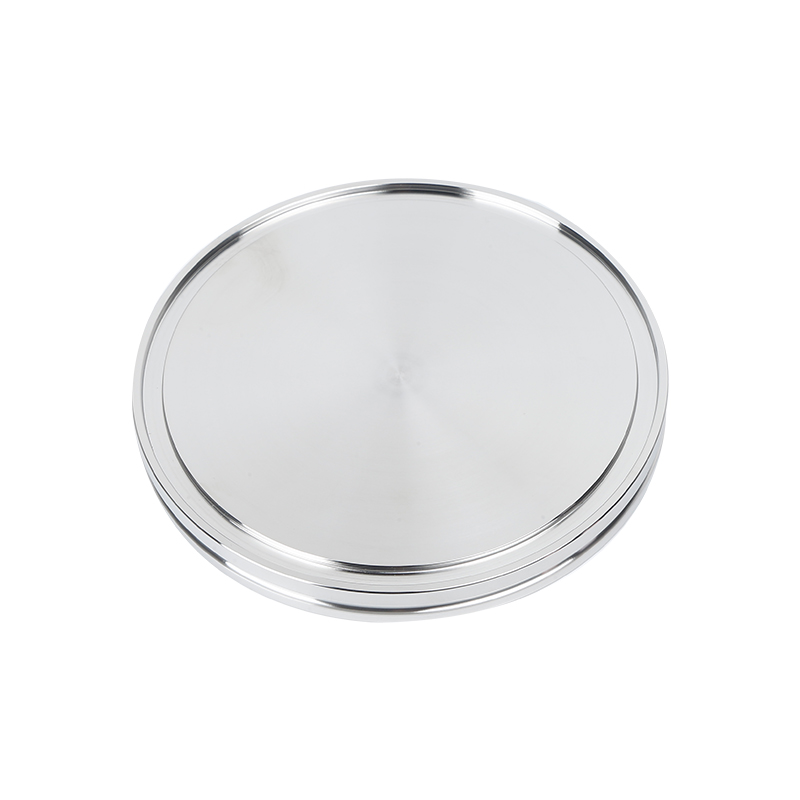

SS304 SS316L Vacuum ISO-F Bolted Blank Flange Stainless Steel High Quality Vacuum Blank Flange Fitting for Semiconductor

ISO Flange Assembly Instructions

ISO flanges are larger than KF flanges, similar to the KF flanges, they use a centering ring for sealing ISO flanges are widely used in systems that need frequent cleaning or disassembly.

There are two different methods to join the flanges together:1. Bolts (ISO-F, see diagram C) or 2. Claw clamps (ISO-K, see diagram A). These two flanges look very different, yet they can be joined together by using a single claw clamp(see diagram B).

A. ISO-K Flange with Double Claw Clamp
B. ISO-K Flange With Single Claw Clamp
C. ISO-F Flange
D. ISO-K Flange and Nonrotatable with Rotatable Bolt Ring

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including

• ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Material and Size

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
•  O-Ring:FKM/NBR/EPDM
•  Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

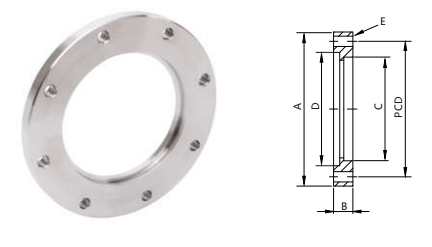

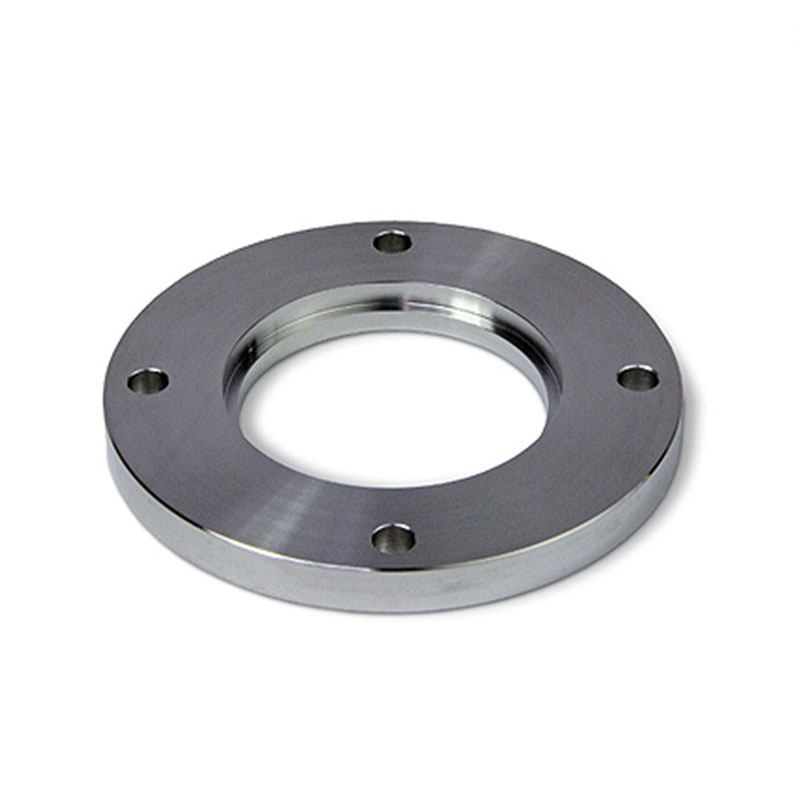

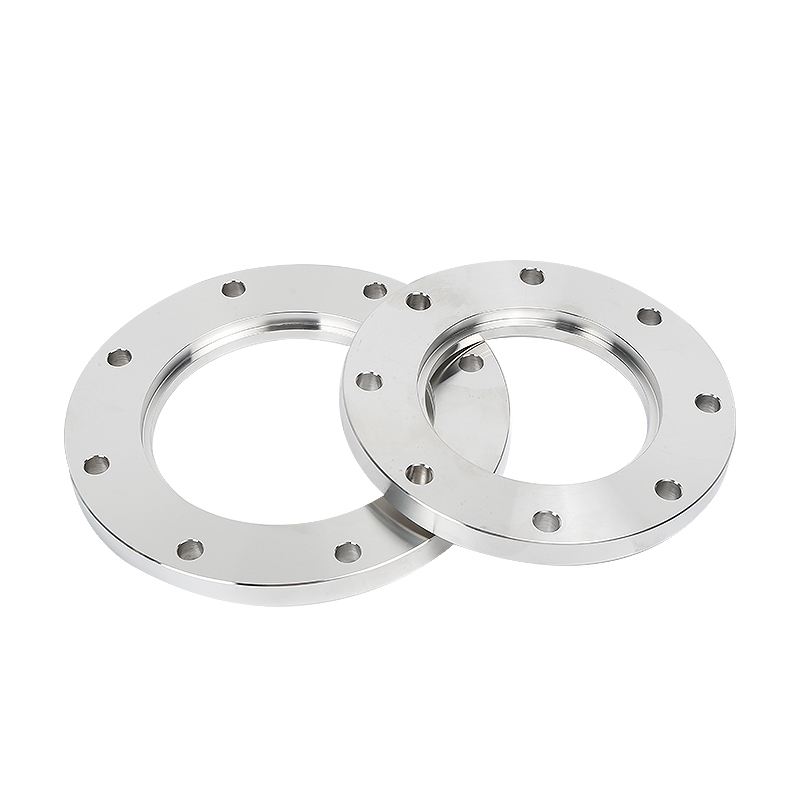

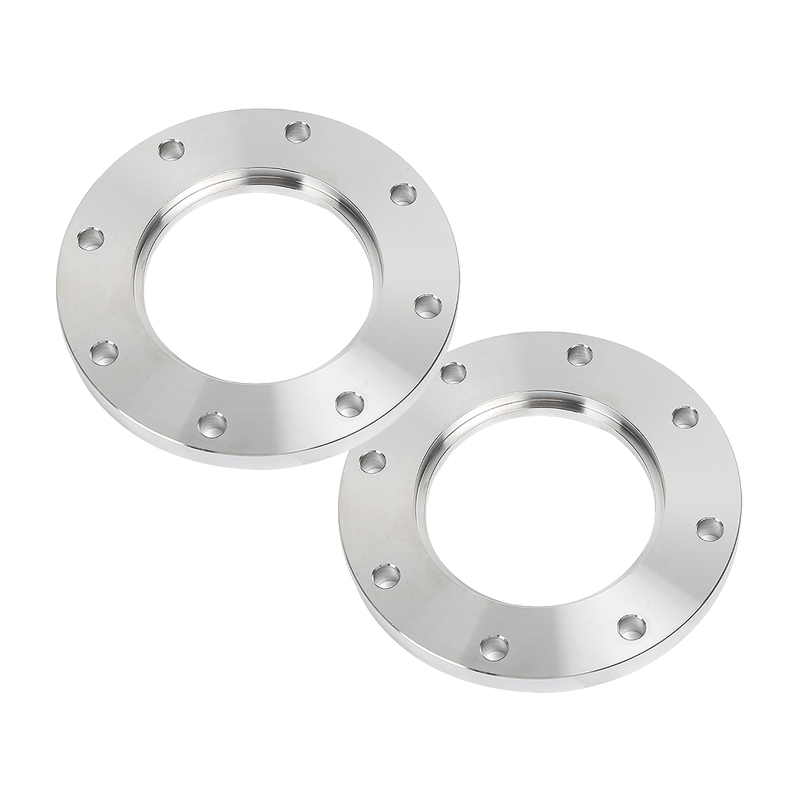

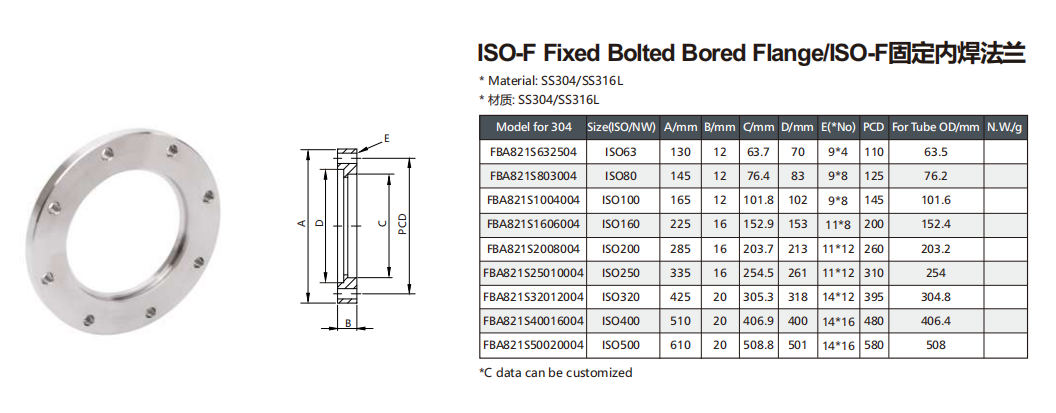

ISO-F Fixed Bolted Bored Flange

*Material: SS304/SS316L

	Model for 304	Size(ISO/NW)	A/mm	B/mm	C/mm	D/mm	E(*No)	PCD	For Tube OD/mm
	FBA83H1S632504	63	130	12	63.7	70	9*4	110	63.5
	FBA83H1S633004	63	130	12	76.6	83	9*4	110	76.2
	FBA83H1S803004	80	145	12	76.6	83	9*8	125	76.2
	FBA83H1S803504	80	145	12	89.4	83	9*8	125	88.9
	FBA83H1S1004004	100	165	12	102.2	102	9*8	145	101.6
	FBA83H1S1004254	100	165	12	108.6	102	9*8	145	108
	FBA83H1S1606004	160	225	16	152.9	153	11*8	200	152.4
	FBA83H1S1606254	160	225	16	159.5	153	11*8	200	159
	FBA83H1S2008004	200	285	16	203.7	213	11*12	260	203.2
	FBA83H1S2008604	200	285	16	219.5	213	11*12	260	219
	FBA83H1S25010004	250	335	16	254.5	261	11*12	310	254
	FBA83H1S25010754	250	335	16	273.6	261	11*12	310	273
	FBA83H1S32012004	320	425	20	305.3	318	14*12	395	304.8
	FBA83H1S40016004	400	510	20	406.9	400	14*16	480	406.4
	FBA83H1S50020004	500	610	20	508.8	501	14*16	580	508

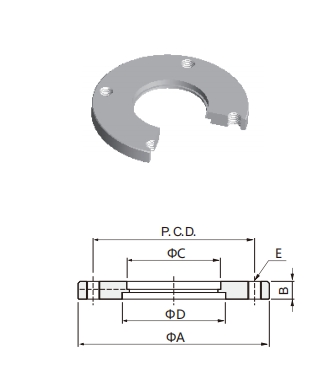

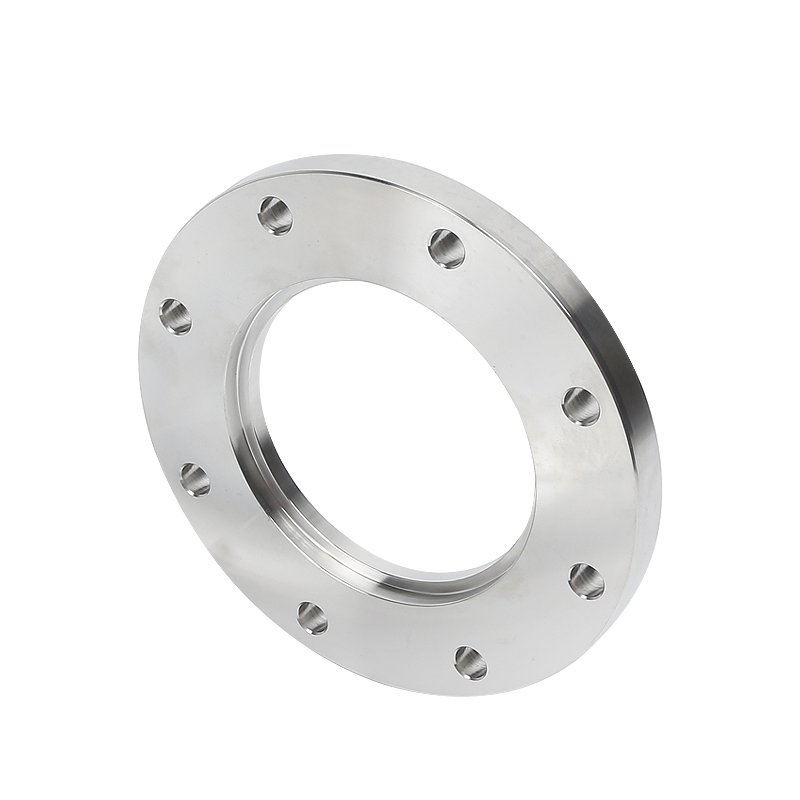

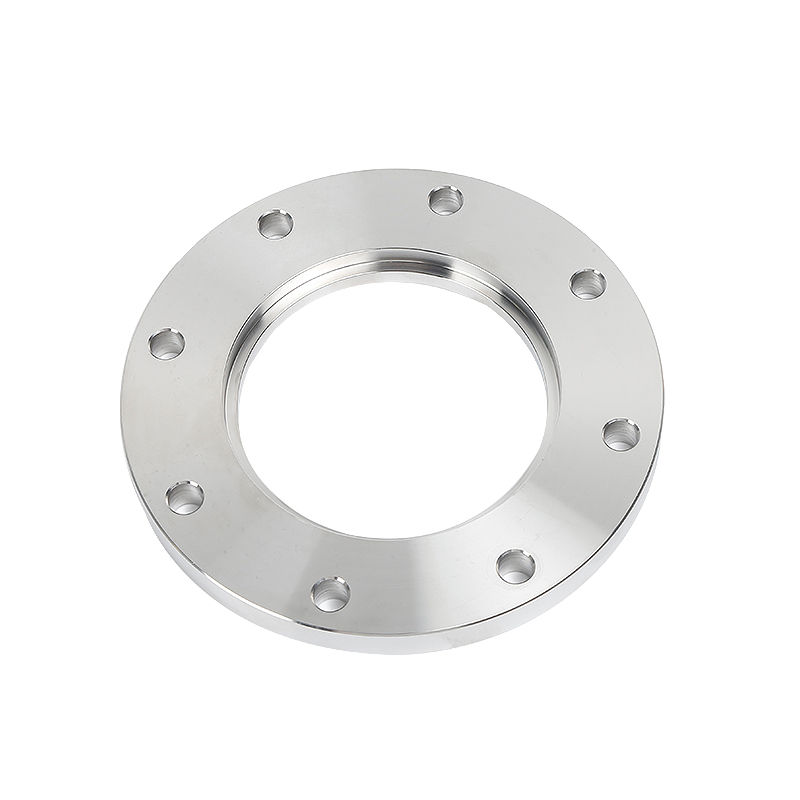

ISO-F Bolted Bored Flange-Tapped

*Material: SS304/SS316L

	Model for 304	Size(ISO/NW)	A/mm	B/mm	C/mm	D/mm	E(*No)	PCD	For Tube OD/mm
	FBA83M1S632504	63	130	12	63.7	70	M8*4	110	63.5
	FBA83M1S633004	63	130	12	76.6	70	M8*4	110	76.2
	FBA83M1S803004	80	145	12	76.6	83	M8*8	125	76.2
	FBA83M1S803504	80	145	12	89.4	83	M8*8	125	88.9
	FBA83M1S1004004	100	165	12	102.2	102	M8*8	145	101.6
	FBA83M1S1004254	100	165	12	108.6	102	M8*8	145	108
	FBA83M1S1606004	160	225	16	152.9	153	M10*8	200	152.4
	FBA83M1S1606254	160	225	16	159.5	153	M10*8	200	159
	FBA83M1S2008004	200	285	16	203.7	213	M10*12	260	203.2
	FBA83M1S2008604	200	285	16	219.5	213	M10*12	260	219
	FBA83M1S25010004	250	335	16	254.5	261	M10*12	310	254
	FBA83M1S25020754	250	335	16	273.6	254	M10*12	310	273
	FBA83M1S32012004	320	425	20	305.3	318	M12*12	395	304.8
	FBA83M1S40016004	400	510	20	406.9	400	M12*16	480	406.4
	FBA83M1S50020004	500	610	20	508.5	501	M12*16	580	508
