ISO Centering Ring with Alu Outer Ring & FKM O-ring

Model:FLG31

Inquire Now

ISO Flange Assembly Instructions

Optional fastener flanges are joined around the periphery with clamps.
Double claw clamps are used when a pair of OF flanges are joined (See diagram A.),
or single claw clamps are used to join an OF flange to a tapped nonrotatable on a pump or gate valve. (See diagram B.)
This fastening method allows the OF flange to be rotateforease of component alignment. Additionally, a rotatable bolt ring can be used to fasten an OF flange to a nonrotatable flange using bolts. (See diagram C.)
A retainer ring prevents the OF flange from slipping through the bolt ring. Nonrotatable ISO flanges are assembled with bolts.
(See diagram D.) They do not allow rotation of bolt holes on mating flanges to align components.

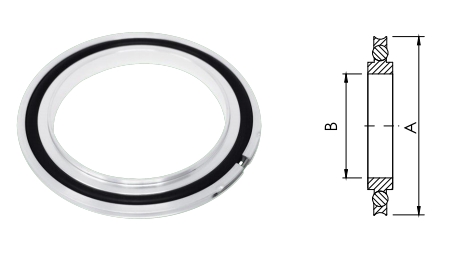

Center Ring with Space Ring & O Ring

*Center Ring Material: SS304

*Outer Ring Material: Aluminum

*O-Ring Material: Viton or NBR

Model No for Alu+SS304+Viton Size A/mm B/mm N.W./g
FLG31N1S63348 ISO63 94 68 62.8
FLG31N1S80348 ISO80 109 81 76.3
FLG31N1S100348 ISO100 128 100 96.3
FLG31N1S125348 ISO125 148 124 116.8
FLG31N1S160348 ISO160 179 148 148.2
FLG31N1S200348 ISO200 239 210 199.3
FLG31N1S250348 ISO250 287 257.5
FLG31N1S320348 ISO320 346.33 312
FLG31N1S400348 ISO400 428.8 394
FLG31N1S500348 ISO500 535 494
