Vacuum ISO-K Flexible Bellows SS304 SS316L ISO63-ISO200 Flexible Bellow Stainless Steel Vacuum Fitting for Semiconductor

ISO Flange Assembly Instructions

ISO flanges are larger than KF flanges, similar to the KF flanges, they use a centering ring for sealing ISO flanges are widely used in systems that need frequent cleaning or disassembly.

There are two different methods to join the flanges together:1. Bolts (ISO-F, see diagram C) or 2. Claw clamps (ISO-K, see diagram A). These two flanges look very different, yet they can be joined together by using a single claw clamp(see diagram B).

A. ISO-K Flange with Double Claw Clamp
B. ISO-K Flange With Single Claw Clamp
C. ISO-F Flange
D. ISO-K Flange and Nonrotatable with Rotatable Bolt Ring

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including

• ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

ISO-KF fittings can be used in a wide variety of applications including:

 • Roughing and foreline plumbing

 • Small systems

 • Systems requiring frequent cleaning or modification

 • Research and teaching laboratories ISO-KF components are primarily designed for use at subatmospheric pressure.

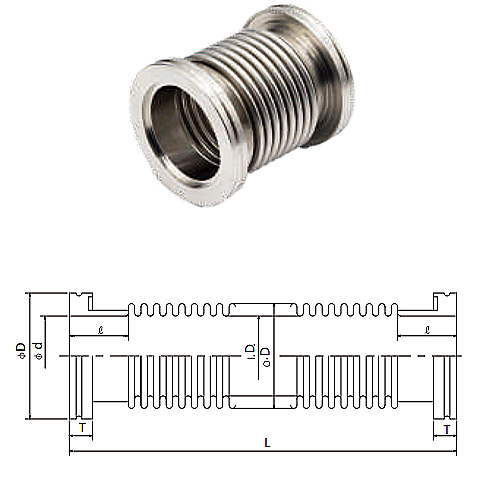

ISO-K Bellows

*Material: Hose: SUS304,SUS316L

*NW flange: SUS304,SUS316L

*Working Pressure: Vaccum~atmospheric pressure

*Vacuum Range: 1x10 ⁻⁹Torr

*Hose Thickness: 0.2mm for ISO63-ISO100

                            0.25mm for ISO125-ISO160

                            0.3mm for ISO200

	Model for 304	Size	ID/mm	OD/mm	D/mm	l/mm	L/mm
	FVS011M63L1004	ISO63	65	86	95	25	100
	FVS011M80L1004	ISO80	80	100	110	25	100
	FVS011M100L1004	ISO100	100	125	130	25	100
	FVS011M125L1004	ISO125	125	150	155	25	100
	FVS011M160L1004	ISO160	150	178	180	25	100
	FVS011M200L1004	ISO200	200	230	240	25	100
