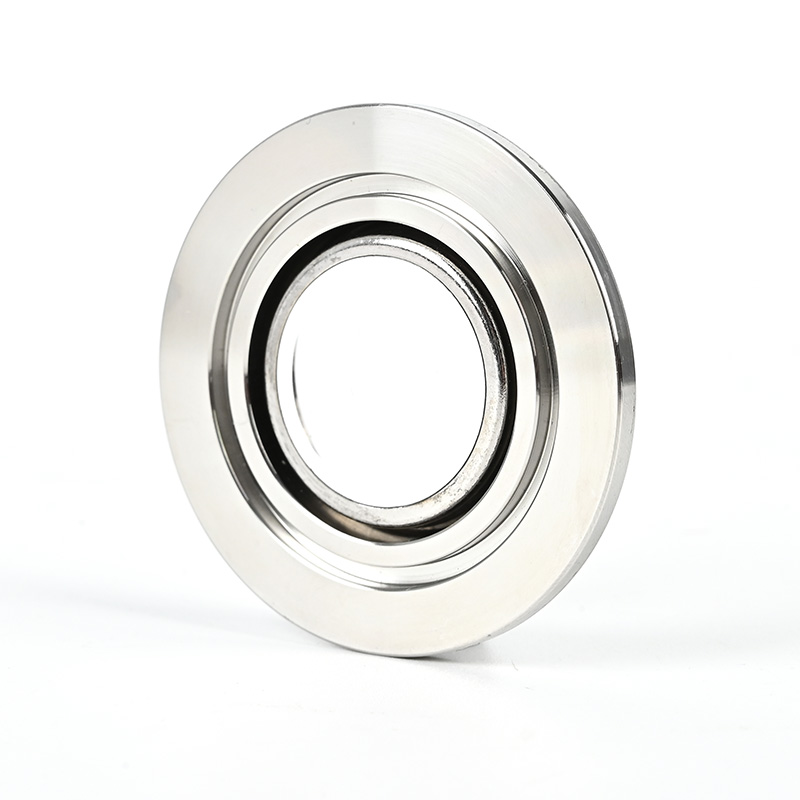

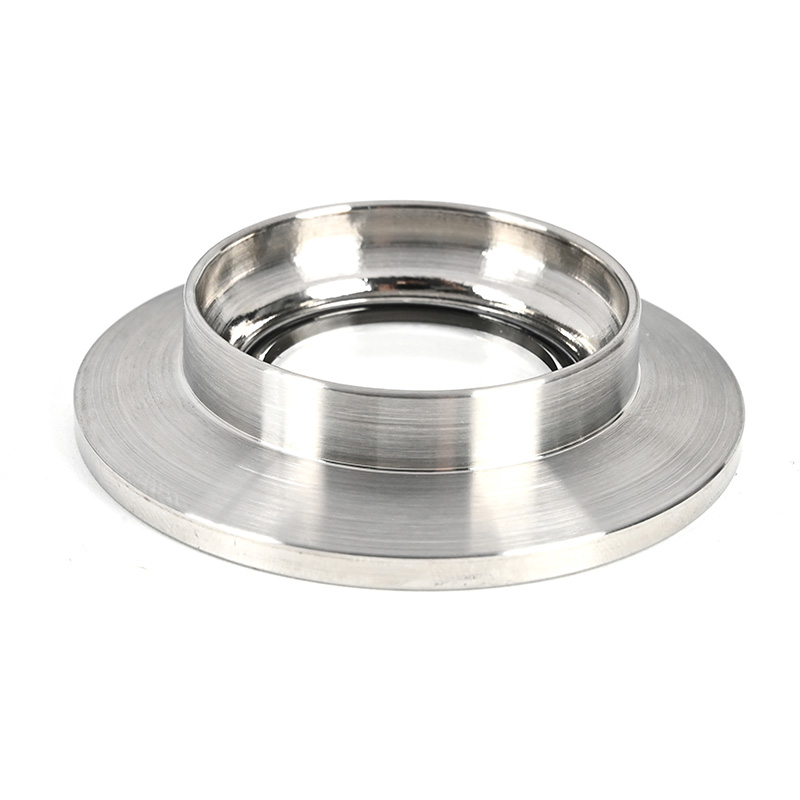

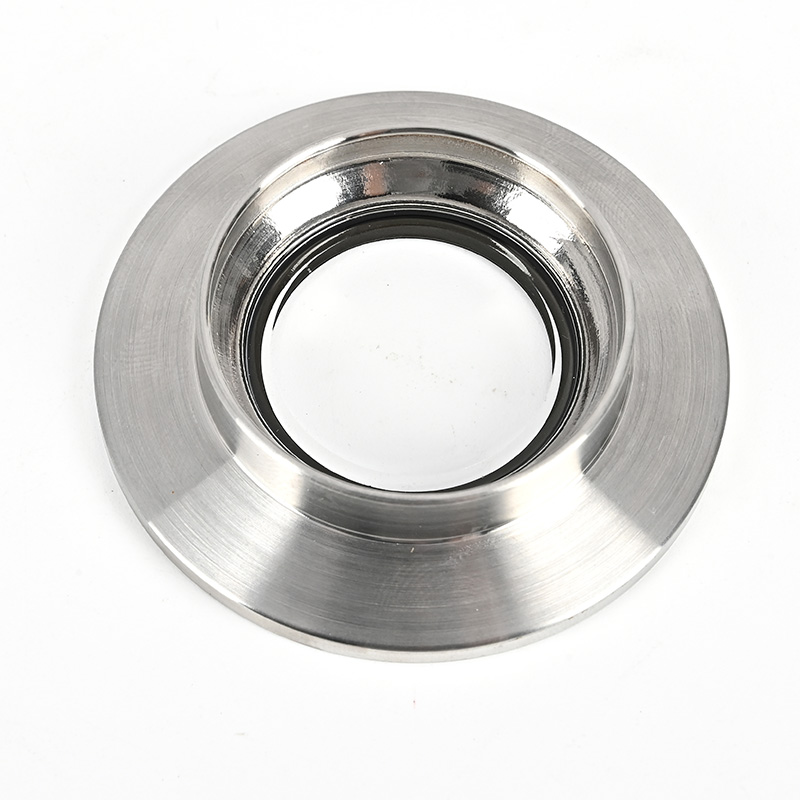

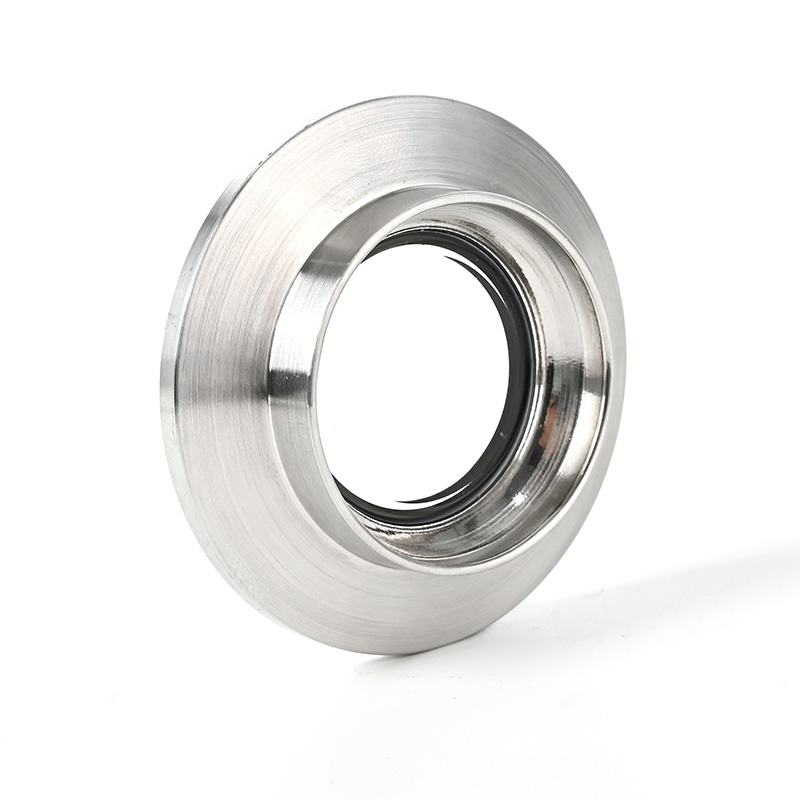

SS304/SS316L KF/NW Vacuum Integrated Sight Glass Stainless Steel Window Viewport Weld Vacuum Fittings for Semiconductor

Customized KF Viewport KF16  KF25 KF40 KF50 Sight Glass for Ultra High Vacuum System

KF vacuum observation window, also known as vacuum window, is an optical feedthrough, mainly used to monitor the production situation inside the vacuum container, such as observing the temperature, sample state, etc., or to transmit light source. This observation window is crucial for monitoring the production situation inside the vacuum, especially in scientific research, material science, physical experimental research, chemical experimental research, biological research, industrial production and other fields.

Application scope:

It is generally used in vacuum systems to observe the internal conditions of the vacuum chamber, and can grasp the changes inside the vacuum system in time.
Materials:

low magnetic stainless steel 304 welded flange, 4J29 alloy, optical glass, etc.
Process :

glass metal sealing process is adopted, and the common KF series flange is used.

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:

• Roughing and foreline plumbing
• Small pipe systems
• Systems need frequent cleaning or modification
• Research and teaching laboratories

Material and Size

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
• O-Ring:Viton/NBR/EPDM

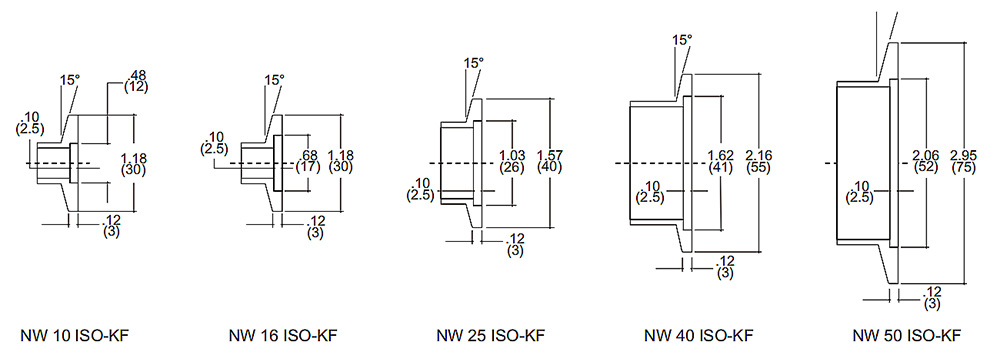

• Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Installation

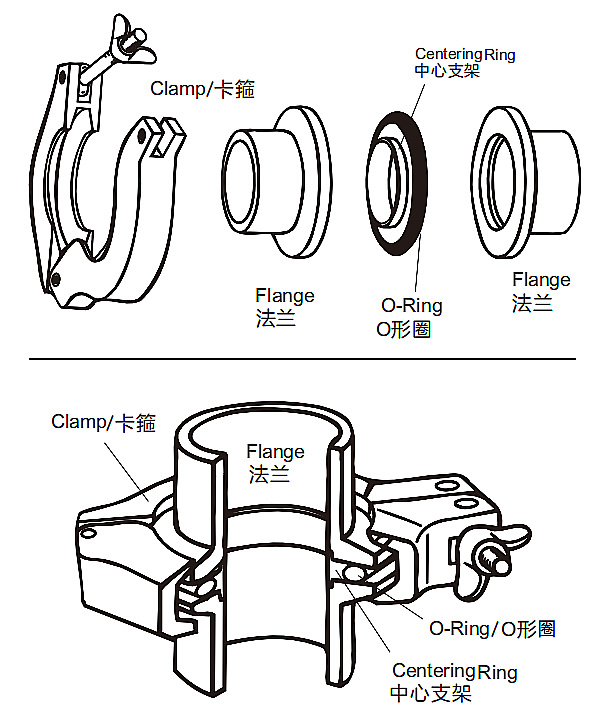

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

The  ISO-KF  components  are  assembled  by  inserting  a  centering  ring  between  the  two  flange  faces,  then  securing  the assembly with a flange encompassing clamp (see Figure 2)
