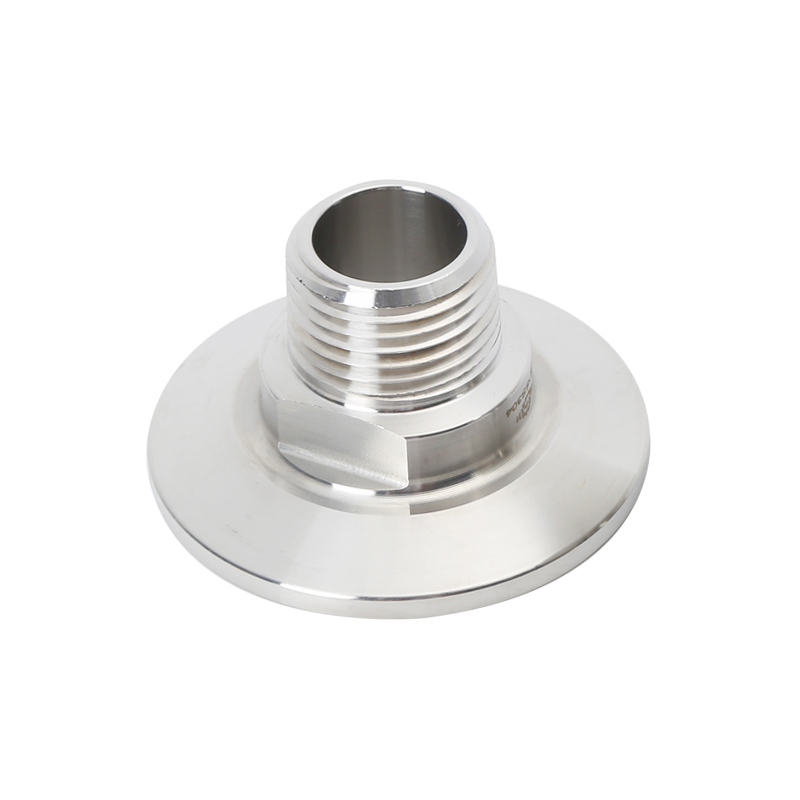

Sanitary Tri Clamp Male Adaptor With Tool Pad Nipple SS304/SS316L Stainless Steel NPT Casquillo Clamp Fitting for Food

Materials

Materials: SS304 or SS316L

Size: 1/2''- 4'' or DN15-DN100

Technical Specification

Standard: DIN, SMS

Connection: Clamp, Weld, Thread, Union type

Product Description

Here’s a professional English description for stainless steel quick-assembly fittings: Stainless Steel Quick-Assembly Fittings These fittings are designed for rapid, tool-free installation in piping systems, offering high corrosion resistance and durability. Made from **grade 304/316 stainless steel**, they are ideal for applications in plumbing, HVAC, industrial fluid transfer, and food/beverage processing where hygiene and leak-proof performance are critical. Key Features Quick-Connect Mechanism:** Enables secure push-to-connect assembly without threading or soldering. Vibration-Resistant:** Internal grip rings or collets ensure a tight seal under pressure. Temperature Range:** -20°C to +120°C (varies by design). Pressure Rating:** Typically up to 16 bar (230 psi). Sizes Available:** 1/8" to 2" (DN6 to DN50) for tubes/pipes. Standards Compliance:** ASTM A270 (sanitary), ISO 1127, or industry-specific certifications. Common Types Straight Couplings Elbows (90°/45° Tees Union Connectors Flush-Fit Adapters (for clean-in-place systems) Applications Chemical/petrochemical lines Compressed air systems Water treatment plants Pharmaceutical tubing Advantages Reduced installation time vs. traditional methods Reusable designs for maintenance flexibility Electropolished options for ultra-smooth surfaces Optional additions based on context: For sanitary fittings: Add "3-A compliant, crevice-free design for FDA/USDA requirements For high-pressureSpecify Swivel nut designs for dynamic piping (up to 100 bar Let me know if you'd like to emphasize any specific feature (e.g., antimicrobial properties, extreme temperature resistance) for your target industry!

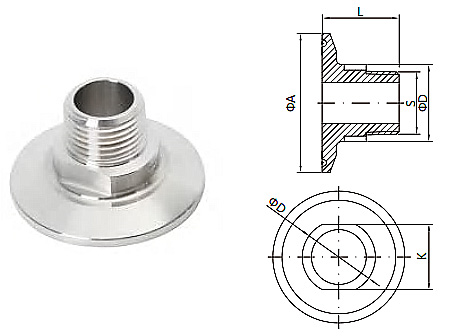

Tri Clamp Male Adapter NPT

	Model for 304	Size	A/mm	S	D/mm	K/mm	L/mm	N.W./g
	FLM0220254S3	K50.5x1/4"	50.5	NPT1/4"	18	15	28	89.6
	FLM0220254S4	K64x1/4"	64	NPT1/4"	21	15	28	136.5
	FLM0220384S3	K50.5x3/8"	50.5	NPT3/8"	21	18	28	95.5
	FLM0220504S3	K50.5x1/2"	50.5	NPT1/2"	27	23	28	106.1
	FLM0220504S4	K64x1/2"	64	NPT1/2"	27	23	28	155.1
	FLM0220754S3	K50.5x3/4"	50.5	NPT3/4"	32	28	28	110
	FLM0221004S1	K50.5x1"	50.5	NPT1"	38	35	28	148.5
