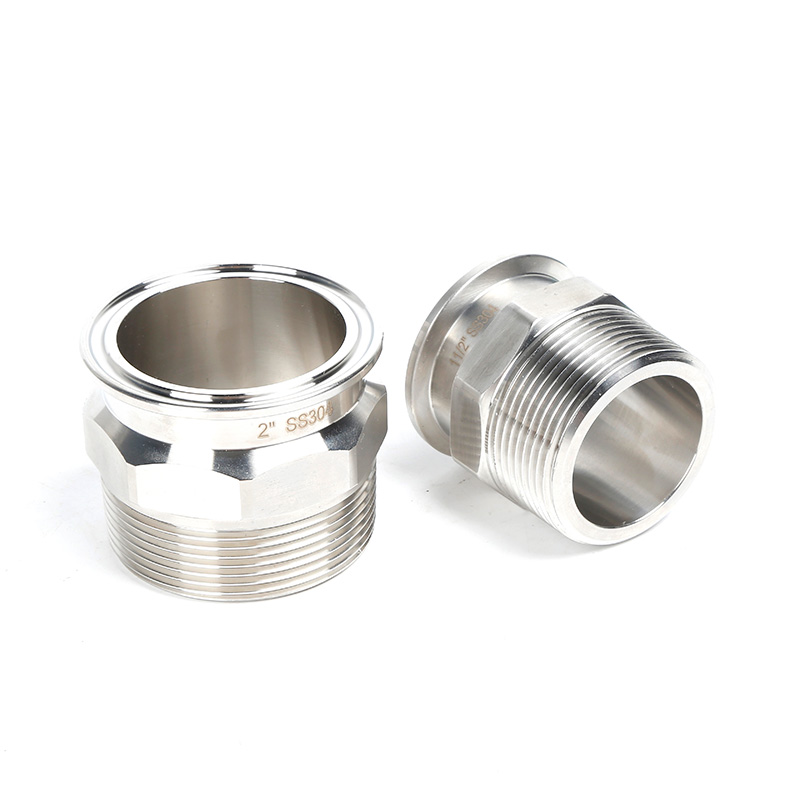

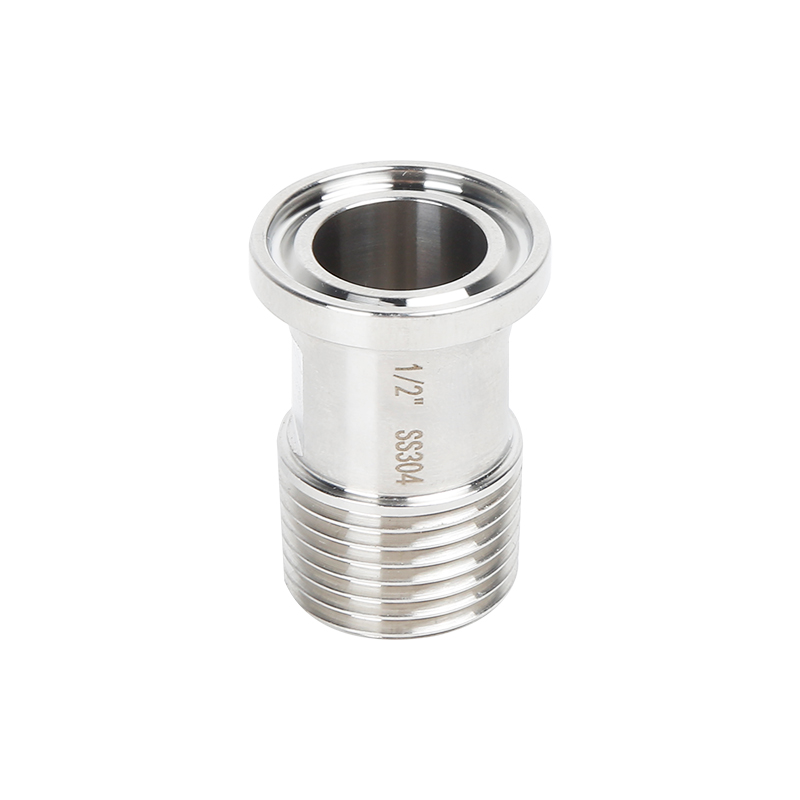

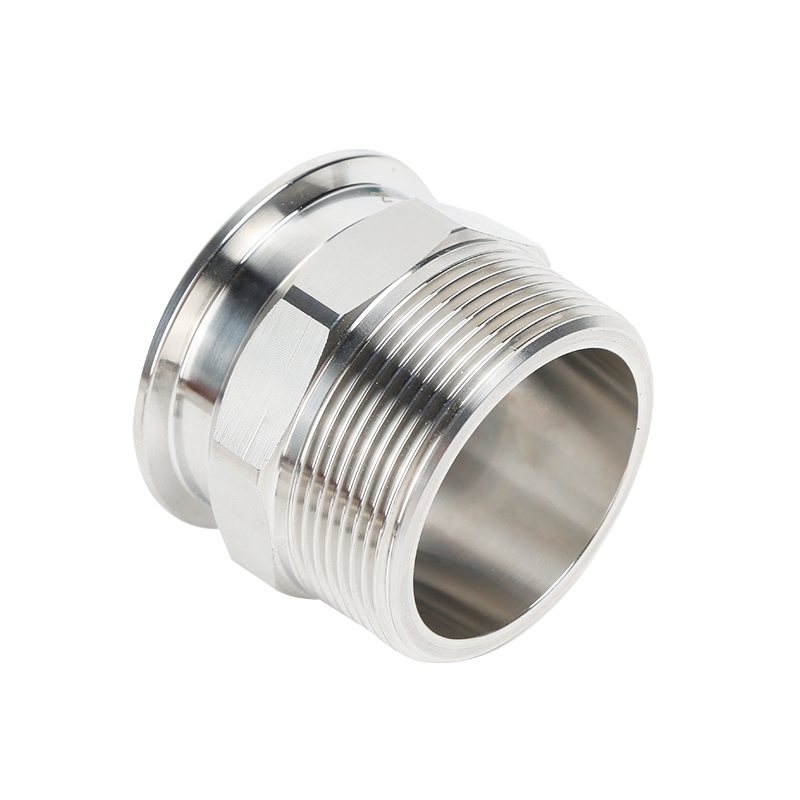

BSPT Stainless Steel Tri Clamp Male Adaptor SS304 SS316L Casquillo Clamp Nipple Furrle Tri Clamp Pipe Fittings

Materials

Materials: SS304 or SS316L

Size: 1/2''- 4'' or DN15-DN100

Technical Specification

Standard: DIN, SMS

Connection: Clamp, Weld, Thread, Union type

Product Description

Here’s a professional English description for stainless steel quick-assembly fittings: Stainless Steel Quick-Assembly Fittings These fittings are designed for rapid, tool-free installation in piping systems, offering high corrosion resistance and durability. Made from **grade 304/316 stainless steel**, they are ideal for applications in plumbing, HVAC, industrial fluid transfer, and food/beverage processing where hygiene and leak-proof performance are critical. Key Features Quick-Connect Mechanism:** Enables secure push-to-connect assembly without threading or soldering. Vibration-Resistant:** Internal grip rings or collets ensure a tight seal under pressure. Temperature Range:** -20°C to +120°C (varies by design). Pressure Rating:** Typically up to 16 bar (230 psi). Sizes Available:** 1/8" to 2" (DN6 to DN50) for tubes/pipes. Standards Compliance:** ASTM A270 (sanitary), ISO 1127, or industry-specific certifications. Common Types Straight Couplings Elbows (90°/45° Tees Union Connectors Flush-Fit Adapters (for clean-in-place systems) Applications Chemical/petrochemical lines Compressed air systems Water treatment plants Pharmaceutical tubing Advantages Reduced installation time vs. traditional methods Reusable designs for maintenance flexibility Electropolished options for ultra-smooth surfaces Optional additions based on context: For sanitary fittings: Add "3-A compliant, crevice-free design for FDA/USDA requirements For high-pressureSpecify Swivel nut designs for dynamic piping (up to 100 bar Let me know if you'd like to emphasize any specific feature (e.g., antimicrobial properties, extreme temperature resistance) for your target industry!

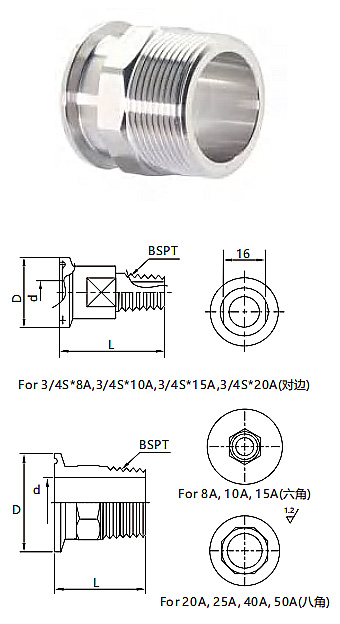

Tri Clamp Male Adapter BSPT

	Model for 304	Size	D/mm	BSPT	d/mm	L/mm	N.W./g
	FLM0610254S1	3/4S*8A	25.2	1/4"	9	35	44
	FLM0610384S1	3/4S*10A	25.2	3/8"	12	35	41
	FLM0610504S1	3/4S*15A	25.2	1/2"	15	35	39
	FLM0610754S1	3/4S*20A	25.2	3/4"	15	35	70
	FLM0610254S3	1S*8A	50.5	1/4"	9	35	118
	FLM0610384S3	1S*10A	50.5	3/8"	12	35	114
	FLM0610504S3	1S*15A	50.5	1/2"	15	42	112
	FLM0610754S3	1S*20A	50.5	3/4"	20	42	129
	FLM0611004S1	1.5S*25A	50.5	1"	27	42	137
	FLM0611254S1	1.5S*32A	50.5	11/4"	34	42	163
	FLM0611504S1	1.5S*40A	50.5	11/2"	36	50	268
	FLM0611504S2	2S*40A	64	11/2"	40	42	224
	FLM0612004S1	2S*50A	64	2"	48	50	363
	FLM0612004S2	2.5S*50A	77.5	2"		50
