Sanitary RJT Round Nut (4 Slots) Fitting Stainless Steel Hexagon Nut SS304 SS316L RJT Union Fittings

Application

Union  Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Here’s a professional English description for a 304 Stainless Steel Sanitary Clamp Union Fitting Kit: 304 Stainless Steel Sanitary Union Fitting Kit Description Product Name* 304 Stainless Steel Sanitary Quick-Connect Union Kit (Clamp/Thread Type) Key Specifications Material: Body: 304 Stainless Steel (06Cr19Ni10), corrosion-resistant, compliant with GB/T 1220. Seal: Food-grade EPDM/FKM/Silicone (optional), FDA/EC1935 certified. Surface Finish: Mechanical polishing (Ra ≤ 0.8μm), mirror-finished inner surface, dead-space-free design. Optional electropolishing or passivation (enhanced corrosion resistance). Compliance Standards:DIN/SMS/ISO/3A (as per actual certifications). Components Included 1. Union Body: Precision-cast 304 stainless steel,quick-release design, allows 360° rotation alignment. 2. Connection Type: Clamp Typ: Stainless steel tri-clamp with anti-slip locking mechanism. Thread Type: BSP/NPT/Clamp threads available (optional). 3. Gasket: High-temperature resistant (-20°C to120°C), anti-aging, food-safe compliant. Features Hygienic Design: Meets GMP/HACCP standards, suitable for sterile piping systems. No dead zones, supports CIP/SIP cleaning and sterilization. Durability 304 stainless steel resists weak acids, alkalis, and organic solvents. Working pressure: 1.0MPa–1.6MPa (varies by size). Easy Installation Tri-clamp design for tool-free disassembly and maintenance. Compatible with DN15–DN100 (1/2"–4") pipes; custom sizes available. Applications Food & Beverage: Dairy, beer, juice, condiment pipelines. Pharmaceutical: Purified water, WFI (Water for Injection) systems. Cosmetics: High-purity fluid transfer. Packaging & Certifications - Individually packed in dust-proof bags, complete with seals/clamps. - Material Test Certificates (MTC) and sanitary compliance documents provided.

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: SMS, ISO / IDF, DS, RJT, DIN, DIN11864, etc

• End connections: Weld

• Size available: 1"-4" or DN10-DN150

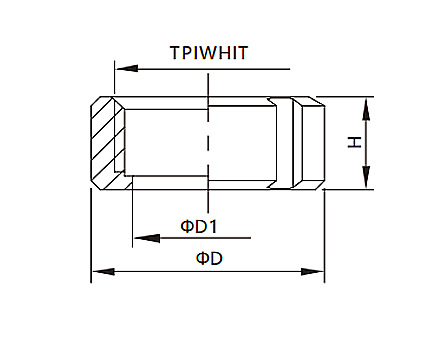

Detailed specifications on the drawing label

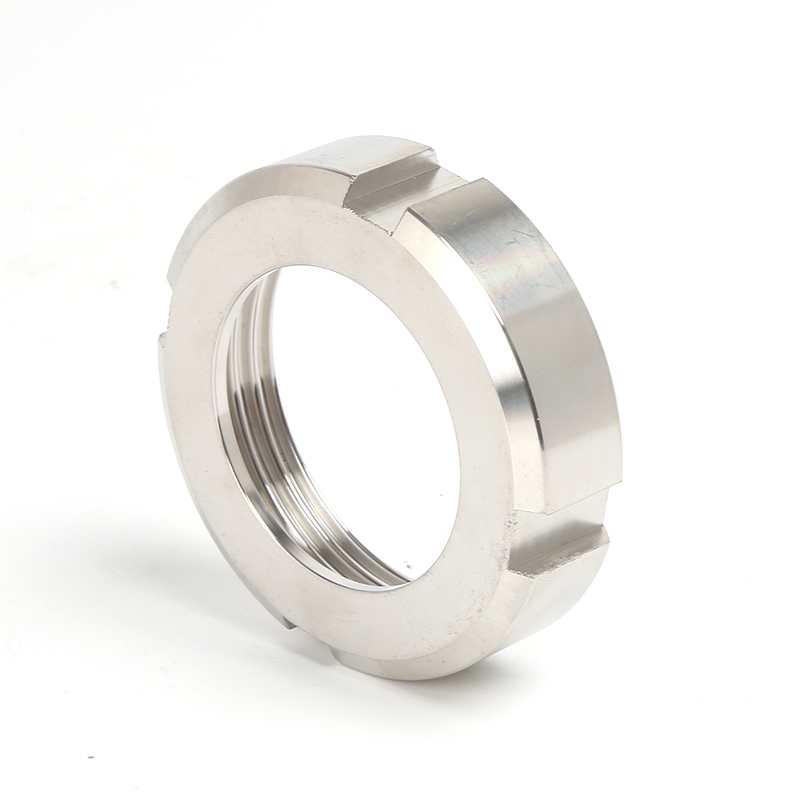

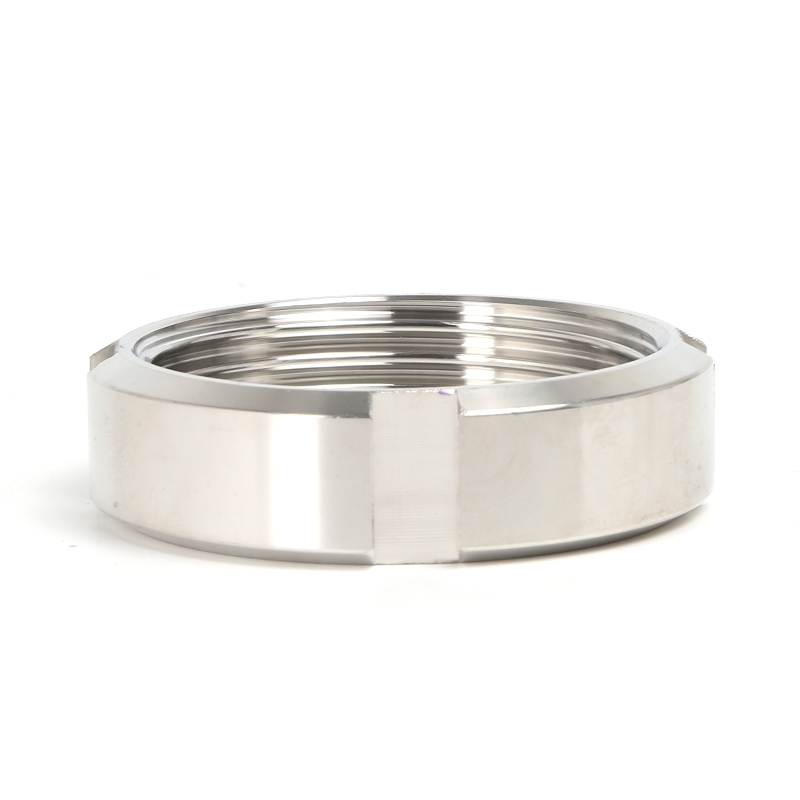

RJT Round Nut(4 Slots)

	Model	Size	D/mm	D1/mm	TPIWHTIH	H/mm	N.W/g
	FUN015100	1"	58.5	33.3	45.7X8	22.2
	FUN015125	11/2"	74	46	58.4X8	22.2
	FUN015150	2"	85.5	58.7	72.7X6	22.2
	FUN015200	21/2"	98.5	71.4	85.4X6	22.2
	FUN015300	3"	111.6	84.1	98.1X6	22.2
	FUN015400	4"	138	109.7	123.5X6	22.2
	FUN015600	6"	197	163	174.3X6	23.5

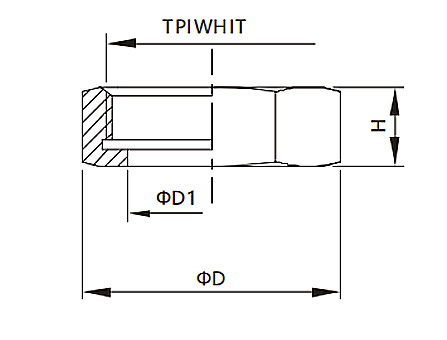

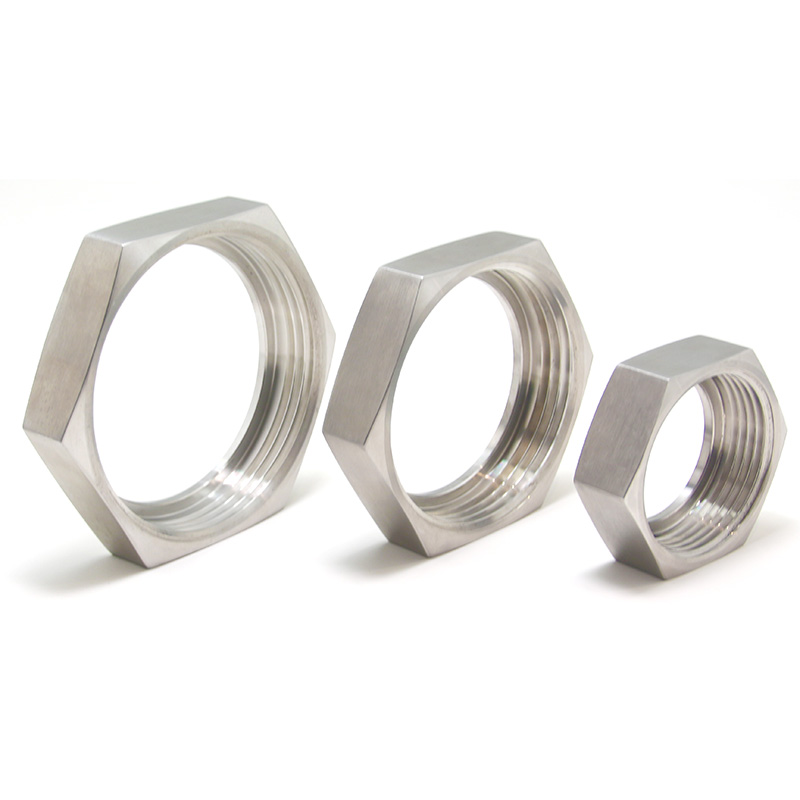

RJT Hexagon Nut

	Model	Size	D/mm	D1/mm	TPIWHTIH	H/mm	N.W/g
	FUN025050	1/2"	28.5	14.5	19.6X10	16
	FUN025075	3/4"	33	21	26.2X10	16
	FUN025100	1"	58.5	33.3	45.7X8	22.2	130
	FUN025125	11/2"	74	46	58.4X8	22.2	180
	FUN025150	2"	85.5	58.7	72.7X6	22.2	270
	FUN025200	21/2"	98.5	71.4	85.4X6	22.2	330
	FUN025300	3"	111.6	84.1	98.1X6	22.2	390
	FUN025400	4"	138	109.7	123.5X6	22.2	500
	FUN025600	6"	197	163	174.3X6	23.5
