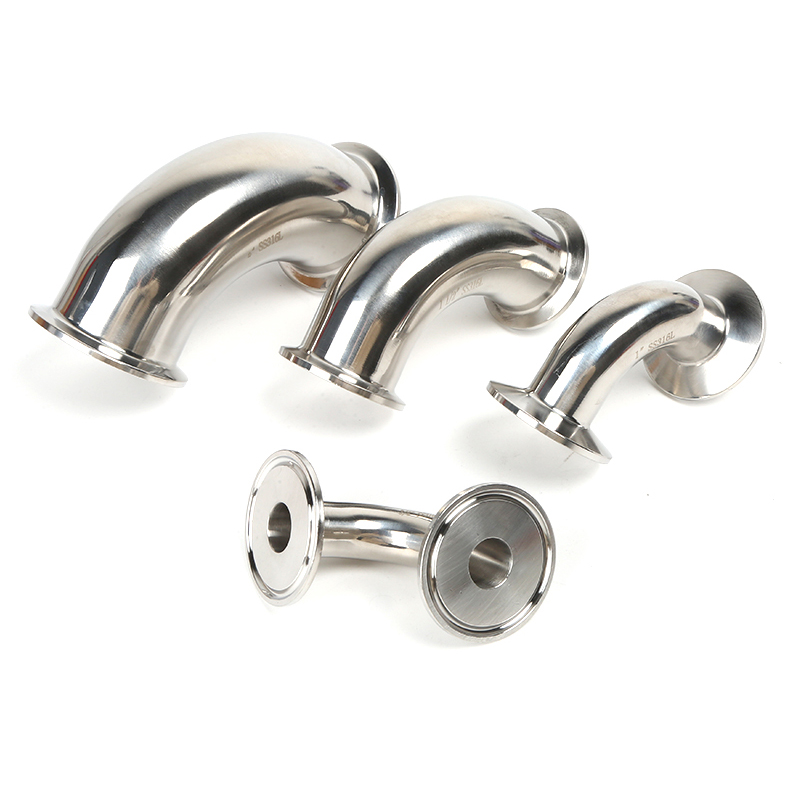

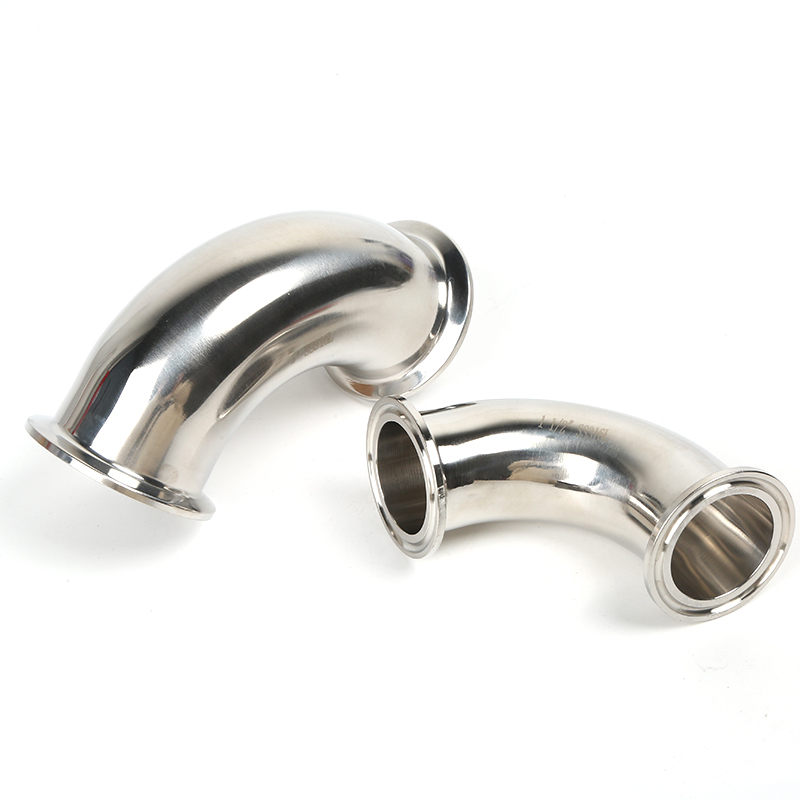

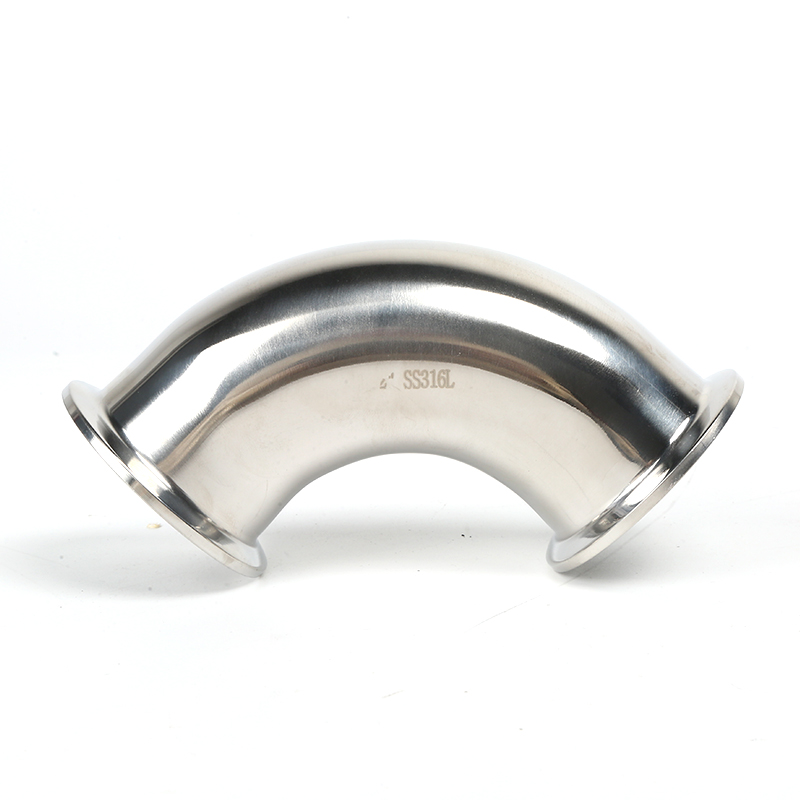

Sanitary SS316L ISO 90°/45° Clamp Elbows SS304 Tri Clamp 90/45 Degree Elbow Fitting Stainless Steel ISO Fittings

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

ISO 90° Elbow

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW014050	φ12.7	12.7	19.1	19.1	1.5
	FEW014075	φ19	19.1	28.5	28.5	1.5
	FEW014100	φ25	25.4	33.5	33.5	1.5
	FEW014125	φ32	31.8	38	38	1.5
	FEW014150	φ38	38.1	48.5	48.5	1.5
	FEW014175	φ45	45	57.5	57.5	1.5
	FEW014200	φ51	50.8	60.5	60.5	1.5
	FEW014225	φ57	57	68	68	2
	FEW014250	φ63	63.5	83.5	83.5	2
	FEW014300	φ76	76.2	88.5	88.5	2
	FEW014350	φ89	88.9	103.5	103.5	2
	FEW014400	φ102	101.6	127	127	2
	FEW014425	φ108	108	132	132	2
	FEW014450	φ114.3	114.3	152.4	152.4	2
	FEW014500	φ127	127	190.5	190.5	2
	FEW014525	φ133	133	190	190	2
	FEW014600	φ152	152	228.6	228.6	2
	FEW014625	φ159	159	225	225	2

ISO 45° Elbow

	Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
	FEW034050	φ12.7	12.7	7.9	19.1	1.5
	FEW034075	φ19	19.1	11.8	28.5	1.5
	FEW034100	φ25	25.4	13.9	33.5	1.5
	FEW034125	φ32	31.8	15.7	38	1.5
	FEW034150	φ38	38.1	20.1	48.5	1.5
	FEW034175	φ45	45	23.8	57.5	1.5
	FEW034200	φ51	50.8	25.1	60.5	1.5
	FEW034225	φ57	57	28.1	68	2
	FEW034250	φ63	63.5	34.6	83.5	2
	FEW034300	φ76	76.2	36.7	88.5	2
	FEW034350	φ89	88.9	42.9	103.5	2
	FEW034400	φ102	101.6	52.6	127	2

ISO Clamp 90° Elbow

	Model No	Size	D/mm	K/mm	L/mm	R/mm	T/mm	N.W/g.
	FEC014050	φ12.7	12.7	2.52/34/50.5	40.6	19.1	1.5
	FEC014075	φ19	19.1	2.52/34/50.5	50	28.5	1.5
	FEC014100	φ25	25.4	50.5	55	33.5	1.5
	FEC014125	φ32	31.8	50.5	59.5	38	1.5
	FEC014150	φ38	38.1	50.5	70	48.5	1.5
	FEC014175	φ45	45	64	79	57.5	1.5
	FEC014200	φ51	50.8	64	82	60.5	1.5
	FEC014225	φ57	57	77.5	89.5	68	2
	FEC014250	φ63	63.5	77.5	105	83.5	2
	FEC014300	φ76	76.2	91	110	88.5	2
	FEC014350	φ89	88.9	106	125	103.5	2
	FEC014400	φ102	101.6	119	148.5	127	2
	FEC014425	φ108	108	119	153.5	132	2
	FEC014450	φ114.3	114.3	130	173.9	152.4	2
	FEC014500	φ127	127	145	212	190.5	2
	FEC014525	φ133	133	145	211.5	190	2
	FEC014600	φ152	152	167	250.1	228.6	2
	FEC014625	φ159	159	183	246.5	225	2/3

ISO Clamp 90° Elbow

	Model No	Size	D/mm	K/mm	L/mm	R/mm	T/mm	N.W/g.
	FEC014050	φ12.7	12.7	2.52/34/50.5	29.4	19.1	1.5
	FEC014075	φ19	19.1	2.52/34/50.5	33.3	28.5	1.5
	FEC014100	φ25	25.4	50.5	35.4	33.5	1.5
	FEC014125	φ32	31.8	50.5	37.2	38	1.5
	FEC014150	φ38	38.1	50.5	41.6	48.5	1.5
	FEC014175	φ45	45	64	45.3	57.5	1.5
	FEC014200	φ51	50.8	64	46.6	60.5	1.5
	FEC014225	φ57	57	77.5	49.6	68	2
	FEC014250	φ63	63.5	77.5	56.1	83.5	2
	FEC014300	φ76	76.2	91	58.2	88.5	2
	FEC014350	φ89	88.9	106	64.4	103.5	2
	FEC014400	φ102	101.6	119	74.1	127	2
