TSR01 Series RECTANGULAR SIGHT GLASS

To show surface of a liquid, for insertion into attachment to tanks, vessels and silos. The base frame is welded onto or into the vessel wall. Then the sightglass plate together with two seals is firmly bolted down by the cover frame and a set of fasteni

Categories: Sight Glass
FOB Port: Ningbo, Zhejiang
Terms of Payment: Western Union,T/T Paypal
Delivery Time: 15 Working Days
Inquire Now PDF Datasheet

APPLICATION

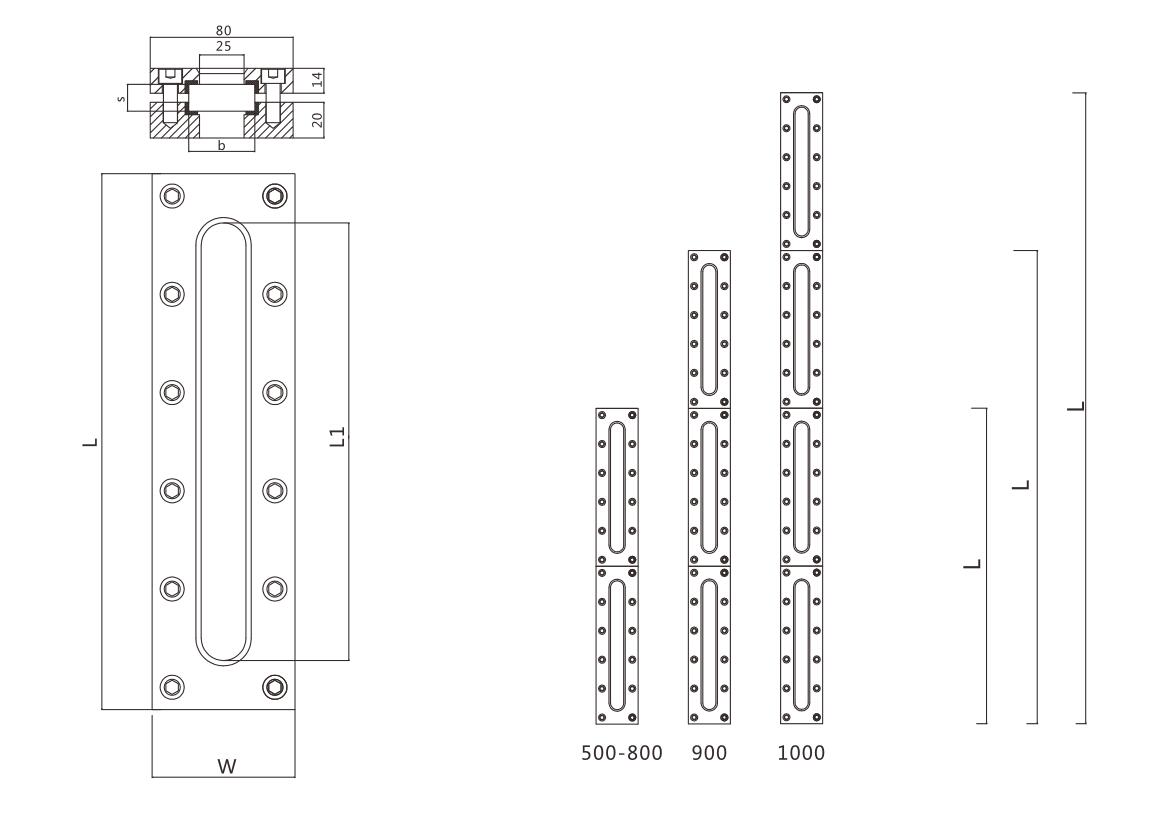

To show surface of a liquid, for insertion into attachment to tanks, vessels and silos. The base frame is welded onto or into the vessel wall. Then the sightglass plate together with two seals is firmly bolted down
by the cover frame and a set of fastening bolts.

OPERATING CONDITIONS

Design Pressure: 6 Bar
Design Temperature: -10 °C to 120 °C(Silicon)

MATERIAL

Base Frame: SS304/SS316L
Cover Frame: SS304
Glass: Toughened Soda-lime Glass
Gasket: Silicon per FDA 177.2600
Fastening bolts: SS304
