SS304 SS316L Round Non-Rressure Manway Sanitary Tank Components Stainless Steel Manhole Cover

Model No.:TMN02

SKU:TMN02

Body Materials:

Materials:

Size.:

Height:

Inside &Outside Surface Finishing:

Handwheel Type:

Application

TMN Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access to the interior of the tank required.

Materials

Cover Body: SS304 or SS316L
Gasket:Silicon, EPDM, FPM per FDA 177.2600
Gasket:Silicon, EPDM, FPM per FDA 177.2600

Standard Design

Available in size: 430x330mm, 530x430mm
Standard height: 75mm for 430x330mm, 80mm or 100mm for 530x430mm
Standard thickness: 8mm
Inward Opening
Installation on the side surface of tank

Technical Specification

Max. pressure: 43psi (3bar)
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: mirror inside, stain or mirror outside

Design Aan Features

Outward opening manway door type
Handle wheel in material of Nylon or Stainless Steel
Self-sealing double lip seal to prevent fluids spraying out
360° Rotary Arm

Stainless Steel Finishing

Mechanical polish with ra(μ)
Electro polished
Pickled
Bead blasted

Technical Data

Working pressure: No pressure
Max. Temperature: + 120°C (Silicon)

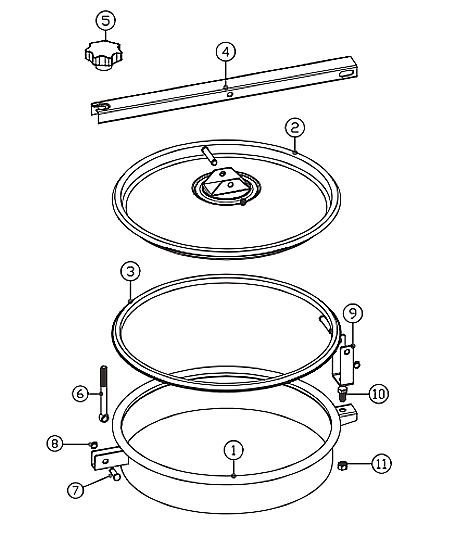

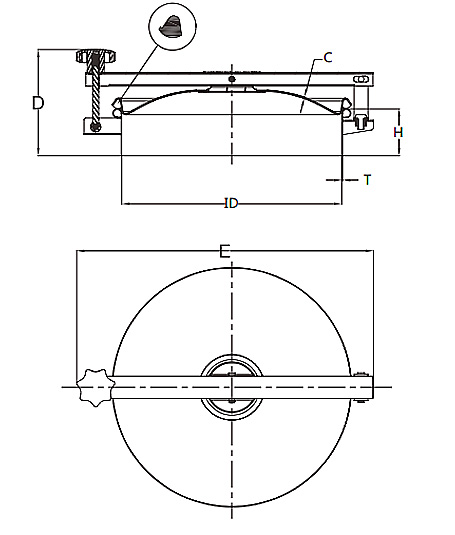

Item	Description	Material	Qty	Model No	Size	ID	C	T	H*
1	Frame	SS304/SS316L	1	TMN0241350H1012W1	350	346	2	2	100
2	Cover	SS304/SS316L	1	TMN0241400H1012W1	400	396	2	2	100
3	Gasket	Silicon*	1	TMN0241450H1012W1	450	446	2	2	100
4	Arm	SS304	1	TMN0241500H1012W1	500	496	2	2	100
5	Handwheel	Nylon/SS304	1	TMN0241600H1012W1	600	596	2	2	100
6	Swing Bolt	SS304	1	Model No for Silicon seal H option: 80mm, 100mm, 120mm, 150mm, 200mm or on request
7	Pin	SS304	3
8	Lock Ring	SS304	3
9	Back Hinge Support	SS304	1
10	Screw	SS304	1
11	Nut	SS304	1
*Gasket Option: Silicon, EPDM, FKP per FDA per FDA
