High Quality Elliptical Manway Stainless Steel SS304 SS316L Non-Pressure Elliptical Tank Manhole Cover

Application

TME03 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

• Cover Body: SS304 or SS316L

• Gasket:Silicon, EPDM, FPM per FDA 177.2600

• Handle Wheel: Nylon or sS304

Standard Design

• Available in size: 430x330mm, 530x430mm

• Standard height: 75mm for 430x330mm, 80mm or 100mm for 530x430mm

• Standard thickness: 8mm

• Inward Opening

• Installation on the side surface of tank

Technical Specification

• Max. pressure: 43psi (3bar)

• Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

• Surface treatment: mirror inside, stain or mirror outside

Design Aan Features

• Outward opening manway door type
• Handle wheel in material of Nylon or Stainless Steel
• Gasket Material Option: Silicon, EPDM, FPM
• Frame Height and thickness available on request

Stainless Steel Finishing

• Mechanical polish with ra(μ)
• Electro polished
• Pickled
• Bead blasted

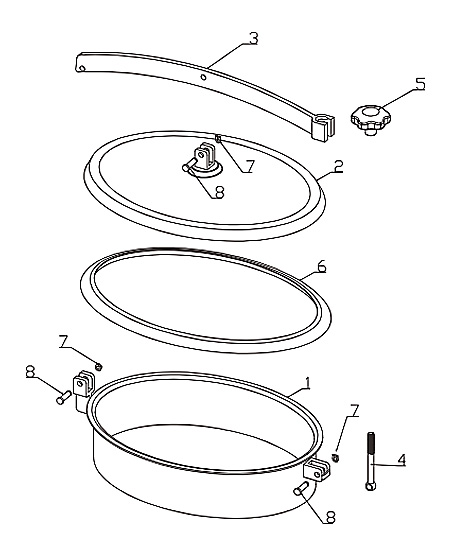

Item			Description										Material								Qty						Model No	Size	A	H*	T	C
1			Frame										SS304/SS316L								1						TME0341420x300H1012	420x300	420x300	100	3	2
2			Cover										SS304/SS316L								1						TMR0341450x350H1012	450x350	450x350	100	3	2
3			Bracket										SS304								1						TMR0341530x430H01012	530x430	530x430	100	3	2
4			Swing Bolt										SS304								1						*Model No for Silicon seal *H option: 80mm, 100mm, 120mm, 150mm, 200mm or on request
5			Handle										Plastic/SS304								1
6			Gasket										Silicon*								1
7			Lock Ring										SS304								3
8			Pin										SS304								3
* Gasket Option: Silicon, EPDM, FKP per FDA
