SS304 SS316LPressure Round Manway Tank Components Sanitary Stainless Steel Tank Manhole Cover

Model No.:TMP01

SKU:TMP01

Body Materials:

Materials:

Size.:

Height:

Inside &Outside Surface Finishing:

Handwheel Type:

Application

TMP01 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access to the interior of the tank required.

Materials

Cover Body: SS304 or SS316L
Handle Wheel:Nylon or SS304
Gasket:Silicon, EPDM, FPM per FDA 177.2600

Standard Design

Available in size: 430x330mm, 530x430mm
Standard height: 75mm for 430x330mm, 80mm or 100mm for 530x430mm
Standard thickness: 8mm
Inward Opening
Installation on the side surface of tank

Technical Specification

Max. pressure: 43psi (3bar)
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: mirror inside, stain or mirror outside

Design Aan Features

Outward opening manway door type
Handle wheel in material of Nylon or Stainless Steel
Handle wheel in material of Nylon or Stainless Steel
Frame Height and thickness available on request

Stainless Steel Finishing

Mechanical polish with ra(μ)
Electro polished
Pickled
Bead blasted

Technical Data

Working pressure: No pressure
Max. Temperature: + 120°C (Silicon)

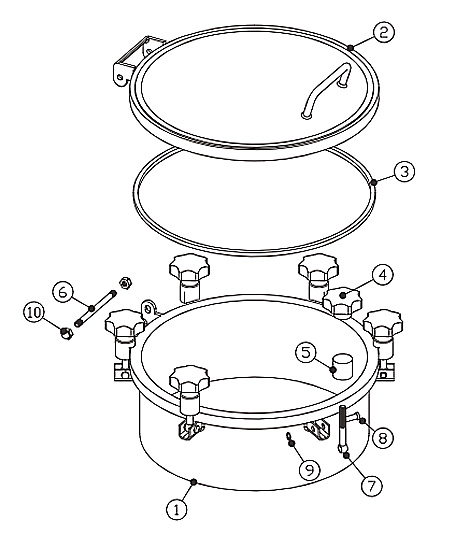

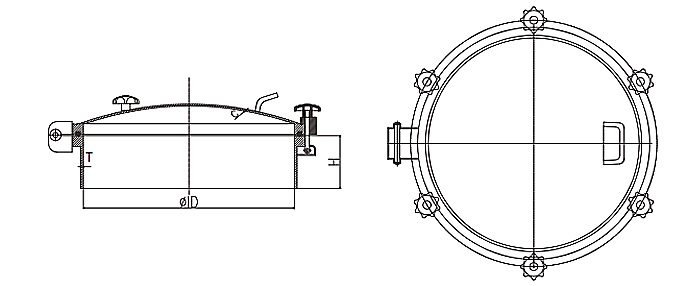

Item	Description	Description	Qty	Model No	Size	ID	H*	T	C	Handwheel Qty
1	Frame	Frame	1	TMP0141150H1012W1	150	150	100	3	2.5	4
2	Cover	Cover	1	TMP0141200H1012W1	200	200	100	3	2.5	4
3	Gasket	Gasket	1	TMP0141250H1012W1	250	250	100	3	2.5	4
4	Handle	Handle	4*	TMP0141300H1012W1	300	300	100	3	2.5	4
5	Hub	Hub	4*	TMP0141350H1012W1	350	350	100	3	2.5	4
6	Screw	Screw	1	TMP0141400H1012W1	400	400	100	3	3	6
7	Swing Bolt	Swing Bolt	4*	TMP0141450H1012W1	450	450	100	3	3	6
8	Pin	Pin	4*	TMP0141500H1012W1	500	500	100	3	3	6
9	Lock Ring	Lock Ring	4*	TMP0141600H1012W1	600	600	100	3	3	6
10	Nut	Nut	2	Model No for Silicon seal H option: 80mm, 100mm, 120mm, 150mm, 200mm or on request
*Gasket Material Option ：Silicon, EPDM,FPM per FDA
