Sanitary Elliptical Manhole Covers SS304 SS316L Tank Manhole Cover Stainless Steel Elliptical Manway Fitting Manhole

Application

TME01 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required

Materials

• Cover Body: SS304 or SS316L

• Handle Wheel:Nylon or SS304

• Gasket:Silicon, EPDM, FPM per FDA 177.2600

Standard Design

• Available in size: 430x330mm, 530x430mm

• Standard height: 75mm for 430x330mm, 80mm or 100mm for 530x430mm

• Standard thickness: 8mm

• Inward Opening

• Installation on the side surface of tank

Technical Specification

• Max. pressure: 43psi (3bar)

• Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

• Surface treatment: mirror inside, stain or mirror outside

Design Aan Features

• Outward opening manway door type
• Handle wheel in material of Nylon or Stainless Steel
• Handle wheel in material of Nylon or Stainless Steel
• Frame Height and thickness available on request

Stainless Steel Finishing

• Mechanical polish with ra(μ)
• Electro polished
• Pickled
• Bead blasted

Technical Data

• Working pressure: No pressure
• Max. Temperature: + 120°C (Silicon)

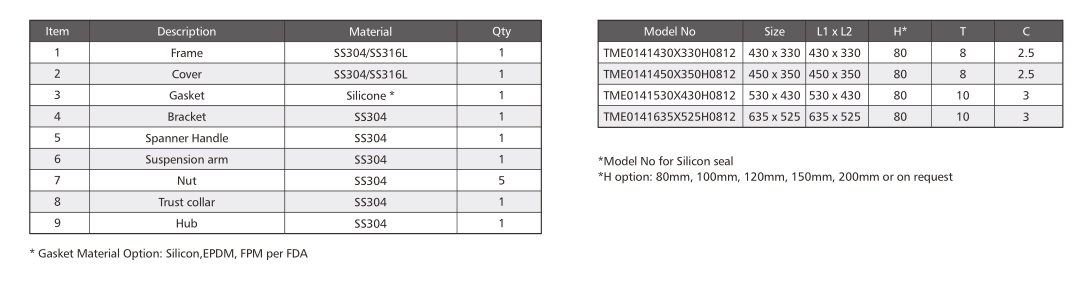

Item			Description										Material									Qty						Model No							Size					L1 x L2			H*				T			C
1			Frame										SS304/SS316L									1						TME0141430X330H0812							430 x 330					430 x 330			80				8			2.5
2			Cover										SS304/SS316L									1						TME0141450X350H0812							450 x 350					450 x 350			80				8			2.5
3			Gasket										Silicone *									1						TME0141530X430H0812							530 x 430					530 x 430			80				10			3
4			Bracket										SS304									1						TME0141635X525H0812							635 x 525					635 x 525			80				10			3
5			Spanner Handle										SS304									1						*Model No for Silicon seal *H option: 80mm, 100mm, 120mm, 150mm, 200mm or on request
6			Suspension arm										SS304									1
7			Nut										SS304									5
8			Trust collar										SS304									1
9			Hub										SS304									1
* Gasket Material Option: Silicon,EPDM, FPM per FDA
