Application

TMP03 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

• Cover Body: SS304 or SS316L

• Handle Wheel:Nylon or SS304

• Gasket:Silicon, EPDM, FPM per FDA 177.2600

Standard Design

• Available in size: 430x330mm, 530x430mm

• Standard height: 75mm for 430x330mm, 80mm or 100mm for 530x430mm

• Standard thickness: 8mm

• Inward Opening

• Installation on the side surface of tank

Technical Specification

• Max. pressure: 43psi (3bar)

• Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

• Surface treatment: mirror inside, stain or mirror outside

Design Aan Features

• Outward opening manway door type
• Handle wheel in material of Nylon or Stainless Steel
• Handle wheel in material of Nylon or Stainless Steel
• Frame Height and thickness available on request

Stainless Steel Finishing

• Mechanical polish with ra(μ)
• Electro polished
• Pickled
• Bead blasted

Technical Data

• Working pressure: No pressure
• Max. Temperature: + 120°C (Silicon)

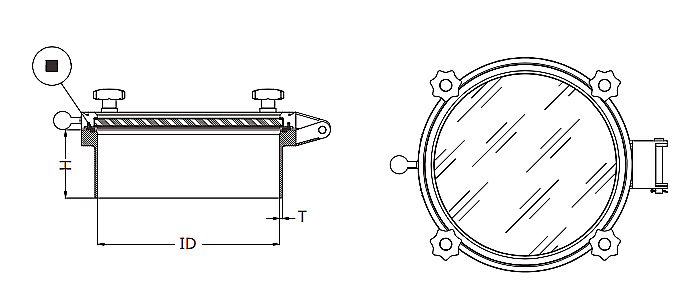

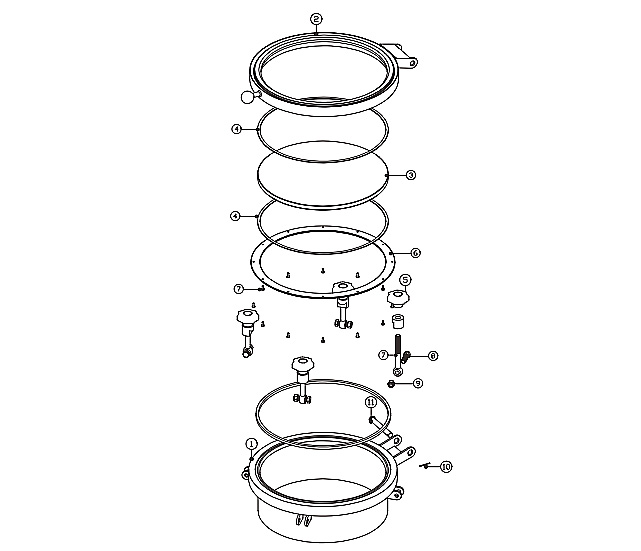

Item				Description								Material									Qty								Mo  el No					Size			ID		H*			T		Glass T  ic  ness						Han w  eel Q y
1				Frame								SS304/SS316L									1								TMP0341150H1012W1					150			150		100			3		10						4
2				Cover								SS304/SS316L									1								TMP0341200H1012W1					200			200		100			3		10						4
3				Glass								Tempered Glass									1								TMP0341250H1012W1					250			250		100			3		10						4
4				Gasket								Silicone *									2								TMP0341300H1012W1					300			300		100			3		10						4
5				Handle								Nylon/1.4301									4*								TMP0341350H1012W1					350			350		100			3		10						4
6				Flange								SS304									1								TMP0341400H1012W1					400			400		100			3		10						6
7				Swing Bolt								SS304									4*								TMP0341450H1012W1					450			450		100			3		10						6
8				Screw								SS304									4*								TMP0341500H1012W1					500			500		100			3		12						6
9				Nut								SS304									4*								TMP0341600H1012W1					600			600		100			3		15						6
10				Cotter Pin								SS304									1								*Model No for Silicon seal
11				Pin								SS304									1								*H option: 80mm, 100mm, 120mm, 150mm, 200mm or on request
* Gasket Material Option: Silicon,EPDM, FPM per FDA
* Handles qty depends on size, pressure and tempreture.
