Stainless Steel Pressure Round Manway With Sight Glass Sanitary Manway With Flange Sight Glass SS304 SS316L Tank Manhole Cover

Model No.:TMP02

SKU:TMP02

Body Materials:

Materials:

Size.:

Height:

Inside &Outside Surface Finishing:

Handwheel Type:

Application

TMP02 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

Cover Body: SS304 or SS316L
Handle Wheel:Nylon or SS304
Gasket:Silicon, EPDM, FPM per FDA 177.2600

Standard Design

Available in size: 430x330mm, 530x430mm
Standard height: 75mm for 430x330mm, 80mm or 100mm for 530x430mm
Standard thickness: 8mm
Inward Opening
Installation on the side surface of tank

Technical Specification

Max. pressure: 43psi (3bar)
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: mirror inside, stain or mirror outside

Design Aan Features

Outward opening manway door type
Handle wheel in material of Nylon or Stainless Steel
Handle wheel in material of Nylon or Stainless Steel
Frame Height and thickness available on request

Stainless Steel Finishing

Mechanical polish with ra(μ)
Electro polished
Pickled
Bead blasted

Technical Data

Working pressure: No pressure
Max. Temperature: + 120°C (Silicon)

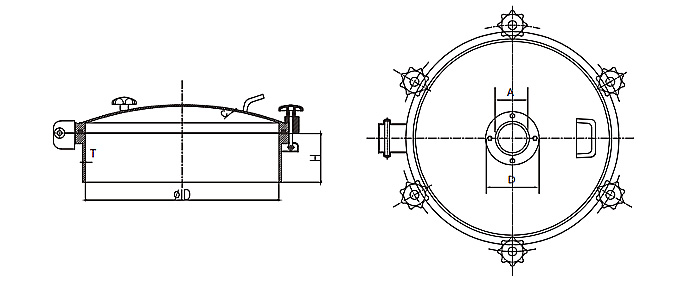

Model No	Size	ID	H*	T	C	Handwheel Qty	Sight Glass Size	A	D
TMP0241150H1012W1	150	150	100	3	2.5	4	DN50	50	110
TMP0241200H1012W1	200	200	100	3	2.5	4	DN50	50	110
TMP0241250H1012W1	250	250	100	3	2.5	4	DN65	65	125
TMP0241300H1012W1	300	300	100	3	2.5	4	DN65	65	125
TMP0241350H1012W1	350	350	100	3	2.5	4	DN80	80	140
TMP0241400H1012W1	400	400	100	3	3	6	DN100	100	160
TMP0241450H1012W1	450	450	100	3	3	6	DN100	100	160
TMP0241500H1012W1	500	500	100	3	3	6	DN125	125	185
TMP0241600H1012W1	600	600	100	3	3	6	DN150	150	210
*Model No for Silicon seal
*H option: 80mm, 100mm, 120mm, 150mm, 200mm or on request
