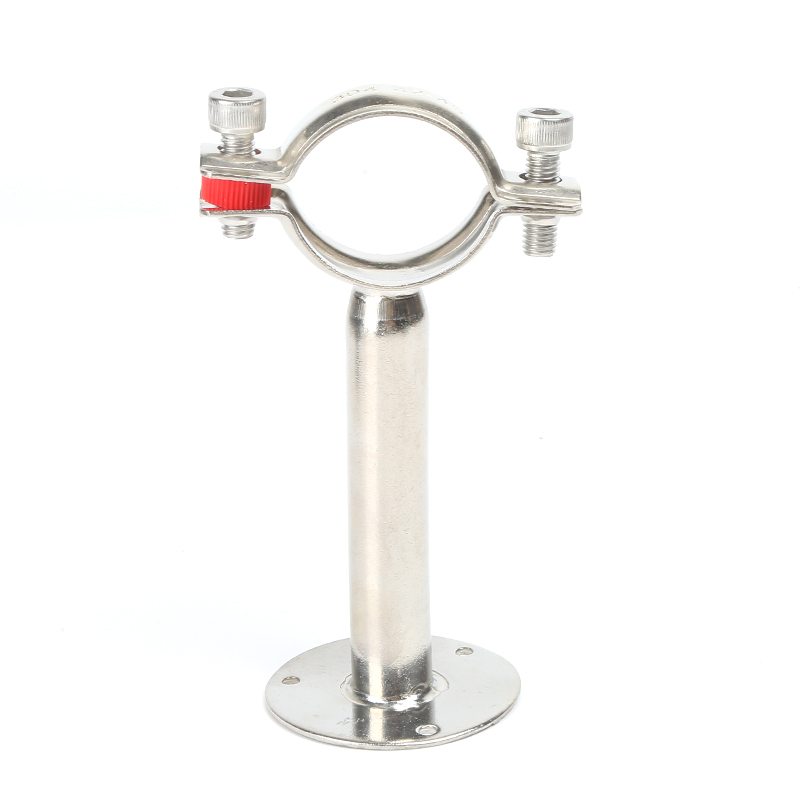

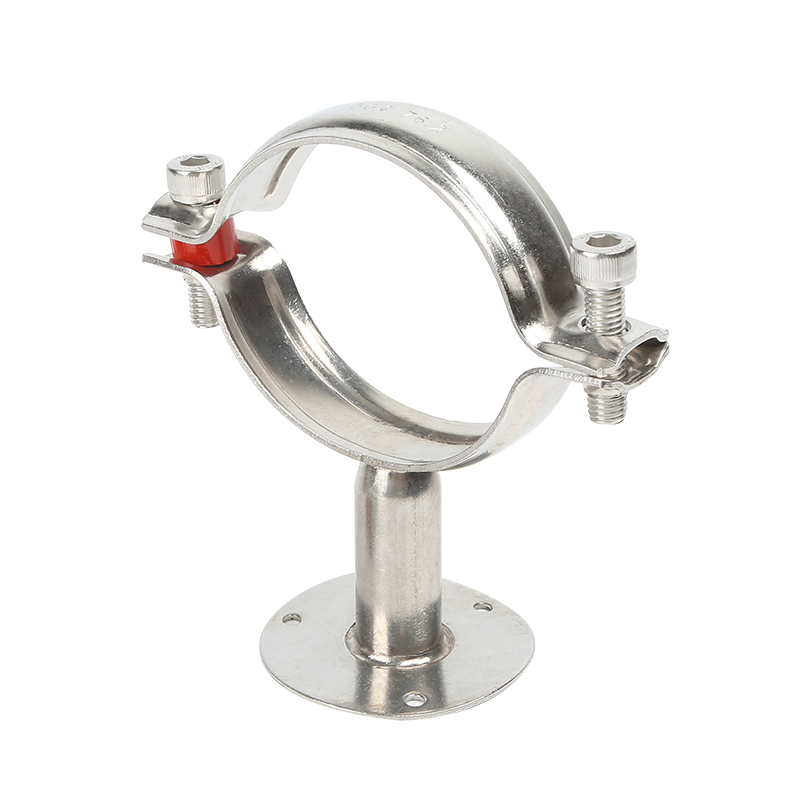

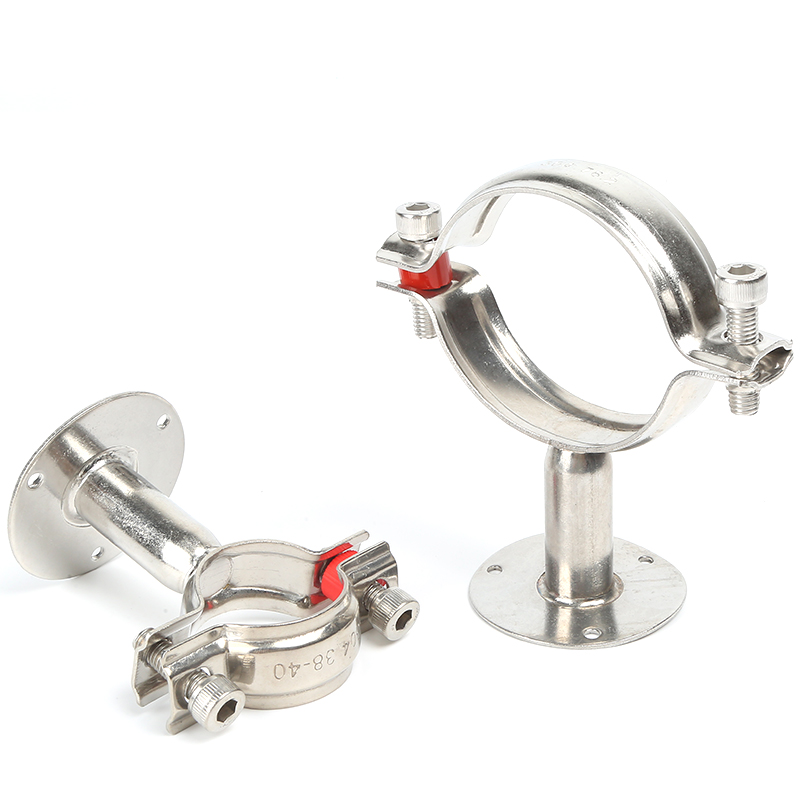

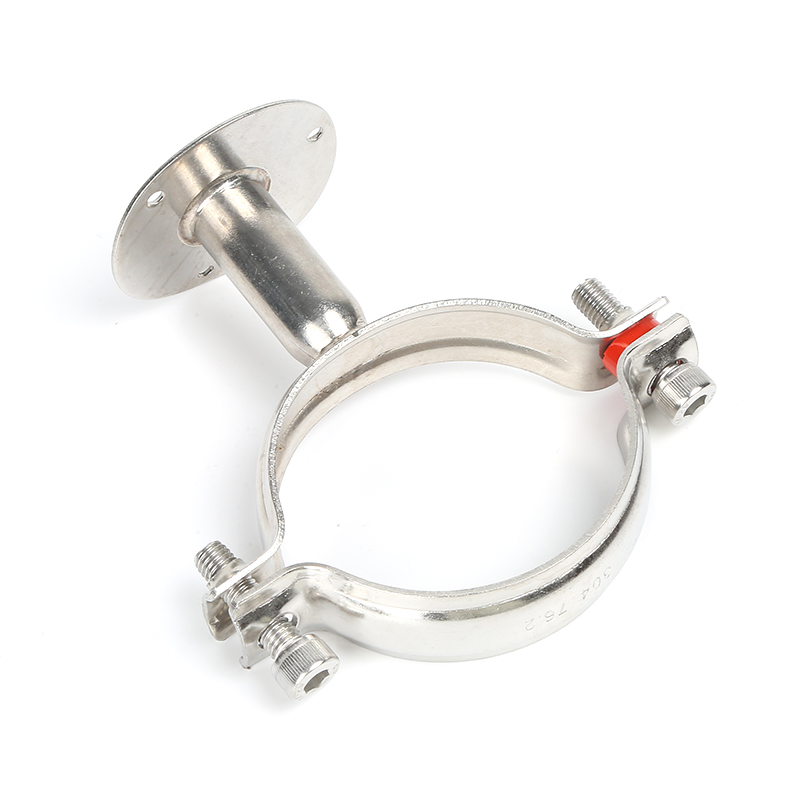

Sanitary High Quality Pipe Hangers SS304 Pipe Hangers with with Base Stainless Steel Pipe Clamp Fitting Tube Hangers

Model No.:FH06

SKU:FH06

End Connections:
Weld
  • Weld
  • With base
Size:
3A 1/2"
  • 3A 1/2"
  • 3A 3/4"
  • 3A 1"
  • 3A 11/4"
  • 3A 11/2"
  • 3A 13/4"
  • 3A 2"
  • 3A 21/4"
  • 3A 21/2"
  • 3A 3"
  • 3A 3.5"
  • 3A 4"
  • 3A 41/2"
  • 3A 51/4"
  • 3A 51/2"
  • 3A 61/4"
  • 3A 6.6"
  • 3A 8"
  • 3A 8.6"
  • 3A10"
  • 3A10.5"
  • 3A 10.75"
  • 3A 12"
Material:
SS304
  • SS304

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

  • Body: AISI-304

Standard Design

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME

  • End connections: Weld or Female

  • Tube hanger type: Round, Hexagon, with rubber insert

  • Size available: 1/2"-12" or DN10-DN250

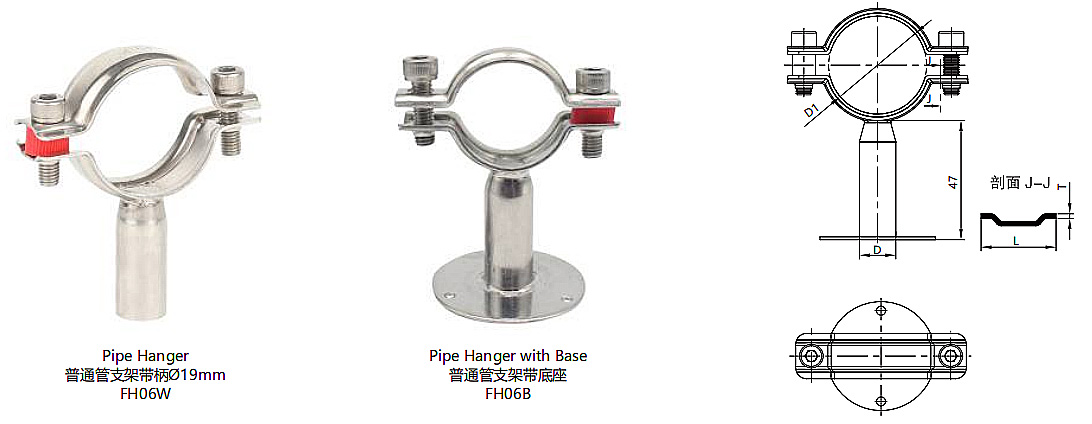

FH06 Pipe Hangers

Model Size D1/mm N.W/g
with Tube with Base with Tube with Base
FH06W1050 FH06B1050 1/2" φ12-14 81 121.3
FH06W1075 FH06B1075 3/4" φ19-22 86 116.8
FH06W1100 FH06B1100 1" φ25-27 89 124
FH06W1125 FH06B1125 11/4" φ32-34 99 126.5
FH06W1150 FH06B1150 11/2" φ38-40 100 147
FH06W1175 FH06B1175 45 φ42-45 102 143.3
FH06W1200 FH06B1200 2" φ51-53 117 149
FH06W1225 FH06B1225 57 φ54-57 120 157.2
FH06W1250 FH06B1250 21/2" φ63-66 147 191
FH06W2065 FH06B2065 70 φ70-75 152
FH06W1300 FH06B1300 3" φ76-80 163 195.7
FH06W1350 FH06B1350 3.5" φ85-89 178 218
FH06W1400 FH06B1400 4" φ102-108 199 240
FH06W1450 FH06B1450 114 φ114 210
FH06W1525 FH06B1525 133 φ133 298
FH06W1550 FH06B1550 140 φ140 323
FH06W1625 FH06B1625 159 φ152-159 331
FH06W1660 FH06B1660 168 φ168 365
FH06W1800 FH06B1800 8" φ204 665
FH06W1860 FH06B1860 219 φ219 733
FH06W11000 FH06B11000 10" φ254 821
FH06W11075 FH06B11075 273 φ273 961
FH06W11200 FH06B11200 12" φ305 1025
FH06W11275 FH06B11275 325 φ325 1073
