VGN SS304/SS316L Stainless Steel Sanitary Angle Seat Valve Female/Weld/Clamp/Flange Connection Food Grade

Application

Angle seat valves are used in applications in which absolute purity of the medium cannot be ensured, in which highly viscous media are to be controlled or in steam applications, such as:

• Beer&Drink Filling Machinery

• Textile Printing& Dyeing

• Gas Industry

• Pharmacy& Medical Equipment

• Chemical Industry

• Disinfection

• Frothing Equipment

• Water/Sewage Disposal

Technical Specification

Fluid Pressure: Max 1.6MPa (232psi)

Control Pressure: 0.3-0.8MPa (43.5-116Psi)

Media Temerature: -10℃-+180℃

Ambient Temperature: -10℃-+55℃

Body Materials: CF8M(SS316),CF8(SS304)

Actuator Material: PA polyamide, CF8(SS304)

Seals Material: PTFE

Operation: Normally Closed, Normally Open, Double-acting or Manually

Connection End: Female, Weld, Tri-clamp, Flanged or on request

Available Size: DN10-DN100

Option: Proximity Switch, Selenoid Valve, Manual Travel Limit

Advantages:

• High Flow Rate, Low Resistance, No Water-Hammer

• Y-type Shape Enlarged The Flowing Section, Which Could Raise The Flux By 30% And Make Flow More Smooth

• High Cycle Life Compared To Ball Valves

• Which Help The Stem Adjust And Lubricate Itself Automatically

• Installation: Any position

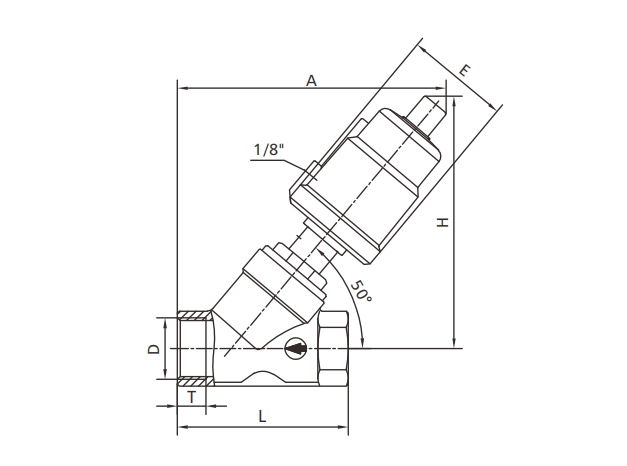

Female Connection

	Model No	Size	D	E	H	T	A	L	Actuator
	VGN44NC451050NN	DN15	1/2''	62	126	11	133	68	⌀50
	VGN44NC451075NN	DN20	3/4''	62	131	14	137	75	⌀50
	VGN44NC451100NN	DN25	1‘’	62	165	15	174	90	⌀50
	VGN44NC451125NN	DN32	1 1/4‘’	76	175	17.5	188	115	⌀63
	VGN44NC451150NN	DN40	1 1/2‘’	76	178	17.5	190	115	⌀63
	VGN44NC451200NN	DN50	2‘’	96	240	20	225	135	⌀80
	VGN44NC451250NN	DN65	2 1/2‘’	96	280	30	252	185	⌀80
	VGN44NC451300NN	DN80	3‘’	114	320	33	280	220	⌀100

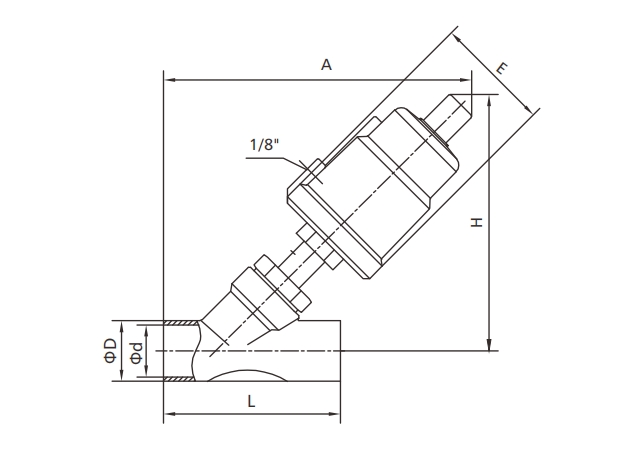

Weld Connection

	Model No	Size	E	H	A	L	D	d	Actuator
	VGN11NC452020NN	DN20	62	130	160	120	25	20	⌀50
	VGN11NC452025NN	DN25	62	150	180	140	33	25	⌀50
	VGN11NC452032NN	DN32	76	195	215	155	41	35	⌀63
	VGN11NC452040NN	DN40	76	245	225	170	45	38	⌀63
	VGN11NC452050NN	DN50	76	295	182	190	57	48	⌀63
	VGN11NC452065NN	DN65	96	385	340	200	77	68	⌀80
	VGN11NC452080NN	DN80	114	400	360	220	92	82	⌀80
	VGN11NC451075NN	3/4''	62	130	160	120	19.05	15.75	⌀50
	VGN11NC451100NN	1''	62	150	180	140	25.4	22.1	⌀50
	VGN11NC451125NN	1 1/4''	76	195	215	155	31.8	28.5	⌀63
	VGN11NC451150NN	1 1/2''	76	245	225	170	38.1	34.8	⌀63
	VGN11NC451200NN	2''	76	295	182	190	50.5	47.5	⌀63
	VGN11NC451250NN	2 1/2''	96	350	320	200	63.5	60.2	⌀80

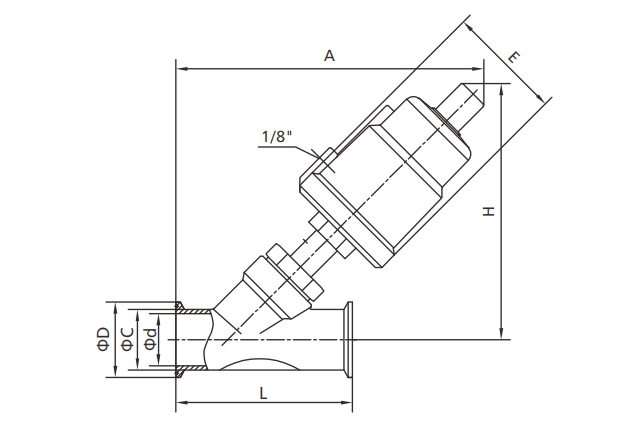

Clamp Connection

	Model No	Size	E	H	D	d	L	A	Actuator
	VGN22NC452015NN	DN15	62	120	50.5	15	120	160	⌀50
	VGN22NC452020NN	DN20	62	130	50.5	20	140	165	⌀50
	VGN22NC452025NN	DN25	62	160	50.5	25	160	185	⌀50
	VGN22NC452032NN	DN32	76	195	50.5	35	175	220	⌀63
	VGN22NC452040NN	DN40	76	245	50.5	38	190	230	⌀63
	VGN22NC452050NN	DN50	76	285	64	48	210	280	⌀63
	VGN22NC452065NN	DN65	96	370	91	68	225	360	⌀80
	VGN22NC451050NN	1/2''	62	120	50.5	9.4	120	160	⌀50
	VGN22NC451075NN	3/4''	62	130	50.5	15.75	140	165	⌀50
	VGN22NC451100NN	1''	62	160	50.5	22.1	160	185	⌀50
	VGN22NC451125NN	1 1/4''	76	195	50.5	28.5	175	220	⌀63
	VGN22NC451150NN	1 1/2''	76	245	50.5	34.8	190	230	⌀63
	VGN22NC451200NN	2''	76	285	64	47.5	210	280	⌀63
	VGN22NC451250NN	2 1/2''	96	350	77.5	60.2	210	320	⌀80

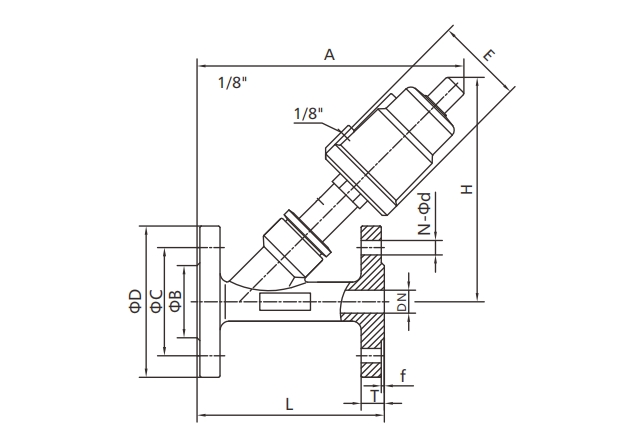

Flange Connection

	Model No	Size	L	T	f	D	C	B	A	H	E	N-⌀d	Actuator
	VGN55PC452015NN	DN15	120	14	2	95	65	40	185	145	62	4-⌀14	⌀50
	VGN55PC452020NN	DN20	130	14	2	105	75	50	188	155	62	4-⌀14	⌀50
	VGN55PC452025NN	DN25	140	14	2	115	65	60	208	165	62	4-⌀14	⌀50
	VGN55PC452032NN	DN32	150	16	2	135	100	70	225	195	76	4-⌀18	⌀63
	VGN55PC452040NN	DN40	180	16	2	145	110	80	240	205	76	4-⌀18	⌀63
	VGN55PC452050NN	DN50	195	16	2	160	125	92	265	228	76	4-⌀18	⌀63
	VGN55PC452065NN	DN65	230	18	2	185	145	115	290	264	96	4-⌀18	⌀80
	VGN55PC452080NN	DN80	250	18	2	195	160	130	330	300	114	8-⌀18	⌀100
