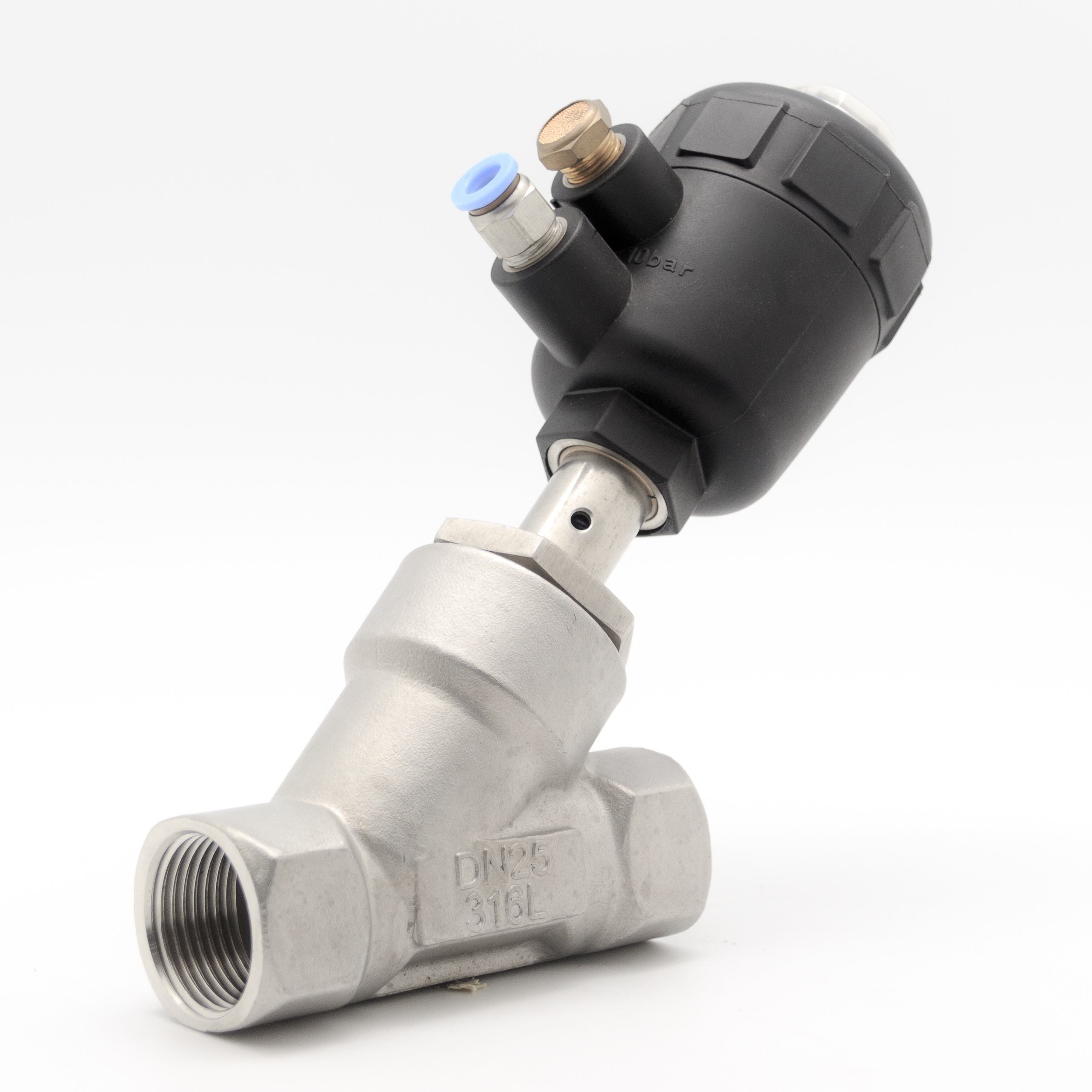

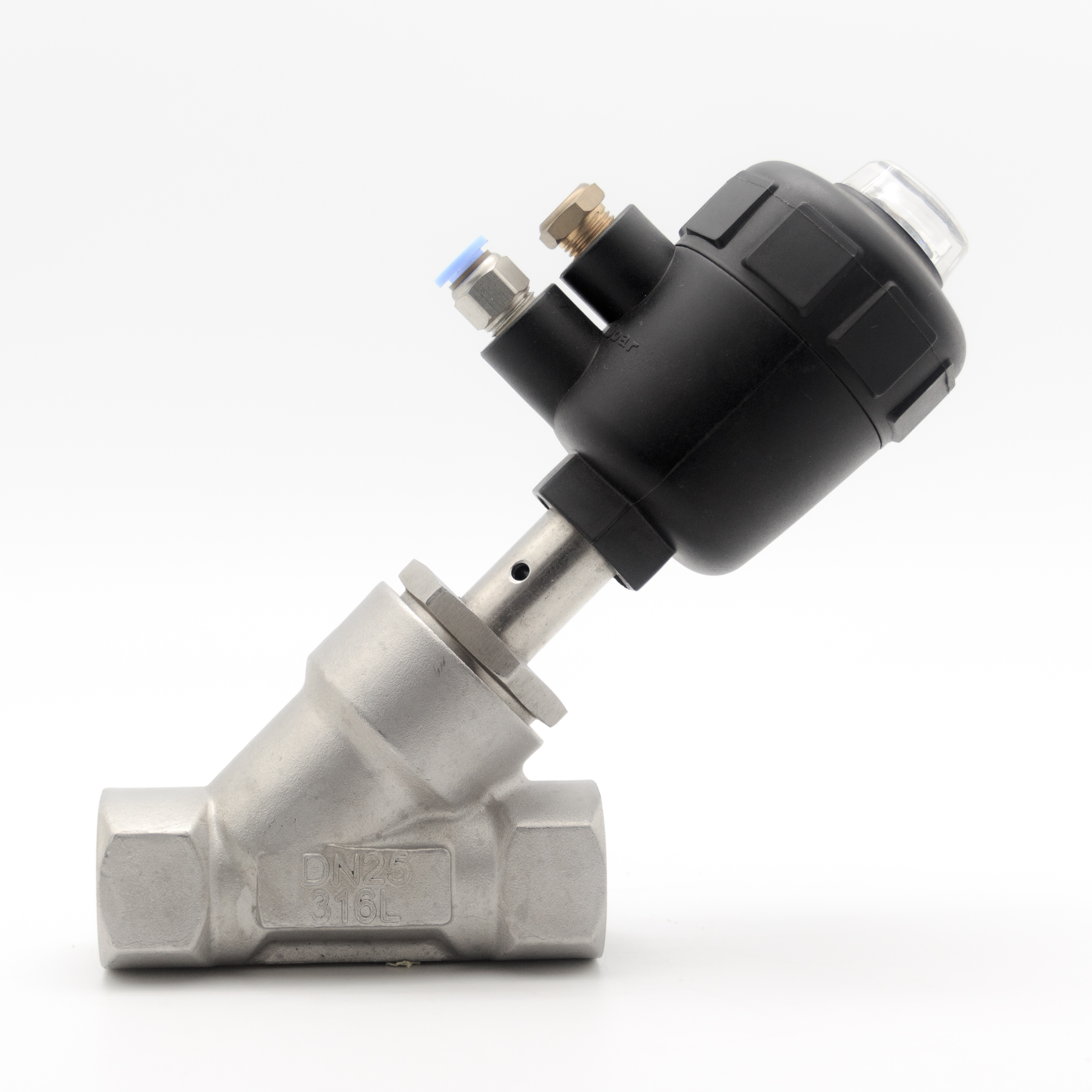

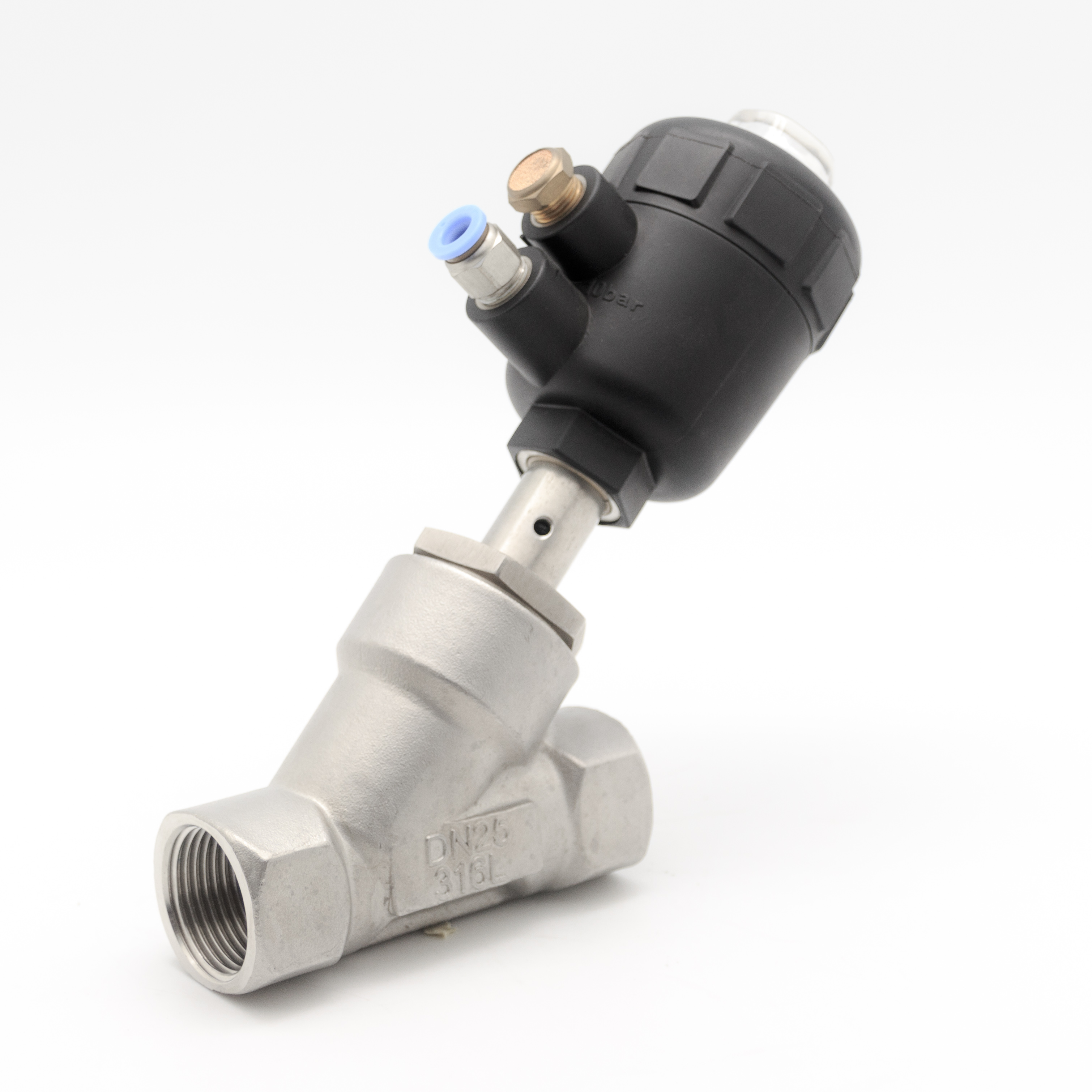

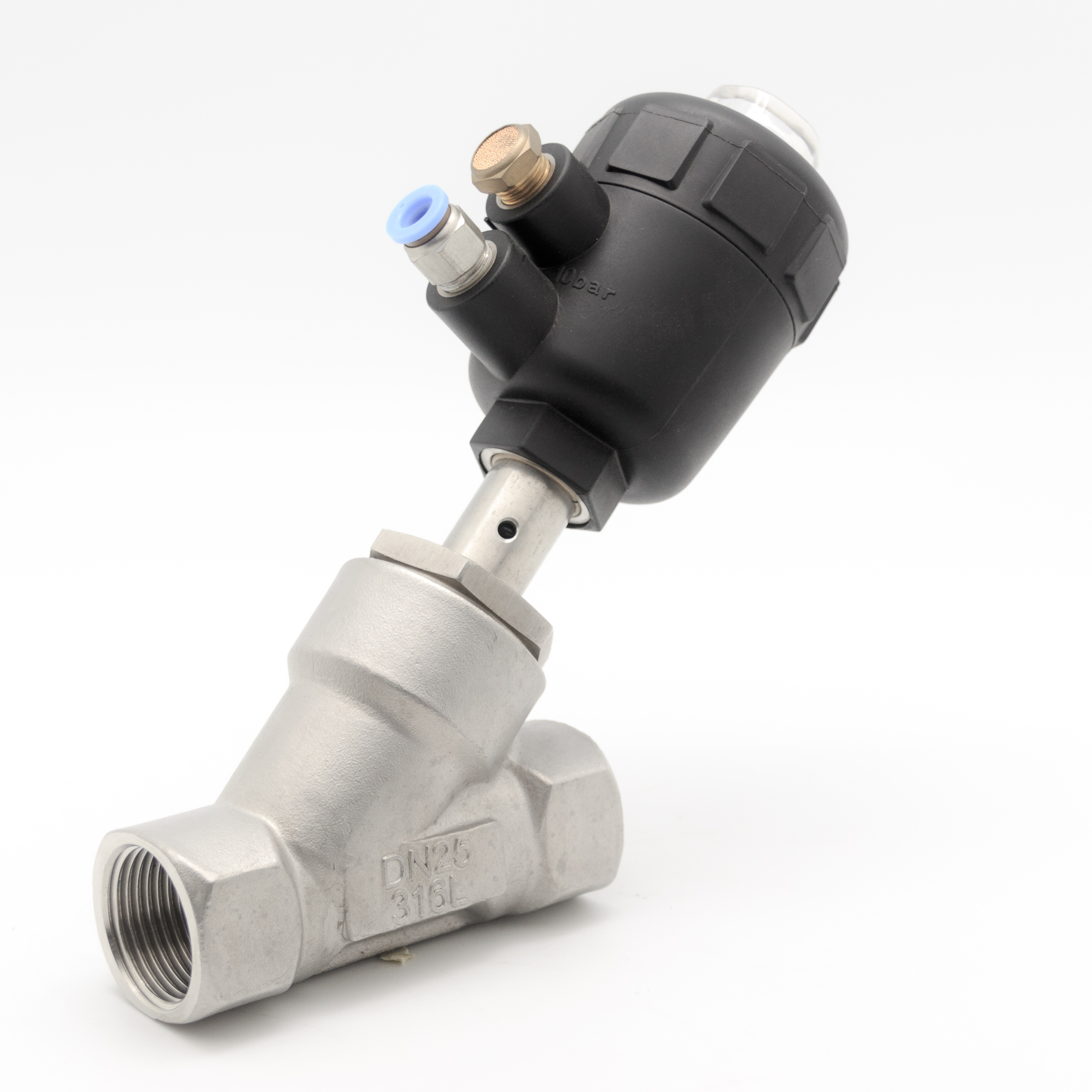

Sanitary SS304/SS316L Stainless Steel Regular Angle Seat Valve Female/Weld/Clamp/Flange Connection

Application

Angle seat valves are used in applications in which absolute purity of the medium cannot be ensured, in which highly viscous media are to be controlled or in steam applications, such as:

• Beer&Drink Filling Machinery

• Textile Printing& Dyeing

• Gas Industry

• Pharmacy& Medical Equipment

• Chemical Industry

• Disinfection

• Frothing Equipment

• Water/Sewage Disposal

Technical Specification

Fluid Pressure: Max 1.6MPa (232psi)

Control Pressure: 0.3-0.8MPa (43.5-116Psi)

Media Temerature: -10℃-+180℃

Ambient Temperature: -10℃-+55℃

Body Materials: CF8M(SS316),CF8(SS304)

Actuator Material: PA polyamide, CF8(SS304)

Seals Material: PTFE

Operation: Normally Closed, Normally Open, Double-acting or Manually

Connection End: Female, Weld, Tri-clamp, Flanged or on request

Available Size: DN10-DN100

Option: Proximity Switch, Selenoid Valve, Manual Travel Limit

Advantages:

• High Flow Rate, Low Resistance, No Water-Hammer

• Y-type Shape Enlarged The Flowing Section, Which Could Raise The Flux By 30% And Make Flow More Smooth

• High Cycle Life Compared To Ball Valves

• Which Help The Stem Adjust And Lubricate Itself Automatically

• Installation: Any position

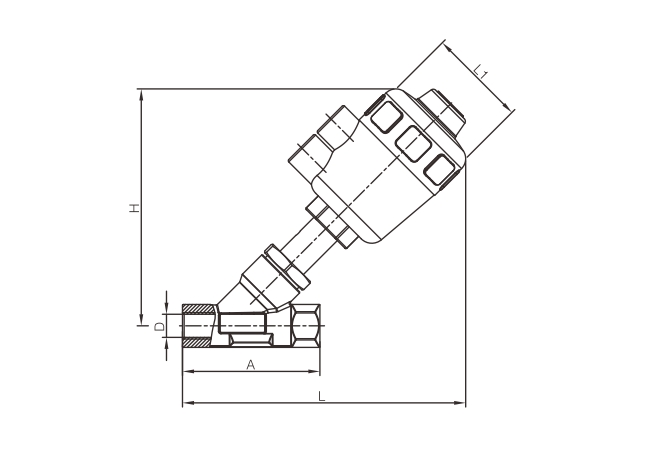

Female Connection

	Model No	Size	D	L	A	H	L1	Actuator
	VGN44PC451050NN	DN15	1/2''	172	86	137	64	⌀50
	VGN44PC451075NN	DN20	3/4''	178	95	145	64	⌀50
	VGN44PC451100NN	DN25	1''	210	105	165	64/80	⌀50/⌀63
	VGN44PC451125NN	DN32	1 1/4''	220	120	180	80	⌀63
	VGN44PC451150NN	DN40	1 1/2''	228	130	190	80	⌀63
	VGN44PC451200NN	DN50	2''	268	150	245	100	⌀80
	VGN44PC451250NN	DN65	2 1/2''	282	185	272	100	⌀80
	VGN44PC451300NN	DN80	3''	362	220	302	126	⌀100

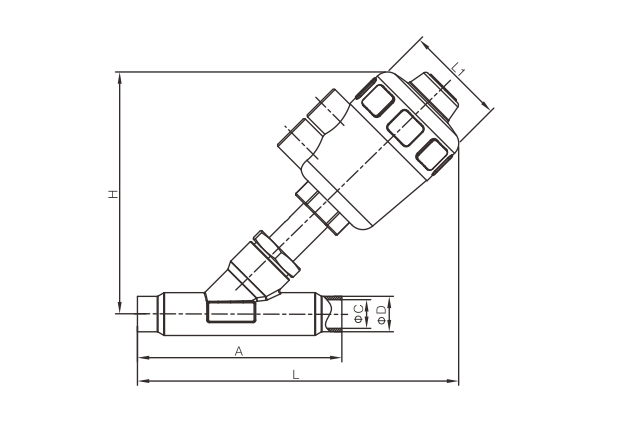

Weld Connection

	Model No	Size	C	D	L	A	H	L1	Actuator
	VGN11PC452020NN	DN20	19	22	284	120	145	64	⌀50
	VGN11PC452025NN	DN25	25	28	224	150	165	64/80	⌀50/⌀63
	VGN11PC452032NN	DN32	31	34	250	155	180	64	⌀50
	VGN11PC452040NN	DN40	37	40	257	170	190	64	⌀50
	VGN11PC452050NN	DN50	49	52	290	190	245	80	⌀63
	VGN11PC451075NN	3/4''	15.75	19.05	184	120	137	64	⌀50
	VGN11PC451100NN	1''	22.1	25.4	224	150	165	64/80	⌀50/⌀63
	VGN11PC451125NN	1 1/4''	28.5	31.8	250	155	182	64	⌀50
	VGN11PC451150NN	1 1/2''	34.8	38.1	257	170	186	64	⌀50
	VGN11PC451200NN	2''	46.5	64	290	190	219	80	⌀63

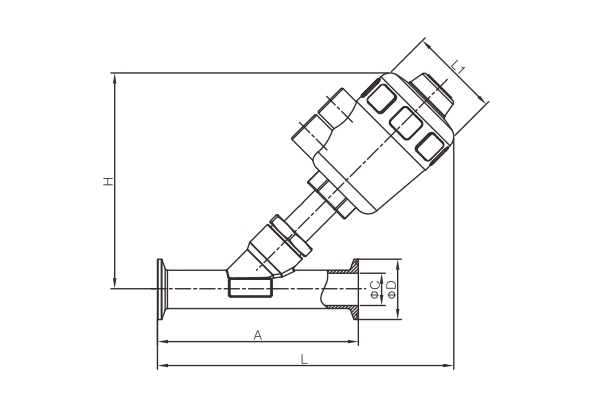

Clamp Connection

	Model No	Size	C	D	L	A	H	L1	Actuator
	VGN22PC452020NN	DN20	19	50.5	284	120	143	64	⌀50
	VGN22PC452025NN	DN25	25	50.5	224	150	182	64/80	⌀50/⌀63
	VGN22PC452032NN	DN32	31	50.5	250	155	182	64	⌀50
	VGN22PC452040NN	DN40	37	50.5	257	170	186	64	⌀50
	VGN22PC452050NN	DN50	49	64	290	190	219	80	⌀63
	VGN22PC451075NN	3/4''	15.75	50.5	184	120	137	64	⌀50
	VGN22PC451100NN	1''	22.1	50.5	224	150	182	64/80	⌀50/⌀63
	VGN22PC451125NN	1 1/4''	28.5	50.5	250	155	182	64	⌀50
	VGN22PC451150NN	1 1/2''	34.8	50.5	257	170	186	64	⌀50
	VGN22PC451200NN	2''	46.5	64	290	190	219	80	⌀63

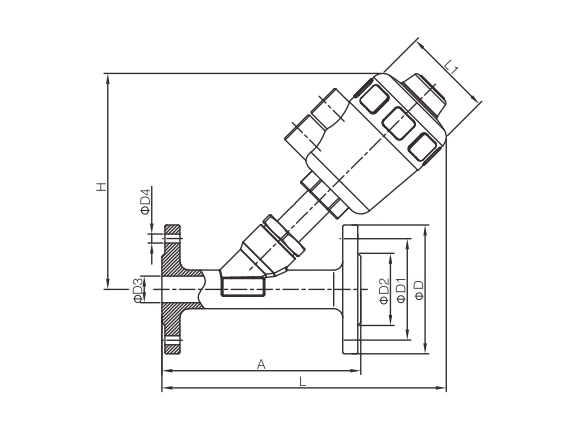

Flange Connection

	Model No	Size	D	D1	D2	D3	D4	L	A	H	L1
	VGN55PC452020NN	DN20	105	75	50	19	4-⌀14	185	130	145	64
	VGN55PC452025NN	DN25	115	85	60	25	4-⌀14	210	140	173	64/80
	VGN55PC452032NN	DN32	135	100	70	31	4-⌀18	240	150	210	64
	VGN55PC452040NN	DN40	145	110	80	37	4-⌀18	245	180	260	64
	VGN55PC452050NN	DN50	160	125	92	49	4-⌀18	295	195	300	80
	VGN55PC451075NN	3/4''	95	65	40	15.75	4-⌀14	180	120	137	64
	VGN55PC451100NN	1''	115	85	60	22.1	4-⌀14	210	140	173	64/80
	VGN55PC451125NN	1 1/4''	135	100	70	28.5	4-⌀18	240	150	210	64
	VGN55PC451150NN	1 1/2''	145	110	80	34.8	4-⌀18	245	180	260	64
	VGN55PC451200NN	2''	160	125	92	47.5	4-⌀18	295	195	300	80
