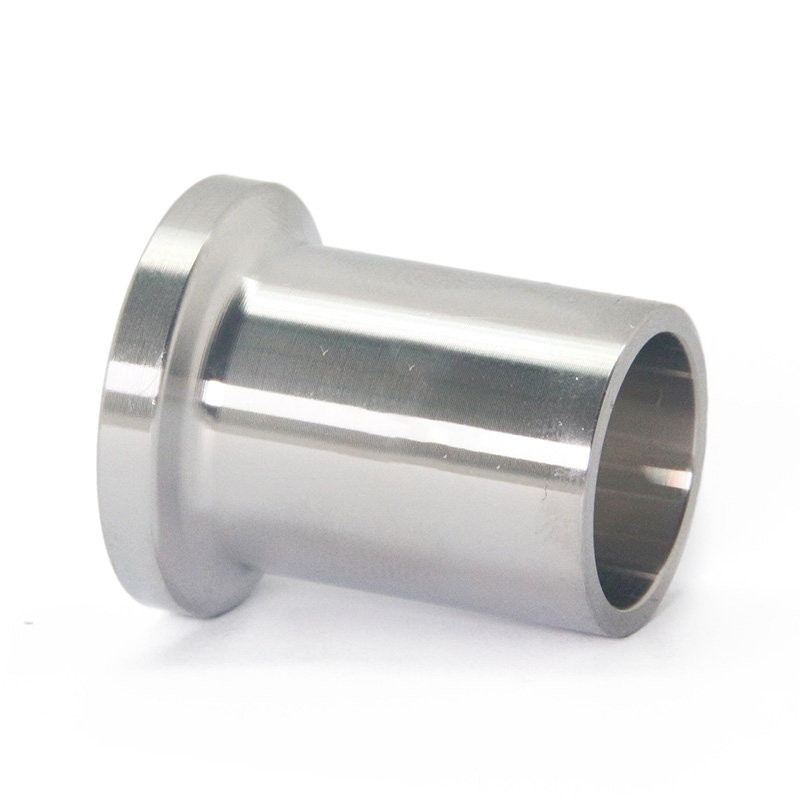

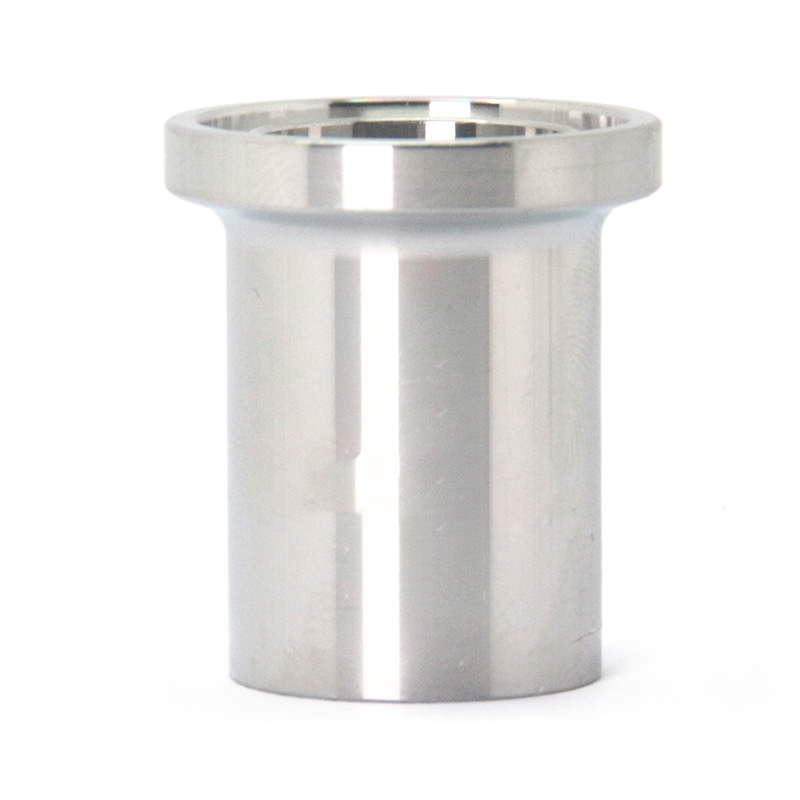

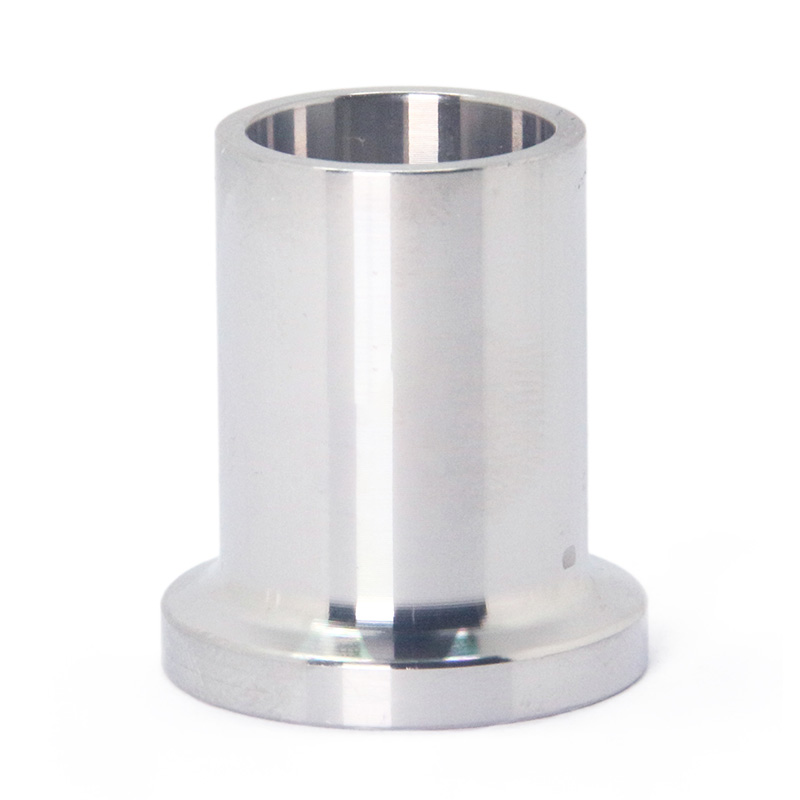

FLW DT-4.1.4-1 Weld Ferrule(DT-22) Short/Middle/Long SS316L Stainless Steel 1/4"-6" Sanitary ASME BPE Fitting Polished

BPE is the body of standards for bioprocessing equipment developed by the American Society of Mechanical Engineers (ASME)composed of volunteer professionals worldwide in 36 technical sub-field. BPE establishes standards for the design of equipmentused in bioprocessing, pharmaceutical and personal-care products, and other industries with strict hygienic requirements. it coverssystem design, materials, fabrication, inspections, cleaning and sanitization

Surface Finish

Tube Dimension

Dimension & Tolerance

Material

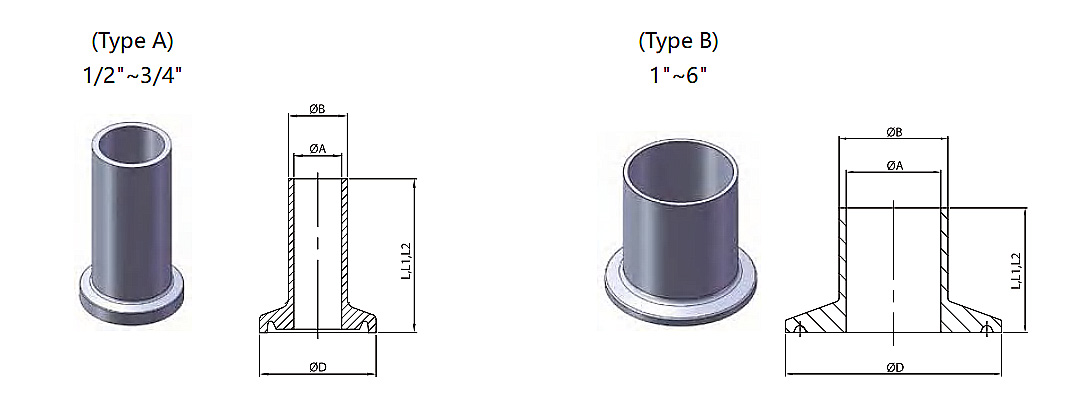

DT-4.1.4-1 Weld Ferrule(DT-22)

Type	Size	D/mm	B/mm	A/mm	Short			Middle			Long
					Model	L/mm	N.W./g	Model	L/mm	N.W./g	Model	L/mm	N.W./g
A	1/4"	25	6.35	4.57	FLW01B025	12.7		FLW02B025	28.6		FLW03B025	44.45
	3/8"	25	9.53	7.75	FLW01B038	12.7		FLW02B038	28.6		FLW03B038	44.45
	1/2"	25	12.7	9.4	FLW01B050	12.7	17.7	FLW02B050	28.6	26	FLW03B050	44.45
	3/4"	25	19.05	15.75	FLW01B075	12.7	13.6	FLW02B075	28.6	27	FLW03B075	44.45
B	1"	50.5	25.4	22.1	FLW01B100	12.7	68	FLW02B100	28.6	84	FLW03B100	44.45
	11/2"	50.5	38.1	34.8	FLW01B150	12.7	43.5	FLW02B150	28.6	63.5	FLW03B150	44.45
	2"	64	50.8	47.5	FLW01B200	12.7	59	FLW02B200	28.6	90.7	FLW03B200	57.15
	21/2"	77.5	63.5	60.2	FLW01B250	12.7	77.1	FLW02B250	28.6	113.4	FLW03B250	57.15
	3"	91	76.2	72.9	FLW01B300	12.7	99.8	FLW02B300	28.6	136	FLW03B300	57.15
	4"	119	101.6	97.38	FLW01B400	15.9	176.9	FLW02B400	28.6	263	FLW03B400	57.15
	6"	167	152.4	146.86	FLW01B600	19.05		FLW02B600	38.1	580.6	FLW03B600	76.2
