DT-4.1.2-6 Reducing Tee (DT-10)
DT-4.1.2-6 Reducing Tee (DT-10)

DT-4.1.2-6 Reducing Tee (DT-10) ASME BPE Fitting 3/4"x1/2"-6"x4" Welded Tees Sanitary SS316L

Model No.:FTW02R

SKU:FTW02R

BPE Size:
3/4"x1/2"
  • 3/4"x1/2"
  • 1"x1/2"
  • 1"x3/4"
  • 11/2"x1/2"
  • 11/2"x3/4"
  • 11/2"x1"
  • 2"x1/2"
  • 2"x3/4"
  • 2"x1"
  • 2"x11/2"
  • 21/2"x1/2"
  • 21/2"x3/4"
  • 21/2"x1"
  • 21/2"x11/2"
  • 21/2"x2"
  • 3"x1/2"
  • 3"x3/4"
  • 3"x1"
  • 3"x11/2"
  • 3"x2"
  • 3"x21/2"
  • 4"x1/2"
  • 4"x3/4"
  • 4"x1"
  • 4"x11/2"
  • 4"x2"
  • 4"x21/2"
  • 4"x3"
  • 6"x1/2"
  • 6"x3/4"
  • 6"x1"
  • 6"x11/2"
  • 6"x2"
  • 6"x21/2"
  • 6"x3"
  • 6"x4"
Material:
SS316L
  • SS316L
Finishing:
SF1
  • SF1
  • SF4
Inquire

BPE is the body of standards for bioprocessing equipment developed by the American Society of Mechanical Engineers (ASME)composed of volunteer professionals worldwide in 36 technical sub-field. BPE establishes standards for the design of equipmentused in bioprocessing, pharmaceutical and personal-care products, and other industries with strict hygienic requirements. it coverssystem design, materials, fabrication, inspections, cleaning and sanitization

Surface Finish

BPE Code Mechanicall Polished BPE Code Mechanicall Polished & Electroplished
Ra Average Ra Average
uin um uim un
SF0 NO Polished NO Polished SF4 15 0.38
SF1 20 0.51 SF5 20 0.51
SF2 25 0.64 SF6 25 0.64
SF3 30 0.76

Tube Dimension

Size OD Tube Wall Thickness
Inch mm Inch mm
1/4" 0.25 6.35 0.035 0.89
3/8" 0.375 9.53 0.035 0.89
1/2" 0.5 12.7 0.065 1.65
3/4" 0.75 19.05 0.065 1.65
1" 1 25.4 0.065 1.65
1.5" 1 38.1 0.065 1.65
2" 2 50.8 0.065 1.65
2.5" 2.5 63.5 0.065 1.65
3" 3 76.2 0.065 1.65
4" 4 101.6 0.083 2.1
6" 6 152.4 0.109 2.77

Dimension & Tolerance

Size OD Tube Wall Thickness
mm Mechanically Polished Electro Polished
1/4" ±0.13 +0.13/-0.10 +0.08/-0.15
3/8" ±0.13 +0.13/-0.10 +0.08/-0.15
1/2" ±0.13 +0.13/-0.20 +0.13/-0.25
3/4" ±0.13 +0.13/-0.20 +0.13/-0.25
1" ±0.13 +0.13/-0.20 +0.13/-0.25
1.5" ±0.2 +0.13/-0.20 +0.13/-0.25
2" ±0.2 +0.13/-0.20 +0.13/-0.25
2.5" ±0.25 +0.13/-0.20 +0.13/-0.25
3" ±0.25 +0.13/-0.20 +0.13/-0.25
4" ±0.38 +0.20/-0.25 +0.20/-0.30
6" ±0.76 +0.38/-0.38 +0.38/-0.43

Material

Material C M N Cr Ni Mo S
SS3163/316L 0.003 2 0.1 16.0-18.0 10.0-14.0 2.0-3.0 0.005-0.007
EN1.4404 0.003 2 0.1 16.0-18.5 10.0-14.5 2.0-2.5 0.005-0.007

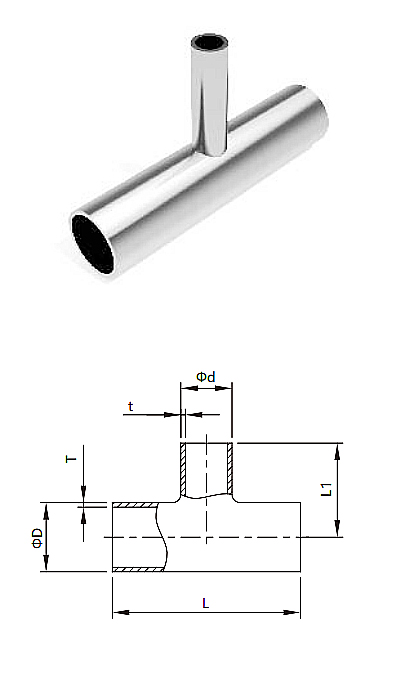

DT-4.1.2-6 Reducing Tee (DT-10)

Model No Size D/mm d/mm L/mm L1/mm T/mm t/mm N.W/g.
FTW02RB075050 3/4"x1/2" 19.05 12.7 101.6 50 1.65 1.65
FTW02RB100050 1"x1/2" 25.4 12.7 107.96 53.98 1.65 1.65
FTW02RB100075 1"x3/4" 25.4 19.05 107.96 53.98 1.65 1.65
FTW02RB150050 11/2"x1/2" 38.1 12.7 120.66 60.33 1.65 1.65
FTW02RB150075 11/2"x3/4" 38.1 19.05 120.66 60.33 1.65 1.65
FTW02RB150100 11/2"x1" 38.1 25.4 120.66 60.33 1.65 1.65
FTW02RB200050 2"x1/2" 50.8 12.7 146.06 73.03 1.65 1.65
FTW02RB200075 2"x3/4" 50.8 19.05 146.06 73.03 1.65 1.65
FTW02RB200100 2"x1" 50.8 25.4 146.06 73.03 1.65 1.65
FTW02RB200150 2"x11/2" 50.8 38.1 146.06 73.03 1.65 1.65
FTW02RB250050 21/2"x1/2" 63.5 12.7 158.76 79.38 1.65 1.65
FTW02RB250075 21/2"x3/4" 63.5 19.05 158.76 79.38 1.65 1.65
FTW02RB250100 21/2"x1" 63.5 25.4 158.76 79.38 1.65 1.65
FTW02RB250150 21/2"x11/2" 63.5 38.1 158.76 79.38 1.65 1.65
FTW02RB250200 21/2"x2" 63.5 50.8 158.76 79.38 1.65 1.65
FTW02RB300050 3"x1/2" 76.2 12.7 171.46 85.73 1.65 1.65
FTW02RB300075 3"x3/4" 76.2 19.05 171.46 85.73 1.65 1.65
FTW02RB300100 3"x1" 76.2 25.4 171.46 85.73 1.65 1.65
FTW02RB300150 3x11/2" 76.2 38.1 171.46 85.73 1.65 1.65
FTW02RB300200 3"x2" 76.2 50.8 171.46 85.73 1.65 1.65
FTW02RB300250 3"x21/2" 76.2 63.5 171.46 85.73 1.65 1.65
FTW02RB400050 4"x1/2" 101.6 12.7 209.56 104.98 2.11 1.65
FTW02RB400075 4"x3/4" 101.6 19.05 209.56 104.98 2.11 1.65
FTW02RB400100 4"x1" 101.6 25.4 209.56 104.98 2.11 1.65
FTW02RB400150 4"x11/2" 101.6 38.1 209.56 104.98 2.11 1.65
FTW02RB400200 4"x2" 101.6 50.8 209.56 104.98 2.11 1.65
FTW02RB400250 4"x21/2" 101.6 63.5 209.56 104.98 2.11 1.65
FTW02RB400300 4"x3" 101.6 76.2 209.56 104.98 2.11 1.65
FTW02RB600300 6"x3" 152.4 76.2 285.76 142.88 2.77 1.65
FTW02RB600400 6"x4" 152.4 101.6 285.76 142.88 2.77 2.11
