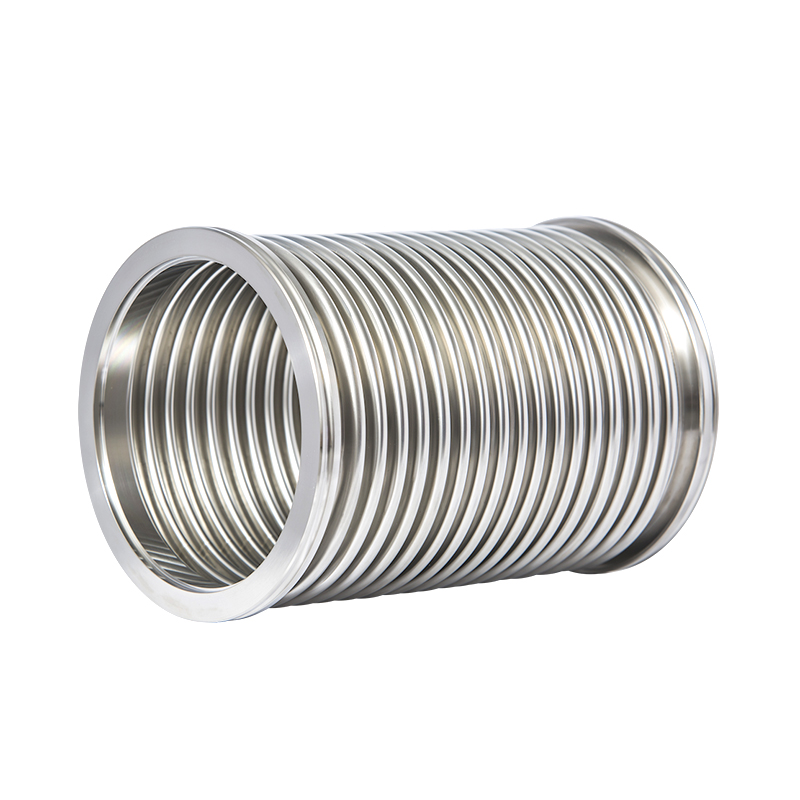

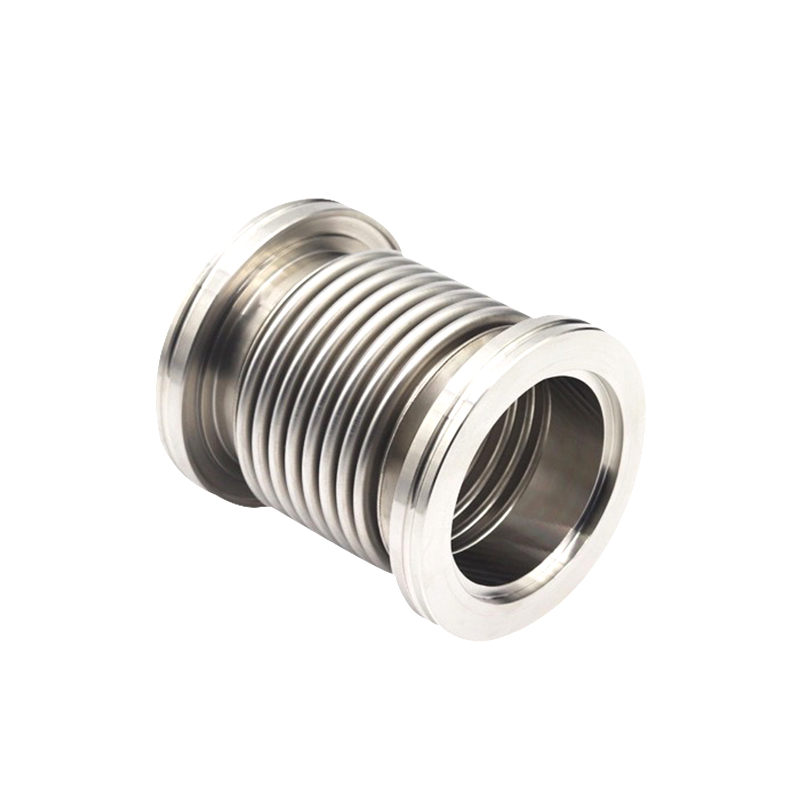

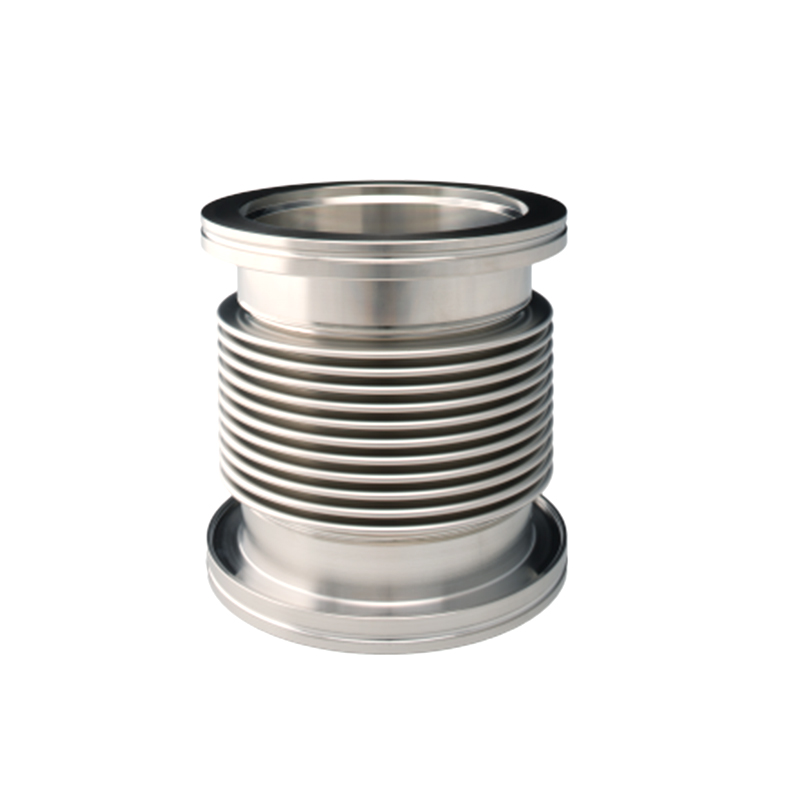

ISO-K Vacuum Compressible Bellows

ISO-KF fittings can be used in a wide variety of applications including:

 • Roughing and foreline plumbing

 • Small systems

 • Systems requiring frequent cleaning or modification

 • Research and teaching laboratories ISO-KF components are primarily designed for use at subatmospheric pressure.

ISO-K Bellows

*Material: Hose: SUS304,SUS316L

*NW flange: SUS304,SUS316L

*Working Pressure: Vaccum~atmospheric pressure

*Vacuum Range: 1x10 ⁻⁹Torr

*Hose Thickness: 0.2mm for ISO63-ISO100

                            0.25mm for ISO125-ISO160

                            0.3mm for ISO200

	Model for 304	Size	ID/mm	OD/mm	D/mm	l/mm	L/mm
	FVS011M63L1004	ISO63	65	86	95	25	100
	FVS011M80L1004	ISO80	80	100	110	25	100
	FVS011M100L1004	ISO100	100	125	130	25	100
	FVS011M125L1004	ISO125	125	150	155	25	100
	FVS011M160L1004	ISO160	150	178	180	25	100
	FVS011M200L1004	ISO200	200	230	240	25	100
