* Material: Hose:SUS304,SUS316L
* NW flange:SUS304,SUS316L
* Working Pressure: Vacuum～atmospheric pressure
* Vacuum Range: 1x10-9 Torr
* Hose Thickness: 0.15mm or 0.2mm for KF16-KF50
0.2mm for KF63-KF100
0.25mm for KF125-KF160
0.3mm for KF200
* Material: Hose:SUS304,SUS316L
 |

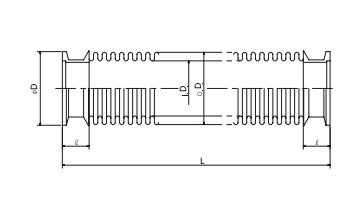

Model for 304 | Size | ID/mm | OD/mm | D/mm | l/mm | L/mm |
| FVK011K16L1004 | KF16 | 20 | 31 | 30 | 12.7 | 100 | |
| FVK011K25L1004 | KF25 | 25.2 | 36.5 | 40 | 12.7 | 100 | |
| FVK011K40L1004 | KF40 | 38.2 | 56 | 55 | 12.7 | 100 | |
| FVK011K50L1004 | KF50 | 50.2 | 66.5 | 75 | 12.7 | 100 | |
| FVK011K63L1004 | KF63 | 65 | 86 | 87 | 25 | 100 | |
| FVK011K80L1004 | KF80 | 80 | 100 | 114 | 25 | 100 | |
| FVK011K100L1004 | KF100 | 100 | 125 | 134 | 25 | 100 |
*Length L can be customized
